ELECTRICAL ENGINEERING DEPARTMENT

COURSE: ELECTRICAL ENGINEERING - POWER


CLASS: EET 610S NUMBER OF TRAINEES:…95.
NUMBER OF WORK STATIONS:……18………..
UNIT OF COMPETENCY: PERFROM ELECTRICAL INSTALATION
DATE OF PROJECT: 17TH/ 06/2025.

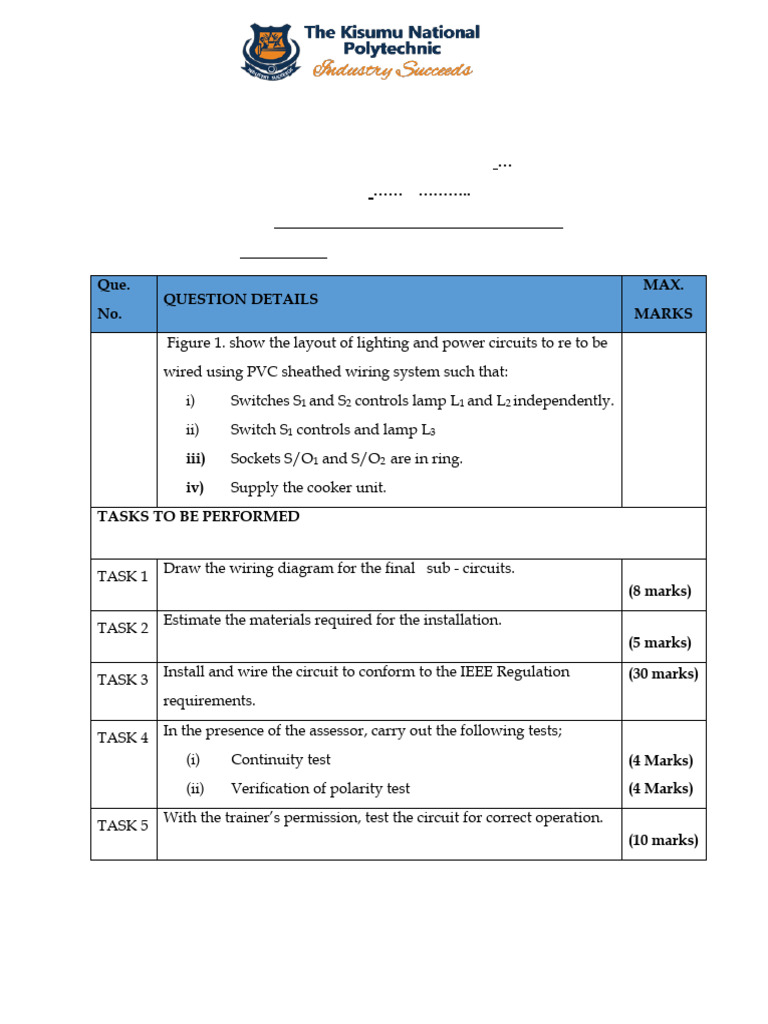

Que. MAX.
QUESTION DETAILS
No. MARKS
Figure 1. show the layout of lighting and power circuits to re to be
wired using PVC sheathed wiring system such that:
i) Switches S1 and S2 controls lamp L1 and L2 independently.
ii) Switch S1 controls and lamp L3
iii) Sockets S/O1 and S/O2 are in ring.
iv) Supply the cooker unit.
TASKS TO BE PERFORMED

TASK 1 Draw the wiring diagram for the final sub - circuits.
(8 marks)

TASK 2 Estimate the materials required for the installation.


(5 marks)

TASK 3 Install and wire the circuit to conform to the IEEE Regulation (30 marks)
requirements.

TASK 4 In the presence of the assessor, carry out the following tests;
(i) Continuity test (4 Marks)
(ii) Verification of polarity test (4 Marks)

TASK 5 With the trainer’s permission, test the circuit for correct operation.
(10 marks)
LAYOUT DIAGRAM
LIST OF MATERIALS

No. MATERIAL UNIT QUANTITY


1. Consumer Control Unit Complete No. 1
2. Straight batten lamp holder No. 3
3. One gang – one-way switch No. 1
4. One gang – two-way switch No. 2
5. 240v/40 W lamp No. 3
6. 13A Socket outlet No. 3
7. PVC 4-way circular box No. 3
8. Shallow Patress box No. 3
9. Single Deep patress box no 2
10. Double Patress box No 1
11. 10mm tower clips pkt 1
12. 12mm tower clips pkt 1
13. 1’’ Gypsum screw No. 14
14. ½ “Gypsum screw No. 22
15. 1.5mm2 PVC Sheathed cable Meter 8
16. 2.5mm2 PVC single core cable - Black Meter 6
17. 6.0 mm2 PVC single core cable - Red Meter 5

COMPILED BY: NICHOLAS OPIYO (TRAINER) DATE:…………………………….. SIGN:…………………………….

RECEIVED BY:………………………………………………….(TECHNICIAN) DATE:………………SIGN:…………………………….

APPROVED BY:…………………………………………….(HoD) DATE:………………SIGN:…………………………….
