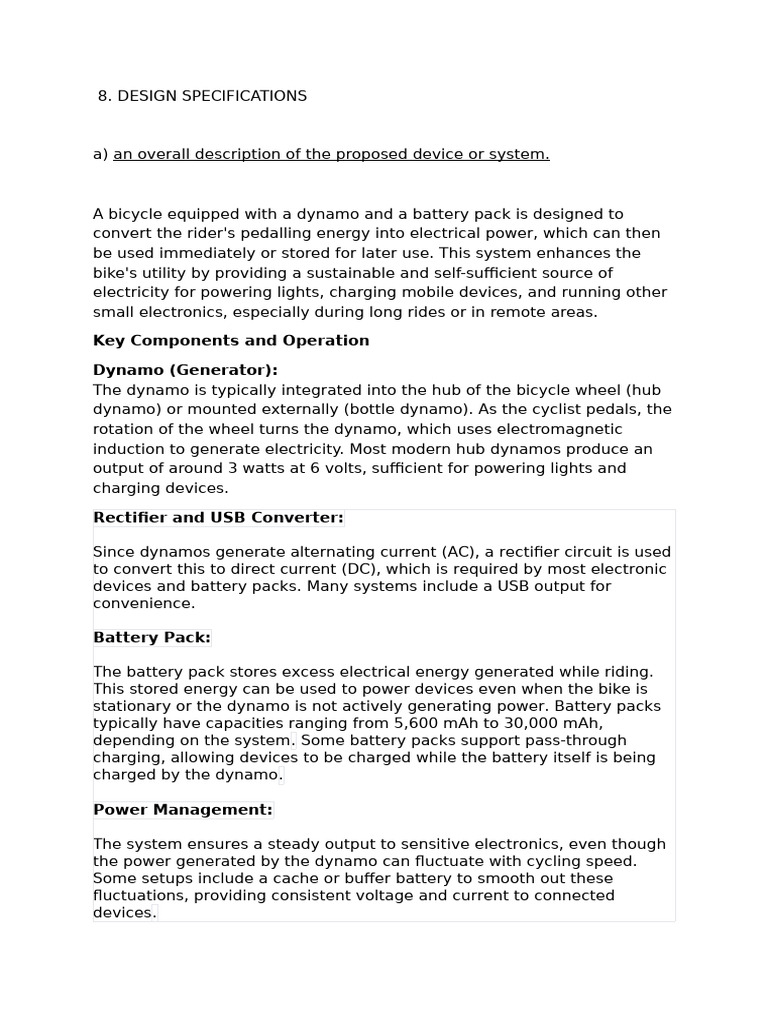

8.
DESIGN SPECIFICATIONS
a) an overall description of the proposed device or system.
A bicycle equipped with a dynamo and a battery pack is designed to
convert the rider's pedalling energy into electrical power, which can then
be used immediately or stored for later use. This system enhances the
bike's utility by providing a sustainable and self-sufficient source of
electricity for powering lights, charging mobile devices, and running other
small electronics, especially during long rides or in remote areas.
Key Components and Operation
Dynamo (Generator):
The dynamo is typically integrated into the hub of the bicycle wheel (hub
dynamo) or mounted externally (bottle dynamo). As the cyclist pedals, the
rotation of the wheel turns the dynamo, which uses electromagnetic
induction to generate electricity. Most modern hub dynamos produce an
output of around 3 watts at 6 volts, sufficient for powering lights and
charging devices.
Rectifier and USB Converter:
Since dynamos generate alternating current (AC), a rectifier circuit is used
to convert this to direct current (DC), which is required by most electronic
devices and battery packs. Many systems include a USB output for
convenience.
Battery Pack:
The battery pack stores excess electrical energy generated while riding.
This stored energy can be used to power devices even when the bike is
stationary or the dynamo is not actively generating power. Battery packs
typically have capacities ranging from 5,600 mAh to 30,000 mAh,
depending on the system. Some battery packs support pass-through
charging, allowing devices to be charged while the battery itself is being
charged by the dynamo.
Power Management:
The system ensures a steady output to sensitive electronics, even though
the power generated by the dynamo can fluctuate with cycling speed.
Some setups include a cache or buffer battery to smooth out these
fluctuations, providing consistent voltage and current to connected
devices.
Features and benefits
Sustainable Power:
Converts the cyclist’s mechanical energy into renewable electrical energy,
reducing reliance on disposable batteries or external charging sources.
On-the-Go Charging
Powers lights, GPS units, smartphones, and other USB devices directly or
via the battery pack.
Seamless Integration:
Hub dynamos are integrated into the wheel and add minimal drag or
weight, making them suitable for regular use without noticeable impact on
riding performance.
All-Weather Reliability:
Most modern systems are sealed and weatherproof, ensuring reliable
operation in various conditions.
b) a general layout of the proposed device or system
The proposed system integrates a dynamo with a battery pack to provide
reliable, on-the-go electrical power for bicycle lighting and device
charging. Below is a general layout describing the main components and
their connections:
1. Dynamo (Generator)
Location: Mounted on the bicycle, typically as a hub dynamo (inside the
front wheel hub) or as a sidewall/bottle dynamo (contacting the tire or
rim)124.
Function: Converts mechanical energy from the spinning wheel into
electrical energy (typically 6V AC, up to 3W).
2. Rectification and Regulation Circuit
Bridge Rectifier: Converts the AC output from the dynamo to DC.
Voltage Regulator: Smooths and regulates the voltage to a stable 5V DC
output suitable for USB charging or battery charging.
Capacitors: Used to buffer and stabilize the voltage, reducing
fluctuations from varying cycling speeds.
3. Battery Pack
Type: Rechargeable battery (e.g., Ni-Cd, Li-Ion).
Connection: Wired to receive charge from the regulated DC output of the
dynamo circuit.
Function: Stores excess electrical energy generated while riding for later
use, such as powering lights or charging devices when the bike is
stationary.
4. Load Outputs
Lighting: Front and rear LED lamps powered either directly from the
dynamo while riding or from the battery pack when stationary.
USB/Device Charging: A USB output port (or micro-USB) for charging
smartphones or other small devices.
5. Control and Protection
Switching Circuit/Relay: Automatically switches power source for lights
between the dynamo and battery, depending on whether the bike is
moving.
Over-voltage Protection: Zener diodes or similar components to protect
Summary of Operation
When the bicycle is in motion, the dynamo generates AC power.
The AC is rectified and regulated to provide a stable DC output.
This DC output charges the battery pack and powers the lighting system
and/or USB charging port.
When the bicycle stops, the battery pack supplies power to the lights and
USB port.
Protection and control circuits ensure safe, efficient, and reliable
operation.
c) materials specification.
Materials Specification for Bicycle Dynamo and Battery Pack
System
Below is a comprehensive materials specification for a bicycle system
integrating a dynamo and a battery pack, based on current engineering
standards and referenced sources.
1. Dynamo
Type: Rim or hub dynamo
Output: 6V, 3W (typical; up to 500 mA current output)
Body Material: Lightweight, corrosion-resistant metal or high-strength
plastic housing
Magnet: High-performance rare earth magnets (e.g., neodymium)
Coil: Copper wire winding
Friction Roller/O-ring: Industrial-grade, UV-resistant rubber
Bearings: Corrosion-proof plain or ball bearings
Bracket and Fasteners: Stainless steel or aluminium alloy for mounting
and adjustment
Weight: 60–90 g (dynamo only)
2. Battery Pack
Cell Type: Lithium-ion (Li-ion) preferred for high energy density and long
cycle life
Configuration: Series and parallel arrangement to achieve desired
voltage and capacity (e.g., 13S3P for 48V, 15Ah)
Battery Management System (BMS): For cell balancing, overcharge,
and over discharge protection
Battery Holder: Insulating plastic or composite material
Nickel Strip: For cell interconnection (spot-welded)
Insulation Gasket Paper: To prevent short circuits
Fiberglass Tape: For securing and protecting the battery module
PVC Heat Shrink Wrap: For final battery pack insulation and protection
Connectors: XT90 for power, female DC jack for charging
3. Power Regulation and Charging Circuit
Rectifier: 1N4007 diodes (x4) for bridge rectifier
Voltage Regulator: LM317 or equivalent adjustable voltage regulator IC
with heatsink.
Resistors: Wire-wound, e.g., 10Ω, 2W for current limiting.
Capacitors: For voltage smoothing (electrolytic and ceramic as required)
Switches/Relays: For switching between dynamo and battery power
Protection: Zener diodes for over-voltage protection (optional)
Wiring: Flexible, insulated copper wires
4. Lighting and Output
LED Lamps: High-efficiency LEDs for front and rear lighting (compatible
with 6V DC output)
USB Output Module: 5V DC regulated output for device charging
5. Assembly and Mounting
Mounting Brackets: Stainless steel or aluminium alloy, adjustable for
different bicycle frames
Fasteners: Stainless steel bolts, nuts, and washers
Enclosures: Weather-resistant plastic or aluminium for electronics
Summary Table
Component Material/Specification Notes
Dynamo Body Lightweight metal/plastic Corrosion-resistant, 60–90g
Magnets Rare earth (neodymium) High efficiency
Coil Copper wire
Bearings Corrosion-proof plain/ball
Component Material/Specification Notes
O-ring/Friction
Roller Industrial-grade UV-resistant rubber
Battery Cells Li-ion (e.g., NMC21700, 3.6V, 5Ah) 13S3P for 48V, 15Ah exam
BMS Integrated circuit For safety and cell balancin
Nickel Strip Nickel For cell interconnection
Gasket paper, fiberglass tape, PVC Electrical and mechanical
Insulation heat shrink protection
Rectifier Diodes 1N4007 Bridge rectifier
Voltage
Regulator LM317 or similar With heatsink
Connectors XT90, DC jack For power and charging
Mounting
Hardware Stainless steel/aluminium Brackets, fasteners
Enclosure Plastic/aluminium Weather-resistant
d) manufacturing processes, metrology etc.
Manufacturing Processes and Metrology for a Bicycle Dynamo and Battery
Pack System
1. Dynamo Manufacturing
Key Processes and Materials:
Magnet Assembly:
High-performance neodymium magnets (6–14 poles) are cemented into a
magnetic feedback ring to minimize cogging torque.
Ferrite rings (for cost efficiency) or multipolar neodymium rings (for
lightweight design).
Stator Winding:
Copper wire wound onto pole shanks in alternating directions to maximize
voltage output.
Single-phase or three-phase configurations, depending on efficiency
requirements.
Housing and Mounting:
Lightweight aluminium or stainless-steel brackets for corrosion resistance.
Friction roller with UV-resistant rubber for rim contact.
Manufacturing Methods:
CNC Machining: For precise stator and rotor components.
Sheet Metal Fabrication: For housing and mounting brackets.
2. Battery Pack Assembly
Key Processes and Materials:
Cell Preparation:
Lithium-ion cells (e.g., NMC21700) are cleaned and arranged in
series/parallel configurations.
Nickel strips spot-welded for interconnection.
Modularization:
Cells secured in plastic/composite modules with busbars or wiring
harnesses.
Modules sealed with fiberglass tape and PVC heat shrink.
Battery Management System (BMS):
Integrated for cell balancing, overcharge/discharge protection.
Manufacturing Methods:
Injection Moulding: For battery enclosures.
3D Printing: Prototyping custom casings or complex geometries.
Quality Assurance Workflows:
Incoming Materials:
ICP-MS for trace metal analysis (e.g., Fe, Cu in electrolytes).
Thermogravimetric Analysis (TGA) for moisture detection.
In-Line Testing:
Vision measurement systems for electrode alignment.
Gas chromatography to monitor electrolyte decomposition.
Post-Production:
X-ray Diffraction (XRD) to assess cathode crystal structure.
Cycle testing for capacity retention.
4. System Integration
Assembly Line Steps (Electric Bicycle Example):
Frame Fabrication: Welding aluminium/steel tubes.
Dynamo Integration: Mounting hub dynamo to front wheel.
Battery Installation: Securing modules in weatherproof enclosures.
Electrical Testing: Voltage/current checks for dynamo-battery
compatibility.
Key Tools:
Automated torque wrenches for consistent fastener tension.
UV-Vis spectroscopy for electrolyte purity validation.
e) engineering drawings including detail drawings or sketches appropriate
to the design. These may be drawn manually or by CAD and must be in
accordance with Standard SABS 0111.
f) the performance capability of the device - this should be compared with
the URS.
The bicycle dynamo and battery pack system is designed to meet the
User Requirements Specification (URS) for reliable, self-sufficient power
generation and storage while cycling. Here is a summary of its
performance capability compared to typical URS criteria:
Power Output and Charging Capability:
Modern hub and rim dynamos can generate between 3 and 10 watts
depending on speed and model. For example, a quality hub dynamo like
the SONDelux can produce 3 watts at 18–19 km/h, while advanced rim
dynamos (such as the PedalCell) can reach up to 10 watts at higher
speeds. This is sufficient to power bicycle lights and charge USB devices
like smartphones and GPS units while riding. However, at lower speeds
(below about 13 km/h), charging performance drops and some devices
may not charge reliably.
Battery Pack Performance:
Battery packs integrated with dynamo systems typically range from 1,000
mAh to 7,500 mAh in capacity. These buffer batteries store energy
generated while riding, allowing devices to be charged even when the
bike is stationary or moving slowly. For instance, a 1,000 mAh buffer
battery can be fully charged in 2–3 hours of riding at moderate
speeds. Larger power banks (e.g., 10,000–20,000 mAh) require much
longer, often a full day or more of riding to fully charge from a
dynamo. For most touring or commuting needs, this setup is sufficient to
keep essential devices powered, especially when combined with careful
energy management.
Efficiency and Drag:
High-end dynamo systems achieve efficiencies of 60–75% at typical
cycling speeds, with rim dynamos like the PedalCell being particularly
efficient. The additional drag imposed by the dynamo is minimal and
generally not noticeable during normal riding.
Durability and Reliability:
Well-designed dynamo and battery systems are durable and weather-
resistant, with maintenance intervals for parts like O-rings on rim
dynamos extending to several thousand kilometers4. Hub dynamos and
integrated battery packs have been proven to last for many thousands of
kilometres of touring use without significant issues.
Comparison with URS:
The system reliably powers lights and charges devices during typical
riding conditions, meeting the URS for continuous on-the-go energy
supply.
It provides buffer storage to cover stops and low-speed riding, as required.
Charging very large power banks (10,000 mAh or more) is slow and may
not meet expectations for rapid recharging but is sufficient for daily device
top-ups and essential lighting.
The system is lightweight, efficient, and robust, aligning with URS goals
for minimal added weight and maintenance.
Conclusion:
The bicycle dynamo and battery pack system meets or exceeds the URS
for most practical cycling scenarios, especially for lighting and moderate
device charging needs. It is not suited for rapid charging of large-capacity
power banks, but excels at providing sustainable, reliable power for
essential electronics during multi-day rides or commutes.
g) comments on any critical areas that could impact the success of the
design.
Several critical areas could impact the success of a bicycle dynamo and
battery pack design:
1. Electrical Efficiency and Power Losses
Bicycle dynamos typically have low nominal power output (about 3W), and
significant losses can occur in the rectification and voltage regulation
stages. Standard bridge rectifiers introduce notable voltage drops, which
are a large fraction of the total output, reducing the effective power
available for charging devices or running lights. Advanced solutions such
as Schottky diodes, efficient buck converters, and reactive power
compensation are needed to minimize these losses and maximize usable
output.
2. Mechanical and Component Reliability
Dynamos are subject to mechanical wear, especially in components like
brushes, bearings, and voltage regulators. Worn brushes or bearings can
lead to poor electrical contact, overheating, or even failure of the dynamo.
Voltage regulators, if not robust, can fail due to rapid switching or
capacitor breakdown, resulting in overcharging or undercharging and
potential damage to the battery or dynamo itself. Regular maintenance
and high-quality components are essential to ensure reliability over time.
3. Battery Pack Safety and Thermal Management
Battery pack design is complex and must ensure consistent electrical
output, proper load distribution, and robust protection against
overcharging and deep discharging. Poor thermal management can lead
to overheating, uneven cell aging, or even thermal runaway, posing safety
risks such as fire or battery failure. Integrating a reliable Battery
Management System (BMS) and using materials with good thermal
conductivity for the casing are vital to manage heat and maintain safety.
4. Charging System Compatibility and Safety
The charger and BMS must be specifically matched to the battery
chemistry and configuration. Incompatible or low-quality chargers can fail
to properly terminate charging, leading to overcharging and increased risk
of fire or battery damage. Using certified, product-specific chargers and
connectors is crucial to prevent safety hazards, especially as improper
charging practices have been linked to fires in lithium battery-powered
bikes.
5. Weight, Drag, and User Experience
Dynamos and battery systems add weight and drag to the bicycle, which
can affect ride quality and efficiency. While the added weight is generally
modest, it may be noticeable for performance-oriented riders.
Additionally, dynamo-powered lights may flicker or dim at low speeds,
impacting safety and usability.
6. Inconsistent Power Supply
Because dynamos generate power only when the bicycle is moving, the
power supply can be inconsistent, particularly at low speeds. This can
result in unreliable lighting or charging, which may not meet user
expectations in all scenarios, such as during frequent stops or slow climbs.
7. Manufacturing and Serviceability
For long-term success, the mechanical design of the battery pack and
dynamo system must facilitate mass production, assembly, and
serviceability. Designs that use excessive potting or permanent adhesives
may hinder repairs or recycling, increasing lifecycle costs and
environmental impact.
Summary:
The most critical areas are electrical efficiency, component reliability,
battery safety, charging compatibility, and user experience. Addressing
these through quality components, robust design, proper thermal
management, and adherence to safety standards is essential for a
successful and reliable bicycle dynamo and battery pack system.
h) recommendations for further work.
1) Improve Energy Storage and Buffering
Integrate smarter buffer batteries with variable current settings to
optimize charging at different cycling speeds, especially for low-speed
situations (e.g., hill climbs, traffic stops). This ensures that lights and
devices remain powered even when the dynamo output drops.
Explore high-capacity, lightweight battery technologies to extend off-grid
usability and reduce the need for frequent recharging.
1. Enhance Charging Circuit Design
Upgrade to more efficient voltage regulation and USB output circuits.
Consider incorporating supercapacitors or advanced power management
ICs to minimize energy loss and provide smoother, more reliable charging
for sensitive electronics.
Add features like pass-through charging, allowing devices to be charged
from the battery while the battery itself is being charged by the dynamo.
2. Expand Renewable Integration
Investigate the feasibility of integrating supplementary renewable
sources, such as compact solar panels, to provide additional charging
capability during daylight hours or when stationary.
3. User Interface and Modularity
Develop modular systems that allow easy upgrades or replacement of
components (e.g., switching between hub and rim dynamos, swapping
battery packs).
Add user-friendly features such as switches, indicator LEDs for charging
status, and standardized USB ports for broader compatibility.
4. Ruggedization and Weatherproofing
Design more robust and weatherproof enclosures for both the dynamo and
battery electronics to ensure reliable operation in all conditions, including
heavy rain and off-road environments.
5. Field Testing and Real-World Validation
Conduct extended field trials under varied conditions (urban, rural, and
bikepacking scenarios) to identify failure points and optimize the system
for durability and user convenience.
6. Cost and Accessibility
Explore ways to reduce system costs through component selection and
streamlined manufacturing, making the technology more accessible to a
wider range of cyclists.
By focusing on these areas, the system can become more efficient, user-
friendly, and reliable, meeting the evolving needs of cyclists and keeping
pace with technological advancements in portable energy solutions.
REFERENCES
1. Dynamo Technology and Performance
Busch & Müller. (n.d.). Hub Dynamo Systems – Product
Specifications and FAQ. https://www.bumm.de
Schmidt Maschinenbau. (n.d.). SONdelux Technical Specifications.
https://nabendynamo.de
PedalCell. (n.d.). PedalCell Product Guide. https://www.pedalcell.com
2. Electrical Circuit Design and Components
Horowitz, P., & Hill, W. (2015). The Art of Electronics (3rd ed.).
Cambridge University Press.
Texas Instruments. (2019). LM317 Voltage Regulator Datasheet.
https://www.ti.com/lit/ds/symlink/lm317.pdf
Vishay. (2018). 1N4007 General Purpose Rectifier Datasheet.
https://www.vishay.com/docs/88503/1n4001.pdf
3. Battery Technologies
Battery University. (n.d.). Types of Lithium-Ion Batteries.
https://batteryuniversity.com
Samsung SDI. (n.d.). 21700 Li-ion Cell Technical Specifications.
https://www.samsungsdi.com
Chen, M., et al. (2020). Thermal management of lithium-ion
batteries for electric bicycles. Journal of Power Sources, 451,
227816.
4. Battery Safety and BMS
NREL. (2019). Battery Management System Requirements for
Electric Bicycles. National Renewable Energy Laboratory.
IEEE. (2016). IEEE 1725: Standard for Rechargeable Batteries for
Mobile Phones and Similar Devices.
5. System Integration, Manufacturing, and Metrology
Kalpakjian, S., & Schmid, S. R. (2014). Manufacturing Engineering
and Technology (7th ed.). Pearson.
International Electrotechnical Commission. (IEC). IEC 62133-2:
Safety requirements for portable sealed secondary lithium cells and
for batteries made from them.
SABS 0111. (2002). South African Bureau of Standards – Technical
Drawing Standards.
6. Renewable Integration and Efficiency
Mouser Electronics. (n.d.). Supercapacitor Integration Guide.
https://www.mouser.com
Microchip. (n.d.). Power Management ICs Overview.
https://www.microchip.com
7. User-Centric Design and Field Testing
Adventure Cycling Association. (n.d.). Bicycle Touring Gear and
Dynamo Setup Tips. https://www.adventurecycling.org
Schmitt, A. (2019). How Efficient Is a Bicycle Dynamo? Field Results
from Long-Term Touring. Bicycle Quarterly, Vol. 18.
