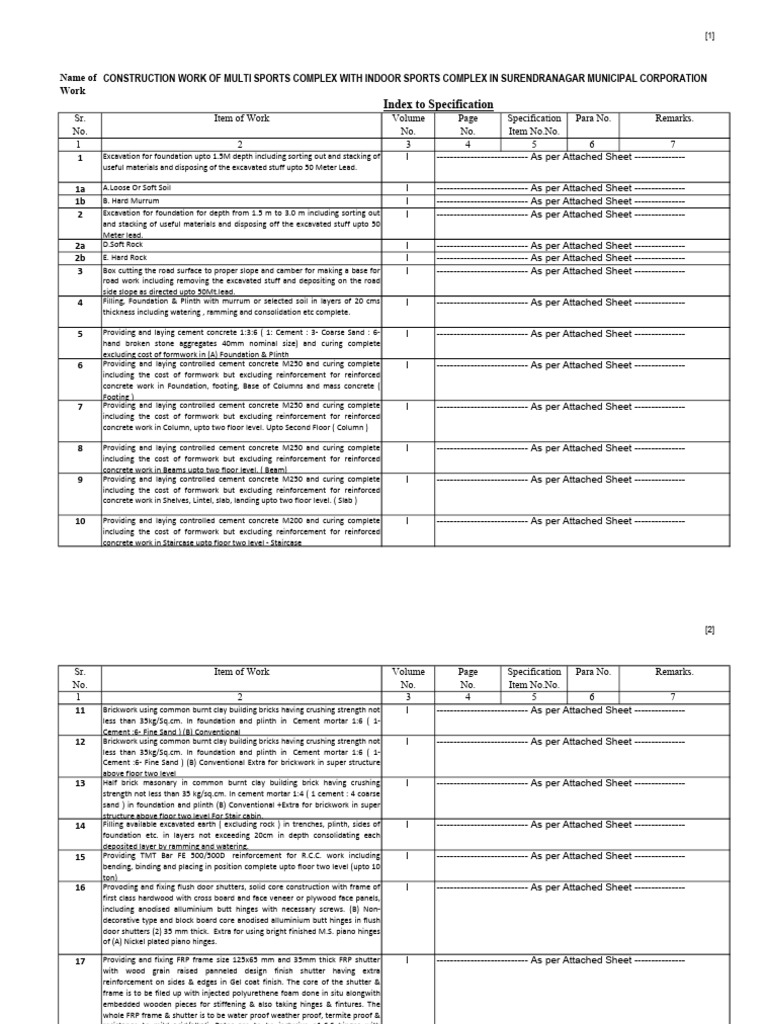

[1]

Name of CONSTRUCTION WORK OF MULTI SPORTS COMPLEX WITH INDOOR SPORTS COMPLEX IN SURENDRANAGAR MUNICIPAL CORPORATION
Work
Index to Specification
Sr. Item of Work Volume Page Specification Para No. Remarks.
No. No. No. Item No.No.
1 2 3 4 5 6 7
1 Excavation for foundation upto 1.5M depth including sorting out and stacking of I --------------------------- As per Attached Sheet ---------------
useful materials and disposing of the excavated stuff upto 50 Meter Lead.

1a A.Loose Or Soft Soil I --------------------------- As per Attached Sheet ---------------

1b B. Hard Murrum I --------------------------- As per Attached Sheet ---------------
2 Excavation for foundation for depth from 1.5 m to 3.0 m including sorting out I --------------------------- As per Attached Sheet ---------------
and stacking of useful materials and disposing off the excavated stuff upto 50
Meter lead.
2a D.Soft Rock I --------------------------- As per Attached Sheet ---------------
2b E. Hard Rock I --------------------------- As per Attached Sheet ---------------
3 Box cutting the road surface to proper slope and camber for making a base for I --------------------------- As per Attached Sheet ---------------
road work including removing the excavated stuff and depositing on the road
side slope as directed upto 50Mt.lead.
4 Filling, Foundation & Plinth with murrum or selected soil in layers of 20 cms I --------------------------- As per Attached Sheet ---------------
thickness including watering , ramming and consolidation etc complete.

5 Providing and laying cement concrete 1:3:6 ( 1: Cement : 3- Coarse Sand : 6- I --------------------------- As per Attached Sheet ---------------
hand broken stone aggregates 40mm nominal size) and curing complete
excluding cost of formwork in (A) Foundation & Plinth
6 Providing and laying controlled cement concrete M250 and curing complete I --------------------------- As per Attached Sheet ---------------
including the cost of formwork but excluding reinforcement for reinforced
concrete work in Foundation, footing, Base of Columns and mass concrete (
Footing )
7 Providing and laying controlled cement concrete M250 and curing complete I --------------------------- As per Attached Sheet ---------------
including the cost of formwork but excluding reinforcement for reinforced
concrete work in Column, upto two floor level. Upto Second Floor ( Column )

8 Providing and laying controlled cement concrete M250 and curing complete I --------------------------- As per Attached Sheet ---------------
including the cost of formwork but excluding reinforcement for reinforced
concrete work in Beams upto two floor level. ( Beam)
9 Providing and laying controlled cement concrete M250 and curing complete I --------------------------- As per Attached Sheet ---------------
including the cost of formwork but excluding reinforcement for reinforced
concrete work in Shelves, Lintel, slab, landing upto two floor level. ( Slab )

10 Providing and laying controlled cement concrete M200 and curing complete I --------------------------- As per Attached Sheet ---------------
including the cost of formwork but excluding reinforcement for reinforced
concrete work in Staircase upto floor two level - Staircase
 [2]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
11 Brickwork using common burnt clay building bricks having crushing strength not I --------------------------- As per Attached Sheet ---------------
less than 35kg/Sq.cm. In foundation and plinth in Cement mortar 1:6 ( 1-
Cement :6- Fine Sand ) (B) Conventional
12 Brickwork using common burnt clay building bricks having crushing strength not I --------------------------- As per Attached Sheet ---------------
less than 35kg/Sq.cm. In foundation and plinth in Cement mortar 1:6 ( 1-
Cement :6- Fine Sand ) (B) Conventional Extra for brickwork in super structure
above floor two level
13 Half brick masonary in common burnt clay building brick having crushing I --------------------------- As per Attached Sheet ---------------
strength not less than 35 kg/sq.cm. In cement mortar 1:4 ( 1 cement : 4 coarse
sand ) in foundation and plinth (B) Conventional +Extra for brickwork in super
structure above floor two level For Stair cabin.
14 Filling available excavated earth ( excluding rock ) in trenches, plinth, sides of I --------------------------- As per Attached Sheet ---------------
foundation etc. in layers not exceeding 20cm in depth consolidating each
deposited layer by ramming and watering.
15 Providing TMT Bar FE 500/500D reinforcement for R.C.C. work including I --------------------------- As per Attached Sheet ---------------
bending, binding and placing in position complete upto floor two level (upto 10
ton)
16 Provoding and fixing flush door shutters, solid core construction with frame of I --------------------------- As per Attached Sheet ---------------
first class hardwood with cross board and face veneer or plywood face panels,
including anodised alluminium butt hinges with necessary screws. (B) Non-
decorative type and block board core anodised alluminium butt hinges in flush
door shutters (2) 35 mm thick. Extra for using bright finished M.S. piano hinges
of (A) Nickel plated piano hinges.

17 Providing and fixing FRP frame size 125x65 mm and 35mm thick FRP shutter I --------------------------- As per Attached Sheet ---------------
with wood grain raised panneled design finish shutter having extra
reinforcement on sides & edges in Gel coat finish. The core of the shutter &
frame is to be filed up with injected polyurethene foam done in situ alongwith
embedded wooden pieces for stiffening & also taking hinges & fintures. The
whole FRP frame & shutter is to be water proof weather proof, termite proof &
resistance to mild acid/alkali. Rates are to be inclusive of S.S hinges with
fastener sleeve & alluminium fixtures & fastenings.
 [3]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
18 Providing and fixing windown shutter of 75x30 mm size with 4mm fully glazed I --------------------------- As per Attached Sheet ---------------
panels with PVC batten main farme size having 1.5 to 2.0 mm thick fire
retardent grade FRP shutter having extra reinforcement on sides & edges in
polish finish. The core of the shutter & frame is to be filed up with injected
polyurethene foam done in situ alongwith embedded wooden pieces for
stiffening & also taking hinges & fintures. The whole FRP frame & shutter is to
be water proof weather proof, termite proof & resistance to mild acid/alkali.
Rates are to be inclusive of S.S hinges with necessary screws & alluminium S.S
fixtures & fastenings & fastener sleeve.

19 Providing and fixing standared extruded of alluminium section of size 63mm x I --------------------------- As per Attached Sheet ---------------
38.10mm x 1.2mm , @ Wt. 0.643 Kg/mt with colour Powder Coated alluminium
frame for ventilation with 5 mm thick frosted glass as details etc complete for
Ventilation
20 Providing 10mm thick cement plaster in single coat in brick/concrete wall for I --------------------------- As per Attached Sheet ---------------
interior plastering upto floor two level and finished even and smooth in (I)
Cement Mortar 1:3 ( 1-Cement : 3-Sand)
21 Providing 15mm thick cement plaster in single coat in brick/concrete wall for I --------------------------- As per Attached Sheet ---------------
interior plastering upto floor two level and finished even and smooth in (I)
Cement Mortar 1:3 ( 1-Cement : 3-Sand)
22 Providing 20mm thick sand faced cement plaster on walls upto height 10mt. I --------------------------- As per Attached Sheet ---------------
Above ground level consisting of 12mm thick backing coat of C.M. 1:3 ( 1-
cement : 3-sand ) and 8mm thick finishing cost of C.M.1 :1 ( 1-Cement : 1-Sand)
etc. complete
23 Wall Painting (Four coats) with plastic emulsion paint of approved brand & I --------------------------- As per Attached Sheet ---------------
manufacture on under coated wall surface to give an even shade including
throughly brushing the surface free from mortar dropping and other foreign
matter and sand papered smooth.
24 Applying two coats of putty & two coats of primer of approved brand and Wall I --------------------------- As per Attached Sheet ---------------
Painting (three coats) with plastic emulsion paint of approved brand &
manufacture on under coated wall surface to give an even shade including
throughly brushing the surface free from mortar dropping and other foreign
matter and sand papered smooth.
25 Providing & laying broken china mosaic flooring for terrace using 12 mm to 20 I --------------------------- As per Attached Sheet ---------------
mm broken pieces of glazed tiles to be laid over cement mortar 1:3 to plain or
slope and to be tempered to bring mortar crème out upto surface using

26 providing and laying Granite slab flooring or dedo over 20 mm base of cement I --------------------------- As per Attached Sheet ---------------
mortar 1:6 (1 cement :6 coarse sand ) or L.M. 1:1.5 laid & jointed with gray
cement slurry including rubbing and polishing complete. Granite Slab (18 mm
thick) 1 side Polished
 [4]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
27 Labour Charges Quarter round edge for granite I --------------------------- As per Attached Sheet ---------------
28 Providing and laying coloured glazed tiles of thesize 300 mm x 200 mm x 8 mm / I --------------------------- As per Attached Sheet ---------------
300 mm x 450mm x 8 mm in skirting, risers of steps and dedoon 10 mm. thick
cement plaster 1:3 (1 cement :3 coarse sand) & jointed with white cement
slurry.
29 Providing and laying 24" x 24" Vitrified 8mm thick tiles flooring over 20mm I --------------------------- As per Attached Sheet ---------------
(Average) base of Cement Mortar 1:6 (1-cement : 6-coarse sand) on new
surface or fixing on existing flooring by sdhesive materials including
dismentalling of existing flooring and jointed with colour cement slurry
including finished with flush pointing & cleaning the surface etc. complete for
Light Shade.
30 Providing and fixing pre-cast Rubber Dye / steel Dye inter locking concrete block I --------------------------- As per Attached Sheet ---------------
60mm thick with grade of concrete M300 pnumatic compressed / vibrated
mechanically and as per approved design Confirming to IS 15658 : 2006
including 35 mm Sand layer for levelling and filling the joint with sand in proper
line and level as per guidlines of IRC : SP 63-2018 etc. Complete.

31 Providing cement vata ( 10cm x 10cm size ) quarter round in cement mortar 1:1 I --------------------------- As per Attached Sheet ---------------
including neat cement finishing watering etc. complete.
32 Finishing Wall with water proofing cement Paint on wall Surface (Four Coats) to I --------------------------- As per Attached Sheet ---------------
give an approved band and manufacture and of required shape even shade
after throughly brushing the surface to remove all dirt and remains of loose
powered materials.
33 Providing and fixing post and pipe railing as per detailed I --------------------------- As per Attached Sheet ---------------
drawing including 3 coats of painting to steel works complete
34 Stone work (machine cut edges) for wall lining etc. (veneer work) at all levels up I --------------------------- As per Attached Sheet ---------------
to 27 metre height, backing filled with a grout of average 40 mm thick or more
to match the wall cladding level surfaces in cement mortar 1:3 (1 cement : 3
coarse sand) including pointing in white cement mortar 1:2 (1 white cement : 2
stone dust) with an admixture of pigment to match the shade of stone complete
(The rate is inclusive of all materials & labours involved and including
scaffolding and including labour charges) for following: ii). Providing and fixing
Chima Pink Granite stone matching. with existing shade and finish - Exposed
face machine cut and table rubbed with rough backing, 20 to 30 mm thick
 [5]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
35 Providing Fabricating and Laying of colour coated Galvalume (Proflex System I --------------------------- As per Attached Sheet ---------------
roofing ) metrail for self Supported roofing system Meterial shall be of following
Specification BMT 1.10mm to 1.6mm APT 1.15mm (tolerance +/-0.02 mm)
.including supplying Loading transporting unloading and staking at site
fabricating and laying with all contractors tools machineries materials and
fixtures labours including all lead and lift and laps/ wastage if any etc. complete.
The colour of sheet will be decided by Corporation. the rate is also inclusive of
designing of roofing of roofing system ,proof checking and providing Execcution
drawing .fabrication and installation of self-supported roofing technology
similar to proflex Roof System should also have necessary provision for fixing of
solor System panels on roof as required by Corporation and necessary fitings for
hanging of electrical items (viz,Lights,Fans,etc)
A) Length greater than 30.0m and up to 35m or as per site requirement
Note:-The roofing system should be self supported roofing system i.e without
trusses purlin or any ancillary supports shall be designed by contractor through
the consultant. Design and drawing will be approved by Consultant For design
of roofing system relevant load parameters of is code of practice to be adopted.
The cost of designing and proof checking of design and drawing will not be paid
separately and these charges are deemed to be inclusive of preparation of
necessary auto cad drawing required for execution of roofing system. the
details of arch may be changed as per the design with approval of Corporation.
The roofing system should be 100% leack proof resistant to corrosion and
maintenance free. work will be done under proper supervision of approved
manufacturer whose supervisor must remain at site during the execution of
work. The rate is inclusive of cost of supervisor also. The rate is inclusive of
cutting sheet or for polycarbonate sheets for roof lighting

36 Supply, installation, testing & commissioning of horizontal mono submersible I --------------------------- As per Attached Sheet ---------------
pump set (Drain pump) as per IS: 14220 / 1994 & its
latest amendments of following duty parameters with suitable submersible
motor as per IS: 9283 / 1994 & its latest amendments working on 3 phase, 415
V ± 10%, 50 ± 3% Hz power supply, rated speed 2900 RPM of following duty
capacity. Material of Constructions: Impeller: High tensile brass / LTB II; Casing:
CI FG 260; Pump & Motor shaft: SS 304; Bearing Bush: LTB III. Flow- 50 m³/hr,
Head- 10 Mt.
 [6]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
37 Providing and supplying & laying in standard length ISI mark rigid unplasticied I --------------------------- As per Attached Sheet ---------------
PVC pipes suitable for potable water with ring fit joint including cost of rings, as
per IS specification no 4985/1988 including all local and central taxes,
transportation, freight charges, octroi, inspection charges, loading, unloading,
conveyance to the departmental stores and including cost of jointing material
etc. complete.
B) Test pressure 6 kg/Sq.cm
(1) 110mm
38 Providing laying and jointing in true line and level 25 mm dia. U.P.V.C. Pipe (SCH I --------------------------- As per Attached Sheet ---------------
-40) line including fittings make or equivalent as apprroved by Engineer In
charge. Pipe shall be fixed on the wall with the help of clamp at every two
meter C/C or shall be concealed as directed including necessary fittings etc.
including testing of pipe and joints and fixing the same with adhesive solvent,
including cost of all materials.
39 Providing erecting and fixing double coated ISI water tank of required capacity I --------------------------- As per Attached Sheet ---------------
each with all necessary fittings and connection etc. complete on terrace

40 Providing and fixing Ball Cock of Approved Quality as Directed I --------------------------- As per Attached Sheet ---------------
( A ) Copper Metal ( I ) 25 mm dia.
41 Providing laying and jointing in true line and level 15 mm dia. U.P.V.C. Pipe (SCH I --------------------------- As per Attached Sheet ---------------
-40) line including fittings make or equivalent as apprroved by Engineer In
charge. Pipe shall be fixed on the wall with the help of clamp at every two
meter C/C or shall be concealed as directed including necessary fittings etc.
including testing of pipe and joints and fixing the same with adhesive solvent,
including cost of all materials.
42 Providing and fixing wsh down water closet (European type, W.C. Pan) with I --------------------------- As per Attached Sheet ---------------
integral P or S trap including jointing the trap with soil pipe in Cement Mortar
1:1 (1- Cement : 1-fine sand) (Seal and cover to be measured and paid for
separately)(A) vitreous China Pattern :(i) in white colour

43 Providing and fixing Urinal or approved quality including conecting the Urinal I --------------------------- As per Attached Sheet ---------------
with waste pipe , tap etc. complete.(A) White earthenware flat back or corner
type size 430mm x 260mm x 350mm.
44 Providing and fixing washbasin with single hole for pillar tap with C.I. or M.S. I --------------------------- As per Attached Sheet ---------------
brackets painted white including sutting holes and making good the same but
excluding fittings.(A) Vitreous China:(ii) Flat Back washbasin 550 mm x v 400mm
size. (i) In white colour.
45 Providing and fixing screw down bib taps of following size.(A) Brass screw down I --------------------------- As per Attached Sheet ---------------
bib tap polished bright. (i) 15mm dia
 [7]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
46 Providing and fixing chromium plated brass half trun flush cock of approved I --------------------------- As per Attached Sheet ---------------
quality including fixing in pipe line etc. complete.(ii) 25mm dia.

47 Providing and fixing pillar tap, capstan head, screw down high pressure with I --------------------------- As per Attached Sheet ---------------
screws, shanks and back nuts. (i) 15mm dia
48 Providing and fixing brass screw down stop tap.(A) 15mm dia. I --------------------------- As per Attached Sheet ---------------
49 Providing and fixing PVC SWR Nahni Trap IS 14735 for drain - 75 mm diameter I --------------------------- As per Attached Sheet ---------------
with jali of the following nomonal diameter of self cleansing design with C.I.
scread down or hinged grating including the cost of cutting and making good
the walls.
50 Providing and fixing S.W. gully trap with C.I. grating brick masonry chamber and I --------------------------- As per Attached Sheet ---------------
water tight C.I. cover with frame of 300mm x 300mm size (inside) with standard
weight.(i) Square mouth traps.(B) 150mm x 100mm size P or R type

51 Supplying and fixing reinforced concrete heavy duty nonpressure pipes with I --------------------------- As per Attached Sheet ---------------
collars for culverts carrying heavy traffic as per IS 458-1991 specifications
including setting the pipes in C.M. 1:2 watering and laying (to level or slopes) of
class NP3 of following internal daimeters.(i) 300mm dia.

52 Constructing Manhole with R.C.C. top slab in 1:2:4 mix (1- cement :2-coarse I --------------------------- As per Attached Sheet ---------------
sand : 4-graded stone aggregate 20mm nominal size) foundation concrete 1:3:6
mix (1-cement : 3- coarse sand :6-Brick bats 40 + 50mm size) inside plastering
15mm thick with Cement Mortar 1:3 (1-Cement : 3-coarse sand) finished with a
floating coat of neat cement and making channels in cement concrete 1:2:4 mix
(1-Cement :2- Coarse sand :4-stone aggregate 20mm nominal size) finished
smooth complete including curing and festing (i) Inside size 900mm x 1200mm
and 1.5M. deep including C.I. cover with frame size 560mm diameter total
weight of cover and frame to be not less than 128 kgs. (Wt. of cover 64 Kg. and
Wt. of frame 64 Kg.)(A) With 230mm thick walls of brick msonry using brick
having crushing strength not less than 35Kg. / Sq.cm. in Cement Mortar 1:5 (1-
Cement: 5-Coarse sand) (2) B type depth 1.50 Metre for 150mm diameter
sewer.
 [8]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
53 Constructing brick masonry chamber for underground C.I. Inspection chamber I --------------------------- As per Attached Sheet ---------------
and bends with bricks having crushing strength not less than 35Kg/Cm2 in C.M.
1:5 C.I. cover with frame (Light duty) 455mm x 610mm intenal dimensions total
weight of cover with frame to be not less than 38Kg. (Wt. of cover 23 Kg.) and
Wt. of frame 15Kg. ) (R.C.C. top slabe with 1:2:4 mix (1-cement :2- coarse sand
:4-graded stone aggregate 20mm size) foundation concrete 1:5:10 inside plaster
15mm thick with cement mortar 1:3 finished smooth with a floating coat of
neat cement on walls and bed concrete etc. complete.(i) Inside dimensions
455mmx 610mm and 450mm deep for single pipe line.

54 Providing and fixing to wall ceiling and floor 10.0kg F/cm2 working pressure I --------------------------- As per Attached Sheet ---------------
poluthene pipes of the following outside dia low density complete with specials
flange compresion type fittings, wall clips etc. including making good the wall
ceiling and floor
(1) 75 mm
55 Providing and fixing to wall ceiling and floor 10.0kg F/cm2 working pressure I --------------------------- As per Attached Sheet ---------------
poluthene pipes of the following outside dia low density complete with specials
flange compresion type fittings, wall clips etc. including making good the wall
ceiling and floor
(1) 110mm
56 Providing and fixing in position cowel vent to pipes. I --------------------------- As per Attached Sheet ---------------
75 mm dia.
57 Providing and fixing gun metal check or non return full way Wheel Valve I --------------------------- As per Attached Sheet ---------------
( C ) 15 mm Dia.
58 Providing and fixing 600mm x 450mm bevelled edge mirrror of superior glass I --------------------------- As per Attached Sheet ---------------
mounted on 6mm thick A.C. sheet or plywood sheet and fixing to wooden pluge
with C.P. brass screws and washers.
59 Volleyball Court Area I --------------------------- As per Attached Sheet ---------------
EPDM Rubbre Flooring Specification as per Annaxure-1 Thickness : 200 MM
[14+6]
Cushion layer Saystem.
Terms Base floor required Concrete
60 Volley Ball Net & Pole : Fixed Pole I --------------------------- As per Attached Sheet ---------------
MS Steet rounded pipe with powder coating with all necessary accessary.
61 Tennis Pole post: Fixed Pole I --------------------------- As per Attached Sheet ---------------
MS Square pipe with powder coating with all accessaries. Standerd net
including. Incluled fitting too
62 BADMINTON Pole post: Fixed Pole I --------------------------- As per Attached Sheet ---------------
MS Square pipe with powder coating with all accessaries. Standerd net
including. Incluled fitting too.
 [9]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
63 Filling, Foundation & Plinth with murrum or selected soil in layers of 20 cms I --------------------------- As per Attached Sheet ---------------
thickness including watering , ramming and consolidation etc complete.

64 Providing and laying controlled cement concrete M.250 and curing complete I --------------------------- As per Attached Sheet ---------------
excluding the cost of formwork and reinforcement for reinforced concrete work
in (B) Walls, from top of foundation level upto floor two level

65 Providing formwork of ordinary timber planking so as to give a rough finish I --------------------------- As per Attached Sheet ---------------
including centering shuttering strutting and propping etc. height of propping
and centering below supporting floor to ceiling not exceeding 4 M. and removal
of the same for in situ reinforced concrete and plain concrete work in. (C)
Vertical surface such as walls (any thickness) partitions and the like including
attached buttresses & string course & the like.

66 Supplying & erecting approved make self-priming domestic monoblock water I --------------------------- As per Attached Sheet ---------------
pump with 1.5 H.P motor, suitable for operation on 230 volts, 50c/s. AC supply
with metallic flange, and M.S. impeller delivery and following discharge 44
LPM at 32 Mtr head suitable 25 mm dia delivery
67 Providing and supplying & laying in standard length ISI mark rigid unplasticied I --------------------------- As per Attached Sheet ---------------
PVC pipes suitable for potable water with ring fit joint including cost of rings, as
per IS specification no 4985/1988 including all local and central taxes,
transportation, freight charges, octroi, inspection charges, loading, unloading,
conveyance to the departmental stores and including cost of jointing material
etc. complete.
B) Test pressure 6 kg/Sq.cm
(1) 110mm
68 Providing and fixing Urinal of approved quality including connection with trap I --------------------------- As per Attached Sheet ---------------
and with integral longitudinal flush pipe.(A) Squating plate pattern white
earthenware 550mm x 300mm.
69 Providing and fixing C.I. Manhole cover 0.60 M. x 0.45M. size having weight not I --------------------------- As per Attached Sheet ---------------
less than 35Kg.
70 Monoblock pump 3 phase 400/440 vott, 50 c/s. A.C. Supply & 2800 RPM as per I --------------------------- As per Attached Sheet ---------------
IS 9079
MOC : Casing: CI-FG260, Impeller : SS-CF8M & Shaft : SS:410 - ( 5 Hp - 285 LPM
, Head : 24 Mtr , )
71 Providing and fixing 1mm thick M.S. sheet sliding shutters with frame and I --------------------------- As per Attached Sheet ---------------
diagonal braces of 40 x 40 x 6 mm angle iron, 3.15 mm M.S. gusset plates at
Junctions and corners 25 mm dia. pulley, 40 x 40 x 6mm angle and T-iron guide
rail at top and bottom respactively with handles, stoppers and locking
agangement etc, including applying a priming coat of red lead paint.
 [10]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
72 Providing and laying River polished Kota stone slab flooring over 20mm I --------------------------- As per Attached Sheet ---------------
(Average) thick base of cement mortar 1:6 (1-cement : 6-coarse sand) or L.M.
1.1.5 laid over and jointed with grey cement slurry including rubbing and
polishing etc. complete. (B) 30 mm thick
73 Steel work, welded in built up sections framed work including cutting, hoisting, I --------------------------- As per Attached Sheet ---------------
fixing in position and applying a priming coat of red lead paint. (D) In trussses
and trussed purlins, upto 25 M. span and 15 M. ovarall height.

74 Designing, supplying and installation of Tensile Membrane Fabric shed for food I --------------------------- As per Attached Sheet ---------------
courtat sport sankul including support structure and as per the requirements
etc. all complete. The scope of work shall include supply of tensile membrane
fabric, supply, fabrication and installation of tubular support structure/
members, connection system, other necessary supporting MS
structure,foundation bolts grouted on existing slab with chemical anchor
fasteners (Preferably HILTI) as per the design and painting as specified. The
detailed scope of work as perEngineer In charge.

75 Providing and fixing Kitchen sink with C.I. or M.S. brackets, painted white I --------------------------- As per Attached Sheet ---------------
including cutting holes in walls and making good the same but excluding fittings.
(C) Vitreous China Sink.(i) 600mm x 450mm x 150mm size
76 Providing and fixing pre-cast concrete kerb stone of gray cement based I --------------------------- As per Attached Sheet ---------------
concrete block 30cm length,30cm height and 15cm thick of M200 grade concret
as per approved design and including excavation for fixing in proper line and
level,filling the joint with C:M 1:3 (1cement:3fine sand) etc complete.

77 SYNTHETIC 5 LAYER NON CUSHION SYSTEM I --------------------------- As per Attached Sheet ---------------
Providing and Laying 5 layer sport surface system. The first layer consist of
application of one coat of Bio Cum primer, Second coat of Re-Surface, Thereon
application of Two coats of Resurfaces , One Textured coat and finally One Non-
Texture coat, Last line marking
78 Supplying and stacking of good earth at site including royalty and carriage upto I --------------------------- As per Attached Sheet ---------------
5 km lead complete (earth measured in stacks will be reduced by 20% for
payment)
79 Supplying and stacking of well decayed cattle manure at site including royalty I --------------------------- As per Attached Sheet ---------------
and carriage upto 5 k.m.lead complete (Cattle manure measured in stacks will
reduced by 8% for Payment).
80 Mixing earth and sludge or manure in the required proportion specified or I --------------------------- As per Attached Sheet ---------------
directed by the Officer-in-charge
81 Spreading of sludge, dump manure and/or good earth in required thickness as I --------------------------- As per Attached Sheet ---------------
per direction of officer-in-charge (cost of sludge, dump manure and/ or good
earth to be paid separately).
 [11]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
82 Providing & laying Selection no. 1 doob grass turf with earth 50mm to 60mm I --------------------------- As per Attached Sheet ---------------
thickness of existing ground prepared with proper level and ramming with
required tools wooden and than rolling the surface with light roller make the
surface smoothen and light watering the same maintenance for 30 days or
more till the grass establish properly,as per direction of officer in charge

83 Grassing with selection No. 1 Doob grass including watering and maintenance of I --------------------------- As per Attached Sheet ---------------
the lawn for 30 days or more till the grass forms a thick lawn, free from weeds
and fit for mowing including supplying good earth, if needed (the grass and
good earth shall be paid for separately). With grass Turf

84 Preparation of beds for hedging and shrubbery by excavating 60 cm deep and I --------------------------- As per Attached Sheet ---------------
trenching the excavated base to a further depth of 30 cm, refilling the excavated
earth after breaking clods and mixing with sludge or manure in the ratio of 8:1
(8 parts of stacked volume of earth after reduction by 20%: one part of stacked
volume of sludge or manure after reduction by 8%), flooding with water, filling
with earth if necessary, watering and finally fine dressing, leveling etc. including
stacking and disposal of materials declared unserviceable and surplus earth by
spreading and leveling as directed, within a lead of 50 m, lift up to 1.5 m
complete (cost of sludge, manure or extra earth to be paid for separately)

85 Plantation of Shrubs at site i/c watering and removal of unserveiceable I --------------------------- As per Attached Sheet ---------------
material’s as per direction of officer in charge (excluding cost of plant &
water)
86 Providing and laying Neelgiri/Mexican grass turf with earth 50mm to 60mm I --------------------------- As per Attached Sheet ---------------
thickness of existing ground prepared with proper level and ramming with tools
wooden (Dhurmos) and than rolling the surface with light roller make the
surface smoothen and light waterning with sprinkler and maintenance for 30
days or more till the grass establish properly, as per direction of officer-in-
charge.
87 Providing and stacking of Lagerstroemia flosreginae of height 150-165 cm.in big I --------------------------- As per Attached Sheet ---------------
poly bag of size 25 cm as per direction of the officer-in-charge.
88 Providing and stacking of Bauhinia tomentosa (yellow) of height 60-75 cm.in I --------------------------- As per Attached Sheet ---------------
earthen pots of size 20 cm as per direction of the officer-in-charge.
89 Providing and stacking of Calliandra hybrida of height 75-90 cm. with 4- I --------------------------- As per Attached Sheet ---------------
5branches in bag of size 25 cm as per direction of the officer-in-charge
90 Providing and stacking of Euphorbia caracasana (bronze colour leaves) of height I --------------------------- As per Attached Sheet ---------------
60-75 cm. with 4-5 branches in bag of size 25 cm as per direction of the officer-
in-charge.
 [12]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
91 Providing and stacking of Hibiscus rosasinensis of height 45- 60 cm. with3-4 I --------------------------- As per Attached Sheet ---------------
branches in earthen pots of size 20 cm as per direction of theofficer-in-charge.

92 Providing and stacking of Gardenia jasminoides of height 45- 60 cm. with 3-4 I --------------------------- As per Attached Sheet ---------------
branches in earthen pots of size 20 cm as per direction of the officer-in-charge

93 Providing and stacking of Foxtail palm of ht. 240-270 cm bottom girth 35- 40 cm I --------------------------- As per Attached Sheet ---------------
well developed in big size HDPE bags as per direction of the officer-in-charge.

94 Providing Supplying and Fixing Of Lynn Cast Iron 3 Seater FRP Garden Bench For I --------------------------- As per Attached Sheet ---------------
Outdoor (Black + Wooden Texture ) :- Primary Material Mild Steel Frame & FRP
Stripes Of high Durability Frame Painted With Powder Coated Paint For A
Smooth Finish Which Helps Avoid Corrossion To Tolerate Maximum Seating
Weight 350 Kg - 100 % Washable & Water Proof - Non Breakable and Easy To
handle Light Weight and Durable Long Life and Eco Freindly Resistant To Both
Sun and Rain :- Size :- Length 63 Inch( 1.60 Mtr ) Width :- 24 Inch ( 0.60 Mtr ) &
Height 31 Inch ( 0.78 Mtr )
 [13]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
95 INCOMER PANEL FOR 2ND FLOOR I --------------------------- As per Attached Sheet ---------------
LV POWER CONTROL CENTER (PCC)
Supply, installation, testing and commissioning LV Distribution Board (LVDB)
totally enclosed, dust & vermin proof, indoor type, fabricated from CRCA sheet
steel with minimum thickness of 3 mm for base frame / channel / gland plates,
2.0 mm for load bearing members/ doors & 1.6 mm for internal partitions,
minimum degree of protection - IP 52 as per IS: 2147, suitable for operation on
3-Phase, 4 Wire, 415 V, 50 Hz, Neutral effectively grounded, with
instrumentation compartments accomodating meters, aux / protective relays,
LED type indicating lamps & control MCBs as per IS: 13947, current & voltage
transformers as per IS: 2705, air insulated electrolitic grade Aluminum / Copper
bus bar for three phase & neutral system, Gl earth bus for entire length,
power/control wiring using 1100 V grade, FRLS insulated copper conductor
wires conforming to IS: 694 & 8130, equipment fittings, horizontally running
busbar compartment height of minimum 300 mm, incoming & ougoing cable
connections for 1100 V grade, Aluminium / Copper conductor XLPE/PVC
insulated & PVC sheathed armoured cable. LVDB shall have required
incomming/bus coupler/outgoing modules of following type & ratings.
Above 80 A, upto & including 250 A, 3 & 4 Pole, Air Break Fixed MCCB conforms
to IS / IEC 60947-2 with trip free mechanism, current limiting type with Thermal-
Magnetic / Microprocessor release (O / C, S / C & E / F) with adjustable settings
& having minimum 2NO+2NC potential free auxiliary contacts with all
necessary Electro-Mechanical protections & interlocks etc. MCCB module, when
used as Incommer / Bus Coupler, shall have enclosure dimensions- 1800(H) x
600(W) x 600 (D) & following technical features:
4 Pole, 100A MCCB with Breaking Capacity of Icu=50 KA at 415V (Ics =100% of
Icu), Microprocessor release
 [14]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
96 Supplying and erecting, commissioning and testing of Diesel Generating set I --------------------------- As per Attached Sheet ---------------
confirming to IS: 4722:1968 & BS:5514 having continuous rating, 3 phase, 415
volts, 50 cycles A.C. supply comprising of a totally enclosed air/water cooled
diesel engine with multi-cylinders developing suitable BHP not less than
following capacity at 1500 RPM with 10% overload for one hour in 24 hours
with standard accessories like fly wheel, lubricating oil cooler, "A" class
governor, heavy duty fuel wheel and lubricating oil filter, oil bath air filler,
lubricating oil pressure gauge, end exhaust manifold, standard set of tools with
adjustable spanners, screw drivers, cylinder head to cover, joint cylinder head to
exhaust, element lube oil filter, 12 / 24 volts electric starting equipment
complete with standard heavy duty battery, dynamo, cut-outs, ammeter,
necessary wiring, pressure gauge, starter etc and heavy duty Residential type
exhaust silencer and vertical hot air duct both logged with asbestos rope, save
oil trays, exhaust piping of required length, standard wall/floor mounted fuel
with level indicator and piping and drip proof alternator, self excited, self
regulated, screen protected, with excitation system, capable of delivering the
rated system output at 415 volts, 3 phase, 0.8 PF, 50 Hz, 4 wire, running at 1500
RPM, conforming to IS-4722- 1968 with voltage regulation +/- 5% of rated
voltage from no load to full load. Both the engine and alternator fitted on a
common fabricated steel base plate with antivibration mounting engine and
alternator both connected to each other by flexible flange coupling and with
floor/wall mounted control panel box comprising of voltmeter ammeter,
selector switches, ACB / MCCB / MCB of adequate capacity, indicator lamps
duly wired with HRC fuses.
 [15]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
97 Providing & erecting approved make AMF control panel suitable for following I --------------------------- As per Attached Sheet ---------------
size of 3 phase, 415 V., 50 cycles, A.C. diesel generating set complete of scope
as detailed below:
1) Power module: A pair of electromechanically interlocked contactors (for
mains & generator) Overload relay for generator contactor Neutral contactor
for mains and generator Power socket for connections. 2) Control and metering
module: Line voltage monitor. Generator voltage monitor Ammeter 3 items
attempt start facility. Air circuit breakers/MCB/MCCB of suitable rating for
auto/manual operation. Auto/manual switch. Emergency stop push buttons.
Manual start push button. frequency meter. Engine hour meter. Two earthing
studs. 3) Protection module: The engine shutdown in the unlikely event of Low
lube oil pressure High cylinder head temperature. V belt failure. 4) Indicators
with alarm Load on generator. 5) Indicators Load on mains Engine fails to start .
Emergency stop battery charger. The AMF Panel of following capacity
(A) AMF Control Panel for 50/62.5 KVA 3 phase DG Set

98 MEDIUM VOLTAGE PANEL BOARD (LT) I --------------------------- As per Attached Sheet ---------------
SITC of PMCC Panel (50kA) complete in all respects as per SLD / Specification /
IS and including following as minimum:
(1) Two nos. FP 100A Microprocessor MCCB for I/c with Digital Voltmeter with
Voltmeter selector switch, Digital power Factor Meter, Digital Ammeter with
Ammeter selector switch,MFM with RS-485, R,Y,B,on,off,trip Indicating lamps
& ON, E-STOP, Reset Pushbutton, etc,.
2) One Nos FP 100A Thermal Magnetic MCCB for Bus Coupler.
(2) 100 A TPN Main busbars. (main & auxilary busbars size with current density
0.8A/Sq.mm)
(4) One nos. 32A FP Microprocessor MCCB feeder for APFC Panel.
(5) Two Nos 32 A TPN MCCB Feeder for Spare
(8) One no. Outdoor lighting LDB feeder with 32A TPN 'C' curve MCB with 32A
contactor & Time switch.
(10) 6nos. 100A/1A, Cl.-1 metering CT
(11) 2 Nos 100A/1A, Cl.-1 summation CT
 [16]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
99 Design, Supplying, installing, testing of factory fabricated ready made Three I --------------------------- As per Attached Sheet ---------------
phase APFC
Panel Cubical Panel fabrication should be type tested as per IEC 61921,
61439:1&2 Capacitor Duty Contactor for switching as per following Steps
9124.12 Incomer Switch of MCCB type Icu=Ics=50KA at 400/440 Volts, with OC,
SC, internal earth fault protection Incomer Switch of MCCB type Icu=Ics=50KA at
400/440 Volts, with OC, SC, internal earth
fault protection, Copper tinned insulated Busbar,Cubical panel should be indoor
type with IP 43 and IK 10,Metalized polypropylene film tye3-phase 550Volt
Capacitor, Detuning Reactor for each capacitor,Panel having Short Circuit and
Overload protection, Each step Capacitor having suitable MCB with Sc, OL,
internal earth fault relay,Each stage having Stage Contactor (Capacitor load
rating),PF regulator master controller having suitable steps with LCD display, Rs
485 Communication port, Indication LED Lamps for main incomer and ON OFF
for each capacitor bank,MS Chanel for Floor mounting, Cable entry as per site
situation,Cooling fans for panel
50 kVAR
100 Floor Wise PDBs I --------------------------- As per Attached Sheet ---------------
(1) Providing and erecting Sheet Steel powder coated MCB distribution board -
flush / surface mounted fitted with busbar, neutral link, earth bar and DIN rail,
Conforms to IS 8623-1 & 3, IEC 61439-1 & 3 without MCB to house appropriate
nos. of MCBs.(The DBs should be used of same company of MCB to be used)
suitable for
(B) three phase incoming and single phase horizontal type outgoing Per phase
isolation type (PPI)
(a) Double door
(ii) 8 way
(2) Providing and erecting Approved make RCCBs conforming to IS: 12640 and
having sensitivity of 30 mA and Short Circuit withstand capacity of 10 KA and
suitable for operation on 3 phase and neutral 415V,50Hz. having characteristic
of quick action & tripping with all advance feature & do not incorporate any
electronic component for following Max. rating erected as directed.
(ii) 63Amps. FP - Cat. III, Incomer
(3) Providing & erecting 240 V MCB double pole switch for lighting Load (B
Curve) having 10 KA breaking capacity & confirms to IS : 8828 in existing box
having following capacity
Double pole 6A to 32A Cat.III - 7 Nos
For 3 Nos for Second Floor
 [17]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
101 Room Wise PDBs I --------------------------- As per Attached Sheet ---------------
(1) Providing and erecting Sheet Steel powder coated MCB distribution board -
flush / surface mounted fitted with busbar, neutral link, earth bar and DIN rail,
Conforms to IS 8623-1 & 3, IEC 61439-1 & 3 without MCB to house appropriate
nos. of MCBs.(The DBs should be used of same company of MCB to be used)
suitable for
(A) single phase incoming and horizontal single phase outgoing
(a) single door (IP-30)
(ii) 6 way
(2) providing and erecting Approved make RCCBs conforming to IS: 12640 and
having sensitivity of 30 mA and Short Circuit withstand capacity of 10 KA and
suitable for operation on single phase 240 V,50Hz. having characteristic of quick
action & tripping with all advance feature & do not incorporate any electronic
component. for following Max. rating erected as directed
(ii) 63Amps. DP - Cat. III, Incomer
(3) Providing & erecting 240 V MCB double pole switch for lighting Load (B
Curve) having 10 KA breaking capacity & confirms to IS : 8828 in existing box
having following capacity
Double pole 6A to 32A Cat.III - 2 Nos
(4) roviding and erecting Miniature circuit breaker single pole 6A to 25A suitable
to operate on 240 V A.C. system and having breaking capacity 10 KA to be
erected in existing box. confirming to IS 8828/1996 with ISI Mark
Single pole 6A to 32A Cat.III - 3 Nos
For 9 Nos for Second Floor

102 MEDIUM VOLTAGE CABLES I --------------------------- As per Attached Sheet ---------------

Providing and erecting XLPE(IS:7098)(I)-88 ISI armoured cable multistrand
Aluminium conductor for 1.1 KV. to be laid on wall with necessary clamps or in
existing trench / pipe of following size of cables
(J) (E) 3 1/2 core 95 Sq. mm ( 50 Sq. mm 1/2 core) (1Run for Incomer to LT
Panel and DG set to LT Panel)
103 Providing and erecting XLPE (IS:7098)(I)-88 ISI armoured cable multistrand I --------------------------- As per Attached Sheet ---------------
Aluminium conductor for 1.1 KV. to be laid on wall with necessary clamps or in
existing trench / pipe
of following size of cables.
(A) 4 core 16 Sq. mm (1Run for LT Panel to APFC)
 [18]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
104 CABLE Gland I --------------------------- As per Attached Sheet ---------------
Providing and, fixing heavy duty flange type brass double compression type
cable gland with rubber ring for PVC insulated armoured cable complete with
out going tails, insulating tape etc for following size of cables.
(D) 3 & 1/2 core 95 Sq. mm (1Run for Incomer to LT Panel and DG set to LT
Panel)

105 Providing and, fixing heavy duty flange type brass cable gland with rubber ring I --------------------------- As per Attached Sheet ---------------
for PVC
insulated armoured cable complete with out going tails, insulating tape etc for
following size of cables.
(D) 2 to 4 core 16 Sq. mm (1Run for LT Panel to APFC)
106 CABLE LUGS I --------------------------- As per Attached Sheet ---------------
Solder less crimping type Aluminium lugs conforming to IS suitable for cable of
following size evenly crimped with high pressure tool & connected to
switchgear terminals with brass/cadmium plated nut bolts in an approved
manner.
(F) 95 Sq.mm. (1Run for Incomer to LT Panel and DG set to LT Panel)
107 (C) 16/25 Sq.mm. (1Run for LT Panel to APFC) I --------------------------- As per Attached Sheet ---------------
108 CABLE TRAY I --------------------------- As per Attached Sheet ---------------
Providing and fixing approved make Perforated C type cable tray. Made from
sheet steel. The cable tray should be single or double bended as per required
and as per IS 2062/1079 and shall be coated with hot dip galvanizing as per IS
2629/4759. with max 17.5% perforation with coupler plate / Fish plate and GI
hardware like nut - bolt and washers etc. erection with necessary support(
included) as per Specification and as per instruction of engineer in charge.
(2) 100 X 50 X 1.6 mm Thick

109 (1) 50 X 50 X 1.6 mm Thick I --------------------------- As per Attached Sheet ---------------

 [19]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
110 CHEMICAL EARTHING SYSTEM I --------------------------- As per Attached Sheet ---------------
Supplying & erecting in earthpit of minimum bore dia. 225mm size approved
make Safe Earthing Electrode consisting Pipe-in-Pipe Technology as per IS 3043-
1987 made of corrosion free hot dipped G.I.Pipes having Outer pipe dia of 80
mm having 80-200 Micron galvanising, Inner pipe dia of 40 mm having 200-250
Micron galvanising, connection terminal dia of 14 mm with constant ohmic
value surrounded by highly conductive compound with high charge dissipation
suitable for following type of applications with chamber and heavy duty
cover.(approved make OEM has to submit test certificate including value of
earth resistane of installation.
[B] For Electrical installation up to 11 KV located in other than normal soil i.e.
Soft Rock, Marshy Soil etc.
-Length of Pipe : 2 mtr
-Back filling Compound :1 no. Bag of 25 Kg.
(Each for LT Panel, MPDBs, PDBs etc. DG Set)
111 Providing and erecting required size HOT deep Galvanised iron strip for earthing I --------------------------- As per Attached Sheet ---------------
of H.T. , OCB/ ACB/ Transformer LT panel board, Motors etc. using proper
clamp.
112 Providing and erecting HOT deep Galvanised iron strip wire 8 to 16 SWG. I --------------------------- As per Attached Sheet ---------------
113 Point wiring for FAN with 2-1.5 sq.mm & earth wire of 1.5 sq.mm (Green) both I --------------------------- As per Attached Sheet ---------------
are of .ISI marked 1.1 KV Grade FRLS PVC insulated multi strand copper wires
up to 10 mtr length, in below type of pipe erected with 6A Modular type
switch and hum free EME step type electronic fan regulator mounted and
accessories with earth continuity of following type erected on PVC /
Metallic/Wooden box, single mounting base frame covered with
textured/metallic/white front plate modules erected on / in wall / ceiling as per
pipe erected. with necessary ceiling rose / H.D.Connector as directed.
(a) with medium class Rigid PVC pipe and accessories erected flushed on
wall/ceiling complete
Cat. III
 [20]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
114 Point wiring for Light / Bell with 2-1.5 sq.mm & earth wire of 1.5 sq.mm I --------------------------- As per Attached Sheet ---------------
(Green) both are of ISI marked 1.1 KV grade FRLS PVC insulated multi strand
copper wires up to 10 mtr length , in below type of pipe erected with 6A
Modular type switch / bell push & accessories and earth continuity of following
type, erected on PVC / Metallic/Wooden box, single mounting base frame
covered with textured/metallic/white front plate modules erected on / in wall /
ceiling as per pipe erected, with necessary Lamp holder/ceiling rose /
H.D.Connector as directed.
(a) with medium class Rigid PVC pipe and accessories erected flushed on
wall/ceiling complete
Cat.
PointIIIwiring for Two Way Controlled Light Point with 2-1.5 sq.mm & earth wire
115 I --------------------------- As per Attached Sheet ---------------
of 1.5 sq.mm (green) both are of .ISI marked 1.1 KV grade FRLS PVC insulated
multi strand copper wires erected in below type of pipe with 6A Modular type
switches and following type of accessories erected on PVC / Metallic/Wooden
box, single mounting base frame covered with textured / metallic/white front
plate modules erected on / in wall / ceiling as per pipe erected. with necessary
batten/angle holder or ceiling rose or H.D.Connector as directed.
(a) with medium class Rigid PVC pipe and accessories erected flushed on
wall/ceiling complete
Cat. III
116 Point wiring for Individual Plug with & earth wire of 1.5 sq.mm (Green) both are I --------------------------- As per Attached Sheet ---------------
of ISI marked 1.1 KV grade FRLS PVC insulated multi strand copper wires up to
10 mtr length, in below type of pipe erected complete with Modular type
switch & 5 pin Plug erected on PVC / Metallic/Wooden box covered with
appropriate front plate modules erected on / in wall / ceiling as per pipe
erected with following type of accessories.
[II] For 16A Plug and 16 amp switch with 2-2.5 sq.mm Cu. Wire from mcb db
board.
(a) with medium class Rigid PVC pipe and accessories erected flushed on
wall/ceiling complete (For AC)
117 Providing following type of Modular Type Accessories mounted with PVC / I --------------------------- As per Attached Sheet ---------------
metallic/Wooden box, single mounting base frame covered with textured /
metallic/white front plate , modules erected with necessary connections as per
site situation directed by Engineer In charge.
(1)One No. SP 6 Amp. - Cat.III
118 (2) One No 5 pin plug - Cat.III I --------------------------- As per Attached Sheet ---------------
119 (4) TV Co-axial Socket outlet I --------------------------- As per Attached Sheet ---------------
120 (5) Electronic hum Free steps EME Fan regulator - Cat.III I --------------------------- As per Attached Sheet ---------------
 [21]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
121 (7) Blank Plate Single I --------------------------- As per Attached Sheet ---------------
122 (8) Computer RJ-45 socket I --------------------------- As per Attached Sheet ---------------
123 Providing following type of Modular Type Accessories mounted with PVC / I --------------------------- As per Attached Sheet ---------------
metallic/Wooden box, single mounting base frame covered with textured /
metallic/white front plate , modules erected with necessary connections as per
site situation directed by Engineer In charge.
(9) 16 Amp. SP one way switch - Cat.III
124 (10) 6/16Amp. Universal socket - Cat.III I --------------------------- As per Attached Sheet ---------------
125 (14) 6A/ 10A/ 16A/ 20A/ 25A/ 32A Double Pole Modular MCB Switch I --------------------------- As per Attached Sheet ---------------
126 (23) USB Charger with output of 5 V DC,2.1 A with inbuilt surge protection. I --------------------------- As per Attached Sheet ---------------
Cat-III

127 Providing and erecting Mains with 1.1 KV grade FRLS PVC insulated ISI marked I --------------------------- As per Attached Sheet ---------------
stranded Copper conductor wire in following type of pipe to be erected
concealed in /flushed on wall/ceiling, with 1.5 sq. mm copper conductor FRLS
PVC insulated stranded wire of green colour for earth continuity of following
size
(A) With medium class Rigid PVC pipe and accessories
(c) 3 wire 1.5 sq. mm
128 (d) 3 wire 2.5 sq. mm I --------------------------- As per Attached Sheet ---------------

129 providing and erecting Mains with 1.1 KV grade FRLS PVC insulated ISI marked I --------------------------- As per Attached Sheet ---------------
stranded Copper conductor wire in following type of pipe to be erected in / on
wall / ceiling with 2.5 sq. mm copper conductor FRLS PVC insulated stranded
wire of green colour for earth continuity of following size
(A) with medium class Rigid PVC pipe and accessories
(d) 3 wire 4 sq. mm

130 (e) 3 wire 6 sq. mm I --------------------------- As per Attached Sheet ---------------

131 Supplying & erecting approved make low noise decorative exhaust fan having I --------------------------- As per Attached Sheet ---------------
square frame ABS body with inbuilt lowers & square frame.
250mm with 1350 RPM Cat.II
132 SITC of CAT6 UTP 23AWG Solid: Per Meter I --------------------------- As per Attached Sheet ---------------
[Approved by Competent Authority i.e. not Below the rank of Executive
Engineer ]
 [22]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
133 LED LIGHT: I --------------------------- As per Attached Sheet ---------------
Supplying and erecting LED indoor fittings with LEDs of wattage 0.2 Watt to 0.5
Watt assembled on single MCPCB, with housing used as a heat sink shall be
made of thick sheet Steel conforming to IS: 513/CRCA/aluminium pressure die
cast powder coated and high U.V. & corrosion resistance with diffuser housed
in aluminium casted body with company mark/name
160V to 270V,Power Factor more than 0.9, THD < 15 %,
CCT 3000 K to 6500K,
Luminaire efficacy> 85 lumens/watt ,
LED driver efficiency > 85 %
( fitting required LM-79 & LM-80 Certificates)(NOTE: Below description have
shown ranges of Wattage capacity of LED fittings.The Engineer incharge may
select any wattage capacity between the ranges shown.)
(A) Square/ Circular shaped Surface/Recessed Mount Downlight with provision
for spring loaded mounting clips complete.IP20
(ii) 16-20 watts, Surge-2 KV - Cat-lll
134 (iv) 22-24 watts, Surge-2 KV - Cat-lll I --------------------------- As per Attached Sheet ---------------
135 1200mm sweep ceiling fan, capacitor type, Providing & erecting Approved I --------------------------- As per Attached Sheet ---------------
make Ceiling Fan with double ball bearing ISI mark with Condenser 230 volt
A.C.50 Hz 1200 mm sweep complete having 3 blades aluminium body and
blade sets having ornamental design shanks , canopy erected with earthing. [
Make shall be approved by Engineer in Charge]

136 Providing and erecting Inverter based approved make split air-conditioning unit I --------------------------- As per Attached Sheet ---------------
consisting of condensing unit with variable speed fan motor, inverter type
hermetically sealed rotary compressor with accessories etc. duly connected
separately erected evaporating unit and blower motor with its accessories by
means of extra supplied proper insulated copper tubing,drain PVC pipes suitable
for ( cost includes Eco Friendly green gas charging and 15A plug top & Remote
Control & MS Stand) with necessary core cutting.
2)For 4/5 Star Rating of current year
(C) for 1.7 to 2 ton capacity-Premium Cat.

137 Providing and erecting water cooler having storage capacity 80Ltr. & cooling I --------------------------- As per Attached Sheet ---------------
capacity 40 Ltr.per hour @ an ambient temp of 45˚ C. The outlet temp. of the
water should drop by 15˚ C within a hour, The water cooler should be
comprising of hermetically sealed compressor, fan motor, condensing unit,
water tank surrounded by evaporating coil, thermostats, relay etc. complete
with necessary inlet & outlet connection. The body of water cooler will be made
from Stainless Steel. ◦
 [23]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
138 Supplying & erecting reverse osmosis (RO) water purification system with M.S. I --------------------------- As per Attached Sheet ---------------
powder coated pedestal frame, prefilter housing carbon filter suitable buster DC
pump, auto low & high pressure switches with following size of LPH capacity &
erected as directed
[D] 100 LPH with 1 phase / 3 phase Raw water pump of 500LPH @ 2.5kg/cm2 -
(1N0 - Kirloskar /CRI/Lubi), Dual media filter 10"x54" - (1 No), Micron cartridge
filter 20" x 2.5" ( 1No), High pressure pump 500LPH @ 10kg/cm2 - (1No -
Shimge /CRI /Lubi), RO Membrane housing with RO membrane of 40*40 -
(1No), RO pressure tube 4" x 1E - ( 1No), 0 - 1200LPH Rotameter -(2 Nos), with
Recovery Rate 50%.
139 Providing and fixing Table tennis includes a table (2.7 by 1.5 metres), a net (1.8 I --------------------------- As per Attached Sheet ---------------
metres), a ball, and rackets (also called paddles or bats). The table is a
rectangular surface with a net dividing it into two halves. The ball is spherical
and made of plastic or celluloid. Rackets are typically made of laminated wood
with rubber on one or both sides.
140 Providing and fixing a carrom set contains 19 pieces (striker not included) in I --------------------------- As per Attached Sheet ---------------
three distinct colours: 9 white carrom men, 9 black carrom men and 1 red
queen. ICF-approved pieces must have a diameter of no more than 3.18 cm and
no less than 3.02 cm. The pieces must be between 7 and 9 mm thick.

141 Providing and fixing a chess set consists of a chessboard and a set of chess I --------------------------- As per Attached Sheet ---------------
pieces, typically 32 in total, 16 for each player. The set includes one king, one
queen, two rooks, two bishops, two knights, and eight pawns for each player.
Chess sets can be made from various materials like wood, plastic, or even
metal, and they come in a variety of styles, with the Staunton pattern being the
most common for competitive play.
142 Providing and fixing a snooker table is a rectangular billiard table with six I --------------------------- As per Attached Sheet ---------------
pockets, designed for the game of snooker. A standard full-size table measures
12 ft x 6 ft, with a playing surface of 11 ft 8.5 in x 5 ft 10 in. The table features a
slate bed covered in green baize cloth, with six pockets and a baulk line and a
"D" marking.
143 Excavation for foundation upto 1.5 m depth including sorting out and stacking I --------------------------- As per Attached Sheet ---------------
of useful materials and disposing off the excavated stuff upto 50 Meter lead -
For Column - Soft Soil
144 Excavation for foundation for depth from 1.5 m to 3.0 m including sorting out I --------------------------- As per Attached Sheet ---------------
and stacking of usefulmaterials and disposing off the excavated stuff upto 50
Meter lead - For Column Hard Murrum
145 Providing and laying controlled cement concrete M.250 and curing complete I --------------------------- As per Attached Sheet ---------------
excluding the cost of formwork and einforcement for reinforced concrete work
in (A) Foundations, footings, Base of columns and Mass concrete - For Column
Base
 [24]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
146 Providing and laying controlled cement concrete M.250 and curing complete I --------------------------- As per Attached Sheet ---------------
excluding the cost of formwork and reinforcement for reinforced concrete work
in (C) Slabs,landing,shelves,Balconies, Lintels, Beams, Girders and Cantilever
upto floor two level.
147 Providing and laying controlled cement concrete M.250 and curing complete I --------------------------- As per Attached Sheet ---------------
excluding the cost of formwork and reinforcement for reinforced concrete work
in (D) Columns, Pillars posts and struts, upto floor two level.

148 Filling in plinth with sand under floors including watering ramming, I --------------------------- As per Attached Sheet ---------------
consolidating and dressing complete
149 Providing formwork of ordinary timber planking so as to give a rough finish I --------------------------- As per Attached Sheet ---------------
including centering shuttering strutting and propping etc. Height of propping
and centering below supporting floor to ceiling not exceeding 4 M. and removal
of the same for in situ reinforced concrete and plain concrete work in. (A)
Foundations Footings Bases of Columns etc. and Mass concrete.

150 Providing formwork of ordinary timber planking so as to give a rough finish I --------------------------- As per Attached Sheet ---------------
including centering shuttering strutting and propping etc. height of propping
and centering below supporting floor to ceiling not exceeding4 M. and removal
of the same for in situ reinforcedconcrete and plain concrete work in. (G)
olumnsPillarsPosts and struts. (1) Square Rectangular Polygonal in plan.

151 Providing formwork of ordinary timber planking so as to give a rough finish I --------------------------- As per Attached Sheet ---------------
including centering shuttering strutting and propping etc. height of propping
and centering below supporting floor to ceiling not exceeding 4 M. and removal
of the same for in situ reinforced concrete and plain concrete work in. (H) (1)
Sides and soffits of Beams Beam Haunchings cantilevers Girders ressumers
and Lintels not exceeding 1 M. in Depth.
152 Purchasing and Supplying at site Of Works With Rly Freight loading, Unloading I --------------------------- As per Attached Sheet ---------------
Carting Etc. Complete Such as joints ,Channels Angles Iron Rail Etc.- Angles &
Channels Below 10 MM Thickness
153 Labour charges for lowering laying, erecting, fixing, various size of M. S. section I --------------------------- As per Attached Sheet ---------------
such as joints channel, angles plates etc. complete. - Do With Fabrication

154 Providing & Laying Synthetic Turf Multi Sports Colour Green Olive Mat For Box I --------------------------- As per Attached Sheet ---------------
Cricket Floor
155 Providing Fixing Of Box Cricket Safety Net Material Nylon Thread Thickness 2.5 I --------------------------- As per Attached Sheet ---------------
mm Colour Green
 [25]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
156 Providing Supplying With Fixing 400 Watts LED Flood Halogen Light Water Proof I --------------------------- As per Attached Sheet ---------------
IP65 Full Metal Body 140 Per Wall Lumens With 2 Year Warranty - BIS
Approved Provide Bright Light For Enhanced Visibility and Safety Wide
Operating Voltage Range From 110 V To 270 V AC - Energy Efficient LED
Technology With All Necessary Wiring Etc Complete
157 Providing and fixing pre-cast concrete kerb stone of gray cement based I --------------------------- As per Attached Sheet ---------------
concrete block 30cm length,30cm height and 15cm thick of M250 grade
concret as per approved design and including excavation for fixing in proper
line and level,filling the joint with C:M 1:3 (1cement:3fine sand) etc complete.

158 Volley Ball Net & Pole - Fixed Pole - Providing & Laying MS Steel Rounded Pipe I --------------------------- As per Attached Sheet ---------------
With Powder Coating With All Necessary accessory
159 Pro. And fixing single layer water proof gypsum board 12.5 mm thick sections I --------------------------- As per Attached Sheet ---------------
using water proof board of size 1220 mm x 1830 mm x 8.0 mm suspended by GI
suspender channel of size 25 mm x 3 mm with intermediate channel og size 18
mm x 40 mm x 0.8 mm at 1220 mm center to center ceiling section of size 40
mm x 35 mm x 0.55 mm at 457 mm c/c and perimeter channel A of size 20 mm
x 27 mm x 30 mm x 0.5 mm at edges & drops incl.paper tap sand sofit cleat,
anchor fastener, scoch bolt connecting cleat,joining compound top coat on
ceiling incl.making necy.opening for light fitting,diffuser etc. comp. as per detail
drawing as directed

160 Providing & Supplying DIRECTOR CHAIR of seat size 21 x 19 and seat in height I --------------------------- As per Attached Sheet ---------------
22" x 25" with permanent contact mechanism with 360 degree. The chair
includes of pneumatic seat height adjustment. Extra padded seat & back, built
of limber support, high back rest, PU Leather, material, PP arm rest, heavy duty
arm support base, syncro tilt mechanism, high quality damati base with use of
executive leather of colour as per drawing. The rate also includes for all
necessary items required to complete the job as per design /drawing and
client/consultant's instructions.
161 Providing & Supplying VISITOR CHAIR of seat with use of executive leather of I --------------------------- As per Attached Sheet ---------------
colour as per drawing. The rate also includes for all necessary items required to
complete the job as per design /drawing and client/consultant's instructions

162 Providing & Fixing Table with 18&12 mm thick playwood top size 60 "x36 " I --------------------------- As per Attached Sheet ---------------
with top side made of 18mm plywood use with 0.8mm laminated sheet all sides
internal laminate, out side 1mm laminate finish The rate also includes for all
necessary items required to complete the job as per design /drawing and client/
consultant's instructions.
 [26]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
163 Providing & Fixing FILE STOREGE CUPBORD with 16mm thick plywood depth I --------------------------- As per Attached Sheet ---------------
14" with made of 16mm plywood use in Carcasse all insides internal 0.8mm
laminate,out side1MM LAMINATE finish The rate also includes for The rate
also includes for all necessary items required to complete the job as per design
/drawing and client/ consultant's instructions. 4 Foot X 6 Foot

164 Providing & Fixing TV UNIT BOX Cabinet with 18mm/8mm thick playwood I --------------------------- As per Attached Sheet ---------------
depth 12" with hight 18" lenth 48" -made of 18mm plywood use in Carcasse all
sides internal 0.8mm laminate out side laminate finish The rate also includes
for The rate also includes for all necessary items required to complete the job as
per design /drawing and client/ consultant's instructions.

165 Manager Table/ Office Table/Computer Table I --------------------------- As per Attached Sheet ---------------
Design Supply and Fixing In Position Manager Table Of Size 3 Foot x 2 Foot
Including Side Storage By 25 mm Thick Plywood For Top and 19 mm Thick
Plywood For all other Horizontal and Vertical Members Side Storage as per
Drawing Shall Be Provided Drawer Provided With Handle ( Stainles Steel ) and
Channel as per Approval Of The Project Consultant All Exposed Surface

166 Design Supply and Fixing Of Corner Table Square Table For All Material I --------------------------- As per Attached Sheet ---------------
Wooden Frame and Leg Melamine Polish Top Made Of 12 mm Thick Float Glass
Complete With All Necessary Hardware Size 2 Foot x 2 Foot
167 Design Supply and Fixing Of Center Square Table For All Material Wooden I --------------------------- As per Attached Sheet ---------------
Frame Leg Of Metal Surfaces Top Made Of 12 mm Thick Float Glass Complete
With all Necessary Hardware
168 Providing and fixing 75 mm thk SOLID PARTITONS finish in line, level and I --------------------------- As per Attached Sheet ---------------
plumb made out ofaluminum framework @ 600 mm c/c with ,9 mm thk
PLYWOOD seat fixed on both the sides of the frame work both side laminate
finish . all complete as per architects instructions, The rate also includes for all
necessary items required to complete the job as per design /drawing and
client/consultant's instructions.
169 Providing & Fixing TOUGHENED GLASS PARTITONS 12 mm thick clear toughened I --------------------------- As per Attached Sheet ---------------
glass mounted on floor & top Profile braket & wooden border The rate also
includes for all necessary items required to complete the job as per
design/drawing and client/consultant's instructions. With Door

170 SUPPLY AND INSTALLATION OF MAIN FIRE PUMP 35 HP I --------------------------- As per Attached Sheet ---------------
171 Supplying, installing, testing and commissioning of Control Panel suitable for the I --------------------------- As per Attached Sheet ---------------
automatic operation of pumps. (For Fire pump House)
 [27]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
172 Supply, Installation, Testing and Commissioning of 100 mm dia Pressure Gauge I --------------------------- As per Attached Sheet ---------------
of range 0 - 15 Kg /cm² conforming to IS - 3624 having bourdon tube of stainless
steel 310 in cast aluminium, stove. enameled, black, weather proof case with
outer, screwed aluminium bezel and complete with necessary cock including
providing suitably painted angle iron support to the tube etc.as per specification
complete as required.
173 Pressure Switch I --------------------------- As per Attached Sheet ---------------
174 Supply, Installation, Testing and Commissioning of the following sizes of flange I --------------------------- As per Attached Sheet ---------------
jointed / screwed / welded, M.S.Pipes of Class C (Heavy Duty ISI marked
including accessories such as MS bracket, U clamps with Anchor fasteners, tees
/ elbows / reducers / couplings / unions / bends / flanges etc., laying and testing
,Installation with One coats of red oxide primer and two coat of sinthetic
enamal paint (P.O.Red.) etc. as per specifications complete as required.

174a b)100 mm dia. I --------------------------- As per Attached Sheet ---------------

174b c) 80 mm dia I --------------------------- As per Attached Sheet ---------------
174c d) 65 mm dia I --------------------------- As per Attached Sheet ---------------
174d e) 50 mm dia I --------------------------- As per Attached Sheet ---------------
174e f) 40 mm dia I --------------------------- As per Attached Sheet ---------------
174f g) 32 mm dia I --------------------------- As per Attached Sheet ---------------
174g h) 25 mm dia I --------------------------- As per Attached Sheet ---------------
175 Supply, installation, testing and commissioning of C.I. Butterfly valve (PN 1.6) I --------------------------- As per Attached Sheet ---------------
with flanges, nut bolts, gaskets complete as required.
175a b) 100 mm dia I --------------------------- As per Attached Sheet ---------------
175b c) 80 mm dia I --------------------------- As per Attached Sheet ---------------
175c c) 65 mm dia I --------------------------- As per Attached Sheet ---------------
175d d) 50 mm dia I --------------------------- As per Attached Sheet ---------------
176 Supply, Installation, Testing and Commissioning of Cast iron Dual plate Check I --------------------------- As per Attached Sheet ---------------
valve (PN 1.6)
176a b) 100 mm dia I --------------------------- As per Attached Sheet ---------------
176b c) 80 mm dia I --------------------------- As per Attached Sheet ---------------
177 Y' Type Strainer I --------------------------- As per Attached Sheet ---------------
177a b) 100 mm dia. I --------------------------- As per Attached Sheet ---------------
178 Supply, installation, testing and commissioning of First Aid Hose Reel equipment I --------------------------- As per Attached Sheet ---------------
conforming to IS:884 comprising of hose reel drum, 8 mm shut off nozzle,
Rubber hose reel tubing as per IS: 444 of 25 mm dia x 30 mtr. long, painting,
Manual fix type with fixing bracket, anchor fastener, bolts & nuts etc. complete
as required by Local Fire Authority
 [28]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
179 Supply, installation, testing and commissioning of Cast Iron2 Way Fire Brigade I --------------------------- As per Attached Sheet ---------------
Inlet as per IS: 904 having 63 mm dia inlet with blank cap and chain with
necessary fittings, flanges, nut bolts etc. (For Water Tank)
180 Providing,fixing,testing and commissioning of S.S metal single headed ISI I --------------------------- As per Attached Sheet ---------------
marked Oblique Pattern Hydrant Landing Valves as per IS:5290 with 80mmdia
flanged inlet & 63 mm dia female outlet complete with gun metal cap.

181 Supply, installation, testing and commissioning of NON Percolating Flexible I --------------------------- As per Attached Sheet ---------------
Hose with S.S.Male & Female instantaneous Type Coupling (RRL Type A) IS 636 ,
size ; 63mmDia X 15 Mtr.Long.
182 Supply, installation, testing and commissioning of Standard S.S Branch Pipe with I --------------------------- As per Attached Sheet ---------------
Nozzle of 20mm nominal bore outlet as per IS 903 Suitable to fit with standard
instantaeous type 63mmDia.Coupling.
183 Providing,fixing,testing and commissioning of Weather Proof Standard Fire Hose I --------------------------- As per Attached Sheet ---------------
Cabinet wall mounted type (450 mm X 600 mm X 250 mm deep)having single
opening with locking arrangment by allan key suitable for housing 1 no.of 15m
long hose pipes, 1no.Branch Pipe & nozzle spaner.(Double Door)

184 a) Manual call point - FRP, ABS I --------------------------- As per Attached Sheet ---------------
185 b) Hooters - FRP, ABS I --------------------------- As per Attached Sheet ---------------
186 c) Pump on/off switches I --------------------------- As per Attached Sheet ---------------
187 d) Smoke Detector I --------------------------- As per Attached Sheet ---------------
188 e) Alarm Panel I --------------------------- As per Attached Sheet ---------------
189 f) Cable for Fire Alarm & Detection System I --------------------------- As per Attached Sheet ---------------
190 FIRE EXTINGUISHER I --------------------------- As per Attached Sheet ---------------
191 Supply, installation, testing and commissioning of Carbon Dioxide (Co2) type I --------------------------- As per Attached Sheet ---------------
Fire Extinguisher of 4.5 kg confirm to IS:15683, with ISI marked / TAC approved
fitted with required accessories including wall suspension brackets.

192 Supply, installation, testing and commissioning of Dry Chemical Powder (ABC) I --------------------------- As per Attached Sheet ---------------
type 6 kg confirm to IS:15683, with ISI marked / TAC approved fitted with
required accessories including wall suspension brackets.
193 Providing, fixing AUTO GLOW photo luminescent Signage's as per IS standard in I --------------------------- As per Attached Sheet ---------------
Block / Small Letters on rigid sheet with necessary wall or Ceiling fittings as
Specified Sizes:
193a a) Fire lift size: 4" X 12" I --------------------------- As per Attached Sheet ---------------
193b b) Fire Hydrant: 4" X 12" I --------------------------- As per Attached Sheet ---------------
193c c) "ABC" Extinguisher: 8" X 4" I --------------------------- As per Attached Sheet ---------------
193d d) "CO2" Extinguisher: 8" X 4" I --------------------------- As per Attached Sheet ---------------
 [29]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
193e e) In case of Fire, do not use lift, use staircase: 8" x 8" I --------------------------- As per Attached Sheet ---------------
194 Supply, installation, testing and commissioning of Gun Metal Air Release Valve I --------------------------- As per Attached Sheet ---------------
with necessary fittings.size:25mm
195 Supply, Installation, Testing and Commissioning of Brass Ball valve . I --------------------------- As per Attached Sheet ---------------
195a a) 25 mm dia for hose reel & air release valve at terrace I --------------------------- As per Attached Sheet ---------------
195b b) 15 mm dia for pressure gauge & pressure switch I --------------------------- As per Attached Sheet ---------------
196 Supply, Installation, Testing and commissioning of Quartzoid Bulb type Sprinkler I --------------------------- As per Attached Sheet ---------------
Heads.
196a a) Pendent sprinkler 57°C I --------------------------- As per Attached Sheet ---------------
196b b) Side Wall Sprinkler 68 °C I --------------------------- As per Attached Sheet ---------------
197 Struture I --------------------------- As per Attached Sheet ---------------
198 Pump Room Cabling I --------------------------- As per Attached Sheet ---------------
199 Providing and laying compacted W.B.M 150mm thick of machine crushed B.T I --------------------------- As per Attached Sheet ---------------
metal of size 40mm to 63mm including spreading using 25% sand as filler in two
layers of 75mm thick each including spreading watering and consolidating using
vibratory roller etc, complete
200 Providing and casting in situ controlled cement concrete M-200 for average 75 I --------------------------- As per Attached Sheet ---------------
mm thick wearing coat laid as directed dincluding tamping, vibrating, finishing,
curing and fillingin joints with bitumen complete
201 Supplying and erecting approved make Octagonal pole made from HR sheet I --------------------------- As per Attached Sheet ---------------
steel. The pole should be made as per IS. and shall be coated with hot dip
galvanizing as per IS 2629/2633/4759, suitable suspend local wind speed with
integral Junction box consist of terminal plate of min 6mm Hylam sheet,
standard profile 35mmX7.5mm Din-Rail for MCB Mounting, stud type terminal
and arrangement for cable termination to be erected With Suitable foundation
(Included) as per details given by manufacturer considering site requirement.
(E) 7 Mtr. Long 70 mm Top X 135 mm bottom dia, 3 mm thickness with
225mmX225mmX16mm base plate, 4-M20 Bolts and 600mm long with
necessary G.I. J Bolts .Approx Pole weight 67 kg
202 Supplying and erecting Street light pole bracket comprising main B Class GI pipe I --------------------------- As per Attached Sheet ---------------
of 4.2 cm/require outside dia. complete with suitable B Class G.I. sleeve tubing
of approx. 45cms.length and suitable for 76.5mm/80mm/require size of pole
top having nuts and bolts for fixing the brackets and having spread of 0.5 mtr.
Length with 110 deg.with vertical plane and suitable welded stiffener reducer
and nipple with check nut complete painted with one coat.of Red oxide / PU
base primer and two coats of Aluminium / PU paint. paint with following nos of
arms. [B] Single Arm Bracket 0.5 Mtr
 [30]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
203 Supplying and erecting LED street light / Flood light fittings with High power I --------------------------- As per Attached Sheet ---------------
White LEDs wattage of 3 Watt and above assembled on single MCPCB,
efficiency more than 130 lm/w and corrosion free High pressure die cast
aluminum housing with smooth finish powder coated and heat sink extruded
aluminium with diffuser and Polycarbonate optics/ lenses, with toughened glass
with company mark/name engraved or embossed 160 to 270 V,Power Factor
more than 0.95, THD < 10 %, CCT 3000 K to 5700K,Uniformity ratio >0.45,
Luminaire efficacy> 100 lumens/watt . LED driver efficiency > 85%. (fittings
required LM-79 & LM-80 certificates) (NOTE: Below description have shown
ranges of Wattage capacity of LED fittings.The Engineer incharge may select any
wattage capacity between the ranges shown.) (A) Street Light (IP-65), Surge
protection-4KV integral and, Light must have 440VAC line supply with over-
voltage protection. (ii) 60 Watts Cat-lll
204 Providing & erecting 415 V MCB Four Pole for Motor & Inductive Load (C I --------------------------- As per Attached Sheet ---------------
Curve) having 10KA breaking capacity & confirms to IS :8828 in existing box
having following capacity (a) 6 to 32 Amp. Cat.III
205 providing and erecting Miniature circuit breaker single pole 6A to 25A suitable I --------------------------- As per Attached Sheet ---------------
to operate on 240 V A.C. system and having breaking capacity 10 KA to be
erected in existing box. confirming to IS 8828/1996 with ISI Mark Cat.III

206 Supplying and erecting Flexible PVC insulated multi strand multi core 1.1 kv I --------------------------- As per Attached Sheet ---------------
grade ISI marked copper wires of following size to be erected as directed. (e)
1.50 Sq.mm 3 core round PVC sheathed
207 Providing and erecting XLPE (IS:7098) (I)-88 ISI armoured cable I --------------------------- As per Attached Sheet ---------------
multistrand/Solid Copper conductor for 1.1 KV. to be laid on wall with
necessary clamps or in existing trench/pipe at road crossing or floor of following
size of cables. (B) 4 core 4 Sq.mm
208 Providing & laying approved make Double walled corrugated pipes (DWC) of I --------------------------- As per Attached Sheet ---------------
polyethylene (conforming to IS 14930 II) with necessary connecting accessories
of same material at required depth in existing trench for laying of cable. below
ground/road surface for enclosing cable (A) 50mm outer dia

209 Supplying & erecting approved make Digital time switch having lithium cell 6 I --------------------------- As per Attached Sheet ---------------
years operative and operate battery backup 1 channel day clock with 14
memory programme, suitable to operate on 240V + 5%, 16A with, floating
contacts Minimum switching setup time 1 minimum & LCD display. Also
comprised permanent ON/OFF switching. Programming switches & housed in
fire proof thermoplastic enclosure & transparent cover erected as required with
necessary connection erected as directed.
 [31]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
210 Providing Approved make Triple Pole Cast Iron Clad Switch & rewirable Fuse I --------------------------- As per Attached Sheet ---------------
with neutral link 415/500 V confirming to IS(b) 32 A,Cat.iii
211 Providing and erecting AC-3 duty 3 pole power contactor with 2 NO & 2 NC aux I --------------------------- As per Attached Sheet ---------------
contacts complete with 415V/220V operating coil suitable for (L&T, BCH,T.C.,
Siemens, C&S make). (B) for 40 A rating
212 Making trench in Hard Murrum / Tar Road of suitable width of 90 cm or I --------------------------- As per Attached Sheet ---------------
required depth for laying any size of cable or locating the fault all over the run
and back filling the same and making the surface as normal ground.

213 Supplying & erecting IP 55 grade following size section pillar fabricated from I --------------------------- As per Attached Sheet ---------------
joint less M.S. Sheet with angle iron legs made from jointless M.S. Angle with
cable clamps to be buried in ground to have appropriate erection to work
uniform until erected with cement concrete foundation and 45 cm high bricks
work finishing with plaster etc. hinged double door internally supported on both
side, with internal and outside looking arrangement with look and keys in
duplicate 35 x 35 x 5 mm M.S. Angle of Two Nos. one is welded and other with
nut and bolt for erecting Bakelite sheet. Painting the Section Pillar inside and
out side with three tank powder coated paint. section pillar roof should be
without joint with water leakage proof & tested as per IP 55 test & followed by
IS 2147 of 1962(B) 75 X 60 X 45 cm section pillar fabricated from 16 Gauge MS
Sheet with angle iron legs 45 cm long made from 35 X 35 X 5 mm thick MS
angle.
214 Supplying & erecting earth pit of minimum bore dia.150mm size approved make I --------------------------- As per Attached Sheet ---------------
Earthing Electrode consisting Pipe-in-Pipe Technology as per IS 3043-1987 made
of corrosion free hot dipped G.I.Pipes having Outer pipe dia of 50mm having
80-200 Micron galvanising, Inner pipe dia of 25 mm having 200-250 Micron
galvanising, connection terminal dia of 12mm with constant ohmic value
surrounded by highly conductive compound with high charge dissipation
suitable for following type of applications with chamber and heavy duty
cover.(A) (approved make OEM has to submit test certificate including value of
earth resistance of installation duly stamped and signed by agency and officer
Incharge has to ensure the value of earthing resistane mentioned in test
Certificate) & having back filling compound of (B) Inner chemical (CCM
Compound)- Resistivity:- 0.2 ohm / meter testing as per IEC 62561-2017,
Voltage drop:- < 1 volt at no load & dry form, Sulphar content:- <2% (C) Back fill
Compound :- Earthing compound should be capable to retain moisture for long
time Necessary test report must be submitted by Agency. (a) For Electrical
Installation up to 440V in normal soil Length of pipe - 1 Mtr Back filling
compound - 1 Nos Bag of 15 Kg.
 [32]

Sr. Item of Work Volume Page Specification Para No. Remarks.

No. No. No. Item No.No.
1 2 3 4 5 6 7
215 Supplying and erecting HYLAM sheet on existing angle iron frame.for following I --------------------------- As per Attached Sheet ---------------
thickness(B) 4mm.

City Engineer
Surendrangar Municipal Corporation
Surendrangar
