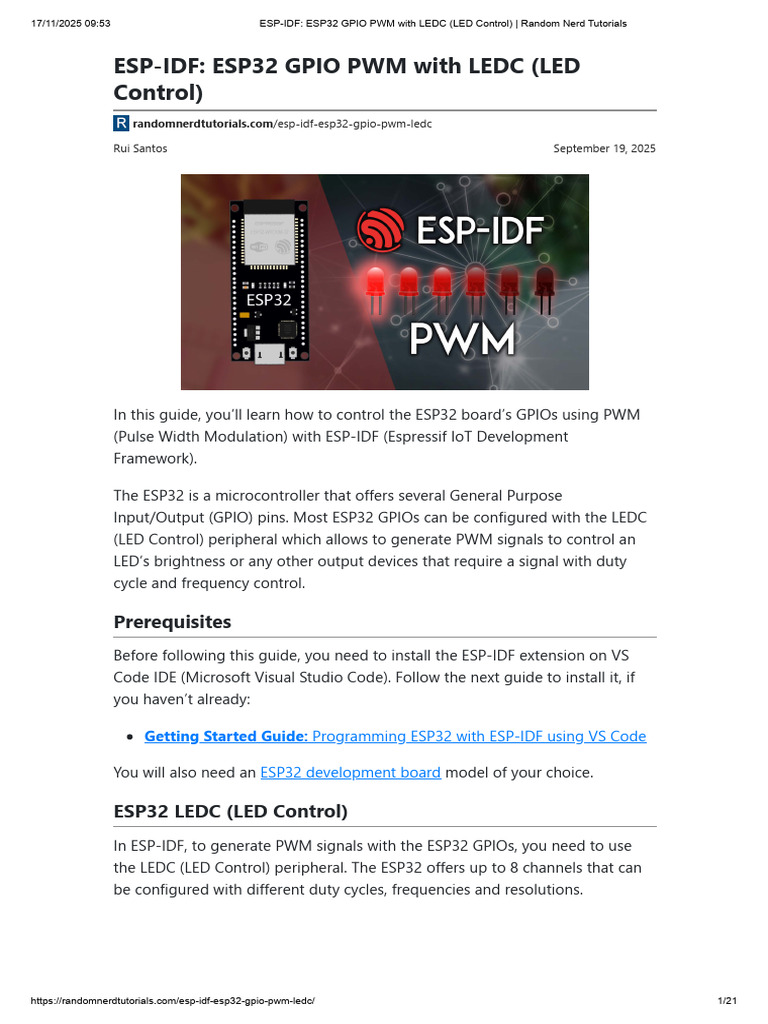

ESP-IDF: ESP32 GPIO PWM with LEDC (LED
Control)
randomnerdtutorials.com/esp-idf-esp32-gpio-pwm-ledc
Rui Santos September 19, 2025
In this guide, you’ll learn how to control the ESP32 board’s GPIOs using PWM
(Pulse Width Modulation) with ESP-IDF (Espressif IoT Development
Framework).
The ESP32 is a microcontroller that offers several General Purpose
Input/Output (GPIO) pins. Most ESP32 GPIOs can be configured with the LEDC
(LED Control) peripheral which allows to generate PWM signals to control an
LED’s brightness or any other output devices that require a signal with duty
cycle and frequency control.
Prerequisites
Before following this guide, you need to install the ESP-IDF extension on VS
Code IDE (Microsoft Visual Studio Code). Follow the next guide to install it, if
you haven’t already:
Getting Started Guide: Programming ESP32 with ESP-IDF using VS Code
You will also need an ESP32 development board model of your choice.
ESP32 LEDC (LED Control)
In ESP-IDF, to generate PWM signals with the ESP32 GPIOs, you need to use
the LEDC (LED Control) peripheral. The ESP32 offers up to 8 channels that can
be configured with different duty cycles, frequencies and resolutions.
https://randomnerdtutorials.com/esp-idf-esp32-gpio-pwm-ledc/ 1/21
17/11/2025 09:53 ESP-IDF: ESP32 GPIO PWM with LEDC (LED Control) | Random Nerd Tutorials
In a high level overview, in order to use LEDC it is necessary to configure the
timer first by using ledc_timer_config(), and then configure the channels with
ledc_channel_config(). This procedure ensures the PWM frequency is at the
desired value. This process will be explained in more detail in the examples
(you can also learn more in the official documentation).
The ESP32 has an LED PWM controller with 6 to 16 independent channels
(depending on the ESP32 model) that can be configured to generate PWM
signals with different properties. All pins that can act as outputs can be used as
PWM pins (GPIOs 34 to 39 can’t generate PWM).
Learn more about the ESP32 GPIOs: ESP32 GPIO Reference Guide.
Creating an ESP-IDF Template App Project for the ESP32
The ESP-IDF extension provides an easy way to create a project from scratch
with all the required files and configurations generated automatically.
To create a new ESP-IDF project on VS Code, follow these steps:
1. Open the ESP-IDF Espressif extension
2. Expand the “Advanced” menu
3. Click the “New Project Wizard” option
4. Choose the “Use ESP-IDF v5.4.1” to select the framework version
A new window opens, you need to fill in these fields:
Project Name: type the desired project name;
Enter Project Directory: click the folder icon and select the target folder
to save all your project files. You can use any directory. Note: do NOT use
https://randomnerdtutorials.com/esp-idf-esp32-gpio-pwm-ledc/ 2/21
17/11/2025 09:53 ESP-IDF: ESP32 GPIO PWM with LEDC (LED Control) | Random Nerd Tutorials
a Google Drive / One Drive / Dropbox folder, because it will write/create
many files during the building process—if it’s on a cloud folder, this
process might be extremely slow;
ESP-IDF Target: select the target device chip, I’m using an ESP32 with the
esp32s3 chip;
ESP-IDF Board: for the esp32s3 chip, I also need to select the
configuration: ESP32-S chip (via builtin USB-JTAG);
Serial Port: while having your ESP32 board connected to your computer,
select the correct COM port number that refers to your ESP32;
Choose Template: click the blue button to create a new project using a
template.
In the menu, select the “template-app” sample project and press the “Create
project using template template-app” button.
https://randomnerdtutorials.com/esp-idf-esp32-gpio-pwm-ledc/ 3/21
17/11/2025 09:53 ESP-IDF: ESP32 GPIO PWM with LEDC (LED Control) | Random Nerd Tutorials
Opening the ESP-IDF Project on VS Code
After a few seconds, a small notification will appear at the bottom right corner
of VS Code. You can click “Yes” to open the newly created ESP-IDF project
template.
IMPORTANT: if you didn’t see the notification that allows you to automatically
open the ESP-IDF project on VS Code, you can easily do it by following these
instructions:
Go to File > Open Folder…
Browse on your computer for the esp-idf-project folder (your project folder
name that you’ve previously defined) and “Select Folder“.
https://randomnerdtutorials.com/esp-idf-esp32-gpio-pwm-ledc/ 4/21
17/11/2025 09:53 ESP-IDF: ESP32 GPIO PWM with LEDC (LED Control) | Random Nerd Tutorials
That’s it! Your new ESP-IDF project template has been successfully created and
opened.
ESP-IDF generates many files, folders, and subfolders for your project. For this
guide, I recommend keeping all the default files unchanged; we will only
modify the main.c file.
The example codes will be written in the main.c file. To open it, follow these
instructions:
1. Open the project explorer by clicking the first icon on the left sidebar.
2. Select your project folder name, in my case it’s “ESP-IDF-PROJECT“.
3. Expand the “main” folder.
4. Click the “main.c” file.
5. The default main.c template file loads in the code window.
Example #1: Control ESP32 LED’s Brightness with ESP-IDF
LEDC (LED Control)
Here’s the full main.c code that controls the LED brightness using the ledc
peripheral:
https://randomnerdtutorials.com/esp-idf-esp32-gpio-pwm-ledc/ 5/21
17/11/2025 09:53 ESP-IDF: ESP32 GPIO PWM with LEDC (LED Control) | Random Nerd Tutorials
/*
Rui Santos & Sara Santos - Random Nerd Tutorials
https://RandomNerdTutorials.com/esp-idf-esp32-gpio-pwm-ledc/
*/
#include <stdio.h>
#include <freertos/FreeRTOS.h>
#include <freertos/task.h>
#include <driver/ledc.h>
#include "sdkconfig.h"
#define LED_PIN 5 // LED connected to GPIO 5
#define LEDC_CHANNEL LEDC_CHANNEL_0
#define LEDC_TIMER LEDC_TIMER_0
#define LEDC_MODE LEDC_LOW_SPEED_MODE
#define LEDC_DUTY_RES LEDC_TIMER_10_BIT // 10-bit resolution (0-
1023)
#define LEDC_FREQUENCY 1000 // 1 kHz PWM frequency
void app_main(void)
{
// Configure LEDC timer
ledc_timer_config_t ledc_timer = {
.speed_mode = LEDC_MODE,
.duty_resolution = LEDC_DUTY_RES,
.timer_num = LEDC_TIMER,
.freq_hz = LEDC_FREQUENCY
};
ledc_timer_config(&ledc_timer);
// Configure LEDC channel
ledc_channel_config_t ledc_channel = {
.gpio_num = LED_PIN,
.speed_mode = LEDC_MODE,
.channel = LEDC_CHANNEL,
.timer_sel = LEDC_TIMER,
.duty = 0
};
ledc_channel_config(&ledc_channel);
// Fading loop
while (1) {
// Fade in
for (int duty = 0; duty <= 1023; duty += 10) {
ledc_set_duty(LEDC_MODE, LEDC_CHANNEL, duty);
ledc_update_duty(LEDC_MODE, LEDC_CHANNEL);
vTaskDelay(20 / portTICK_PERIOD_MS);
printf("LED duty cycle: %d\n", duty);
}
https://randomnerdtutorials.com/esp-idf-esp32-gpio-pwm-ledc/ 6/21
17/11/2025 09:53 ESP-IDF: ESP32 GPIO PWM with LEDC (LED Control) | Random Nerd Tutorials
// Fade out
for (int duty = 1023; duty >= 0; duty -= 10) {
ledc_set_duty(LEDC_MODE, LEDC_CHANNEL, duty);
ledc_update_duty(LEDC_MODE, LEDC_CHANNEL);
vTaskDelay(20 / portTICK_PERIOD_MS);
printf("LED duty cycle: %d\n", duty);
}
}
}
View raw code
How the Code Works
In this section, we’ll take a look at the code to see how it works.
Libraries
We start by including the required libraries:
stdio.h – the standard C library will be used for the printf function that
prints the debugging information in the serial monitor;
FreeRTOS.h – provides the core FreeRTOS types and functions;
task.h – allows to use of the non-blocking delay function vTaskDelay;
driver/ledc.h – includes the functions required to configure timers and
channels to generate PWM signals;
sdkconfig.h – includes the project’s configuration file.
#include <stdio.h>
#include <freertos/FreeRTOS.h>
#include <freertos/task.h>
#include <driver/ledc.h>
#include "sdkconfig.h"
Pin Assignment
This line assigns the LED to GPIO 5; you can change it to a different number to
match your board pinout or to control a different GPIO.
#define LED_PIN 5
LEDC Configurations
https://randomnerdtutorials.com/esp-idf-esp32-gpio-pwm-ledc/ 7/21
17/11/2025 09:53 ESP-IDF: ESP32 GPIO PWM with LEDC (LED Control) | Random Nerd Tutorials
Define the configurations for your LEDC channel, LEDC timer, mode, duty cycle
resolution and frequency.
#define LEDC_CHANNEL LEDC_CHANNEL_0
#define LEDC_TIMER LEDC_TIMER_0
#define LEDC_MODE LEDC_LOW_SPEED_MODE
#define LEDC_DUTY_RES LEDC_TIMER_10_BIT // 10-bit resolution (0-
1023)
#define LEDC_FREQUENCY 1000 // 1 kHz PWM
frequency
app_main(void)
When creating an ESP-IDF project, this function will always be called to run.
This function is where you need to write your code for any ESP-IDF
applications; it is the equivalent of the setup() in Arduino programming. When
the ESP32 boots, the ESP-IDF framework calls app_main.
void app_main(void)
{
// your code goes here
}
In the app_main(void) function, you start by creating the ledc_timer with the
mode, resolution, timer and frequency:
speed_mode: use LEDC_LOW_SPEED_MODE (some ESP32 also support
LEDC_HIGH_SPEED_MODE)
duty_resolution: set the PWM resolution (for example: 10-bit gives a 0 to
1023 range)
timer_num: select one of the available timers
freq_hz: sets the PWM frequency (1 kHz can be used for LEDs)
// Configure LEDC timer
ledc_timer_config_t ledc_timer = {
.speed_mode = LEDC_MODE,
.duty_resolution = LEDC_DUTY_RES,
.timer_num = LEDC_TIMER,
.freq_hz = LEDC_FREQUENCY
};
ledc_timer_config(&ledc_timer);
https://randomnerdtutorials.com/esp-idf-esp32-gpio-pwm-ledc/ 8/21
17/11/2025 09:53 ESP-IDF: ESP32 GPIO PWM with LEDC (LED Control) | Random Nerd Tutorials
Then, call the ledc_channel_config(&ledc_channel) function to configure the
LEDC channels with the GPIO number, mode, channel, timer and duty cycle.
gpio_num: assign the GPIO pin connected to the LED
speed_mode: use LEDC_LOW_SPEED_MODE (some ESP32 also support
LEDC_HIGH_SPEED_MODE)
channel: assign an available channel (example: LEDC_CHANNEL_0)
timer_sel: assign the channel to the configured timer
duty: set the initial duty cycle (example: 0 = off and 1023 = full brightness
for 10-bit range)
// Configure LEDC channel
ledc_channel_config_t ledc_channel = {
.gpio_num = LED_PIN,
.speed_mode = LEDC_MODE,
.channel = LEDC_CHANNEL,
.timer_sel = LEDC_TIMER,
.duty = 0
};
ledc_channel_config(&ledc_channel);
The while(1) runs an infinite loop that keeps the LED fading in and fading out
creating a dimming LED effect.
while (1) {
// Fade in
for (int duty = 0; duty <= 1023; duty += 10) {
ledc_set_duty(LEDC_MODE, LEDC_CHANNEL, duty);
ledc_update_duty(LEDC_MODE, LEDC_CHANNEL);
vTaskDelay(20 / portTICK_PERIOD_MS);
printf("LED duty cycle: %d\n", duty);
}
// Fade out
for (int duty = 1023; duty >= 0; duty -= 10) {
ledc_set_duty(LEDC_MODE, LEDC_CHANNEL, duty);
ledc_update_duty(LEDC_MODE, LEDC_CHANNEL);
vTaskDelay(20 / portTICK_PERIOD_MS);
printf("LED duty cycle: %d\n", duty);
}
}
Set the LEDC_CHANNEL duty cycle to the value stored in duty and apply it to
your LED (example: 0 = off and 1023 = full brightness for 10-bit range).
https://randomnerdtutorials.com/esp-idf-esp32-gpio-pwm-ledc/ 9/21
17/11/2025 09:53 ESP-IDF: ESP32 GPIO PWM with LEDC (LED Control) | Random Nerd Tutorials
ledc_set_duty(LEDC_MODE, LEDC_CHANNEL, duty);
ledc_update_duty(LEDC_MODE, LEDC_CHANNEL);
Then, add a delay of 20 milliseconds, so the LED is brightness is incremented to
create a fading in effect.
vTaskDelay(20 / portTICK_PERIOD_MS);
Inside the infinite loop, you print a message saying “LED duty cycle:” in the
Serial Monitor/Terminal tab to see the current duty cycle that was applied.
printf("LED duty cycle: %d\n", duty);
A similar process is repeated to fade out the LED.
Build and Flash Code to the ESP32 Board
To build and flash ESP-IDF code to the ESP32, you always need to follow this
procedure. You need to select the flash method (UART), the COM port number,
the target device (ESP32), build the code, and finally, flash it to the board. All
these commands are available in the bottom menu bar of VS Code.
Make sure all your options are correct (they may already be properly
configured if you used the project wizard).
However, if your setup is not correct, follow the next instructions to ensure
everything is set up correctly. First, click the “Star” icon and select the flash
method as UART.
https://randomnerdtutorials.com/esp-idf-esp32-gpio-pwm-ledc/ 10/21
17/11/2025 09:53 ESP-IDF: ESP32 GPIO PWM with LEDC (LED Control) | Random Nerd Tutorials
While the ESP32 board is connected to your computer, click the COM Port
(plug icon) and select the correct port number that refers to your ESP32.
You also need to select the target device. Click on the chip icon at the bottom
bar. In my case, I have an ESP32 with the esp32s3 chip.
For this board, I also need to select the configuration: ESP32-S chip (via
builtin USB-JTAG).
https://randomnerdtutorials.com/esp-idf-esp32-gpio-pwm-ledc/ 11/21
17/11/2025 09:53 ESP-IDF: ESP32 GPIO PWM with LEDC (LED Control) | Random Nerd Tutorials
Finally, your command bar on the bottom of VS Code should have similar
options selected.
Now, you can build the project by clicking the wrench icon (Build Project) as
shown in the image below.
The first time you build a project, it usually takes a bit more time. Once
completed, it should print a similar message in the Terminal menu and show a
“Build Successfully” message.
https://randomnerdtutorials.com/esp-idf-esp32-gpio-pwm-ledc/ 12/21
17/11/2025 09:53 ESP-IDF: ESP32 GPIO PWM with LEDC (LED Control) | Random Nerd Tutorials
This is the final step. You can now flash the ESP-IDF project to the ESP32 by
clicking the “Flash Device” button (thunder icon).
Depending on your board, you might need to hold down the on-board BOOT
button on your ESP32 to put into flashing mode. Once the process is
completed, it will pop-up a info message saying “Flash Done“.
Demonstration
If you followed all the steps, the code example should be running successfully
on your board. Open your Terminal window — click the “Monitor Device” tool
that is illustrated with a screen icon.
https://randomnerdtutorials.com/esp-idf-esp32-gpio-pwm-ledc/ 13/21
17/11/2025 09:53 ESP-IDF: ESP32 GPIO PWM with LEDC (LED Control) | Random Nerd Tutorials
The terminal should be printing a message saying “LED duty cycle: 1023” and
it will increment/decrement from 0 to 1023. This process is repeated
indefinitely.
You should have an LED that increases and decreases its brightness.
Example #2: Control Multiple LEDs’ Brightness with ESP-
IDF LEDC
Here’s the full main.c code that controls the brightness of 2 LEDs at different
speeds:
https://randomnerdtutorials.com/esp-idf-esp32-gpio-pwm-ledc/ 14/21
17/11/2025 09:53 ESP-IDF: ESP32 GPIO PWM with LEDC (LED Control) | Random Nerd Tutorials
/*
Rui Santos & Sara Santos - Random Nerd Tutorials
https://RandomNerdTutorials.com/esp-idf-esp32-gpio-pwm-ledc/
*/
#include <stdio.h>
#include <freertos/FreeRTOS.h>
#include <freertos/task.h>
#include <driver/ledc.h>
#include "sdkconfig.h"
#define LED_PIN_1 4
#define LED_PIN_2 5
#define LEDC_CHANNEL_0 LEDC_CHANNEL_0
#define LEDC_CHANNEL_1 LEDC_CHANNEL_1
#define LEDC_TIMER_0 LEDC_TIMER_0
#define LEDC_MODE LEDC_LOW_SPEED_MODE
#define LEDC_DUTY_RES LEDC_TIMER_10_BIT // 10-bit resolution (0-
1023)
#define LEDC_FREQUENCY 1000 // 1 kHz for smooth fading
void app_main(void)
{
// Configure LEDC timer (one timer for all channels)
ledc_timer_config_t ledc_timer = {
.speed_mode = LEDC_MODE,
.duty_resolution = LEDC_DUTY_RES,
.timer_num = LEDC_TIMER_0,
.freq_hz = LEDC_FREQUENCY,
};
ledc_timer_config(&ledc_timer);
// Configure LEDC channels
ledc_channel_config_t ledc_channel_0 = {
.gpio_num = LED_PIN_1,
.speed_mode = LEDC_MODE,
.channel = LEDC_CHANNEL_0,
.timer_sel = LEDC_TIMER_0,
.duty = 0
};
ledc_channel_config(&ledc_channel_0);
ledc_channel_config_t ledc_channel_1 = {
.gpio_num = LED_PIN_2,
.speed_mode = LEDC_MODE,
.channel = LEDC_CHANNEL_1,
.timer_sel = LEDC_TIMER_0,
.duty = 0
};
https://randomnerdtutorials.com/esp-idf-esp32-gpio-pwm-ledc/ 15/21
17/11/2025 09:53 ESP-IDF: ESP32 GPIO PWM with LEDC (LED Control) | Random Nerd Tutorials
ledc_channel_config(&ledc_channel_1);
// Fading loop
int duty1 = 0, duty2 = 0;
int step1 = 10, step2 = 20;
while (1) {
// LED 1: slow fade
duty1 += step1;
if (duty1 > 1023) {
duty1 = 1023;
step1 = -step1;
} else if (duty1 < 0) {
duty1 = 0;
step1 = -step1;
}
ledc_set_duty(LEDC_MODE, LEDC_CHANNEL_0, duty1);
ledc_update_duty(LEDC_MODE, LEDC_CHANNEL_0);
// LED 2: fast fade
duty2 += step2;
if (duty2 > 1023) {
duty2 = 1023;
step2 = -step2;
} else if (duty2 < 0) {
duty2 = 0;
step2 = -step2;
}
ledc_set_duty(LEDC_MODE, LEDC_CHANNEL_1, duty2);
ledc_update_duty(LEDC_MODE, LEDC_CHANNEL_1);
printf("LED #1 duty cycle: %d, LED #2 duty cycle: %d\n",
duty1, duty2);
vTaskDelay(20 / portTICK_PERIOD_MS);
}
}
View raw code
How the Code Works
Libraries
We start by including the required libraries as shown in the previous example:
https://randomnerdtutorials.com/esp-idf-esp32-gpio-pwm-ledc/ 16/21
17/11/2025 09:53 ESP-IDF: ESP32 GPIO PWM with LEDC (LED Control) | Random Nerd Tutorials
#include <stdio.h>
#include <freertos/FreeRTOS.h>
#include <freertos/task.h>
#include <driver/ledc.h>
#include "sdkconfig.h"
Pin Assignment
This line assigns the 2 LED pins to GPIO 4 and GPIO 5.
#define LED_PIN_1 4
#define LED_PIN_2 5
LEDC Configurations
Then, define the configurations for your LEDC channel, LEDC timer, mode, duty
cycle resolution and frequency.
#define LEDC_CHANNEL_0 LEDC_CHANNEL_0
#define LEDC_CHANNEL_1 LEDC_CHANNEL_1
#define LEDC_TIMER_0 LEDC_TIMER_0
#define LEDC_MODE LEDC_LOW_SPEED_MODE
#define LEDC_DUTY_RES LEDC_TIMER_10_BIT // 10-bit resolution (0-
1023)
#define LEDC_FREQUENCY 1000 // 1 kHz for smooth fading
app_main(void)
In the app_main(void) function, you need to create only one ledc_timer that will
be used by the two channels to set the mode, resolution, timer and frequency:
speed_mode: use LEDC_LOW_SPEED_MODE (some ESP32 also support
LEDC_HIGH_SPEED_MODE)
duty_resolution: set the PWM resolution (for example: 10-bit gives a 0 to
1023 range)
timer_num: select one of the available timers
https://randomnerdtutorials.com/esp-idf-esp32-gpio-pwm-ledc/ 17/21
17/11/2025 09:53 ESP-IDF: ESP32 GPIO PWM with LEDC (LED Control) | Random Nerd Tutorials
freq_hz: sets the PWM frequency (1 kHz can be used for LEDs)
// Configure LEDC timer
ledc_timer_config_t ledc_timer = {
.speed_mode = LEDC_MODE,
.duty_resolution = LEDC_DUTY_RES,
.timer_num = LEDC_TIMER,
.freq_hz = LEDC_FREQUENCY
};
ledc_timer_config(&ledc_timer);
Then, call the ledc_channel_config(&ledc_channel_0) and
ledc_channel_config(&ledc_channel_1) functions to configure the LEDC
channels with the GPIO number, mode, channel, timer and duty cycle.
gpio_num: assign the GPIO pin connected to the LED
speed_mode: use LEDC_LOW_SPEED_MODE (some ESP32 also support
LEDC_HIGH_SPEED_MODE)
channel: assign an available channel (example: LEDC_CHANNEL_0)
timer_sel: assign the channel to the configured timer
duty: set the initial duty cycle (example: 0 = off and 1023 = full brightness
for 10-bit range)
ledc_channel_config_t ledc_channel_0 = {
.gpio_num = LED_PIN_1,
.speed_mode = LEDC_MODE,
.channel = LEDC_CHANNEL_0,
.timer_sel = LEDC_TIMER_0,
.duty = 0
};
ledc_channel_config(&ledc_channel_0);
ledc_channel_config_t ledc_channel_1 = {
.gpio_num = LED_PIN_2,
.speed_mode = LEDC_MODE,
.channel = LEDC_CHANNEL_1,
.timer_sel = LEDC_TIMER_0,
.duty = 0
};
ledc_channel_config(&ledc_channel_1);
The while(1) runs an infinite loop that keeps the 2 LEDs fading in and fading
out creating a dimming LED effect at different speeds.
https://randomnerdtutorials.com/esp-idf-esp32-gpio-pwm-ledc/ 18/21
17/11/2025 09:53 ESP-IDF: ESP32 GPIO PWM with LEDC (LED Control) | Random Nerd Tutorials
// Fading loop
int duty1 = 0, duty2 = 0;
int step1 = 10, step2 = 20;
while (1) {
// LED 1: slow fade
duty1 += step1;
if (duty1 > 1023) {
duty1 = 1023;
step1 = -step1;
} else if (duty1 < 0) {
duty1 = 0;
step1 = -step1;
}
ledc_set_duty(LEDC_MODE, LEDC_CHANNEL_0, duty1);
ledc_update_duty(LEDC_MODE, LEDC_CHANNEL_0);
// LED 2: fast fade
duty2 += step2;
if (duty2 > 1023) {
duty2 = 1023;
step2 = -step2;
} else if (duty2 < 0) {
duty2 = 0;
step2 = -step2;
}
ledc_set_duty(LEDC_MODE, LEDC_CHANNEL_1, duty2);
ledc_update_duty(LEDC_MODE, LEDC_CHANNEL_1);
printf("LED #1 duty cycle: %d, LED #2 duty cycle: %d\n", duty1,
duty2);
vTaskDelay(20 / portTICK_PERIOD_MS);
}
Schematic Diagram
Here’s a list of the parts you need to build the circuit:
ESP32 (read Best ESP32 Dev Boards)
2x 5 mm LED
2x 220 Ohm resistor
Breadboard
Jumper wires
Connect 2 LEDs to GPIO 4, and GPIO 5 as shown in the schematic diagram
below.
https://randomnerdtutorials.com/esp-idf-esp32-gpio-pwm-ledc/ 19/21
17/11/2025 09:53 ESP-IDF: ESP32 GPIO PWM with LEDC (LED Control) | Random Nerd Tutorials
The terminal should be printing a message saying “LED #1 duty cycle: 1023,
LED #2 duty cycle: 700” and it will increment/decrement from 0 to 1023. This
process is repeated indefinitely.
You can build and flash the code into your ESP32. This code fades in and out
the 2 connected LEDs continuously at different speeds.
https://randomnerdtutorials.com/esp-idf-esp32-gpio-pwm-ledc/ 20/21
17/11/2025 09:53 ESP-IDF: ESP32 GPIO PWM with LEDC (LED Control) | Random Nerd Tutorials
Wrapping Up
In this tutorial, you learned how to program the ESP32 with the ESP-IDF
framework using VS Code to generate PWM signals to control the ESP32
GPIOs. In the next guide, we’ll cover ESP-IDF GPIO Inputs.
Other ESP-IDF guides:
Programming ESP32 with ESP-IDF using VS Code – Getting Started Guide
ESP-IDF: ESP32 Blink LED Example (VS Code)
ESP-IDF: ESP32 GPIO – Control Digital Outputs
Meanwhile, you can check our ESP32 resources (with Arduino IDE) to learn
more about the ESP32 board:
Learn ESP32 with Arduino IDE (eBook)
More ESP32 Projects and Tutorials…
Thanks for reading.
https://randomnerdtutorials.com/esp-idf-esp32-gpio-pwm-ledc/ 21/21
