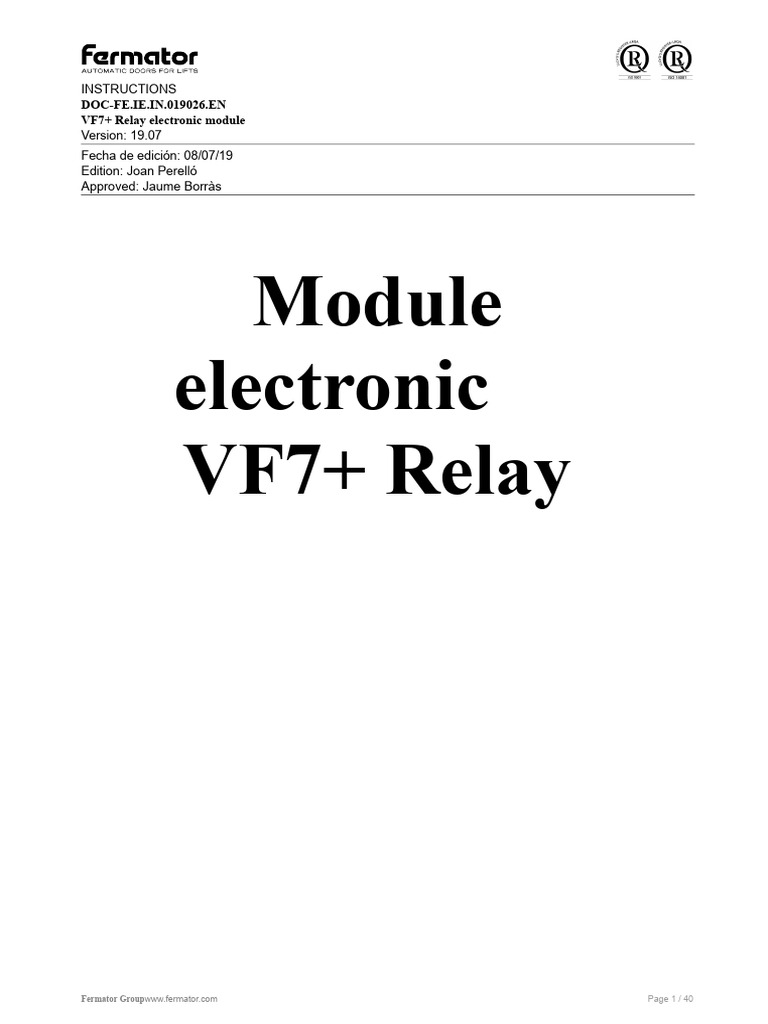

INSTRUCTIONS

DOC-FE.IE.IN.019026.EN
VF7+ Relay electronic module
Version: 19.07
Fecha de edición: 08/07/19
Edition: Joan Perelló
Approved: Jaume Borràs

Module
electronic
VF7+ Relay

Fermator Groupwww.fermator.com Page 1 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.ES
VF7+ Relay electronic module
Version: 19.07

VF7+ Relay electronic module

Instructions

0 Table of contents
1 Objective of the document................................................................................................................................................................................................................3
2 Record of modifications............................................................................................................................................................................................................3
3 Wiring
4 Inputs/Outputs
5 Graphic interface
6 Installation Process
7 Power failures..................................................................................................................................................................................................................28
8 Elevator Regulations EN 81-20
9 Reference Data......................................................................................................................................................................................................................30
10 Annex 1
11 Annex 2
12 Annex 3
Annex 4

Fermator Groupwww.fermator.com Page 2 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.ES
VF7+ Relay electronic module
Versión: 19.07

1 Objective of the document

The objective of this document is to explain the operation of the VF7+ Relay electronic module.

2 Record of modifications
Date Version Description
08/07/19 19.07 New document.

Fermator Groupwww.fermator.com Page 3 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.ES
VF7+ Relay electronic module
Version: 19.07

3 Connections

Fermator Groupwww.fermator.com Page 4 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.EN
VF7+ Relay electronic module
Version: 19.07

4 Inputs/Outputs
4.1 Feeding (5, 6, 7)
The circuit has been designed to operate with a supply voltage of 230 V AC (+10%, -15%, 50 or 60 Hz).
The VF7 Relay incorporates a slow start system to control the charge of the 'bulk' capacitors and prevent short circuits.

Note: It is important that the door operator module has a good ground connection.

4.2 Inputs (8, 9, 10, 11, 12)

The circuit can operate with an external or internal voltage (voltage-free contacts):

8.- Close signal

This signal is used to order the door to close. With the external voltage configuration, a voltage of 12 V DC must be applied to 60.
V DC or 60 V AC and 125 V AC between this input and common (10).
Note: For other values contact Fermator aftersales.
With the internal voltage configuration, the applied voltage is 12 V DC between this pin and Output +12 V (9).

9. 12 Volts
12-volt isolated output available for door control through the voltage-free contacts.
To take into account:
a) This feed must be used exclusively for this purpose.
This contact must be isolated from any other power source.

10. Common
It is the reference used for the signals to open and close.

11. 0 Volts
It is the opposite pole of the 12 V. In the case of using the internal voltage, this pin should be connected to the common (10).

12. Open sign

It is a signal that commands the door to open. With the external voltage setup, a voltage of 12 V DC to 60 V DC must be applied.
60 V AC to 125 V AC between this input and common (10).
Note: For other values contact Fermator aftersales.
With the internal voltage configuration, the applied voltage is 12 V DC between this pin and Output + 12 V (9).

4.3 Serial port (13)

The serial port is used to connect with an external device, interfaces, and future expansion modules. The speed of
The operation is at 1,200 Baud/s.

Fermator Groupwww.fermator.com Page 5 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.ES
VF7+ Relay electronic module
Version: 19.07

4.4 Priority entries (21, 22, 23, 24, 25, 26)

21.- Reopen
This signal is used by the cabin door contact, by an external barrier, or by other devices. To activate this signal it must be
connect the reopen input (21) with the +12 V output (23). Use volt-free contacts. The reopen signal takes precedence over the signal.
to close.

22.- Barrier failure

This input is used to detect a failure in the installed photoelectric barrier.

23. Output +12 V

Isolated 12 V output available to activate the priority inputs through the voltage-free contacts.
To take into account:
This food should be used exclusively for this purpose.
b) This contact must be isolated from any other power supply.

24. Bypass contact

The signal is used to connect an external security switch to detect the closed door.

25. Slow close

This signal is used to make the door close at low speed. The slow close signal takes priority over control signals and
the photoelectric barrier. This signal has been implemented to work alongside systems with fireman mode.

26. Floor signal

This entry connects to the emergency feeder module to allow for the opening movement in case of a power failure.
The Fermator emergency feeder uses a 12 V battery that is capable of supplying enough power for 30 seconds to allow
that the door opens in case of being on a landing and thus rescue the passengers.

4.5 Output relays and LED indicators (from 30 to 47)

The output relays provide continuous information about the status of the door to the operation:

• Open
LED indicator and relay activated when the door is fully open.

• Closed
LED indicator and relay activated when the door is completely closed and
enclaved.

• Reopen
LED indicator and relay activated when the reopen input is activated.

• Obstruction
LED indicator and relay activated when an obstacle is detected during closing. The
The signal will reset when the door reaches the open or closed position.

• Barrier failure
LED indicator and relay activated when a failure occurs in the photoelectric barrier.

• Over-temperature
LED indicator and relay activated when the temperature of the VF7 Relay module or the motor exceeds the safety limit. When this output
the maneuver is activated, you must give the order to the cabin to go to the next floor, open the door to let the passengers out, and stop applying
tension to the engine.

• OK Status
A blinking green LED indicates that the module is functioning correctly. If an alarm occurs, the LED
it will change to red.

Fermator Groupwww.fermator.com Page 6 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.ES
VF7+ Relay electronic module
Version: 19.07

4.6 Auto-adjust button (51)

The Auto-adjust button is used to carry out the learning process of the door.

This process must be carried out without the landing door attached.

The door will perform several movements to detect free passage. Once the learning process is complete, the parameters will be
stored in non-volatile EEPROM memory.

Learning process of the door with the motor calibration not completed:

The door opens slowly a few centimeters and stops.

2. The door closes slowly until it reaches the fully closed position (position 0).
3. The lock opens and a 10-second countdown begins.
4. The door opens slowly counting the pulses of the encoder until it reaches the open door position.
It is necessary to manually open the interlock at the beginning of the opening movement.
The door closes at normal speed after a brief delay.

Learning process of the door with the motor calibration completed:

The door closes slowly until it reaches the fully closed position (position 0).
2. La puerta se abre lentamente contando los pulsos del encoder hasta que alcanza la posición de puerta abierta.
It is necessary to manually unlock the locking mechanism at the beginning of the opening movement.
The door closes at normal speed after a brief delay.

If the last movement is not a closing, it is necessary to change the direction of rotation and restart the door learning process.

Note: With the options "Bypass connected to the circuit" and "Change direction via Bypass" enabled, the VF circuit automatically corrects the direction of
rotation in case it is programmed incorrectly. If the direction of rotation is programmed incorrectly, the VF begins the learning of the
door with an opening movement and, once the door reaches the open position, the direction of rotation is automatically changed and is
restart the learning process of the door.

4.7 Encoder (55)

In this entry, a quadrature encoder is connected. The purpose of the encoder, which is located inside the motor, is to report
to the VF module of the exact position and speed of the door.

The software V7.01.08-01 is not compatible with the Fermator asynchronous motor.

4.8 Motor (56, 57, 58, 59)

Three-phase motor output that through the variation of voltage and frequency the electronic module can control the torque and the
motor speed.

The power switch of the VF7+ Relay must be turned off before disconnecting the power connector.
motor

Note: Never change the motor with the circuit on.

4.9 On / Off Switch

Connect or disconnect the 230 V AC power supply unit.

Fermator Groupwww.fermator.com Page 7 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.ES
VF7+ Relay electronic module
Version: 19.07

5 Graphic interface
The main objectives that can be achieved with the graphical interface are:
1. Detect possible alarms or errors in the unit (Alarm Menu).
2. Observe the values of the parameters and the active signals (Monitor Menu).
3. Modify the internal parameters and options (Programming Menu).
4. Modify the configuration of the VF7+ Relay (Settings Menu).

Once the unit is connected, the Fermator software version V7.01.08-01 will be displayed.

Press the button to access the menus of the VF7+ Relay.

There are four main menus with different submenus: Alarm Menu, Monitor Menu, Programming Menu, and Configuration Menu.

Press the button o para seleccionar el menú.

Press the button to enter the menus of the VF7+ Relay.

Press the button to return to the software version screen.

Fermator Groupwww.fermator.com Page 8 / 40

INSTRUCCIONES
DOC-FE.IE.IN.019026.ES
VF7+ Relay electronic module
Version: 19.07

5.1 Alarms Menu

The Alarms Menu displays the active alarms in the unit.

Press the button o to select a submenu

Press the button to return to the menus of the VF7+ Relay.

Fermator Groupwww.fermator.com Page 9 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.EN
VF7+ Relay electronic module
Versión: 19.07

The alarm history shows the last ten alarms activated in the unit.

Press the buttons o to see the different alarms

While an alarm is activated, the VF7+ Relay graphical interface will display the alarm that is currently active.
When the alarm is deactivated, the VF7+ Relay will return to the screen prior to the alarm's appearance.

Alarm counters
Parameter Description Units
Overheating Motor. Number of times the engine overtemperature alarm has been activated. -
Critical Motor Temperature Number of times the critical engine temperature alarm has been triggered. -
VF7 Overtemperature. Number of times the overtemperature alarm of the VF7+ Relay module has been activated. -
VF7 Critique Temp. Number of times the critical temperature alarm of the VF7+ Relay module has been activated. -
Obstruction to open Number of obstructions during the opening movement. -
Maneuver failures Number of times the maneuver failure alarm has been activated. -
Motor disconnected Number of times the engine has been disconnected. -
Motor Number of times the engine alarm has been activated. -
Incorrect calibration Number of times the incorrect calibration alarm has been triggered. -
Calibration Number of times the calibration alarm has been triggered. -
Reference Number of times the reference alarm has been activated. -
Belt Number of times the strap alarm has been activated. -
Learning Number of times the learning alarm has been activated. -
Encoder Number of times the encoder alarm has been activated. -
Friction Number of times the friction alarm has been activated. -
Bypass Number of times the bypass alarm has been activated. -
Short circuit Number of times the short circuit alarm has been activated. -
Low Voltage Number of times the low voltage alarm has been activated. -
Memory Number of times the memory alarm has been activated. -
Softstart Relay Number of times the softstart relay alarm has been activated. -
Low capacitance Number of times the low capacitance alarm has been activated. -

Fermator Groupwww.fermator.com Page 10 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.ES
VF7+ Relay electronic module
Version: 19.07

Description of alarms
Alarm Description Possible problem Actions Recovery of the VF7+ Relay
Motor Over Temperature. The motor winding has The door could have a Review the mechanics of the The alarm is deactivated
reached 125ºC. high friction. door. when the engine reaches
The VF7+ Relay continues in The door could be Check the engine. 105ºC or after 3 minutes
normal operation. blocked during the movement without taking measures of
of opening/closing. temperature.
The engine may be damaged.
Critical Motor Temp. The winding of the motor has The door could have a Review the mechanical part The alarm is deactivated
reached 140ºC. high friction. from the door. after 5 minutes.
The VF7+ Relay stops the The door could be Check the engine.
normal operation of the blocked during the movement
door of opening/closing.
The engine could be damaged.
VF7 Overheat. The VF7+ Relay has reached The door could have a Review the mechanics of the The alarm is deactivated
the 90ºC. high friction. door. when the VF7+ Relay module
The VF7+ Relay continues in The metal plate of the VF7+ Adjust the screws of the reaches 70ºC.
normal operation. Relay might not be doing metal sheet.
good contact. Check that the VF7+ Relay
is installed on top of a
metal surface.
VF7 Critique Season. The VF7+ Relay has reached The door could have a Check the mechanical part The alarm is deactivated
105ºC. high friction. from the door. when the VF7+ Relay module
The VF7+ Relay stops the The metal plate of the VF7+ Adjust the screws of the reaches 70ºC.
normal functioning of the Relay may not be doing metal sheet.
door. good contact. Check that the VF7+ Relay
is installed on top of a
metal surface.
Obstruction open A blockage was detected during - The mechanical part may not Review the mechanical part Press the OK button.
the opening movement: to be properly installed. from the door. The alarm is deactivated
In normal operation. The Bypass contact may be - Check the Bypass contact. after 10 seconds.
In reference mode with the damaged.
bypass contact closed.
Maneuver failures A has occurred The elevator controller Review the controller of Press the OK button.
obstruction during closing I could have some problem. elevator. The alarm is deactivated
with the VF7+ Relay in mode Check the signal cables after 15 seconds.
slave and the controller of
elevator does not reopen.

Engine The unit does not receive a signal from the The engine is disconnected. The engine must be Press the OK button.
disconnected motor. connected.
It shows if the option
Engine protection
"disconnected" has been
activated.
Motor The unit is not receiving a signal - The motor cable could be Check the motor cable. Press the OK button.
correct of the engine. damaged. Check the engine. The alarm is deactivated
The engine could be damaged Check the mechanical part. after 20 seconds.
The mechanical part might not
to be properly installed.
Calibration Upon starting, the encoder was not - The motor or the circuit has been Perform a calibration. Press the OK button.
incorrect correctly detected by changed, and it has not been carried out
the circuit. a new calibration.
Calibration The VF7+ Relay cannot The motor encoder signal Check the encoder cable. Press the OK button.
complete the process of it is not arriving correctly at - Perform a calibration
engine calibration. VF7+ Relay.
Reference The VF7+ Relay may not The has not been carried out Carry out a process of Press the OK button.
recognize the free pass. learning. learning.
The VF7+ Relay remains in
reference mode (low
speed).
Belt The strap is broken. The belt could be damaged. Review the mechanics of the Press the OK button.
The pulley could be damaged. door.
Learning The VF7+ Relay cannot - The door's mechanism could - Carry out a process of Press the OK button.
complete the process of not installed correctly. learning.
learning.
Encoder The unit does not receive a signal from the The encoder cable could Check the cable of Press the OK button.
encoder. to be encoder. damaged.
- The encoder may be damaged. - Check the motor.

Fermator Groupwww.fermator.com Page 11 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.EN
VF7+ Relay electronic module
Versión: 19.07

Friction The door has some friction The door mechanics could - Review the mechanics of the Press the OK button.
high. not properly installed. door.
The VF7+ Relay continues in
normal operation.
Bypass The Bypass Contact - The bypass contact could have - Check the bypass contact. Complete an opening cycle.
remains closed but the a short circuit or to be and close with the contact
the door is open or the disconnected. connected, carry out a process
Bypass contact remains of learning or change the
open but the door is Bypass parameter
closed. connected to the circuit.
The VF7+ Relay continues in
normal operation.
Short circuit The power module The engine could be in Check the engine cables. Press the OK button.
it is short-circuited. short circuit. Check engine. The alarm will be deactivated at
If 3 short circuits occur - Malfunction of the VF7+ 10 seconds long.
in a minute, the alarm will Relay.
will activate in a way
permanent.
Low Voltage The internal tension is located by - The VF7+ Relay module could Disconnect all the The alarm will be deactivated at
below 13 V. to have some problems inputs and outputs. achieve an internal tension
interns. of 15 V.
Memory The memory is failing. The VF7+ Relay module could Return to parameters of Return to parameters of
having some problems factory. factory.
internals.
Softstart Relay Error switching the relay The VF7+ Relay module could Contact the service Press the OK button.
soft start. to have some problems after-sales service of the Fermator group.
The VF7+ Relay continues in internals.
normal operation.
Low capacitance The curling of the The VF7+ Relay module could Review the dock of the Press the OK button.
the capacitors are high, having some problems mechanical clamping and
indicating a reduction of internals. contact the service
value of capacity. group resale
The VF7+ Relay continues in Fermator.
normal operation.

Note: If the issue is not resolved, please contact the after-sales service of the Fermator group.

Fermator Groupwww.fermator.com Page 12 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.EN
VF7+ Relay electronic module
Version: 19.07

5.2 Monitor Menu

The Monitor Menu displays the VF7+ Relay parameters in real time.

Pulsa el botón o para seleccionar el submenú.

Press the button to return to the menus of the VF7+ Relay.

These parameters may be hidden depending on which options are disabled.

Press the button o to see the different parameters.

Monitor Parameters
Parameters Description Units
Supply voltage AC supply voltage (V). V (RMS)
VF7 Temperature Temperature in the power module area (ºC). °C
Type of food AC or DC power supply. -

Fermator Groupwww.fermator.com Page 13 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.EN
VF7+ Relay electronic module
Versión: 19.07

Door Monitor
Parameters Description Units
Position Door position in m, indicating position 0 with the door closed and free opening + length of the m
skate with the door open.
State Estado de la puerta (Puerta cerrada, Puerta abierta, Cerrando puerta, …). -
CDL Door with mechanical interlocking (automatic detection during learning). -
Friction Friction value detected during learning. If there is no friction, this parameter is 0. Scale of 0 to 150
Bypass Length * The distance from the closed door position to when the bypass contact opens. This length is m
detected during the learning process.
This parameter may be hidden if the option 'Bypass connected to the circuit' is disabled.

Monitor Motor
Parameters Description Units
Speed Motor speed. m/s
Voltage Voltage that the circuit applies to the motor (V). V (RMS)
RMS current Output current (A). A
Tipo Motor Type of motor connected to the circuit. -
Temperature * Temperature in the PM engine (the temperature measurement option must be enabled). °C
This parameter may be hidden if the 'Temperature measurement' option is disabled.
Limited speed It is the maximum speed allowed in the closing movement, limited by kinetic energy. m/s
by kinetics * This parameter may be hidden if the 'Limit power' option is disabled.

Monitor Entries
Parameters Description Units
Open Status of the opening signal. -
Close Signal state close. -
Reopen Signal state reopen. -
Floor Floor signal status. -
Slow closure Signal status slow closing. -
Bypass State of the closed door position signal. -
Barrier failure Status of the photoelectric barrier error. -

Monitor Outputs
Parameters Description Units
Open Door Open door signal status. -
Closed Door Closed door signal status. -
Reopen Signal status to reopen. -
Obstrucción Signal obstruction state. -
Barrera Fall State of the signal of the photoelectric barrier. -
Temperature Error Signal state temperature. -

Fermator Groupwww.fermator.com Page 14 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.EN
VF7+ Relay electronic module
Version: 19.07

Counter Monitor
Parameters Description Units
Hours Number of hours working. -
Total Cycles Number of cycles made by the door. -
Lit Number of connections to the main power or shutdowns experienced. -
Learnings Number of learning cycles completed. -
Reopenings Number of reopenings. -
Obstructions Number of obstructions during the opening movement. -
Cert. Obstructions Number of obstructions during the closing movement. -
Security device failures Number of times the photoelectric barrier is blocked for more than 2 minutes or the failure is activated
barrier.

Monitor Info
Parameters Description Units
Software Circuit software version. -
Software Subversion Subversion of the circuit software. -
Hardware Hardware version of the circuit. -
Hardware Subversion Hardware subversion of the circuit. -
Serial Number Identification serial number of each unit. -
Supplier Supplier identification code. -
Test date Manufacturing date. -

Fermator Groupwww.fermator.com Page 15 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.EN
VF7+ Relay electronic module
Version: 19.07

5.3 Menu Program

The Program Menu displays the internal parameters of the VF7+ Relay and its options.

Press the button o to select the submenu

Press the button o to see the different parameters or their submenus.

To modify any parameter or option, the following steps must be taken:

1. Select the parameter/option that you want to modify and press the button to enter modify mode.

2. The value of the parameter or state of the option will appear blinking, press the buttons o to increase/decrease the

values of the parameters or activate/deactivate the option.

3. Press the button to keep the change.

5.3.1 Options Programming

These options may be hidden depending on which options are disabled.

Fermator Groupwww.fermator.com Page 16 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.ES
VF7+ Relay electronic module
Version: 19.07

Programming Options
Basic Options
Type Door T1 Automatic horizontal sliding door with lateral opening, single leaf.
T2 Automatic horizontal sliding door with lateral opening of 2 leaves.
T3 Automatic horizontal sliding door with lateral opening of 3 leaves.
T4 Automatic horizontal sliding door with lateral opening, 4 leaves.
C2 Automatic horizontal sliding door with central opening and 2 leaves.
C4 Automatic horizontal sliding door with central opening of 4 leaves.
C6 Automatic horizontal sliding door with central opening and 6 leaves.
C8 Automatic horizontal sliding door with central opening of 8 leaves.
Control Master The unit will execute the instructions directly. For example: the activation of the photoelectric barrier will cause the
immediate reopening of the door without going through the elevator controller.
Slave There is no automatic reopening movement. The doors will only respond to the instruction given by the controller.
from the elevator. For example: When the photoelectric barrier detects an obstacle, instead of reopening automatically,
The VF7+ Relay module sends a signal to the elevator controller through the Reopen output (36, 37, 38). A
Next, the elevator controller must remove the close signal and activate the open signal.
Direction of rotation Schedule During the opening movement, the motor turns clockwise.
Counterclockwise During the opening movement, the motor spins counterclockwise.
N. Inputs 1 Entry
The unit is controlled by a single input. Any voltage between 12 V DC and 60 V DC or between 60 V AC and 125 V AC
Applied between terminals 8 and 10 the door will close. Without any active input the door will remain open. The input
open is not used.

2 Tickets
The unit will be controlled by two independent inputs. Any voltage between 12 V DC and 60 V DC or between 60 V AC and 125.
V AC aplicado a los terminales 8 y 10 provocarán que la puerta se cierre. Y entre los terminales 10 y 12 provocarán la apertura
from the door. If there is no signal, the door will remain static. If both inputs are applied, the open signal takes priority.

Door with reduction This option allows you to select whether the operator has a reduction or not. If 'No' is selected, the parameters will be hidden.
"Reduction" and "Perimeter pinion" in the programming parameters menu. And, these parameters will be adjusted.
automatically to 80.00 mm for the pinion perimeter and 1.00 for the reduction ratio.
Bypass connected to This option is used to inform the circuit that the closed door contact is connected to the circuit. By activating this option, it
circuit the options 'Bypass Close Signal', 'Bypass Function', and 'Change Direction by Bypass' are enabled, otherwise these are
options are hidden.

Fermator Groupwww.fermator.com Page 17 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.EN
VF7+ Relay electronic module
Versión: 19.07

Options Programming
Interaction Options
Priority Entries Open In the event that the open and close signals are activated at the same time, the door must open.

Close In the event that the open and close signals are activated at the same time, the door should close.

Parade In case the open and close signal is activated at the same time, the door must stop.
Close slowly. In case the open and close signals are activated at the same time, the door must close at slow speed.
Test No Prioritario If enabled, the maneuver test does not take precedence over input signals.
Shortcuts If activated, shortcuts are enabled in:

The home screen:

Learning: Press the button for 3 seconds.

Test: Press the button for 3 seconds.

Rotate the screen: Press the buttons y for 1 second.

Open the door: Press the button for 1 second.

Close the door: Press the button for 1 second.

The alarm menu:

Reset the alarm history: Press the button for 3 seconds.

Firefighting HK If activated, the first movement to open after being turned on is completely slave.
Slow closure Action A slow close is performed when the slow close signal input is activated.
Command A slow closing/opening is performed when the slow close input and the close/open input are activated.
Unlock in sleep mode If it is activated, with the latch/locking fully closed, the VF7+ Relay only opens the latch/locking if the
close signal or after a delay time (Echo Delay). Once the skid/locking is open, the VF7+ Relay
it remains at rest. (This option is not compatible with Eco Mode No).
Closing Signal by When active, the closed door output signal takes the value of the Bypass input signal.
Bypass * IMPORTANT: With this option enabled, it is possible to have an active opening and closing output signal at the same time.
(Alarm Bypass).
This option is hidden if the "Bypass connected to the circuit" option is disabled.
Bypass Function * When active, after a power loss the VF7+ Relay circuit will only need to reach the door position.
closed once (detection of a transition from closed to open of the Bypass contact) to apply the speed profile
normal.
IMPORTANT: The bypass contact must be installed before performing a learning process. If the contact is removed or changed
position must repeat the learning.
This option is hidden if the 'Bypass connected to the circuit' option is disabled.
Change direction for When active, the "Rotation direction" option is automatically detected during learning.
Bypass This option is hidden if the 'Bypass connected to the circuit' option is disabled.
Early Closure * The closed door exit is activated when the leaves are closed and the roller/locking mechanism initiates the closing movement.
The signal is activated when the door reaches the distance of 'Ski Length'.

Opening Close
This option is hidden if the "Bypass connected to circuit" and "Bypass Close Signal" options are activated.
Early opening The open door exit is activated when the door is 50 mm from full opening.
Barrera Failure Only When activated, the barrier fault output will activate when the door is closing.
Closure

Fermator Groupwww.fermator.com Page 18 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.EN
VF7+ Relay electronic module
Versión: 19.07

Options Programming
Logic Options Inputs
NC Open If enabled, the open signal is activated without voltage (Normally closed contact).
NC Close If enabled, the closing signal is activated without voltage (Normally closed contact).
NC Lento Cerrar If enabled, the slow closing signal is activated without voltage (Normally closed contact).
NC Signal Floor If it is enabled, the landing signal is activated without voltage (Normally closed contact).
NC Reopen If enabled, the reopen signal is activated without voltage (Normally closed contact).
NC Fallo Barrera If enabled, the barrier failure signal is activated without voltage (Normally closed contact).
NC Bypass If enabled, the bypass signal is activated without voltage (Normally closed contact).

Options Functions
Eco Mode No The VF7+ Relay will always apply the Closed Maintenance Torque.
Control * The VF7+ Relay stops applying the Closed Maintenance Pair if the closing signal is removed.
Selectable option only with the basic option 'N. Entries' as 2 entries.
Ret Cont * The VF7+ Relay stops applying the Maintenance Closing Torque if the closing signal is removed and the time of
programmable delay has finished (Eco Delay).
Selectable option only with the basic option 'N. Entradas' as 2 entries.
Ret Cerr * The VF7+ Relay stops applying the Closed Maintenance Torque after a delay time.
programmable. (Delay Eco) since the door closes.
Selectable option only with the basic option 'N. Entries' as 1 entry and the option 'Unlock in'
"rest" activated.
Electronic CDL If enabled, after a power loss the VF7+ Relay opens the skirting/interlock if the cabin is in
plant.
Timer Barrera If activated, a smart counter is used in case the barrier is permanently obstructed. The protection is
deactivates after being permanently locked for 2 minutes. If a physical obstruction occurs during the next
closing movement, the VF7+ Relay will reopen and wait for 2 minutes before closing again. If another obstruction occurs
During the next closure, the VF7+ Relay will reopen and wait for 4 minutes before closing again. Finally, if another occurs
obstruction during the next closure, the VF7+ Relay will reopen and will remain open at all times. The barrier will be activated again
see when there is no physical obstruction during the closing movement.
Temperature measurement If activated, the VF7+ Relay measures the engine temperature.
Protection Module When the overtemperature alarm is activated, the circuit does not allow the door to close.
temperature electronic
Elevator When the overtemperature alarm is activated, the alarm management is performed by the controller.
the elevator.
Limit Energy The circuit limits the maximum speed to not exceed the kinetic energy of 10 J.
Release Obstruction If it is activated and an obstruction occurs in the opening or closing movements, the VF7+ Relay circuit performs a
backward movement (Release Obstr. Length) and wait for a delay time (Release Obstr. Time) before performing the
next maneuver.
A.E. Slave The Emergency Feeder will not open the door if the close signal is activated.
A.E. Open Skate The Emergency Feeder will only open the cabin door latch/lock + an additional distance (Movement
additional Skate)
Stop static Ab. If activated, a constant torque will be applied when the door is fully open.
For static Cer. If activated, a constant torque will be applied when the door is fully closed.
The constant closing pair will be applied according to the selected Eco Mode option.
Maintenance in If activated, the circuit keeps the door stopped in any position of the free passage.
rest By activating this option, the "Maintenance Pair" and "Maintenance Pair" parameters are enabled; otherwise, these parameters
they are hidden.
Motor protection If activated, the circuit checks if the motor is connected. In the event that the motor is disconnected, a
unknown. alarm.
Low protection it is activated, the circuit checks the voltage ripple of the capacitors. In the event that the voltage ripple is high,
capacitance an alarm is generated.

Fermator Groupwww.fermator.com Page 19 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.EN
VF7+ Relay electronic module
Version: 19.07

5.3.2 Programming Parameters

These parameters may be hidden depending on which options are disabled.

Programming Parameters (Speed Profiles)

Open profile

Close profile

Programming Parameters
General Parameters
Parameters Description Units Min. Max.
Mobile Mass Door leaf. (kg) 1 500
Reduction Transmission ratio when using a reduction pulley. - 1.00 10.00
This parameter will be hidden if the 'Door with reduction' option is disabled.

Fermator Groupwww.fermator.com Page 20 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.ES
VF7+ Relay electronic module
Version: 19.07

Programming Parameters
Parameters Speeds
Parameters Description Units Min. Max.
Initial Speed Initial speed at the opening. (m/s) 0.025 0.100
Initial Speed Initial speed at closing. (m/s) 0.025 0.100
Ab. Proximity Speed Closing speed at the opening. (m/s) 0.025 0.100
Proximity Speed Approach speed at the closure. (m/s) 0.025 0.100
Speed Skating Speed of the skate in the opening. (m/s) 0.025 0.100
Speed Skate Speed of the skate at the closure. (m/s) 0.025 0.100
Speed Limit Speed limit at the opening. (m/s) 0.100 1.000
Cert. Speed Limit Speed limit at the closure. (m/s) 0.100 0.600
Ab. Acceleration Acceleration of the opening. (m/s2) 0.050 0.700
Cer. Acceleration Acceleration of the closure. (m/s )2
0.050 0.700
Ab. Deceleration Deceleration of the opening. (m/s2) 0.050 0.700
Cer. Deceleration Deceleration of the closure. (m/s) ) 2
0.050 0.500

Programming Parameters
Parameters Lengths
Parameters Description Units Min. Max.
Free Pass Clearance of the door + length of the skate. (m) 0.100 5,000
Initial Length The space in the initial opening movement. (m) 0 0.100
Initial Length The space in the initial closing movement. (m) 0.001 0.100
Ab. Proximidad Longitud The space at the end of the opening movement. (m) 0.001 0.050
Cer. Proximity Length The space at the end of the closed movement. (m) 0.001 0.040
Skate Length Space required to open/close the skate. (m) 0.000 0.100
In case the operator does not have a skid (semi-automatic), enter this value
a 0.
Additional movement of Additional movement of the skate to customize the opening distance in mode of
(m) 0.000 0.200
Skate emergency.
Pine Perimeter Perimeter of the motor pinion. (mm) 10.00 300.00
This parameter will be hidden if the 'Door with reduction' option is disabled.
Release Obstruction Length* Length of the backward movement (Release Obstruction option) (m) 0.010 0.150
This parameter will be hidden if the 'Clear obstruction' option is disabled.

Programming Parameters
Even Parameters
Parameters Description Units Min. Max.
By Ab. Obstruction By maximum in the opening movement. (With a value of 0, it disables the torque limitation) (N·m) 1.0 4.0
By Cer. Obstruction Maximum torque in the closing movement (Value 0 disables torque limitation) (N·m) 0.5 3.0
For maintenance For applied to keep the door stopped in any position of the free passage. (N·m) 0.5 1.5
This parameter is hidden if the 'Maintenance on standby' option is
disabled.
Now. But Static * Static pair applied to keep the door in an open position. (N·m) 0.1 1.1
This parameter is hidden if the 'Static Pairing' option is disabled.
Static Speech * Static bar applied to keep the door in a closed position. (N·m) 0.1 1.1
This parameter is hidden if the 'Static Pairing' option is disabled.

Fermator Groupwww.fermator.com Page 21 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.ES
VF7+ Relay electronic module
Versión: 19.07

Program Parameters
Time Parameters*
This menu is hidden if the 'Eco Mode' option is 'No' or 'Control' and the 'Clear Jam' and 'Sleep Maintenance' options are turned off.
Parameters Description Units Min. Max.
Eco Delay Programmable delay time (Eco Mode option). (s) 1.0 300.0
This parameter is hidden if the 'Eco Mode' option is 'No' or 'Control'
Freeing Time Obstr. Programmable delay time (Unblock Option). (s) 0.0 5.0
This parameter is hidden if the 'Clear obstruction' option is disabled.
Time Mante. at rest * Programmable time during which the maintenance voltage is applied. (s) 1.0 1800.0
* This parameter is hidden if the 'Maintenance in standby' option is
disabled.

5.3.3 Action Programming

Programming Actions
Test Perform a cycle of opening or closing the door to verify correct operation.
Carry out the learning process of the door.

This process must be carried out without the landing door attached.

The door will perform several movements to detect free passage. Once the learning process has been
completed, the parameters are stored in non-volatile EEPROM memory.

Learning process of the door with the motor calibration not completed:

The door opens slowly a few centimeters and stops.

The door closes slowly until it reaches the fully closed position.
(position 0).
3. The locking mechanism opens and a countdown of 10 seconds begins.
4. The door opens slowly counting the pulses of the encoder until it reaches the position of
open door.
It is necessary to manually unlock the interlock at the beginning of the opening movement.
5. The door closes at normal speed after a brief delay.
Learning
Learning process of the door with the motor calibration completed:

The door closes slowly until it reaches the fully closed position
(position 0).
2. The door opens slowly counting the pulses of the encoder until it reaches the position of
open door.
It is necessary to manually unlock the interlock at the beginning of the opening movement.
The door closes at normal speed after a brief delay.

If the last movement is not a closure, it is necessary to change the direction of rotation and restart the process of
learning of the door.

Note: With the options "Bypass connected to the circuit" and "Change direction through Bypass" activated, the VF circuit
It automatically corrects the direction of rotation in case it is programmed incorrectly. If the direction of
rotation is incorrectly scheduled, the VF starts learning the door with a movement of
opening and once the door reaches the open position, the direction of rotation is changed
automatically and the door learning process restarts.

Fermator Groupwww.fermator.com Page 22 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.EN
VF7+ Relay Electronic Module
Version: 19.07

5.3.4 Programming Calibration

Calibration Programming
Engine Calibration The engine calibration process must be performed so that the VF7+ Relay module detects the characteristics.
electric motor installed.

Calibration only needs to be done once when the engine or the VF7+ Relay module is
replaced.

Remove the engine belt before performing a calibration.

To perform an optimal calibration of the installed engine, the process must be done without load.
Never perform the calibration with the cabin door and the landing door coupled.

Fermator Groupwww.fermator.com Page 23 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.ES
VF7+ Relay electronic module
Versión: 19.07

5.4 Settings Menu

The Configuration Menu is used to change the VF7 CAN settings.

Press the button o to see the different options.

To modify an option, follow these steps:

1. Select the option to modify and press the button to enter modify mode.

2. The status of the option will appear flashing, press the button o to enable/disable it.

3. Press the button to save the modification.

Settings Menu
Language The unit can be programmed in the following languages:
English.
Spanish.
German.
French.
Italian.
Screen Rotate the screen display (Normal/Inverse).
Dynamic menus If it is disabled, the VF7+ Relay shows all the menus.
Guide

When starting up a VF7+ Relay spare part, the guide menu will automatically open to configure the
parameters related to the door.

Fermator Groupwww.fermator.com Page 24 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.ES
VF7+ Relay electronic module
Versión: 19.07

Factory Parameters Reset all settings to factory values.

Reset Alarm History. Delete the alarm history
Password Enter the password to access the advanced menu.

Fermator Groupwww.fermator.com Page 25 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.EN
Electronic Module VF7+ Relay
Version: 19.07

5.5 Reduced standard menu

The reduced standard menu is shown below.

Press the button o to see the different options.

To modify an option, follow these steps:

4. Select the option to modify and press the button to enter edit mode.

5. The option status will be flashing, press the button o to enable/disable it.

6. Press the button to save the modification.

By default, the device is programmed with the reduced menu. To view the full menu, technical personnel must enter the option for

password the following code ↓↓↓↓↑↑↑↑ and press the button .

The standard menu can be viewed until the screen is turned off.

Fermator Groupwww.fermator.com Page 26 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.ES
VF7+ Relay Electronic Module
Version: 19.07

6 Installation Process
The complete installation process must be carried out when a new circuit is installed in a door.

1. Connections:
• Connect the motor and encoder cables (#55, #56, #57, #58, #59).
• Disconnect all other inputs and outputs.
• If the Bypass contact has been installed on the VF7+ Relay, connect the Bypass cable (#23, #24).
• Connect the main power supply of 230V AC to the controller (#5, #6, #7).

2. Turn on the VF7+ Relay module, O/I button located on the front of the box.

3. Follow the guide for setting up the main options and parameters of the VF7+ Relay in case the circuit is a replacement.
The following steps must be followed to configure the VF7+ Relay module:

IMPORTANT: if the circuit is turned on and the auto-adjust button is pressed, after completing the learning process, the
The circuit will start the guide menu. A basic configuration is always necessary to ensure compliance with standard EN81-
20/50.

4. Door Test.
• Execute the Test action to open the door and verify the correct movement. Execute the test again to close the door.

5. Connect the cables coming from the elevator controller.

• Connect the input wires (#8 to #12).

• Connect the priority input cables (#21 to #26).
• Connect the output wires of the relays that inform the elevator controller (#30 to #47).

Fermator Groupwww.fermator.com Page 27 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.ES
VF7+ Relay electronic module
Versión: 19.07

If the circuit has already been installed, only the following steps need to be taken:
1. Connections:
• Connect the motor and encoder wires (#55, #56, #57, #58, #59).
• Disconnect all other inputs and outputs.
• If the Bypass contact has been installed on the VF7+ Relay, connect the Bypass wire (#23, #24).
• Connect the main power supply of 230V AC to the controller (#5, #6, #7).

2. Turn on the VF7+ Relay module, O/I button located on the front of the box.

3. Activate the 'Learning' option on the door to start the learning cycle. Go to Menu Actions → Learning in the interface.
VF7+ Relay graph. This process must be done without the landing door attached.

4. Test de Puerta.
• Execute the Test action to open the door and verify the correct movement. Run the test again to close the door.

5. Connect the cables coming from the elevator controller.

• Connect the input cables (#8 to #12).

• Connect the priority input cables (#21 to #26).
• Connect the output wires of the relays that inform the elevator controller (#30 to #47).

7 Feeding Errors
The VF7+ Relay incorporates two new safety systems related to power failures:

• Anti-banging systemWhen a power failure occurs while the door is opening, closing, or in position
open door, the new anti-banging system slows down the PM motor for a slow closing to prevent the door from slamming shut.

• Electronic CDL When a power failure occurs while the door is fully closed, the VF7+ Relay detects the drop of
voltage and opens the mechanical interlock if the cabin is on the floor. The Electronic CDL system can be enabled or disabled by
software.

Note: After the food supply is restored and the signal to open is received, the door will open slowly at the first.
operation to recognize the free passage.

Fermator Groupwww.fermator.com Page 28 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.EN
VF7+ Relay electronic module
Versión: 19.07

8 Elevator regulation EN 81-20

This section lists the necessary modifications for customer knowledge with the aim of complying with the new security regulations.
in elevators EN 81-20.

8.1 Kinetic Energy

The average closing speed must be limited to 10 J. To limit it, it is necessary to know the moving mass, the type of door, and its
número de paneles. Estos parámetros están programados por defecto, excepto en los recambios. En este caso los parámetros tienen que ser
introduced via the VF7+ Relay menu.

To comply with the regulations, it is necessary to configure some options and parameters:

Menu Option Configuration to comply with EN81-20

Door model Select door model.
Barrier Timer Activated.
Select one of the following modes: Control,
Eco Mode Retirement. Closed. And Continuous Retirement.

Programming options Security device. Barrier.

Early closure (recommended) Activated.
Unlock in sleep Activated.
Temperature measure Activado.
Energy limit Activated.

Menu Option Configuration to comply with EN81-20

Limit only in the case of a glass door. If it is
Max. opening pair
glass door the value must be up to 2.0.
Programming parameter Max. closing pair Up to 1.5.
Cabin door weight and door of
Door frame
filling. To know it see Annex 1 and 2.

8.2 Photoelectric barrier

The photoelectric barrier is mandatory and must be connected to the maneuver.
or the VF7+ Relay on pin 21.

In case of failure or deactivation of the barrier, the kinetic energy of

the door must be limited to 4 J. To limit it, the maneuver must
activate the slow close entry, pin 25, of the VF7+ Relay.

8.3 Overheating protection

The internal temperature of the PM engine is measured by the VF7+ Relay when the 'Temperature Measurement' option is activated.

8.4 Door contact

Una señal de monitorización separada es necesaria para comprobar que la puerta(s) está en la posición de cerrada. Para cumplir esto se ha
added another additional contact at the door, the signal can be connected to the operation or to the VF7+ Relay.

The maximum contact ratio is 2 A 230 Vac.

Fermator Groupwww.fermator.com Page 29 / 40

INSTRUCCIONES
DOC-FE.IE.IN.019026.ES
VF7+ Relay electronic module
Version: 19.07

9 Reference Data
Electrical characteristics
Minimum Nominal Maximum Units
Voltage 200 230 253 * In AC
Current - - 1.3 A
Input range
Frequency 50 * - 60 Hz
Power - - 299 * W [1 Φ]
Voltage - - 106 * V
Current - - 1.15 * A
Exit range
Frequency 1 - 100 * Hz
Power - - 121.9 W [3 Φ]
*Note: Tests conducted according to the nominal load of the PM motor. Power 94 W S3 30% 5 min.

Protection requirements

Isolation class Class I.(1)

Residual Current Device [RCD] Type A RCD [Recommended].

Overvoltage category Overvoltage category III.

Electric distribution systems TT, NT, IT grounding systems, not corner-earthed.

Short-circuit current rating [SCCR] - - 1.5 kA

IP protection rating - - 20 -
1. The accessible connections and the parts listed below are of insulation class 0. This means that the
The protection of these circuits is based solely on basic insulation and becomes dangerous in the case
due to a failure of basic insulation. Therefore, devices connected to these circuits must provide
protection against electric shock, as if the device were connected to the main power supply.
Additionally, during installation, these parts must be considered in relation to the electro-sho-
cks, such as main sources of tension.
• Class 0 circuits:
• ["TICKETS 8, 9, 10, 11, 12"]
• COMMUNICATION SERIES 13.
• PRIORITY ENTRIES 21, 22, 23, 24, 25, 26.
• ENCODER MOTOR 55.

Protection requirements: CDM intended to be installed in a closed electrical operation area. During
Installation or maintenance does not require opening the protective enclosure while the CDM is
energized.

Environmental characteristics

Minimum Nominal Maximum Units

Humidity - - 95 %

Altitude - - 2.000 m

Levels of pollution - - 2

Details of the enclosure UL 94-5VA

Fermator Groupwww.fermator.com Page 30 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.EN
VF7+ Relay electronic module
Version: 19.07

Mechanical characteristics

Dimensions L: 278 mm W: 123 mm D: 34 mm

Time 1.59 kg

Assembly instructions

Motor PM Requirements

Type Synchronous permanent magnets

Number of poles 10

Electrical characteristics

Minimum Nominal Maximum Units

Power supply voltage 50 106 144 V

Current 0.18 1.15 2.13 A

Power 15 162 405 W

By 0 1.5 2.5 N·m

Speed 600 r.p.m.

Thermal class

Encoder Incremental magnetic ABI (channel A, channel e index).

Resolution - 180 - pulses / rev.

Fermator Groupwww.fermator.com Page 31 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.ES
VF7+ Relay electronic module
Version: 19.07

Wiring requirements for female connectors

Minimum Nominal Maximum Units

Nutrition 0.2 / 25 - 2.5 / 14 mm2/ AWG

Entries 0,25 / 24 - 1.5 / 16 mm2AWG

Priority entries 0.25 / 24 - 1.5 / 16 mm2AWG

Outings 0.25 / 24 - 1.5 / 16 mm2AWG

Engine power - 0.75 / 18 - mm2AWG

Motor encoder - 0.14 / 26 - mm2AWG

Input signals

Impedance 20 kΩ

12 V DC to 60 V DC
Voltage
60 V AC to 125 V AC

Exit signs

Minimum Nominal Maximum Units

Contacts Contacts free of potential.

Contact resistance - - 75 mΩ

Operating time (set) - - 4 ms

Release time (reset) - - 4 ms

Current limit - - 150 mA

Voltage - - 250 / 200 V AC / V DC

Performance

Minimum Nominal Maximum Units

Opening speed 0.01 - 1.00 m/s

Closing speed 0.01 - 0,60 m/s

Security force 60 - 150 N

Fermator Groupwww.fermator.com Page 32 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.ES
VF7+ Relay electronic module
Version: 19.07

10 Annex 1
10.1 Procedure for calculating a moving mass

10.2 Compact product line

Number of Approval of Table in
# Model Opening PL [mm] HL [mm] Type of panel
panels fires (*) movement [Kg]
0 Compact Telescopic 2 800 2000 Steel F.R. E 120 29.46

# Concept Multiplication factor

1 Difference from T2 to C2 0.02
2 Difference of 100 mm in PL 0.03
3 Difference of 100 mm in HL 0.01
4 Difference between F.R. E 120 and F.R. EI 60 0.16
5 Difference between F.R. E 120 and F.R. EI 120 0.20
6 Difference between F.R. E 120 and F.R. EW 60 0.12
7 Difference between F.R. E 120 and F.R. E 30 Russia 0.00
8 Difference between F.R. E 120 and F.R. EI 60 Russia 0.16
9 Difference between F.R. E 120 and F.R. EI 60 Ukraine 0.16
10 Difference between steel panels and Vienna type peephole panels 0.28
11 Difference between steel panels and flush large peephole panels 0.23
12 Difference between steel panels and total glass panels with plinth 0.07
13 Difference between Compact and Compact PM model 0.01
14 Difference between Compact and Compact+ PM 150 0.05

Fermator Groupwww.fermator.com Page 33 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.EN
VF7+ Relay electronic module
Versión: 19.07

10.3 Product line 40/10

Number of Homologation of Table at
# Model Opening PL [mm] HL [mm] Type of panel
panels fires (*) movement [Kg]
0 40/10 PM Telescopic 2 800 2000 Steel F.R. E 120 31.93

# Concept Multiplication factor

1 Difference from T2 to T3 0.08
2 Difference from T2 to C2 0.00
3 Difference from T2 to C4 0.26
4 Difference of 100 mm in PL 0.07
5 Difference of 100 mm in HL 0.03
6 Difference between .R. E 120 and F.R. EI 30 0.19
7 Difference between F.R. E 120 and F.R. EI 60 0.19
8 Difference between F.R. E 120 and F.R. EI 120 0.25
9 Difference between steel panels and framed panels 0.32
10 Difference between steel panels and flush large peephole panels 1.02
11 Difference between steel panels and total glass panels with plinth 0.95
12 Difference between steel panels and Vienna type peephole panels 0.32
13 Difference between steel panels and peephole panels 0.61

10.4 Premium product line

Number of Homologation of Table in
# Model Opening PL [mm] HL [mm] Type of panel
panels fires (*) movement [Kg]
0 Premium PM Telescopic 2 800 2000 Steel F.R. E 120 36.61

# Concept Multiplication factor

1 Difference from T2 to T3 0.07
2 Difference from T2 to T1 -0.17
3 Difference from T2 to C2 -0.03
4 Difference from T2 to C4 0.30
5 Difference from T2 to C6 1.15
6 Difference of 100 mm in PL 0.07
7 Difference of 100 mm in HL 0.11
8 Difference between F.R. E 120 and F.R. EI 30 0.18
9 Difference between F.R. E 120 and F.R. EI 60 0.18
10 Difference between F.R. E 120 and F.R. EI 120 0.24
11 Difference between steel panels and door panels 0.12
12 Difference between steel panels and flush view panels 0.60
13 Difference between steel panels and full glass panels with plinth 0.60
14 Difference between steel panels and foam filled panels. -0.17

Fermator Groupwww.fermator.com Page 34 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.ES
VF7+ Relay electronic module
Version: 19.07

10.5 Platinum product line

Number of Approval of Table in
# Model Opening PL [mm] HL [mm] Type of panel
panels fires (*) movement [Kg]
0 Platinum PM Telescopic 2 800 2000 Atamborada F.R. E 120 56.85

# Concept Multiplication factor

1 Difference from T2 to C2 0.06
2 Difference of 100 mm in PL 0.08
3 Difference of 100 mm in HL 0.07

10.6 Product line 50/11

Number of Homologation of Table in
# Model Opening PL [mm] HL [mm] Type of panel
panels fires (*) movement [Kg]
0 50/11 Telescopic 2 800 2000 Steel F.R. E 120 33,82

# Concept Multiplication factor

1 Difference from T2 to T3 0.08
2 Difference from T2 to T4 0.25
3 Difference from T2 to C2 0.00
4 Difference from T2 to C4 0.26
5 Difference from T2 to C6 0.30
6 Difference from T2 to C8 0.35
7 Difference of 100 mm in PL 0.07
8 Difference of 100 mm in HL 0.03
9 Difference between F.R. E 120 and F.R. EI 30 0.19
10 Difference between F.R. E 120 and F.R. EI 60 0.19
11 Difference between F.R. E 120 and F.R. EI 120 0.25
12 Difference between steel panels and laminated panels 0.32
13 Difference between steel panels and recessed large peephole panels 1.02
14 Difference between steel panels and total glass panels with plinth 0.95
15 Difference between steel panels and Viennese peephole panels 0.32
16 Difference between steel panels and peephole panels 0.61

Fermator Groupwww.fermator.com Page 35 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.EN
Electronic Module VF7+ Relay
Version: 19.07

10.7 50/11 SLIM product line

Number of Homologation of Table in
# Model Opening PL [mm] HL [mm] Type of panel
panels fires (*) movement [Kg]
0 50/11 SLIM Telescopic 2 800 2000 Steel F.R. E 120 30.51

# Concept Multiplier factor

1 Difference from T2 to T3 0.10
3 Difference from T2 to C4 0.26
4 Difference of 100 mm in PL 0.08
5 Difference of 100 mm in HL 0.05
6 Difference between steel panels and flush large peephole panels 1.05
7 Difference between steel panels and peephole panels 0.57

Fermator Groupwww.fermator.com Page 36 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.ES
VF7+ Relay electronic module
Version: 19.07

11 Annex 2
11.1 Example 1: Increase of PL and HL
Door to be calculated:
Homologation
Model Opening Number of panels PL [mm] HL [mm] Type of panel
fire prevention
40/10 PM Telescopic 2 900 2.100 Steel F.R. E 120

Taking as a basis(1):
Number of Protection against Table in
Model Opening PL [mm] HL [mm] Type of panel
panels fires movement [Kg]
40/10 PM Telescopic 2 800 2,000 Steel F.R. E 120 31.93

Calculations:
Difference by Difference by
Difference by Diferencia por PL Diferencia por HL Difference due to Table in
number of homologation SUM
opening (every 100 mm) (every 100 mm) type of panel movement
panels firefighting

They are the same. They are the same 31,93 x 0,07(2)= 31,93 x 0,03(3)= They are the same They are the same 2,23 + 0,95 = 31,93 + 3,18 =
2,23 Kg 0,95 Kg 3.18 35,11 Kg

These specifications are found in Annex 1.

2. This factor is the increase of 100mm in PL. It is number 4 in the second table of the product line 40/10 PM in Annex 1.
3. This factor is the increase of 100mm in HL. It is number 5 of the second table of product line 40/10 PM in Annex 1.

11.2 Example 2: Difference in opening and number of panels + increase in PL and

HL
Door to be calculated:
Homologation
Model Opening Number of panels PL [mm] HL [mm] Type of panel
fire fighting
Premium PM Telescopic 1 800 2000 Atamborada F.R. E 120

Taking as a basis(1):
Number of Protection against Table in
Model Opening Length [mm] HL [mm] Type of panel
panels fires movement [Kg]
Premium PM Telescopic 2 800 2,000 Steel F.R. E 120 36.61

Calculations:
Difference by Difference by
Difference by Diferencia por PL Diferencia por HL Difference by Table in
number of homologation SUM
opening(2) (every 100 mm) (every 100 mm) type of panel(3) movement
panels(2) fire fighting
36,61 x 0,12 = 4,39 – 6,13 = 36,61 – 1,74 =
36.61 x (-0.17) = -6.13 Kg They are the same They are the same They are the same
4,39 Kg -1,74 Kg 34.87 Kg

1. These specifications are found in Annex 1.

2. This factor is the difference between T2 (2-panel telescopic) and T1 (1-panel telescopic). This data is number 2 of the second table of the line.
of Premium PM product in Annex 1.
3. This factor is the difference between steel panel and sandwich panel. This data is number 11 in the second table of the Premium product line.
PM in Annex 1.

Fermator Groupwww.fermator.com Page 37 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.EN
VF7+ Relay electronic module
Version: 19.07

12 Annex 3
Reduction Ratio, Skate Length and Pulley Perimeter

Fermator Groupwww.fermator.com Page 38 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.EN
VF7+ Relay electronic module
Version: 19.07

Fermator Groupwww.fermator.com Page 39 / 40

INSTRUCTIONS
DOC-FE.IE.IN.019026.ES
VF7+ Relay electronic module
Versión: 19.07

13 Annex 4
13.1 Graphic Interface Map

These parameters and options may be hidden depending on which options are disabled.

Fermator Groupwww.fermator.com Page 40 / 40
