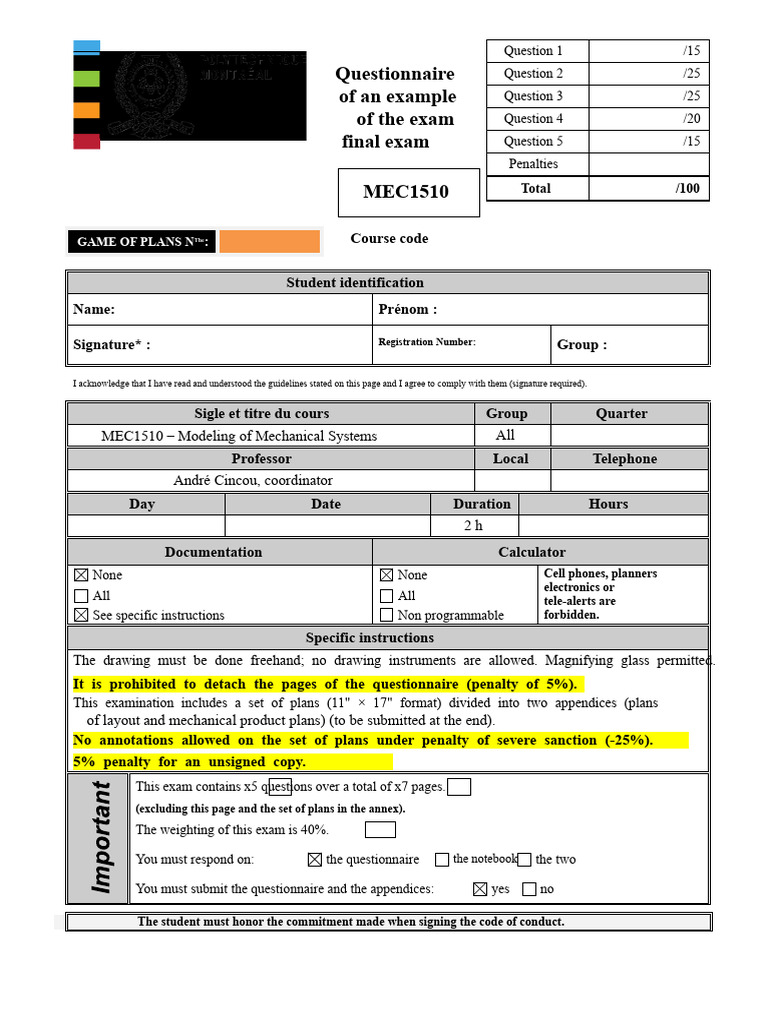

Question 1 /15

Questionnaire Question 2 /25

of an example Question 3 /25
of the exam Question 4 /20
final exam Question 5 /15
Penalties

MEC1510 Total /100

GAME OF PLANS NThe: Course code

Student identification
Name: Prénom :

Signature* : Registration Number: Group :

I acknowledge that I have read and understood the guidelines stated on this page and I agree to comply with them (signature required).

Sigle et titre du cours Group Quarter

MEC1510 – Modeling of Mechanical Systems All
Professor Local Telephone
André Cincou, coordinator
Day Date Duration Hours
2h
Documentation Calculator
None None Cell phones, planners
electronics or
All All tele-alerts are
See specific instructions Non programmable forbidden.
Specific instructions
The drawing must be done freehand; no drawing instruments are allowed. Magnifying glass permitted.
It is prohibited to detach the pages of the questionnaire (penalty of 5%).
This examination includes a set of plans (11" × 17" format) divided into two appendices (plans
of layout and mechanical product plans) (to be submitted at the end).
No annotations allowed on the set of plans under penalty of severe sanction (-25%).
5% penalty for an unsigned copy.
This exam contains x5 questions over a total of x7 pages.
(excluding this page and the set of plans in the annex).
The weighting of this exam is 40%.

You must respond on: the questionnaire the notebook the two

You must submit the questionnaire and the appendices: yes no

The student must honor the commitment made when signing the code of conduct.
Question 1 - variant 1 (15 points)

For each of the two views in orthogonal projection provided in a) and b), draw the view.
missing from the block assembly. The two provided views are complete and the solution uses the
totality of the mentioned blocks.

Stacking rule: under a cube or a triangular prism, there can only be one cube.
for example, two triangular prisms cannot be stacked on top of each other
the other.

MEC1510 – MODELING OF MECHANICAL SYSTEMS – EXAMPLE OF A FINAL EXAM PAGE 1 OF 7

Question 1 - variant 2 (15 points)

For each of the two views in orthogonal projection provided in a), b), c), and d), check the box for
the 3D representation that, once rotated in space, will produce these two views.

Scoring: correct answer: 3.75 points, no answer: 0 points, wrong answer: -2.75 points

a)

b)

c)

d)

MEC1510 – MODELING OF MECHANICAL SYSTEMS – FINAL EXAM EXAMPLE PAGE 2 DE 7

Question 1 - variante 3 (15 points)

Identify the missing view with the letter corresponding to one of the proposed views.

Each proposed view can only be used once.

There is no slanted surface.

You can draw the missing views, but only the alphabetical responses will be
corrected.

MEC1510 – MODELING OF MECHANICAL SYSTEMS – FINAL EXAM EXAMPLE PAGE 3 OF 7

 Question 2 (25 points)
ON TOP
In the sketch (freehand),
draw the front view in
parallel flat cuts.

The two views provided

(top and right profile) are
complete.

The material is cast iron.

RIGHT PROFILE

MEC1510 - MODELING OF MECHANICAL SYSTEMS - EXAMPLE OF A FINAL EXAM PAGE 4 OF 7

 Question 3 (25 points)
In the sketch (freehand) and
standardized writing, please proceed
set aside in compliance with the
fundamental principles of
quotation.
Instructions:
Indicate:
a linear slope by the
symbol "[Link]" or
[Link]
an angle by the symbol
"[Link]°" or "[Link]°"
a ray by the symbol
"[Link]" or "[Link]"
a diameter by the
symbol " [Link] » or
« [Link] »
The number of 'Z' after the
point depends on the type of
involved surfaces (raw
and/or machined) and must be in
in accordance with the table of
general tolerances.
You do not have to indicate any
values.
If you need to rate a thread
and/or a threading, choose
the necessary information among
the following parameters:
tapping profile:
unified
number of fillets per
inch : 20
nominal diameter: 1/2"
tapping: fine pitch series
degree of precision
(tolérance) : 2
implementation forest
29/64 inches
You need to identify the
machined surfaces using the
appropriate symbol.

MEC1510 - MODELING OF MECHANICAL SYSTEMS - EXAMPLE OF A FINAL EXAM PAGE 5 OF 7

Question 4 (20 points)

Using the development plans provided on pages K-1 to K-28 of your workbook,
answer the following questions:

Specific instructions:

WRITE IN STANDARD WRITING BETWEEN THE PROVIDED GUIDELINES.

Indicate the units when it is relevant to do so.

What is the height of the slab of the fifth floor?

b) Describe the symbol used for identifying types of partitions.

What is the height of the terrace railing?

What is the height difference between the elevation of the parking slab of the third
floor and the elevation of the slab of level 3?

e) What is the composition of a type 21 partition?

f) On page K-8, what does section n represent? o10?

g) On page K-28, how many sound alarms are there?

h) On the plans, what do the solid black circles represent?

What do the axis lines that connect these circles represent?

i) On page K-21, what do the fine lines that converge towards the circles identified by
the letters 'DP'?

j) On page K-14, how many areas are there without flooring? Only count the areas that are
completely illustrated.

MEC1510 – MODELING OF MECHANICAL SYSTEMS – EXAMPLE OF A FINAL EXAM PAGE 6 OF 7

Question 5 (15 points)

With the mechanical product plans on pages K-31 to K-35 of your workbook,
answer the following questions:
Special instructions:

WRITE IN STANDARD SCRIPT BETWEEN THE PROVIDED GUIDE LINES.

Indicate the units when relevant to do so.

a) What are the acceptable limit values for the large diameter of the roulette?

b) In the left view of the assembly drawing (the one that is not in full section), a
What is the name of this type of cut?

c) On which sheet should the detail drawing of the Grower brake latch be found? Justify.
your response.

d) What is the main reason that justifies the cut in the detail drawing of the roulette?

What is the nominal diameter of the hexagonal nut?

f) In the detailed drawing of the mounting bracket, what name could we give to the view where we see
the holes shaped like circles?

g) In the threaded formula of the hexagon head screw, what does the letter "A" mean?

h) In the assembly drawing, is it a mistake not to have cut part n?o4?

i) Justify your answer to question h).

What is the tolerance range for the large diameter of the shaft?

MEC1510 – MODELING OF MECHANICAL SYSTEMS – EXAMPLE OF A FINAL EXAM PAGE 7 OF 7
