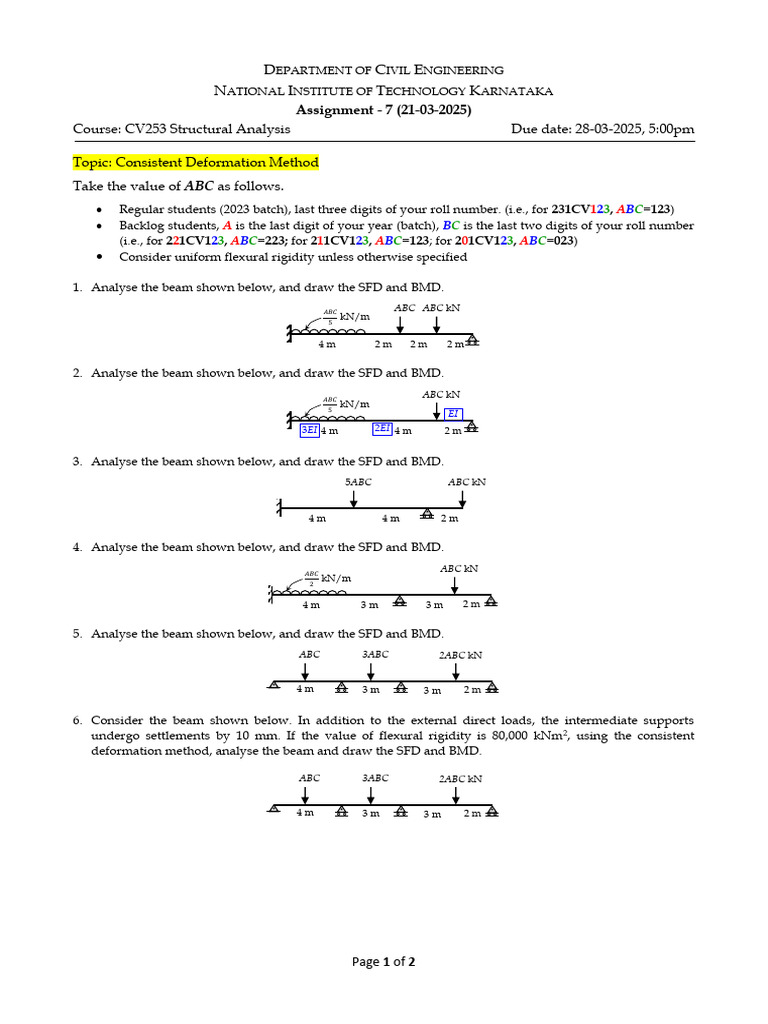

DEPARTMENT OF CIVIL ENGINEERING

NATIONAL INSTITUTE OF TECHNOLOGY KARNATAKA


Assignment - 7 (21-03-2025)
Course: CV253 Structural Analysis Due date: 28-03-2025, 5:00pm

Topic: Consistent Deformation Method


Take the value of ABC as follows.
• Regular students (2023 batch), last three digits of your roll number. (i.e., for 231CV123, ABC=123)
• Backlog students, A is the last digit of your year (batch), BC is the last two digits of your roll number
(i.e., for 221CV123, ABC=223; for 211CV123, ABC=123; for 201CV123, ABC=023)
• Consider uniform flexural rigidity unless otherwise specified

1. Analyse the beam shown below, and draw the SFD and BMD.
𝐴𝐵𝐶
ABC ABC kN
kN/m
5

4m 2m 2m 2m

2. Analyse the beam shown below, and draw the SFD and BMD.
𝐴𝐵𝐶
ABC kN
kN/m
5
EI
3EI 4 m 2EI 4 m 2m

3. Analyse the beam shown below, and draw the SFD and BMD.
5ABC ABC kN

4m 4m 2m

4. Analyse the beam shown below, and draw the SFD and BMD.
𝐴𝐵𝐶
ABC kN
kN/m
2

4m 3m 3m 2m

5. Analyse the beam shown below, and draw the SFD and BMD.
ABC 3ABC 2ABC kN

4m 3m 3m 2m

6. Consider the beam shown below. In addition to the external direct loads, the intermediate supports
undergo settlements by 10 mm. If the value of flexural rigidity is 80,000 kNm 2, using the consistent
deformation method, analyse the beam and draw the SFD and BMD.

ABC 3ABC 2ABC kN

4m 3m 3m 2m

Page 1 of 2
7. Analyse the frame shown below, and draw the SFD and BMD.
ABC kN
3m D 3m
C 2EI
3m

ABC B

3EI

5m

8. Analyse the frame shown below, and draw the SFD and BMD.
ABC kN
3m 5m

8m 8m

9. Analyse the pin -jointed truss shown below.


3ABC 2ABC

ABC

3m

4m

10. Analyse the pin-jointed truss shown below.


ABC ABC

3m

3m 5m 5m 3m
2ABC

Page 2 of 2
