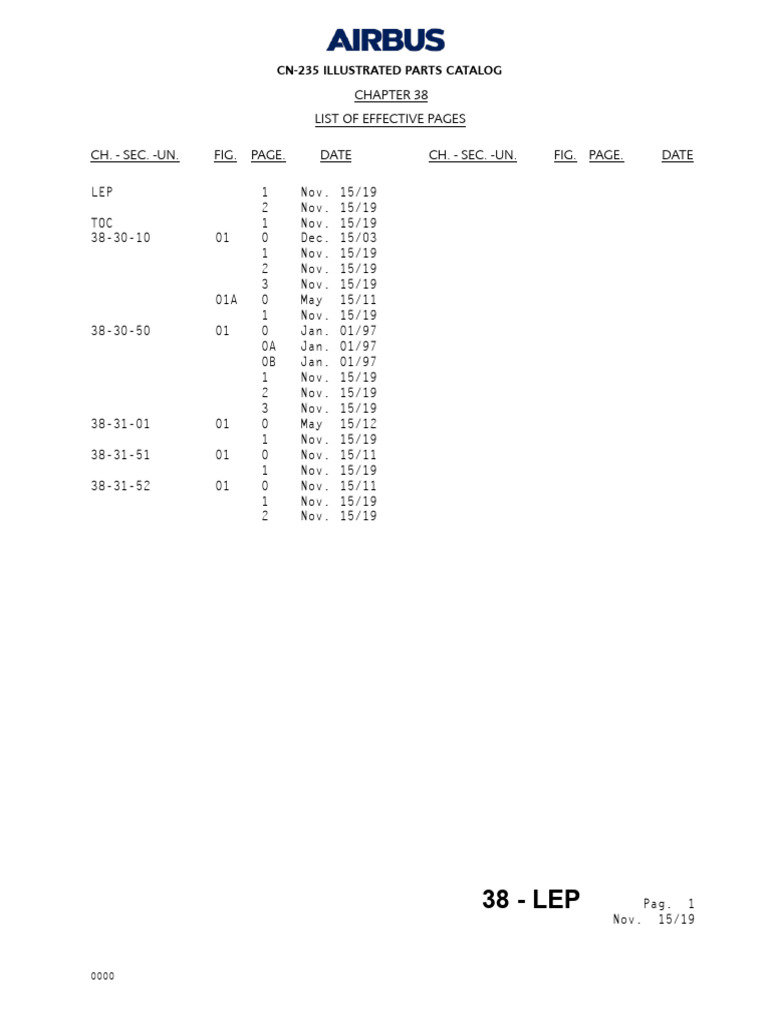

CN-235 ILLUSTRATED PARTS CATALOG

CHAPTER 38
LIST OF EFFECTIVE PAGES

CH. - SEC. -UN. FIG. PAGE. DATE CH. - SEC. -UN. FIG. PAGE. DATE

LEP 1 Nov. 15/19

2 Nov. 15/19
TOC 1 Nov. 15/19
38-30-10 01 0 Dec. 15/03
1 Nov. 15/19
2 Nov. 15/19
3 Nov. 15/19
01A 0 May 15/11
1 Nov. 15/19
38-30-50 01 0 Jan. 01/97
0A Jan. 01/97
0B Jan. 01/97
1 Nov. 15/19
2 Nov. 15/19
3 Nov. 15/19
38-31-01 01 0 May 15/12
1 Nov. 15/19
38-31-51 01 0 Nov. 15/11
1 Nov. 15/19
38-31-52 01 0 Nov. 15/11
1 Nov. 15/19
2 Nov. 15/19

38 - LEP Pag. 1
Nov. 15/19

0000
 CN-235 ILLUSTRATED PARTS CATALOG

INTENTIONALLY LEFT BLANK

38 - LEP Pag. 2
Nov. 15/19

0000
 CN-235 ILLUSTRATED PARTS CATALOG
CHAPTER 38
TABLE OF CONTENTS

SUBJECT CH. - SEC. -UN. FIG.

WASTE DISPOSAL
W.C. INSTL. 38-30-10 01
W.C. INSTL. 38-30-10 01A
TOILET DRAIN INSTALLATION 38-30-50 01
W.C. INSTL. 38-31-01 01
[Link]. 38-31-51 01
TOILET DRAIN INSTL. 38-31-52 01

38 - TOC Pag. 1
Nov. 15/19

0000
 CN-235 ILLUSTRATED PARTS CATALOG

W.C. INSTL.

38-30-10 Fig.
Pag.
01
0
Dec. 15/03
0000
 CN-235 ILLUSTRATED PARTS CATALOG

FIG. PART NUMBER DESCRIPTION EFFECT QTY

ITEM 1234567
|||||||
01
-001 W.C. INSTL. NP 001001 RF
006008
013015
021021
031052
-001A W.C. INSTL. NP 063064 RF
068068
074080
083086
090097
100105
108109
116119
122125
129136
139146
149200
205205
209209
216234
-001B W.C. INSTL. NP 054054 RF
059059
010 14912-10 . WC ASSY (REF.AC890011) (H0L17) 1
* SEE IC-P/N CROSS REF. LIST
(MC12)
020 MS17986C404 . PIN 2
030 35-82109-0801 . SUPPORT 1
040 AN960KD516 . WASHER 2
* SEE IC-P/N CROSS REF. LIST
050 MS21043-5 . NUT 2
060 NAS6605-24 . SCREW 001001 2
006008
013015
021021
031054
059064
068068
074080
083086
090097
100105
108109
116119
122125
129136
139146
149152

- ITEM NOT ILLUSTRATED

MISSING ITEMS AND VARIANTS ARE NOT APPLICABLE 38-30-10 Fig.
Pag.
01
1
Nov. 15/19
0000
 CN-235 ILLUSTRATED PARTS CATALOG

FIG. PART NUMBER DESCRIPTION EFFECT QTY

ITEM 1234567
|||||||
01
154154
156156
060A NAS6605-22 . BOLT 153153 2
155155
157200
205205
209209
216234
070 35-82109-0301 . SHIM 2
080 35-82109-0401 . SHIM 2
(RIVETED ITEM)
090 9FDBA50-12-3SNT- . CONNECTOR (F1983) 031054 1 R
A499 (REF.CAN68251-12-3SNA) 059064
* SEE IC-P/N CROSS REF. LIST 068068
(MC12a) 074080
083086
090097
100105
108109
116119
122125
129132
217217
223223
225225
228228
234234
090A MS3470L16-99S . CONNECTOR 001001 1
(MC12a) 006008
013015
021021
090B MBL16R12-3P . CONNECTOR (F8612) 075075 1 R
(REF.CAN68253-12-3PNA) 133136
* SEE IC-P/N CROSS REF. LIST 139146
(MC12a) 149200
205205
209209
216234
100 M85049/55-12W . CLAMP REF001 1

- ITEM NOT ILLUSTRATED

MISSING ITEMS AND VARIANTS ARE NOT APPLICABLE 38-30-10 Fig.
Pag.
01
2
Nov. 15/19
0000
 CN-235 ILLUSTRATED PARTS CATALOG

FIG. PART NUMBER DESCRIPTION EFFECT QTY

ITEM 1234567
|||||||
01
100A M85049/53-12W . CLAMP 063064 1
068068
074080
083086
090097
100105
108109
116119
122125
129132
217217
223223
225225
228228
234234
100B M85049/52-1-12W . CLAMP 054054 1
059059
075075
133136
139146
149200
205205
209209
216234
110 AN960D4L . WASHER 4
* SEE IC-P/N CROSS REF. LIST
120 MS21042-04 . NUT REF001 4
REF001B
120A MS21042L04 . NUT REF001A 4
130 NAS1101-04-5 . SCREW REF001 4
REF001B
130A NAS1101-04-6 . SCREW REF001A 4
140 MBL16R12-3P . CONNECTOR (F8612) 1 R
(REF.CAN68253-12-3PNA)
* SEE IC-P/N CROSS REF. LIST
(MC12A)
150 M85049/52-1-12W . CLAMP 1

- ITEM NOT ILLUSTRATED

MISSING ITEMS AND VARIANTS ARE NOT APPLICABLE 38-30-10 Fig.
Pag.
01
3
Nov. 15/19
0000
 CN-235 ILLUSTRATED PARTS CATALOG

W.C. INSTL.

38-30-10 Fig. 01A

Pag. 0
May 15/11
0000
 CN-235 ILLUSTRATED PARTS CATALOG

FIG. PART NUMBER DESCRIPTION EFFECT QTY

ITEM 1234567
|||||||
01A
-001 W.C. INSTL. NP 202202 RF
207207
210211
215215
010 14912-10 . WC ASSY (REF.AC890011) (H0L17) 1
* SEE IC-P/N CROSS REF. LIST
(MC12)
ATTACHING PARTS
020 MS21043-5 . NUT 2
030 AN960KD516 . WASHER 2
* SEE IC-P/N CROSS REF. LIST
040 NAS6605-22 . BOLT 2
****
050 MS17986C404 . PIN 2
060 35-82109-0801 . SUPPORT 1
070 35-82109-0401 . SHIM 2
(RIVETED ITEM)
080 35-82109-0301 . SHIM 2
(BONDED ITEM)
090 MBL16R12-3P . CONNECTOR (F8612) 1 R
(REF.CAN68253-12-3PNA)
* SEE IC-P/N CROSS REF. LIST
(MC12A)
100 M85049/52-1-12W . CLAMP 1
110 9FDBA50-12-3SNT- . CONNECTOR (F1983) 1 R
A499 (REF.CAN68251-12-3SNA)
* SEE IC-P/N CROSS REF. LIST
(MC12a)
120 M85049/53-12W . CLAMP 1
130 MS21042L04 . NUT 4
140 AN960D4L . WASHER 4
* SEE IC-P/N CROSS REF. LIST
150 NAS1101-04-6 . SCREW 4

- ITEM NOT ILLUSTRATED

MISSING ITEMS AND VARIANTS ARE NOT APPLICABLE 38-30-10 Fig. 01A
Pag. 1
Nov. 15/19
0000
 CN-235 ILLUSTRATED PARTS CATALOG

TOILET DRAIN INSTALLATION

(Sheet 1 of 2)
38-30-50 Fig.
Pag.
01
0
Jan. 01/97
0000
 CN-235 ILLUSTRATED PARTS CATALOG

TOILET DRAIN INSTALLATION

(Sheet 2 of 2)
38-30-50 Fig
Pag.
01
0A
Jan. 01/97
0000
 CN-235 ILLUSTRATED PARTS CATALOG

INTENTIONALLY LEFT BLANK

38-30-50 Fig
Pag.
01
0B
Jan. 01/97
0000
 CN-235 ILLUSTRATED PARTS CATALOG

FIG. PART NUMBER DESCRIPTION EFFECT QTY

ITEM 1234567
|||||||
01
-001 TOILET DRAIN INSTALLATION NP 012012 RF
017017
022022
055055
114114
120120
127127
010 NAS1153E18R . SCREW 8
020 NAS1153E13R . SCREW 4
030 DIN3017AL90- . CLAMP 2
110C6W3 * SEE IC-P/N CROSS REF. LIST
040 2651-311-1 . VALVE LAV DRAIN 4" (70347) 1
(REF.AC760719)
050 35-94012-0401 . JOINTT 1
060 CAN67099-4-4-4-4 . SLEEVE 114114 1
120120
127127
060A CAN67099-4-4-4-4 . SLEEVE 012012 1
(PRE SB235-38-01) 017017
022022
055055
060B CAN67099-3-4-4-3 . SLEEVE 1
(POS SB235-38-01)
070 35-94019-0003 . DRAIN DUCT ASSY 114114 1
120120
127127
070A 35-P0456-0001 . DRAIN DUCT ASSY 012012 1
(PRE SB235-38-01) 017017
022022
070B 35-94019-0001 . DRAIN DUCT ASSY 055055 1
(PRE SB235-38-01)
070C 35-P1214-0001 . DRAIN DUCT ASSY 1
(POS SB235-38-01)
070D 35-P1215-0001 . DRAIN DUCT ASSY 1
(POS SB235-38-01)
075 35-94019-0101 . . SEAL 114114 1
120120
127127
080 MS21256-1 . CLIP, SPRING 1
090 AN315C3R . NUT 1
100 MS21251B3S . TURNBUCKLE BODY 1
110 NAS1101E08-5 . SCREW 2
120 AN960C8L . WASHER 2
* SEE IC-P/N CROSS REF. LIST
130 35-94012-0101 . SUPPORT 1
140 MS21266-2N . PROTECTION 1

- ITEM NOT ILLUSTRATED

MISSING ITEMS AND VARIANTS ARE NOT APPLICABLE 38-30-50 Fig.
Pag.
01
1
Nov. 15/19
0000
 CN-235 ILLUSTRATED PARTS CATALOG

FIG. PART NUMBER DESCRIPTION EFFECT QTY

ITEM 1234567
|||||||
01
150 L41-235-47 . CABLE CONTROL ASSY (D8913) 1
(REF.AC760722)
160 35-94012-0501 . JOINT 1
170 35-94012-0601 . JOINT 1
180 LN9161-05M . NUT 1
190 LN9025-0510L . WASHER 1
200 LN9139M5X12 . SCREW 1
210 MS21919WCH14 . CLAMP 1
* SEE IC-P/N CROSS REF. LIST
220 DIN3017AL16- . CLAMP 2
25C6W3 * SEE IC-P/N CROSS REF. LIST
230 BAS109-30639312 . HOSE (REF.CAN67098-30639312) (K8319) 1 R
240 1400J16C3 . CAP ASSY (REF.AC760721) (9M039) 1
-250 35-94018-0001 . NIPPLE ASSY 1
260 35-94018-0101 . . FITTING 1
270 MS9385-12 . . PACKING, PREFORMED 1
280 4709-06 . . NIPPLE (REF.AC760720) (9M039) 1
* SEE IC-P/N CROSS REF. LIST
290 35-94012-0701 . SEAL 1
(POS SB235-38-01)
300 AN6227B49 . PACKING, PREFORMED 114114 2
* SEE IC-P/N CROSS REF. LIST 120120
127127
300A AN6227B49 . PACKING, PREFORMED 012012 2
* SEE IC-P/N CROSS REF. LIST 017017
(PRE SB235-38-01) 022022
055055
300B MS28775-346 . PACKING, PREFORMED 2
(POS SB235-38-01)

- ITEM NOT ILLUSTRATED

MISSING ITEMS AND VARIANTS ARE NOT APPLICABLE 38-30-50 Fig.
Pag.
01
2
Nov. 15/19
0000
 CN-235 ILLUSTRATED PARTS CATALOG

INTENTIONALLY LEFT BLANK

38-30-50 Fig.
Pag.
01
3
Nov. 15/19
0000
 CN-235 ILLUSTRATED PARTS CATALOG

W.C. INSTL.

38-31-01 Fig.
Pag.
01
0
May 15/12
0000
 CN-235 ILLUSTRATED PARTS CATALOG

FIG. PART NUMBER DESCRIPTION EFFECT QTY

ITEM 1234567
|||||||
01
-001 W.C. INSTL. NP 246247 RF
(MC12) 252252
255257
010 14912-10 . WC ASSY (REF.AC890011) (H0L17) 1
* SEE IC-P/N CROSS REF. LIST
ATTACHING PARTS
020 MS21043-5 . NUT 2
030 AN960KD516 . WASHER 2
* SEE IC-P/N CROSS REF. LIST
040 NAS6605-22 . BOLT 2
****
050 MS17986C404 . PIN 2
060 35-82109-0801 . SUPPORT 1
070 35-82109-0401 . SHIM 2
080 35-82109-0301 . SHIM 2
090 MBL16R12-3P . CONNECTOR (F8612) 1 R
(REF.CAN68253-12-3PNA)
* SEE IC-P/N CROSS REF. LIST
(MC12A)
100 M85049/52-1-12W . CLAMP 1
110 9FDBA50-12-3SNT- . CONNECTOR (F1983) 1 R
A499 (REF.CAN68251-12-3SNA)
* SEE IC-P/N CROSS REF. LIST
(MC12a)
120 M85049/53-12W . CLAMP 1
130 MS21042L04 . NUT 4
140 AN960D4L . WASHER 4
* SEE IC-P/N CROSS REF. LIST
150 NAS1101-04-6 . SCREW 4

- ITEM NOT ILLUSTRATED

MISSING ITEMS AND VARIANTS ARE NOT APPLICABLE 38-31-01 Fig.
Pag.
01
1
Nov. 15/19
0000
 CN-235 ILLUSTRATED PARTS CATALOG

[Link].

38-31-51 Fig.
Pag.
01
0
Nov. 15/11
0000
 CN-235 ILLUSTRATED PARTS CATALOG

FIG. PART NUMBER DESCRIPTION EFFECT QTY

ITEM 1234567
|||||||
01
-001 [Link]. NP 263270 RF
278278
010 ASP04555C3GL . LAVATORY-UPPER FLOOR (A1341) 1 R
(SEE:CMM.25-40-06)
(REF.AC25C0002)
020 9FDBA50-22-41SNT- . CONNECTOR (F1983) 2 R
A499 (REF.CAN68251-22-41SNA)
(MC12a)
030 M85049/52-1-22N . CLAMP 1

- ITEM NOT ILLUSTRATED

MISSING ITEMS AND VARIANTS ARE NOT APPLICABLE 38-31-51 Fig.
Pag.
01
1
Nov. 15/19
0000
 CN-235 ILLUSTRATED PARTS CATALOG

TOILET DRAIN INSTL.

38-31-52 Fig.
Pag.
01
0
Nov. 15/11
0000
 CN-235 ILLUSTRATED PARTS CATALOG

FIG. PART NUMBER DESCRIPTION EFFECT QTY

ITEM 1234567
|||||||
01
-001 TOILET DRAIN INSTL. NP 263273 RF R
277999
010 AST00130A000 . LAVATORY-LOOSE PARTS UNDER- (A1341) 1 R
FLOOR
(SEE:CMM.25-40-02)
(REF.AC711205)

- ITEM NOT ILLUSTRATED

MISSING ITEMS AND VARIANTS ARE NOT APPLICABLE 38-31-52 Fig.
Pag.
01
1
Nov. 15/19
0000
 CN-235 ILLUSTRATED PARTS CATALOG

INTENTIONALLY LEFT BLANK

38-31-52 Fig.
Pag.
01
2
Nov. 15/19
0000
