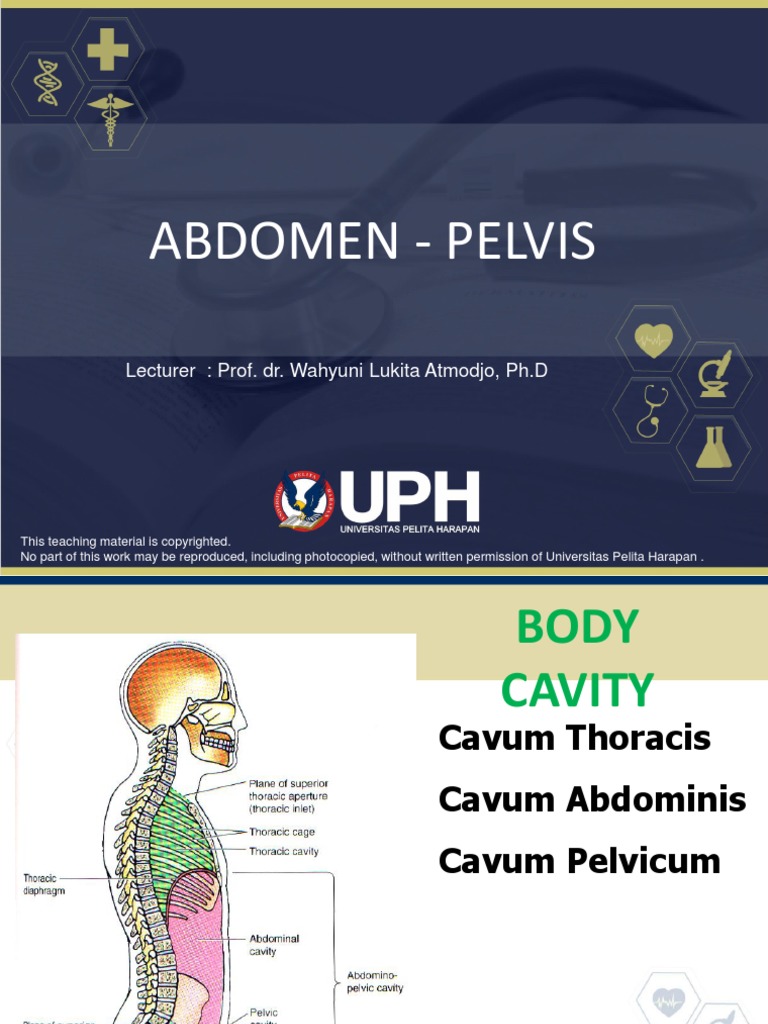

ABDOMEN - PELVIS

Lecturer : Prof. dr. Wahyuni Lukita Atmodjo, Ph.D

This teaching material is copyrighted.

No part of this work may be reproduced, including photocopied, without written permission of Universitas Pelita Harapan .
 BODY
CAVITY
Cavum Thoracis
Cavum Abdominis
Cavum Pelvicum

Wahyun
7/6/2019 2 i
Atmodjo
 Arteries of abdominal wall.
• Superior epigastric
• Inferior epigastric
• Posterior intercostal
• Subcostal
• Superficial epigastric

7/6/2019 Wahyuni Atmodjo 3

 Layers of abdominal wall
• Skin
• Fat / Camper’s fasc
• Scarpa’s fasc
• M. OAE
• M. OAI
• M. Transversus abdominis
• Transversal Fascia
• Peritoneum parietale

7/6/2019 Wahyuni Atmodjo 4

 Anterior abdominal wall
 EOM:
○ 4th –12th riblinea alba
 IOM:
○ Inquinale lig, crista iliaca, fasc. Thoracolumbal  9th-12th ribs, linea
alba, os pubis, linea pectinea
 Transversus abdominis
○ Inquinale lig, crista iliaca, fasc. Thoracolumbal  linea alba, os pubis,
linea pectinea
 Rectus abdominis
○ Os pubis, interpubic lig cartilago 5th-7th ribs, proc. xiphoideus
 Pyramidalis
○ Os pubis, ant pubic lig  linea alba

7/6/2019 Wahyuni Atmodjo 5

 Posterior abdominal wall
 Iliopsoas mayor
 Psoas head : Proc. Transversus VT12- L4  trochanter
minor femur
 Iliac head : illiac fossa  trochanter minor femur

 Diaphragm
 Costal margin VL1-L4  central tendon

 Quadratus lumborum
 Iliolumbar lig, crista iliaca posterior  12th rib, proc
transversus VL1-4

7/6/2019 Wahyuni Atmodjo 6

 inguinal region
Lateral: M. iliopsoas, N. femoralis
Medial: A.V. femoralis, Femoral ring
Superior : lig. inguinal

Wahyun
7/6/2019 7 i
Atmodjo
 CANALIS INGUINALIS
ANNULUS INGUINALIS PROFUNDUS
( DEEP INGUINAL RING )

CANALIS INGUINALIS

ANNULUS INGUINALIS SUPERFICIALIS

( SUPERFICIAL INGUINAL RING )

 Length 4 cm from deep inguinal ring to superficial inguinal ring,

above inguinal ligament
 Anterior : OAE, OAI
 Posterior: Fascia Transversals
 Inguinal triangle
• The site of direct inguinal
hernia
• Boundaries
– Medial: linea semilunaris
– Lateral: Inferior epigastric a
– Inferior: Inguinal ligament
– Anterior: Covered by Ext.
Obliq. Apo.

7/6/2019 Wahyuni Atmodjo 9

 Inguinal Hernia

 Indirect inguinal hernia

○ Congenital and Acquired
○ Through inguinal canal
○ lateral to Inf epigastric a.

 Direct inguinal hernia

○ Always acquired
○ medial to the inferior
epigastric artery
○ Common in middle age men

7/6/2019 Wahyuni Atmodjo 10

 Femoral Hernia
• Common in female, rare in male
• Enter femoral ring and femoral canal
• Inferior to inguinal ligament and lateral
to the pubic tubercle
• Usually lie in the thigh and presenting
through fossa ovalis

7/6/2019 Wahyuni Atmodjo 11

 Inguinal Hernia Femoral Hernia
 Common in male  Common in female
 Superior to inguinal ligament  Enter femoral canal
 Superficial inguinal ring  Inferior to inguinal ligament
 Usually lie in the thigh
 TRACT DIGESTIVIVUS

 Mouth
 Pharynx
 Esophagus
 Stomach
 duodenum, jejenum, ileum
 Cecum and appendix
 colon ascendens,
transversus, descendens
 Sigmoid, Rectum, Anal
canal, Anus
 Accessory organ: Liver,
Pancreas, Spleen

7/6/2019 Wahyuni Atmodjo 13

Upper left ; Upper right
Lower left ; Lower right Plane
Vertical : Median plane
Horizontal: Transumbilical plane

7/6/2019 Wahyuni Atmodjo 14

 Quadrant
• RUQ (Right upper quadrant)
– Right lobe of liver, gallbladder, pylorus, duodenum,
pancreas, right supraren, right kidney
• LUQ (Left upper quadrant)
– Left lobe of liver, spleen, stomach, jejenum and ileum,
pancreas, left supraren, left colic, transverse colon,
descending colon
• RLQ (Right lower quadrant)
– Cecum, appendix, ileum, ascending colon, r-ovary, r-uterine
tube, r-ureter, uterus, urinary bladder, r-spermatic cord
• LLQ (Left lower quadrant)
– Sigmoid colon, descending colon, l-ovary, l-uterine tube, l-
ureter, l-spermatic cord, urinary bladder, uterine

7/6/2019 Wahyuni Atmodjo 15

 Plane of the Regions
Vertical
Right midclavicular
Left midclavicular

Horizontal:
Subcostal
Transtubercular

7/6/2019 Wahyuni Atmodjo 16

 9 Regions
For specific localisation of a finding,
abdomen is devided into 9 regions
• Epigastric
• RH : right hypochondriaca
• LH : left hypochondriaca
• Umbilical
• RL : right lumbar
• LL : left lumbar
• Hypogastric
• RI : right inquinal
• LI : left inquinal

7/6/2019 Wahyuni Atmodjo 17

 Peritoneum
 Abdominal cavity :
Closed sac containing
serous fluid covered by
Peritoneum parietal.
 Peritoneum visceral
attach to the organ
 Location of visceral organ
 Intraperitoneal
 Retroperitoneal

7/6/2019 18 Wahyuni Atmodjo

 Blood supply GI tract:
Aorta abdominalis
 Celiac artery (VL 1)
 Gaster / stomach
 Duodenum
 Pancreas
 Spleen / lien
 Hepar / liver
 Superior mesenteric artery (VL 2)
 Small intestine
 Inferior mesenteric artery (VL 3)
 Large intestine

7/6/2019 Wahyuni Atmodjo 19

 Parasympathetic
 N. VII  submandibular and
Nerve supply
sublingual glands
 N. IX  parotid gland, oral
mucosa
 N. Vagus  digestive tract
 S2-S4  rectum, anus
 Contraction of smooth
muscle
 Secretion of digestive juice

 Sympathetic
 Thoracolumbal  Ganglion
Coeliacus, mesenterica sup
and mesenterica inf
 Reduce contraction and
secretion

7/6/2019 20 Wahyuni Atmodjo

 HEPAR dan VESICA FELLEA,

 Length 6-10 cm
 Capacity 45 ml
 Lies within fossa vesica fellea
 Divided into 3 parts: fundus, body and neck
 PANCREAS
 Epigastricleft Hypochondriaca
 Head , Body, Tail
• Primary pancreatic duct
• Accessory pancreatic duct
 LIEN
• Lies in the left hypochondriaca adjacent to
stomach, from ribs 9, 10,11,12
• 11 cm in length. weighs between 150 -200
gr,
• Composed of lymphoid tissue
• Supplied by A. lienalis

7/6/2019 Wahyuni Atmodjo 23

 Tulang Pelvis
1. Os coxae kiri dan kanan, membentuk dinding
lateral dan anterior rongga panggul.
2. Os coccygis dan os sacrum, membentuk
dinding posterior rongga panggul.

7/6/2019 Wahyuni Atmodjo 24

 Pelvis
• Pelvis mayor (greater/false)
– Lateral, fossa iliaca
– Anterior, abdominal wall anterior
– Posterior, VL 3,4,5
– Large intestine
• Pelvis minor (lesser/true)
– Pelvic inlet
– Pelvic cavity
– Pelvic outlet
– Pelvic ogan

7/6/2019 Wahyuni Atmodjo 25

 Pelvic inlet
• Boundaries
– Linea terminalis (pubic crest, iliopectineal
line and arcuate line)  towards
promontorium

7/6/2019 Wahyuni Atmodjo 26

 REPRODUCTIVE SYSTEM
• Male
– External: penis, scrotum
– Internal: prostat, testis, epididimis, vas deferens, vesicula
seminalis.

• Female
– External: Labia mayor, labia minor, clitoris,
orificium urethra, introitus vagina
– Internal : Vagina, cervix, uterus, tuba uterina , ovarium

7/6/2019 WAhyuni Atmodjo 27

Sagital section of female genital
Vagina
Uterine
Fundus, corpus, cornu, cervix
Broad lig, round lig
Uterine Tube (2)
Isthmus, ampulla, infundibulum, fimbriae,
mesosalphinx
Ovarium (2)
Suspensory lig, proper lig
Mesovarium

7/6/2019 WAhyuni Atmodjo 28

 VULVA
1. Clitoris
2. Labium minus
3. Labium mayus
4. Orificium urethra externa
5. Introitus vagina

WAhyun
7/6/2019 29 i
Atmodjo
 Female genitalia interna

• Vagina
• Cervic
• Uterine
• Tuba uterina
• Ovarium

7/6/2019 WAhyuni Atmodjo 30

 External structure of penis
• Composition
– Begins as the Radix of penis in the superficial perineal
space
– Body
• Bilateral corpora cavernosa are dorsal, begins as crus and covered
by ischiocavernosus muscles
• Central corpus spongiosum is ventral, begins as bulb of penis

7/6/2019 WAhyuni Atmodjo 31

 Genitalia Interna
Urethra prostatica,
membranacea,
spongiosa
prostat

testis

epididimis

vas deferens

vesicula seminalis

7/6/2019 WAhyuni Atmodjo 32

 Arteries in pelvis.

Anterior division
 Obturator a
 Umbilical a
 Vaginal a
 Ovarica uterine a
 Inferior vesical a
 Middle rectal a
 Internal pudendal a
 Inferior gluteal a

7/6/2019 WAhyuni Atmodjo 33
