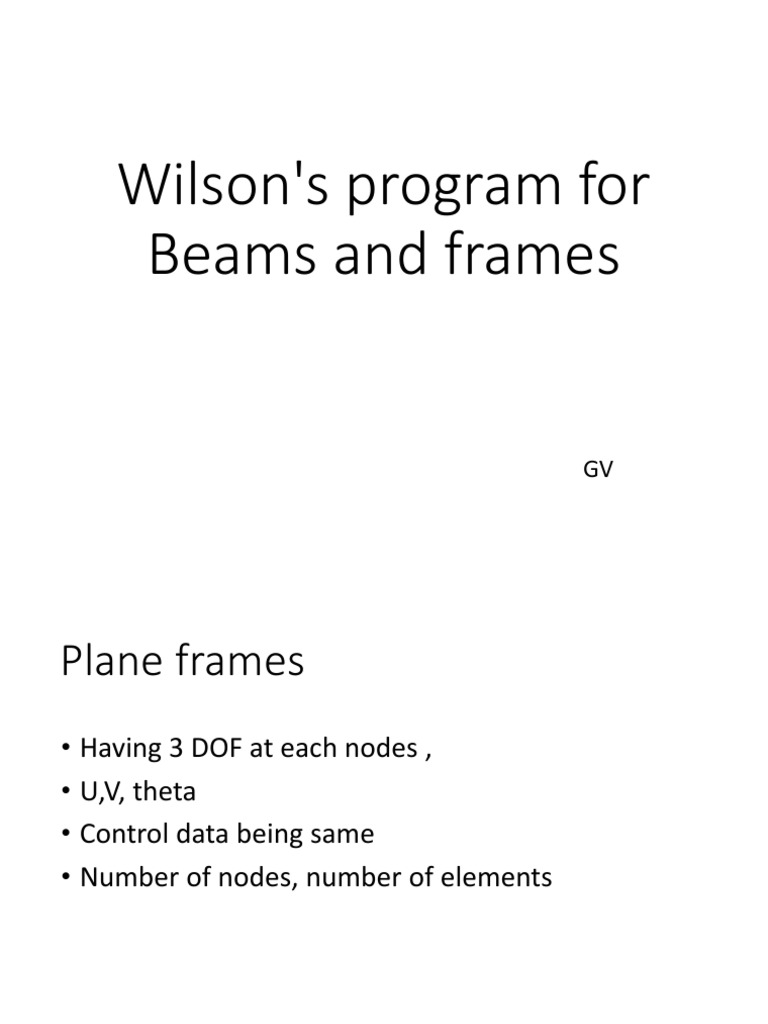

Wilson's program for

Beams and frames

GV
Plane frames
• Having 3 DOF at each nodes ,
• U,V, theta
• Control data being same
• Number of nodes, number of elements
Difference from truss element
• Kode is different. Having 3 digits .
• U,V,Theta
• 1 means restrained 0 means free
• Fixed support - 111
• Hinged support -110
• Roller on floor - 010
• Roller on wall - 100
Force
• Force is different.
• Truss having nodal force only , but Beams and
frames having nodal force and member forces also
• We need to define member forces after the
member definition
To run
• To run the program, same procedure but
• Input file name to be copied is 2dfin.dat
• Output file is 2dfout.dat
• Exe file is plframe
• copy yourfilename 2dfin.dat
• kill
• plframe
• No need to give 6 after plframe
• Node definition syntax
• Node number,kode,x,y,fx,fy,m
• These fx,fy,m are model forces
• Member definition syntax is
• Mem num, nodei,nodej,Area, moment of inertia,Young's
mod
• For all values ,
• Right side , upwards and anticlockwise -Positive
• Left side , downwards and clockwise - Negative
• For the continuous beam shown input file be
• Continuous beam
• 3,2
• 1,111,0,0,0,0
• 2,110,5,0,0,0
• 3,111,8,0,0,0
• 1,1,2,area, moment of inertia,Young's mod
• 2,2,3,area, moment of inertia,Youngs mod
• After this member definition, 7th line, add the
member forces as fixed end moments and
reactions
• 1st beam having udl, conver to equavelent
moments and reactions.
• The syntax is
• Member number
• ti,vi,mi,tj,vj,mj
• ti - horizontal force at ith node
• vi- vertical force at ith node
• mi- moment at ith node
• tj - horizontal force at jth node
• vj- vertical force at jth node
• mj- moment at jth node
• For the first beam , vertical reaction is 7.5 kN (
upwards, positive) and FEM is 6.25 kNm (
anticlockwise, positive)
• For the second beam , vertical reaction is 7.5 kN (
upwards, positive) and FEM is 6.25 kNm (
clockwise, negative)
• So the first beam member force definition is
•1
• 0,7.5,6.25,0,7.5,-6.25
• For the second beam member force definition is
•2
• 0,6.48,7.2,0,3.52,-4.8
• Add 0 the end of the file
Input file
• Continuous beam
• 3,2
• 1,111,0,0,0,0
• 2,110,5,0,0,0
• 3,111,8,0,0,0
• 1,1,2,area, moment of inertia,Young's mod
• 2,2,3,area, moment of inertia,Youngs mod
• 1
• 0,7.5,6.25,0,7.5,-6.25
• 2
• 0,6.48,7.2,0,3.52,-4.8
• 0
