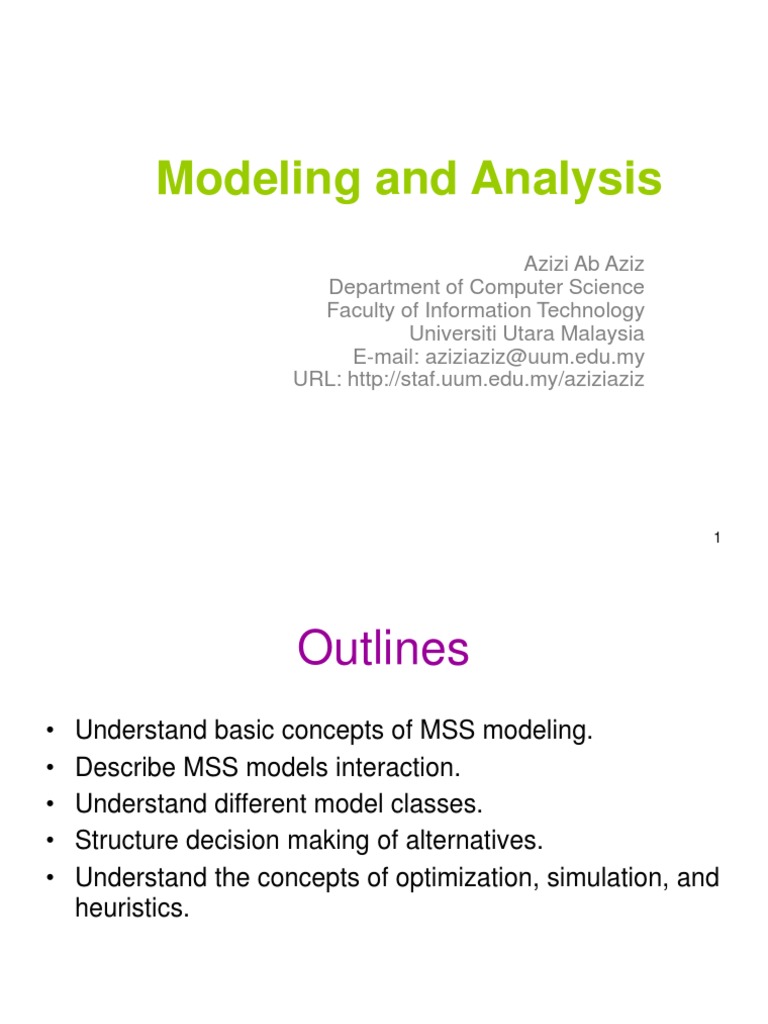

Modeling and Analysis

Azizi Ab Aziz
Department of Computer Science
Faculty of Information Technology
Universiti Utara Malaysia
E-mail: aziziaziz@uum.edu.my
URL: http://staf.uum.edu.my/aziziaziz

1
 Outlines
• Understand basic concepts of MSS modeling.
• Describe MSS models interaction.
• Understand different model classes.
• Structure decision making of alternatives.
• Understand the concepts of optimization, simulation, and
heuristics.

2
 Modeling
• Key element in DSS
• Many classes of models
• Specialized techniques for each model
• Allows for rapid examination of alternative solutions
• Multiple models often included in a DSS
• Trend toward transparency
– Multidimensional modeling exhibits as spreadsheet,
database, …more and more and more ….

3
 Why Modeling?
• To understand the nature of process, problems, or its
environment.
• Generic aspect: environmental scanning and analysis.
• It is clearly important to understand the scope of
domains, the forces, and dynamics of the environment.
• In business ~ the culture and environmental factors
have created a great problem.
• Main step: identifying the model’s variables (decision,
results, relationship) is critical.

4
 Typical Types of Models
• Model  “an abstraction /approximation to represent
reality”
• Types of models
– Narrative model – verbally, written, words
– Physical model – tangible, prototype
– Schematic model – graphics
– Mathematical model – series of equations

5
 Views of Model
• Either static or dynamic model.
• Single model: photograph of situation / single interval
• Time can be rolled forward, a photo at a time
• Usually repeatable
• Steady state
– Optimal operating parameters
– Continuous
– Unvarying
– Primary tool for process design

6
 Views of Model
• Dynamic model: represent changing
situations
• Time dependent
• Varying conditions
• Generate and use trends
• Occurrence may not repeat
• Heart beat, waterfalls, stock exchange,
• Governs by chaos theory.

7
 Certainty, Uncertainty, and Risk
• Decision situations are often classified on the basis of
what the decision maker knows (believes) about the
suggested results.
• Typical categories of decision making:
– Decision making under certainty
– Decision making under uncertainty
– Decision making under risk

8
Certainty, Uncertainty, and Risk

Complete knowledge, certainty

Increasing RISK Decreasing

knowledge knowledge

Ignorance, uncertainty

9
Decision Making Under Certainty
• Assume complete knowledge
• Called as deterministic problem
• All potential outcomes known (assumptions)
• Easy to develop (yield optimal solution)
• Resolution determined easily
• Can be very complex

10
Decision Making Under Uncertainty
• Several outcomes for each decision
• Probability of occurrence of each outcome
unknown
• Insufficient information
• Assess risk and willingness to take it
• Pessimistic/optimistic approaches

11
Decision Making Under Risk
• Probabilistic Decision-Making
• Decision under risk
• Probability of each of several possible outcomes
occurring
• Risk analysis
• Calculate value of each alternative
• Select best expected value

12
 Modeling Decision
• Using influence diagram.
• Graphical representation of model
• Provides relationship framework
• Examines dependencies of variables
• Any level of detail
• Shows impact of change
• Shows what-if analysis

13
 Modeling Decision
Variables:
Intermediate Result or outcome
Decision or (intermediate or
uncontrollable final)

• Arrows indicate type of relationship and

direction of influence

Certainty Amount Interest

in CDs earned

Sales
Uncertainty Price

14
 Influence Diagram
Random (risk) ~
Place tilde above Demand
Sales
variable’s name
Sleep all
day
Graduate Get job
Preference University

(double line arrow) eat all

day

• Arrows can be one-way or bidirectional, based

upon the direction of influence

15
 Example: Influence Diagram
• Consider the following profit model:
– Profit = income – expense
– Income = units sold * unit price
– Units sold = 0.5 * amount used in advertisement
– Expenses = unit cost * units sold + fixed cost

16
Example: Influence Diagram

17
 Try this!
• Consider this problem:
“I would like to increase my pointer this semester. I have
only three elective papers left. My friend told me, DSS is
the best subject to score, however it is depends to the
lecturer. If you’re having Mr A as your lecturer, you’re in a
grieve danger. The virtual reality subject is okay, but you
need to know great graphics (which I like most). Well,
another subject is mobile web programming. I presume it
will be great, but wasn’t sure either I’m capable to cope
with programming or not since nobody knows this
course.

18
 Mathematical Models
• Link decision variables, uncontrollable variables,
parameters, and result variables together
– Decision variables describe alternative choices.
– Uncontrollable variables are outside decision-
maker’s control.
– Fixed factors are parameters.
– Intermediate outcomes produce intermediate result
variables.
– Result variables are dependent on chosen solution
and uncontrollable variables.

19
 Mathematical Model
External parameters Uncontrollable
Variables

Decision Mathematical Results

variables relationships Variables

Important parameters Reflect the

(input) effectiveness of the
system (towards goal)

20
Mathematical Models

21
Mathematical Models

22
Mathematical Models

23
Mathematical Models

24
 Mathematical Models: Linear
Regression
• Regression analysis: is used primarily for prediction
among bivariate relationship.
• Main components:
– Dependent variables  response variable.
– Independent variables  explanatory variables.
– Correlation analysis  to measure the strength of
measured variable.
– Visualization  using scatter diagram
– Basis  Least – Square method

25
 Mathematical Models: Linear
Regression
• Least square method ~ to derive the equation line of
Y = a + Bx; where
– Y is a value of variable (dependent)
– B is a regression coefficient
– X is a independent variable
• Formulation:

b
 XY  n X Y
a  Y  bX
 X  nX2 2

26
 Linear Regression (example)
• The following data show monthly advertising
expenditure (RM000s) and sales (RM000s) over a
period of 6 months. Estimate the relationship
between sales (Y) and advertising expenditure.
• Sales: Y = 3, 15, 6, 20, 9, 25
• Advertising expenditure: X = 1, 2, 3, 4, 5, 6

27
Linear Regression (example)
X Y X i2 XY Yi 2
1 3 1 3 9
2 15 4 30 225
3 6 9 18 36
4 20 16 80 400
5 9 25 45 81
6 25 36 150 625
 X =21  Y=78  X i2 = 91  XY=326 Yi 2 =1376

21 78
X   3.5, Y   13
9 6

b
 XY  n X Y

326  6(3.5)(13)
 3.03
 X  nX 91  6(3.5)
2 2 2

a  Y  b X  13  3.03(3.5)  2.40 28
 Mathematical Models: Linear
Regression
SALES, Y

2.40

ADVERSTISEMENT
EXPENDITURE, X

29
 Sensitivity, What-If, Goal Seeking
• Sensitivity
– Assesses impact of change in inputs or parameters
on solutions
– Allows for adaptability and flexibility
– Eliminates or reduces variables
– Can be automatic or trial and error
• What-if
– Assesses solutions based on changes in variables
or assumptions
• Goal seeking
– Backwards approach, starts with goal
– Determines values of inputs needed to achieve goal
– Example is break-even point determination

30
 Searching Approach
• Analytical techniques (algorithms) for structured
problems
– General, step-by-step search
– Obtains an optimal solution
• Blind search
– Complete enumeration
• All alternatives explored
– Incomplete
• Partial search
– Achieves particular goal
– May obtain optimal goal

31
 Searching Approach
• Heurisitic
– Repeated, step-by-step searches
– Rule-based, so used for specific situations
– “Good enough” solution, but, eventually, will
obtain optimal goal
– Examples of heuristics
• Tabu search
– Remembers and directs toward higher
quality choices
• Genetic algorithms
– Randomly examines pairs of solutions
and mutations

32
33
 Simulation
• Imitation of reality
• Allows for experimentation and time compression
• Can include complexities, but requires special skills
• Handles unstructured problems
• Optimal solution not guaranteed
• Methodology
– Problem definition
– Construction of model
– Testing and validation
– Design of experiment
– Experimentation
– Evaluation
– Implementation
34
 Simulation
• Probabilistic independent variables
– Discrete or continuous distributions
• Time-dependent or time-independent
• Visual interactive modeling
– Graphical
– Decision-makers interact with simulated model
– may be used with artificial intelligence
• Can be objected oriented

35
 Simulation
Problem Definition
Real
world Construct model
problem
Testing and validation

Design experiments

Conduct experiments

Possible Evaluate the results

solution
Implement the results
36
Simulation

37
Simulation

38
