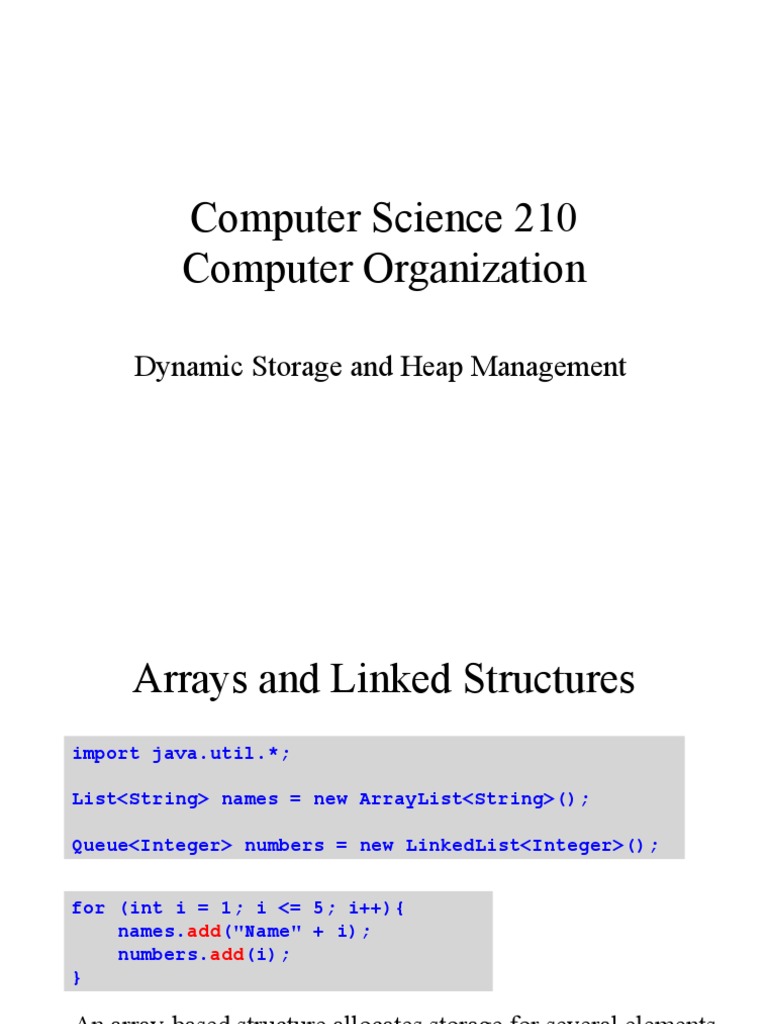

Computer Science 210
Computer Organization
Dynamic Storage and Heap Management

Arrays and Linked Structures
import java.util.*;
List<String> names = new ArrayList<String>();
Queue<Integer> numbers = new LinkedList<Integer>();
for (int i = 1; i <= 5; i++){

names.add("Name" + i);
numbers.add(i);
}
An array-based structure allocates storage for several elements
A linked structure allocates storage for each element as needed

Nodes in Linked Structures
import java.util.*;
public class LinkedList<E> extends AbstractSequentialList<E>{
private Node<E> head, tail;

private in size;
data next data next
public LinkedList(){
head = tail = null;
size = 0;
}
public boolean add(E element){

Node<E> newNode = new Node(element, null);
if (tail != null)
tail.next = newNode;
else
head = newNode;
tail = newNode;
size++;
return true;
}
Nodes in Linked Structures
public boolean add(E element){
Node<E> newNode = new Node(element, null);
if (tail != null)
tail.next = newNode;
else
head = newNode;
tail = newNode; data next data next
size++;
return true; In assembler, links (head,
}
tail, next) are addresses
private class Node<E>{
private E data;
data next
private Node<E> next;
private Node(E element, Node<E> next){

data = element;
this.next = next;
}
}
Dynamic Storage and the System Heap
x0000
Operating system
The system stack provides
x3000
dynamic storage for subroutine
calls
User program code
The system heap provides

dynamic storage for linked nodes
System heap and other dynamically allocated
objects
System stack
The stack pointer moves up, and
xFDFF
the heap pointer moves down
I/O device registers
xFFFF
Heap Management
• Languages like Python, Java, and Lisp allow

the programmer to request new dynamic
memory and recycle unused memory
automatically (garbage collection)
• Languages like C, C++, and Ada require

explicit allocation and deallocation of
dynamic memory
A Simple LC-3 Heap Manager
• Our heap manager allows programs to

allocate and deallocate nodes for linked
structures (no automatic garbage collection)
• Each node has just two fields, a data field

and a next field
The Heap Interface
• The heap structure consists of

– a heap pointer (in R5, which now can’t be used
for anything else)
– three new subroutines, INITHEAP, NEW, and
DISPOSE
Subroutine INITHEAP
• The subroutine INITHEAP is called at

program startup
• This routine initializes the heap pointer and

formats the heap memory into a sequence of
linked nodes (sometimes also called a free
list)
Subroutine NEW
• The subroutine NEW is called to obtain a pointer to a
new node
• This routine receives the data element in R1 and a

pointer to the next node in R2
• It returns a pointer to the new node in R3
• The empty pointer is x0000

Create a Linked List of Two Nodes
;; Author: Ken Lambert
;; This program uses the system heap to create and link together two nodes.
.ORIG x3000
;; Main program register usage:

; R1 = the datum for a new node
; R2 = the next link for a new node
; R3 = a pointer to the new node
; Main program code

JSR INITHEAP ; Initialize the heap
LD R1, X ; Set the parameter for the first datum
AND R2, R2, #0 ; Set the parameter for the next link
JSR NEW
ST R3, HEAD ; Reset HEAD to the new node
LD R1, Y ; Set the parameter for the second datum
LD R2, HEAD ; Set the parameter for the next link
JSR NEW
ST R3, HEAD ; Reset HEAD to the new node
HALT
; Main program data variables

X .FILL 6 ; A data element
Y .FILL 5 ; A data element
HEAD .BLKW 1 ; A pointer to the first node in the list
Create a Linked List with a Loop
;; Author: Ken Lambert
;; This program uses the system heap to create and

;; link together five nodes.
.ORIG x3000
;; Main program register usage:

; R1 = the datum for a new node
; R2 = the next link for a new node
; R3 = a pointer to the new node
; Main program code

JSR INITHEAP ; Initialize the heap
LD R1, MAXDATUM ; Set the parameter for the first datum
AND R2, R2, #0 ; Set the parameter for the next link
WHILE JSR NEW
ST R3, HEAD ; Set HEAD to the new node
ADD R2, R3, #0 ; Set the parameter for the next link
ADD R1, R1, #-1 ; Set the parameter for the next datum
BRp WHILE ; Return to top of loop
HALT

MAXDATUM .FILL 5
HEAD .BLKW 1
Process a Linked List: Output
; Output process
LD R2, RT ; Get return character
LD R3, DIGITOFFSET ; Get digit offset
LD R1, HEAD ; Get pointer to first node
OUTLOOP BRz ENDOUT ; Stop if it's empty
LDR R0, R1, #0 ; Access and output the datum
ADD R0, R0, R3
OUT
ADD R0, R2, #0 ; Output the newline
OUT
LDR R1, R1, #1 ; Move to the next node
BR OUTLOOP
ENDOUT HALT

MAXDATUM .FILL 5
HEAD .BLKW 1
RT .FILL #13
DIGITOFFSET .FILL #48
Disposing of a Linked List
List<String> names = new LinkedList<String>();
// Add a bunch of names to the list and process them
names = null; // The garbage collector automatically recycles nodes to the heap
Disposing of a Linked List
; Disposal process
LD R1, HEAD ; Get the pointer to the first node
DISLOOP BRz ENDDIS ; Stop if it's empty
LDR R2, R1, #1 ; Save the pointer to the next node
JSR DISPOSE
ADD R1, R2, #0 ; Move to the next node
BR DISLOOP
ENDDIS ST R1, HEAD ; HEAD should now be empty
HALT
Subroutine NEW
;; Subroutine NEW
; Returns the address of a new node in R3
; Input parameters: R1 - the datum for the node
; R2 - the next field of the node
; R5 - the heap pointer
; Output parameters: R3 - the address of the new node
NEW STR R1, R5, #0 ; Store the datum in the new node
ADD R5, R5, #1 ; Move heap pointer to the next field of the new node
ADD R3, R5, #0 ; Save a copy of the heap pointer
LDR R5, R5, #0 ; Reset the heap pointer to the address contained in the next field
STR R2, R3, #0 ; Set the next field of the new node
ADD R3, R3, #-1 ; Set the output parameter to the address of the new node
RET
R5
data next data next data next data next

Subroutine NEW
;; Subroutine NEW
RET
R5
R1 next data next data next data next

Subroutine NEW
;; Subroutine NEW
RET
R5

Subroutine NEW
;; Subroutine NEW
RET
R5
R3
Subroutine NEW
;; Subroutine NEW
RET
R5
R3
Subroutine NEW
;; Subroutine NEW
RET
R5
R1 R2 data next data next data next
R3
Subroutine NEW
;; Subroutine NEW
RET
R5
R1 R2 data next data next data next
R3
Subroutine DISPOSE
;; Subroutine DISPOSE
; Returns an old node (addressed by R1) to the heap
; Input parameters: R1 - a pointer to the old node
; Output parameter: R5 - the heap pointer
DISPOSE ADD R1, R1, #1 ; Advance to the old node's next field
STR R5, R1, #0 ; Store the heap pointer there
ADD R5, R1, #-1 ; Aim the heap pointer at the old node
RET
R5
R1
Subroutine DISPOSE
RET
R5
R1
Subroutine DISPOSE
RET
R5
R1
Subroutine DISPOSE
RET
R5
R1
Subroutine INITHEAP
;; Subroutine INITHEAP
; Initializes the heap pointer and formats the heap memory as a free list
; Input parameter: R5 - the heap pointer
; Other registers: R1 - address of the next field of current node
; R2 - address of the next node
; R3 - counter for the loop
INITHEAP LD R5, HEAPTOP ; Initialize the heap pointer

ADD R1, R5, #1 ; Pointer to the next field of the current node
ADD R2, R5, #2 ; Pointer to the next node
LD R3, HEAPSIZE ; Counter for the number of nodes
HEAPLOOP BRz ENDHEAP

STR R2, R1, #0 ; Store pointer to the next node in the next field of the
current node
ADD R1, R1, #2 ; Advance the pointers
ADD R2, R2, #2
ADD R3, R3, #-1 ; Decrement the counter
BR HEAPLOOP
ENDHEAP RET
; Data variables for subroutine INITHEAP

HEAPTOP .FILL x302F ; Address of the beginning of the heap
HEAPSIZE .FILL #10 ; Number of nodes in the initial heap
Extensions
• Add checks for heap underflow with error

handling
• Add capability for nodes of varying sizes
• Garbage collection (probably worth a

master’s thesis)
