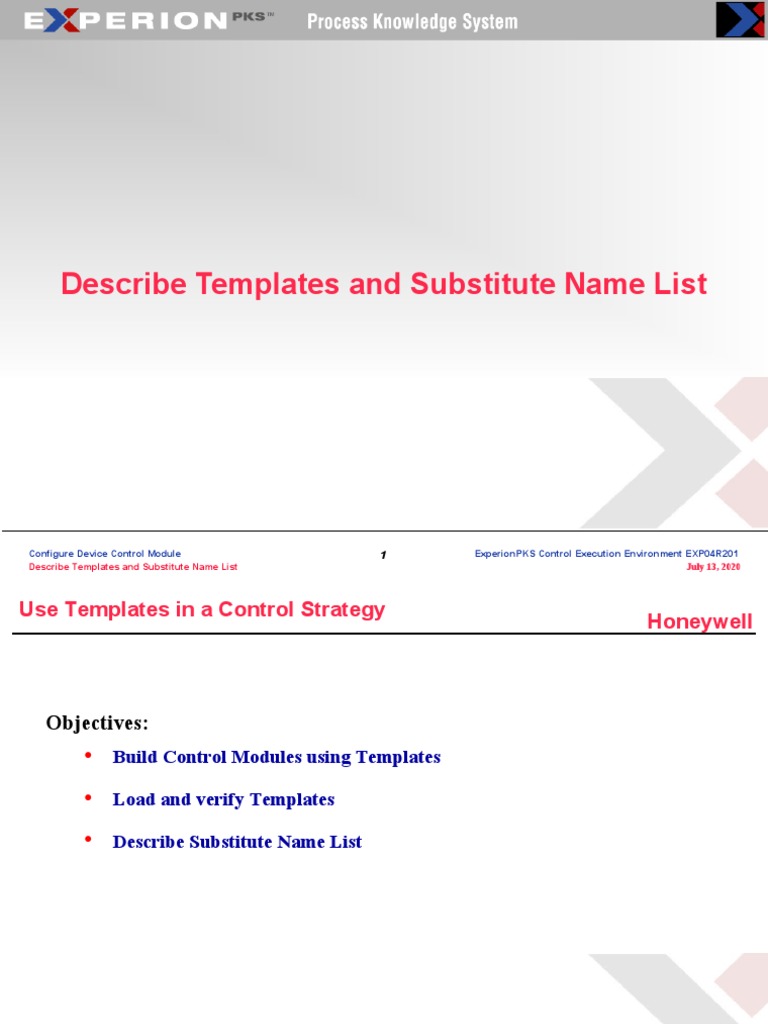

Describe Templates and Substitute Name List
Configure Device Control Module 1 ExperionPKS Control Execution Environment EXP04R201
Describe Templates and Substitute Name List July 13, 2020
Use Templates in a Control Strategy
Honeywell
Objectives:
• Build Control Modules using Templates
• Load and verify Templates
• Describe Substitute Name List
Configure Device Control Module 2 ExperionPKS Control Execution Environment EXP04R201
July 13, 2020
Describe Templates and Substitute Name List
Templates
Honeywell
• Templates are created in Control Builder.
• Once created, templates may be used to build multiple copies of desired control
strategies.
• Templates allow for change to propagate from parent to child.
• Templates can contain other Templates, up to five levels.
Configure Device Control Module 3 ExperionPKS Control Execution Environment EXP04R201
July 13, 2020
Describe Templates and Substitute Name List
Make Template
Honeywell
Making Templates
• Under the System tab, right-click Control Module
• Select Make Template
Configure Device Control Module 4 ExperionPKS Control Execution Environment EXP04R201
July 13, 2020
Describe Templates and Substitute Name List
Building Templates
Honeywell
Build the Control Strategy and Configure parameters
Configure Device Control Module 5 ExperionPKS Control Execution Environment EXP04R201
July 13, 2020
Describe Templates and Substitute Name List
Projected Parameters
Honeywell
• Decide what parameters will be needed outside of the Template.
• Give these exposed parameters names and connect them to an Origin.
Template
Temp_Num GEA
IN[2]
Configure Device Control Module 6 ExperionPKS Control Execution Environment EXP04R201
July 13, 2020
Describe Templates and Substitute Name List
Template Block Pins
Honeywell
• Add pins as needed to the Template
• You can pin-out the Projected Parameters
• Parameter Connections are OK within a Template
Configure Device Control Module 7 ExperionPKS Control Execution Environment EXP04R201
July 13, 2020
Describe Templates and Substitute Name List
Use Templates
Honeywell
Instantiate makes a useable version of the Template for project.
Copy makes a new Template in the Library (child of the original)
The name that this copy of
template will have in project
Configure Device Control Module 8 ExperionPKS Control Execution Environment EXP04R201
July 13, 2020
Describe Templates and Substitute Name List
Using a Template
Honeywell
Insert the Template into a CM
Configure Device Control Module 9 ExperionPKS Control Execution Environment EXP04R201
July 13, 2020
Describe Templates and Substitute Name List
Complete CM with Template
Honeywell
Complete CM with a Template
Template
Configure Device Control Module 10 ExperionPKS Control Execution Environment EXP04R201
July 13, 2020
Describe Templates and Substitute Name List
Templates in the Monitoring tab
Honeywell
Containment view / Assignment view
Templates
shown at root
Templates
shown as
contained
Configure Device Control Module 11 ExperionPKS Control Execution Environment EXP04R201
July 13, 2020
Describe Templates and Substitute Name List
Chart View of a CM with a Template
Honeywell
• Green indicates that the template is active.
• Blue indicates that the template is inactive
Configure Device Control Module 12 ExperionPKS Control Execution Environment EXP04R201
July 13, 2020
Describe Templates and Substitute Name List
Template in Chart View
Honeywell
Double-click the Template in the
Tree to open it in chart view
Configure Device Control Module 13 ExperionPKS Control Execution Environment EXP04R201
July 13, 2020
Describe Templates and Substitute Name List
Build Templates using Substitute Name List
Honeywell
• Create the Substitute Names
• Connect them to Function Block types
Configure Device Control Module 14 ExperionPKS Control Execution Environment EXP04R201
July 13, 2020
Describe Templates and Substitute Name List
Build Templates using Substitute Name List
Honeywell
• Use the Parameter Connection tool.
• Select the Substitute Name as a connection.
Configure Device Control Module 15 ExperionPKS Control Execution Environment EXP04R201
July 13, 2020
Describe Templates and Substitute Name List
Build Templates using Substitute Name List
Honeywell
The Substituted Names can be resolved to a function block
parameter when the Template is Instantiated.
Resolved
Configure Device Control Module 16 ExperionPKS Control Execution Environment EXP04R201
July 13, 2020
Describe Templates and Substitute Name List
