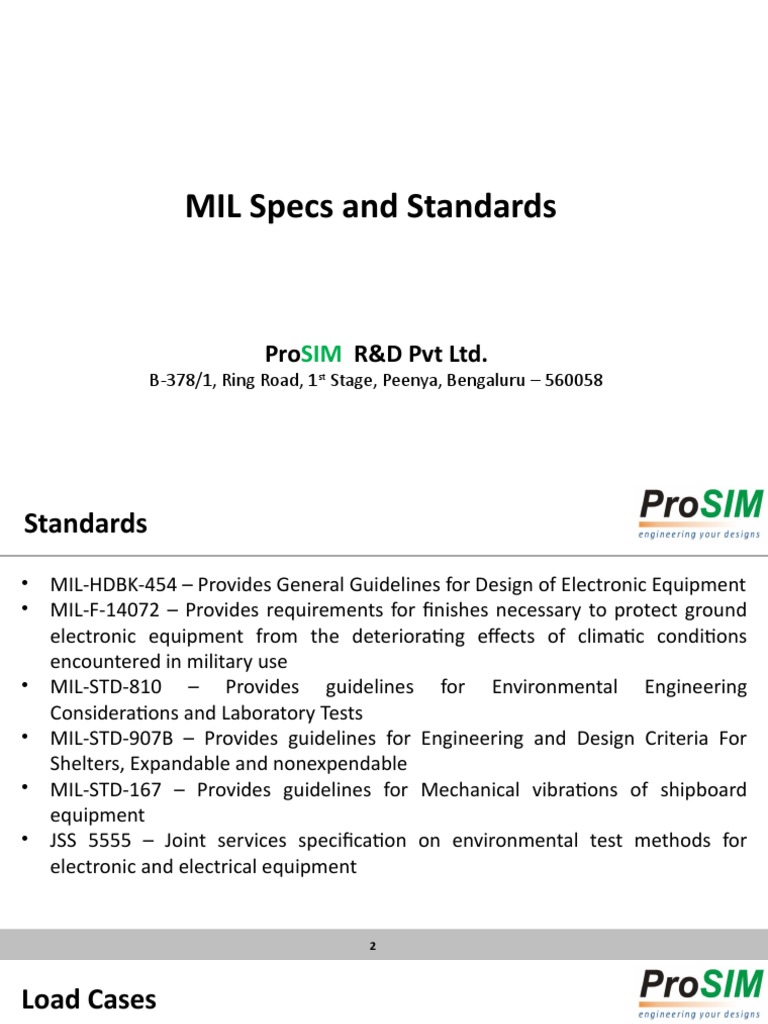

MIL Specs and Standards

ProSIM R&D Pvt Ltd.

B-378/1, Ring Road, 1st Stage, Peenya, Bengaluru – 560058
Standards
• MIL-HDBK-454 – Provides General Guidelines for Design of Electronic Equipment
• MIL-F-14072 – Provides requirements for finishes necessary to protect ground
electronic equipment from the deteriorating effects of climatic conditions
encountered in military use
• MIL-STD-810 – Provides guidelines for Environmental Engineering
Considerations and Laboratory Tests
• MIL-STD-907B – Provides guidelines for Engineering and Design Criteria For
Shelters, Expandable and nonexpendable
• MIL-STD-167 – Provides guidelines for Mechanical vibrations of shipboard
equipment
• JSS 5555 – Joint services specification on environmental test methods for
electronic and electrical equipment

2
Load Cases
• MIL-STD-907B –
 Temperature shock: Rapid temperature change from 71C to -57C/ -57C to 71C in 5 mins
 Impact Load : 70 lb dropped from 30 inch (height) on roof & floor panels; 70 lb dropped from 16 inch
(height) on side panels
 Pressure variation: Pressure from 185mb to 1060 mb/ 1060 mb to 185mb in 5 min
• MIL-STD-167:
 Steady state: 0 to 50 Hz
 Exploratory Vibration Test: 4 to 33 hz with amplitude of (0.01+/- 0.002 inches) and 34 to 50 hz with
amplitude of (0.003+ o /-0 .001 inches)
 Variable frequency test: 4 to 50 Hz discrete frequencies applied at different amplitudes according to table 1
(5.1.2.4.3)
• MIL-STD-810:
• Saw tooth 20G peak, 11milliseconds

3
Load Cases
• JSS 5555:
• Steady state acceleration - sub section 5.1
• Shock or impact – sub section 5.24
• Vibration – sub section 5.28

4
THANK YOU
