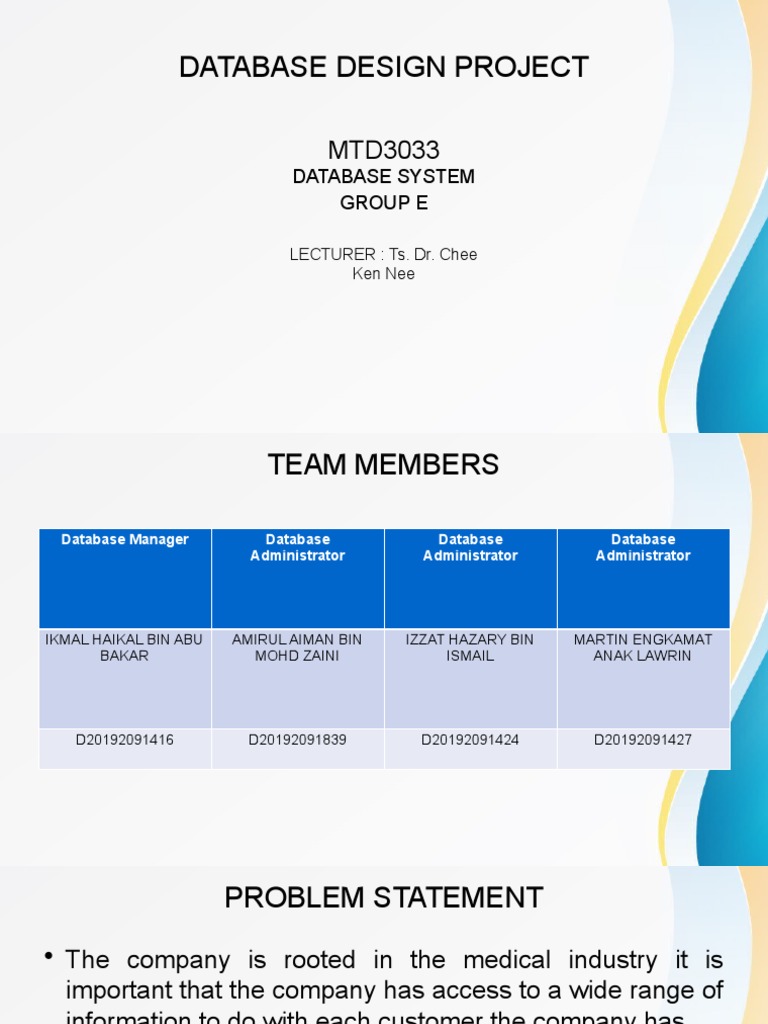

DATABASE DESIGN PROJECT

MTD3033
DATABASE SYSTEM
GROUP E

LECTURER : Ts. Dr. Chee

Ken Nee
 TEAM MEMBERS

Database Manager Database Database Database

Administrator Administrator Administrator

IKMAL HAIKAL BIN ABU AMIRUL AIMAN BIN IZZAT HAZARY BIN MARTIN ENGKAMAT
BAKAR MOHD ZAINI ISMAIL ANAK LAWRIN

D20192091416 D20192091839 D20192091424 D20192091427

 PROBLEM STATEMENT

• The company is rooted in the medical industry it is

important that the company has access to a wide range of
information to do with each customer the company has.
• Eventually the database created will be used to track
trends for modelling further business rules on the
accumulated data for the business.
 REQUIREMENTS
• All patient information, address, phone. The doctor of the patient.
Information about visits including history, and prescriptions such
as refillable or non-refillable.
• The details of doctors associated with the patients like Hospitals
they are affiliated with and any specialties of the doctors.
• The hospitals must also have a database for details such as
location and contact.
• Medicines need data such as name type and side effects to make
sure there are no conflicts between prescriptions.
5. Preliminary Entity Relationship Diagram (ERD)
PATIENT DOCTOR PRESCRIPTION HOSPITAL

#Patient ID #Doctor ID #RX ID #Hospital ID

• Doctor ID *Name *Date Prescribed *Name
• RX ID *Address *Dosage *Address
• Hospital ID *Phone *Duration *Phone
*Name *Specialization *Refillable
*Address *Hospital Affiliation *Drug Name
*Phone *Side Effects
*Email *Benefits
#Insurance ID
*Insurance Company
 INSURANCE PRIMARY DOCTOR HISTORY
#*Start Date
#*Insurance Company ID *End Date
*Insurance Company Reason For Leaving
*Phone
be for
be insure by be for
have be listed on

have be for
treat be for
have
prescribe
insure
preside over
have
be given have
be presided over be prescribed by
be for be for

be used for
DRUGS

prescribe #*Drug ID
*Name
*Side Effect
*Benefits
 ASSUMPTIONS
• Each PATIENT must have one and only one DOCTOR
• Each DOCTOR may treat one or more PATIENT.
• Each DOCTOR may have one or more HOSPITAL AFFILIATION.
• Each HOSPITAL AFFILIATION must be for one and only one DOCTOR.
• Each HOSPITAL may have one or more HOSPITAL AFFILIATION.
• Each HOSPITAL AFFILIATION must be for one and only one HOSPITAL.
• Each PATIENT may be given one or more PRESCRIPTION.
• Each PRESCRIPTION must be for one and only one PATIENT.
• Each PATIENT may have one or more OFFICE VISIT.
• Each OFFICE VISIT must be for one and only one PATIENT.
• Each DOCTOR may preside over one or more OFFICE VISIT.
• Each OFFICE VISIT must be presided over by one and only one DOCTOR.
• Each DOCTOR may prescribe one or more PRESCRIPTION.
• Each PRESCRIPTION must be prescribed by one and only one DOCTOR.
