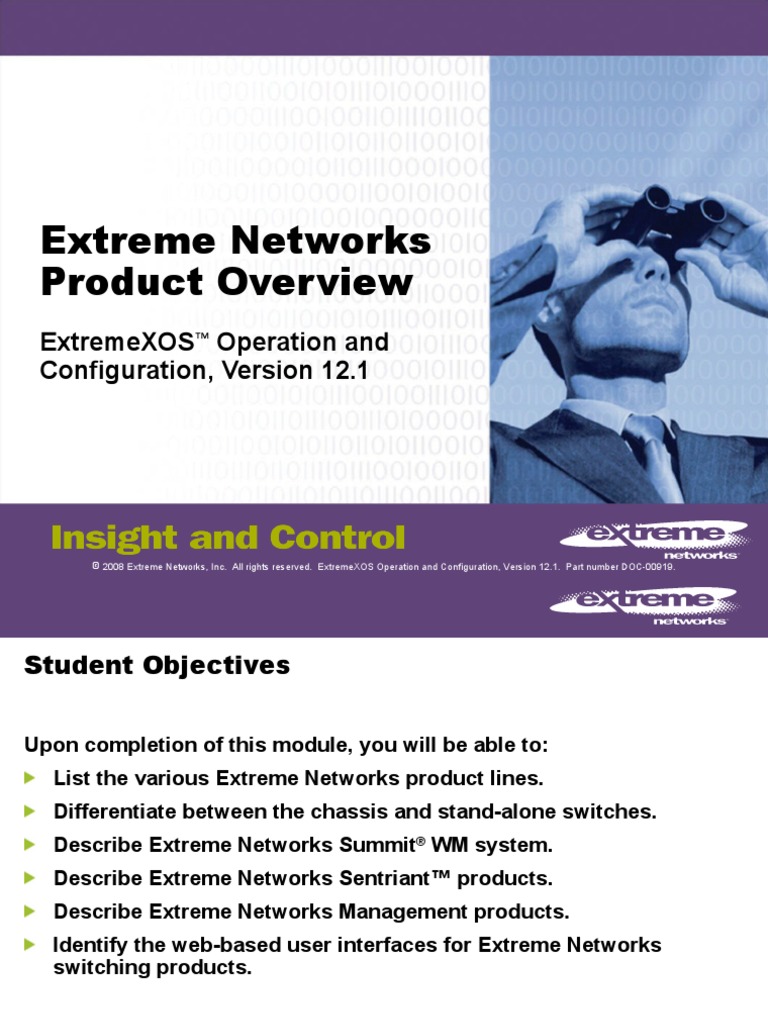

Extreme Networks

Product Overview
ExtremeXOS™ Operation and
Configuration, Version 12.1

© 2008 Extreme Networks, Inc. All rights reserved. ExtremeXOS Operation and Configuration, Version 12.1. Part number DOC-00919.
 Student Objectives

Upon completion of this module, you will be able to:

List the various Extreme Networks product lines.
Differentiate between the chassis and stand-alone switches.
Describe Extreme Networks Summit® WM system.
Describe Extreme Networks Sentriant™ products.
Describe Extreme Networks Management products.
Identify the web-based user interfaces for Extreme Networks
switching products.

Slide 2
 Product Families Overview

Switching Products
• Chassis: BlackDiamond
• Standalone: Summit
Wireless Products
• Summit WM20/200/2000 WLAN controller, and Altitude 350-2i/350-2d AP
(indoor)
Security Products
• Sentriant NG, Sentriant AG
Network Management Products
• EPICenter, EPICenter Asset Discoverer, Service Watch, Extreme Networks
Policy Manager (EPM)

Check the Extreme Networks website to get the latest product information.
http://www.ExtremeNetworks.com
Slide 3
 Extreme Networks Switch Operating Systems

ExtremeWare®
• Rich set of Layer 2 and Layer 3 resiliency protocols, including EAPS
• Ease of management and monitoring with support for LLDP and sFlow
• Network access authentication integrated with host integrity checking, control
and management plane security
ExtremeXOS™
• Functions and CLI are compatible with ExtremeWare
• High-Availability architecture
• Extensible via XML
• Dynamic application loading
• Universal Port scripting

Slide 4
 ExtremeWare® to ExtremeXOS™ Comparison

ExtremeWare and ExtremeXOS ExtremeXOS Only

• Network login • IPv6 Layer 2 Layer 3 support
• IP security • Process monitoring and restart
• Hitless failover/upgrade • Process memory protection
• MAC security • XML APIs
• Host integrity checking Integration • Dynamic software module loading
• LLDP • CLI scripting
• SNMPv1/v2/v3 • Universal Port
• SSH2/SCP VoIP auto-configuration
• EAPS, STP, ESRP, VRRP User-based dynamic security policies
Time of the day policies
• OSPF, RIP, PIM
• Virtual routers
• BGP
• CLEAR-Flow
• sFlow (i-series platforms)

Slide 5
 Chassis-Based Switching Product Overview

Max Max
BlackDiamond OS 10/100 10/100/1000-T GBIC / SFP 10GB PoE Height
Ports Ports

10808 EXOS - 480 480 48 No 22 RU

12804R EXOS - 80 80 8 No 10 RU

12802R EXOS - 40 40 4 No 3 RU

12804C EXOS - 80 80 8 No 10 RU

8810 EXOS - 432 440 36 Yes 20 RU

8806 EXOS - 240 248 20 Yes 14 RU

Slide 6
 Standalone Switching Product Overview

Summit OS 10/100 10/100/1000-T SFP 10GB PoE Stacking

Summit48si EWare 48 -t - 2 No No No

X150-t / -p EXOS 24 / 48 -t 2 2 No 24 -p No

X250e-t / -p EXOS 24 / 48 -t 2 Shared 2 Shared No 24 / 48 -p Yes

24 -x
X250e-x EXOS 2 Shared 2 Shared No No Yes
(sfp)

X350-t EXOS - 24 / 48 4 shared Yes (2) No No

X450-t Series EXOS - 24 4 Yes No Yes

X450-x Series EXOS - 4 24 -x Yes No Yes

X450a-t Series EXOS - 24 / 48 4 Yes No Yes

X450a-x Series EXOS - 4 24 -x Yes No Yes

X450e-p EXOS - - 4 Yes 24 / 48 -p Yes

X650 EXOS - - - 24 No Yes

Slide 7
 show licenses

ExtremeXOS Feature Licensing Model

Default-licenses depend on product role

Simple one-step license upgrade
Concept of “Feature Packs”
Core

FeaturePack a
FeaturePack b
BlackDiamond 10808
Aggregation
Core BlackDiamond 12804

BlackDiamond 8800
Edge Adv. Edge S-X450-a

S-200/300/400
Edge S-X250e/X450e

L2-Edge S-X150 & X350

Slide 8
 show licenses

ExtremeXOS Licensing Feature Details

OSPFv2 PIM-SM
MSDP
Core OSPFv3 PIM-DM
IS-IS
BGP-4, BGP-4+ EAPS – Full

Advanced OSPF-Edge ESRP 6to4, v6 tunnels

Edge PIM-SM-Edge VRRP CLEAR-Flow

RIP v1/v2, RIPng Stacking

Edge ECMP, static routes Universal Port

Network Login EAPS-Edge (EAPS-Full on i-

SNMP v1/v2/v3
series)
MAC + IP Security
SSH-2/SCP
Layer 2 HTTP / SSL / XML
IGMP snooping + filters
STP, 802.1D, 802.1w, 802.1s

Edge RADIUS / TACACS+

PIM Snooping
Software Redundant Port
802.3ad trunking, LACP
vMANs, Private VLANs,
MIBs, RMON / SMON
VLAN Translation ACLs, VLANs, QoS and more

Slide 9
 Extreme Networks Wireless Products

Summit WM20
• Wireless system using centralized controllers to manage APs. APs may be
members of several virtual subnets called Access Domains.
Summit WM200/2000 Series
• Has greater capacity than the SWM20. Also has field replaceable service
blades for easy of maintenance.
The Altitude 350-2 AP is compatible with both platforms.

Max Max Access Dynamic Radio

Platform 10/100/1000 Max Clients
APs Domains Management

Summit WM20 2 512 32 8 Yes

Summit WM200 4 2048 100 32 Yes
Summit WM2000 4 4096 200 64 Yes

Slide 10
 Extreme Networks Security Products
Sentriant NG
• Sentriant detects and mitigates
rapidly propagating threats in
seconds.
• Defends against threats without
interfering with network traffic
• Uses behavior-based threat
detection methods (no signatures, no
heuristics)
• Uses behavior-based technology to
identify Day-Zero threats for which
signatures are unavailable.
• Delivers fast detection with a network
of virtual decoys
• Isolates attackers and prevents them
from communicating with the
remainder of the network
Slide 11
Sentriant AG
• Network Access Control (NAC)—
protects the network by verifying that
endpoint devices are free from
threats and in compliance with IT
security policies.
• Compliancy Tests Include:
OS service packs and hot-fixes
Browser and OS security settings
Wireless security settings
Anti-virus software, Anti-spyware
software, and Personal firewall
software (installed, running, and up-
to-date)
Administrator defined Required or
prohibited software
 Extreme Networks Management Products

EPICenter
• SNMP / SSH-2-based Network Management Tool enables the Network
Administrator to manage and map Extreme Networks and third-party
devices.
Extreme Networks Policy Manager (EPM)
• Client-based software designed to help IT staff quickly and efficiently create
and manage Access Control Lists (ACLs) and CLEAR-Flow rules on
ExtremeXOS™ switches.
ServiceWatch® Application and Service Monitoring Tool
• Layer 4-7 monitoring and management software solution for mission-critical
network services such as network access authentication, name and directory
services, business applications, e-mail and web.

Slide 12
 Switching Product User Interface Tools

Command Line Interface (CLI)

• Text-based single device user-interface that is easy to implement, deploy,
document, and automate.
• Accessible through the Serial Console Port, Telnet, or SSH-2
Browser-based - Built-In Device Management Graphical User
Interface (GUI)
• Provides a means of managing individual switches using your web browser.
• Vista - ExtremeWare
• ScreenPlay - ExtremeXOS 12.0 or higher

Slide 13
 Summary

You should now be able to:

List the various Extreme Networks product lines.
Differentiate between the chassis and stand-alone switches.
Describe Extreme Networks Summit® WM system.
Describe Extreme Networks Sentriant™ products.
Describe Extreme Networks Management products.
Identify the web-based user interfaces for Extreme Networks
switching products.

Slide 14
Review Questions
