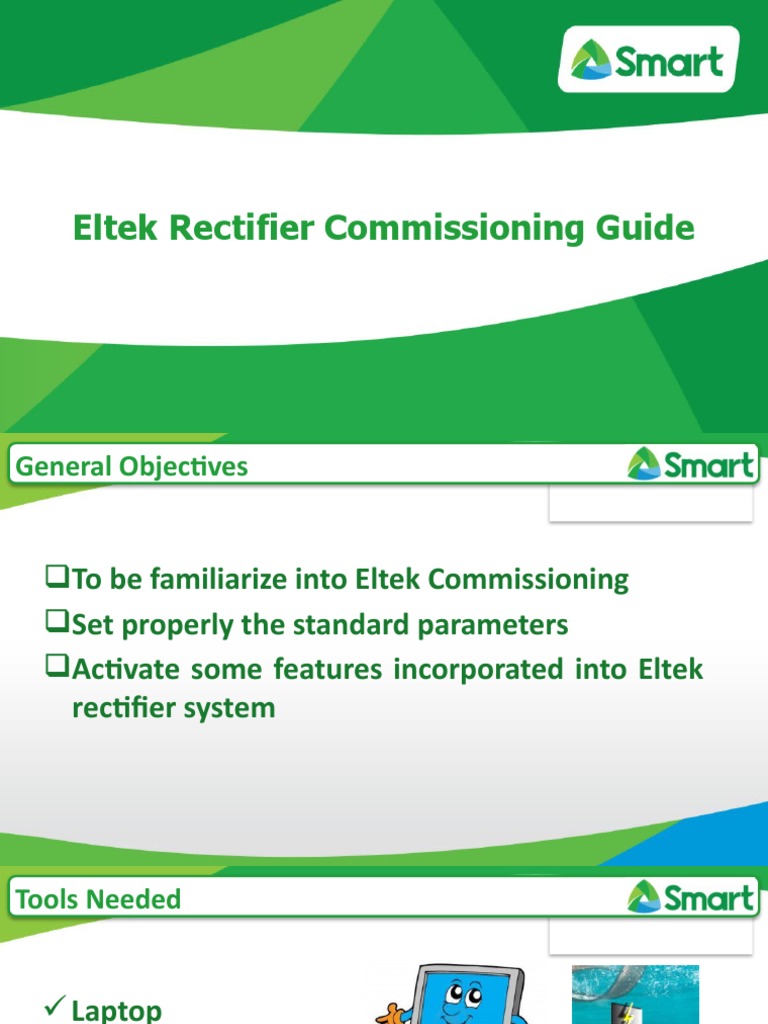

Eltek Rectifier Commissioning Guide
General Objectives
To be familiarize into Eltek Commissioning

Set properly the standard parameters
Activate some features incorporated into Eltek
rectifier system
Tools Needed
 Laptop
 PowerSuite software
 Printer cable
 LAN cable
Accessing Eltek Rectifier System
Access via LAN cable
 Set Laptop IP Address into 192.168.10.21/24
Open PowerSuite software

Click Connect Button
Choose Network
 Set the needed parameters
Select Log In
 Type 3 as password
Successfully Connected
Commissioning Proper: System Voltage Levels
Click System Voltage Levels
Commissioning Proper: System Voltage Levels
Set the following
 Reference: 2.25*+
 Boost: 2.35*+
 Rectifier Standby: 1.85
 Battery Disconnect: 1.8
 Battery Reconnect: 1.9666
 Rectifier OSV limit: 2.4583
*-depends on the battery specs
+ specs for Sacred Sun and Narada
Commissioning Proper: Alarms Overview
Click Alarms Overview
Defined the Alarms that need to be monitor
 Set the Alarms into their specific Alarm output number
 Battery High Voltage: Alarm Output 1
 Rectifier Failure: Alarm Output 2
 Mains Fail: Alarm Output 3
 Battery Low Voltage: Alarm Output 4
 Load MCB Fail: Alarm Output 5
 Battery MCB Fail: Alarm Output 5
 High Temperature: Alarm Output 6
 Symmetry Fault: Alarm Output 6
Commissioning Proper: Mains
Click Mains
 Number of Phases: 2
Click MainsPhase 1
 Click MainsVolt 1
 Check Enable
 Major High: 270
 Minor High: 270
 Minor High: 185
 Major High: 185
 Alarm Group: Mains Fail
 Apply then Ok
Click MainsPhase 2
 Click MainsVolt 2
 Check Enable
 Major High: 270
 Minor High: 270
 Minor High: 185
 Major High: 185
 Alarm Group: Mains Fail
 Apply then Ok
Commissioning Proper: Rectifier
Click Rectifier
 Click Rectifier Error
 Check Enable
 Major alarm: 1
 Minor alarm: 1
 Alarm Group: Rectifier Alarm
 Apply then Ok
Repeat process for RectComm

Error
Click the Configuration Tab
 Number of rectifiers: X
 Check the Suppress..
 Walk in time: Long time
 OSV limit: 2.4583
 Apply then Ok
X- actual rectifier module

installed
Click the Efficiency Tab
 Enable efficiency manager
 Rectifier-off delay: 10
 Shuffle time: 2
 Apply then Ok
Commissioning Proper: Load
Click LoadBank 1
 Click LoadFuse 1
Commissioning Proper: Load
Set the following:
 Click Enable
 Alarm Group: Load MCB Fail
 Apply then Ok
Commissioning Proper: Battery
Click Battery
 Click Status Tab
 Click Battery Voltage
 Click Enable
 Major High: 57
 Minor High: 57
 Alarm Group: High Voltage
 Minor Low: 48
 Major Low: 48
 Alarm Group: Low Voltage
 Apply then Ok
Click Battery
 Click Battery Temp
 Click Enable
 Major High: 35 (40*)
 Minor High: 30 (35*)
 Alarm Group: High Temp
 Apply then Ok
*-for outdoor type

Click Battery
 Click LVBD
 Click Enable
 Disconnect Voltage: 43.2
 Reconnect Voltage: 47.2
 Apply then Ok
Click Battery
 Click Configuration Tab
 Number of banks: 1
 Number of Strings: 4
 Description:
 Battery installed date: today
 Capacity AH: 180
Click Battery
 Enable Temp comp
 Reference voltage: 2.25
 Reference temp: 25
 Temp slope: 3 (Eltek std)
 Min comp voltage: 2.1*
 Max comp voltage: 2.35*
*-depends on battery specs

Click Battery
 Click Current Limitation
 Enable Current Limitation
 Enable string current limit
 Set Current Limit:
 72(Indoor) , 60(Outdoor)
 Apply then Ok
*-current limit always 10%
of total battery capacity
Click Currents
 Click BattCurrent1.1
Click General Tab
 Click Enable
 Apply then Ok
Click Fuses
 Click BattFuse1.1
 Click Enable
 Alarm group: Battery
MCB Fail
 Apply then Ok
Click Temperatures
 Click BatteryTemp1.1 (only BatteryTemp1.1 will
be configure)
 Click Enable
 Major High:
35(Indoor),40(Outdoor)
 Minor High:
30(Indoor),35(Outdoor)
 Alarm group: High
Temperature
 Apply then Ok
Click Symmetries
 Configure all SymmVolt 1.1 to 1.4
 Click Enable
 Major alarm: 1.5
 Minor alarm: 1.5
 Alarm group: Symmetry
Fault
 Apply then Ok
Repeat process for 1.2 to
1.4
Click BattMonStr.1
 Configure all BattMonSym1.1 to 1.4
 Click Enable
 Major alarm: 1.5
 Minor alarm: 1.5
 Alarm group: Symmetry
Fault
 Apply then Ok
Repeat process for 1.2 to
1.4
Commissioning Proper: Power System
Click Power System
 Modify:
Site Name:
Responsible: name
of personnel
THANK YOU!!!
