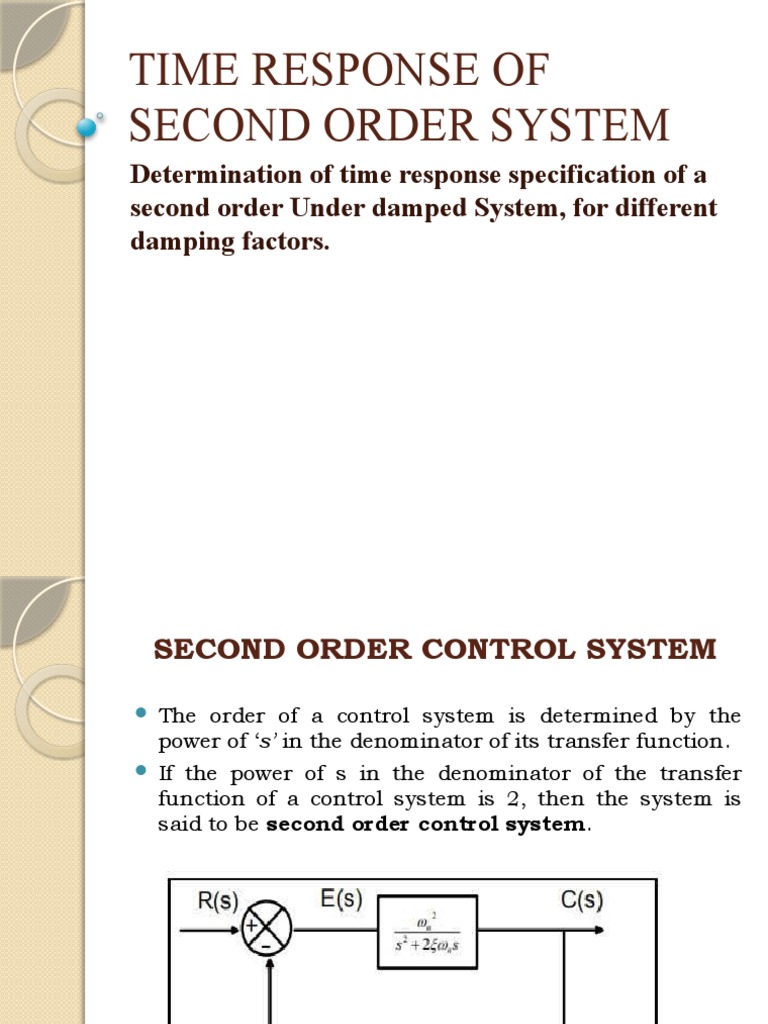

TIME RESPONSE OF

SECOND ORDER SYSTEM


Determination of time response specification of a
second order Under damped System, for different
damping factors.
SECOND ORDER CONTROL SYSTEM

 The order of a control system is determined by the


power of ‘s’ in the denominator of its transfer function.
 If the power of s in the denominator of the transfer
function of a control system is 2, then the system is
said to be second order control system.
Damping Ratio (ζ)
 The damping ratio is a measure describing
how rapidly the oscillations decay from one
bounce to the next.
 The damping ratio is a system parameter,
denoted by ζ (zeta), that can vary from un
damped (ζ = 0), under damped (ζ < 1) through
critically damped (ζ = 1) to over damped (ζ >
1).
Natural Frequency (ωn) & Damping
Frequency (ωd)
 The natural frequency of a second-order
system is the frequency of oscillation of the
system without damping.

 Damping Frequency (ωd)


Peak overshoot Mp
Peak overshoot Mp is defined as the
deviation of the response at peak time
from the final value of response. It is also
called the maximum overshoot.
Peak Time
Itis the time required for the response to
reach the peak value for the first time.
Rise Time (Tr)
The time required for the response to
rise from 10% to 90% of its final value,
is called as rise time for underdamped
second order systems.

Where,
Settling Time (Ts)
The time required for a signal to reach a
steady state is called as settling time.
Expected Output for Undamped
Condition (ζ=0)
Expected Output for Under
damped Condition (0<ζ<1)
