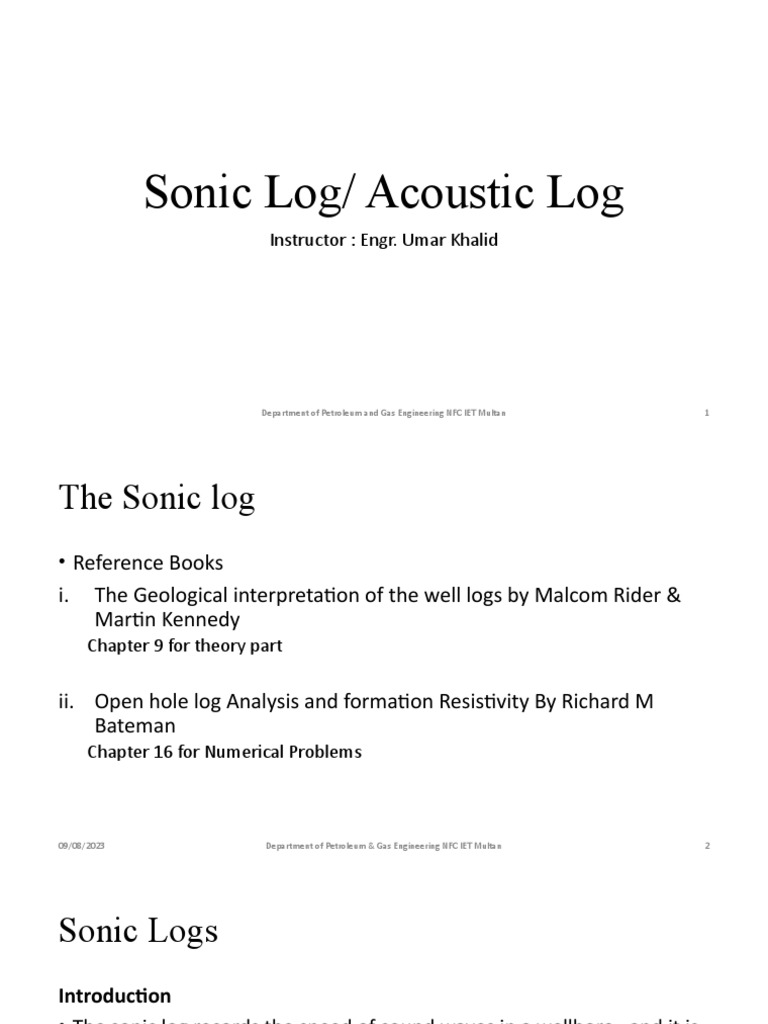

Sonic Log/ Acoustic Log

Instructor : Engr. Umar Khalid

Department of Petroleum and Gas Engineering NFC IET Multan 1


The Sonic log
• Reference Books
i. The Geological interpretation of the well logs by Malcom Rider &
Martin Kennedy
Chapter 9 for theory part

ii. Open hole log Analysis and formation Resistivity By Richard M


Bateman
Chapter 16 for Numerical Problems

09/08/2023 Department of Petroleum & Gas Engineering NFC IET Multan 2


Sonic Logs
Introduction
• The sonic log records the speed of sound waves in a wellbore , and it is
also known as acoustic log.
• The sonic log data is displayed as interval transit time, abbreviated as
DT, Dt or Δt.
• DT is a measure of slowness; the inverse of velocity of the sound waves.
• The interval transit time for a given formation depends
• On its lithology and porosity.
• The dependence upon porosity makes the sonic log a porosity log.
Department of Petroleum and Gas Engineering NFC IET Multan 3
Sonic Logs
• Sonic or sound waves are pressure waves that can propagate through
materials
• Two main waveforms are compressional (P waves) and shear (S
waves) waves.
• P waves move in the direction of Particle displacement, the Fastest
wave.
• S waves move in a direction perpendicular to the direction of particle
displacement less faster.
• Shear waves can not go through fluids and slower than P waves.

Department of Petroleum and Gas Engineering NFC IET Multan 4


Sonic Logs
Waveforms
• Rayleigh waves (borehole
wall)
• Stoneley waves (borehole
wall)
• Stoneley waves propagate
along the borehole wall and
their velocity is always less
than that of borehole fluid
velocity.

Department of Petroleum and Gas Engineering NFC IET Multan 5


Sonic Logs

The full acoustic waveform that may be recorded in the borehole.

Department of Petroleum and Gas Engineering NFC IET Multan 6


Stoneley waves

Department of Petroleum and Gas Engineering NFC IET Multan 7


Sonic Log
• Basic Sonic device

Department of Petroleum and Gas Engineering NFC IET Multan 8


Sonic Log
• Basic Sonic device

Department of Petroleum and Gas Engineering NFC IET Multan 9


Sonic Log
• Borehole compensated tool

Department of Petroleum and Gas Engineering NFC IET Multan 10


Sonic Logs
Logging tools
• Early Sonic tools
• Had one transmitter or source (Tx) that emits a sound pulse and one
receiver (Rx) that picks up the and records the pulse passing the
receiver.
• Wave pulses generated by the transmitter travels through the mud
(A), formation (B) and mud again (C )
• Body made from rubber to stop waves traveling through the tool to
the receiver (Rx).
• Two main problems with this tool:
• Measured travel time was too long (mud travel time i.e.
A+B+C rather than B)
• Formation travel distance (B) was not constant in the case
of caving or tool tilting.

Department of Petroleum and Gas Engineering NFC IET Multan 11


Sonic Logs
Logging tools
• Dual Receiver Tool
• 1 Transmitter 2 Receivers
• 2 receivers short distance apart, measure the difference
in arrival time of elastic waves.
• Time to receiver 1 (Rx1)=A+B+C
• Time to receiver 2 (Rx2)= A+B+D+E
• Therefore the sonic interval transit time
• DT=A+B+D+E-(A+B+C)=D+E-C
• If the tool is axial in borehole , then C is equal to E.
Therefore, DT=time T.
• Problem if tilted (or bad hole) as C≠E and the two
receiver tool do not work properly.
Department of Petroleum and Gas Engineering NFC IET Multan 12
