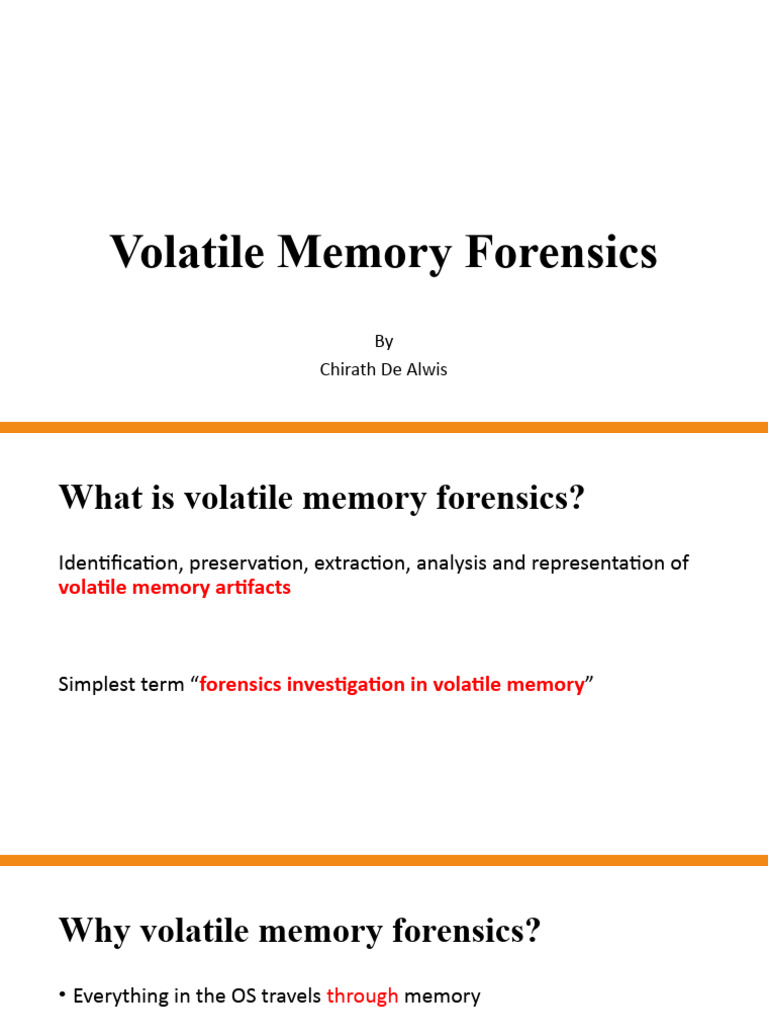

Volatile Memory Forensics

By
Chirath De Alwis
What is volatile memory forensics?
Identification, preservation, extraction, analysis and representation of
volatile memory artifacts

Simplest term “forensics investigation in volatile memory”

Why volatile memory forensics?
• Everything in the OS travels through memory

• Best way to detect & analyze memory-resident malware

Eg: Slammer worm

• Data encrypted in transport layer is available in plain text format

• Private browsing data is only available in volatile memory

 History of File-less Malware

A Bot that Powerliks, PowerSniff,

Code Red and Duqu 2.0,
installed the Angler, Phase PowerWare, POSHSPY
SQL Slammer Kovter
Lurk Trojan Bot August

• 2001-2003 • 2012 • 2014 • 2014-2015 • 2016 • 2017

Why volatile memory forensics?

CPU Cache RAM Hard Disk

Recent usage
WannaCry "does not erase the prime numbers from memory before
freeing the associated memory," says Guinet (May, 2017).

Based on this finding, Guinet released a WannaCry ransomware

decryption tool, named WannaKey

Complete article: http://thehackernews.com/2017/05/wannacry-ransomware-decryption-tool.html

Process Management - Processes
• A process is an instance of a program executing in memory

• Multiprogramming allows many processes to appear to execute

simultaneously

• New process is created with its own ID (process ID) and address space

• Memory analysis involves enumerating the processes that were executing on

a system and analyzing the data stored within their address spaces, including
passwords, URLs, encryption keys, e‑mail, and chat logs
Process Management – Processes

A high-level diagram showing basic process resources

Process Management - Processes
• _EPROCESS is the name of the structure that Windows uses to represent a
process

• Each process has one or more threads that execute code

• Each process has a table of handles (or file descriptors) to kernel objects
such as files and network sockets
Process Management - Processes
• The process address space contains;
• process executable
• its list of loaded modules (DLLs or shared libraries)
• Stacks
• Heaps
• allocated memory regions containing everything from user input to application-specific data
structures
Process Management - Threads
• A thread is the basic unit of CPU utilization and execution

• Often characterized by a thread ID, CPU register set, and execution stack(s), which
help define a thread’s execution context

• A process with multiple threads can appear to be simultaneously performing multiple

task

• Thread data structures often contain timestamps and starting addresses

Process Management - Handles
• Reference to an open instance of a kernel object, such as a file, registry key, mutex,
process, or thread

• Before a process can access an object, it first opens a handle to the object

• When a process is finished using an object, it should close the handle by calling the
appropriate function
Process Management – VAD Tree
• Processes are stored in Windows in Virtual Address Descriptor (VAD) tree

• It describes memory ranges used by currently-running processes

• Most information about processes can be retrieve from walking VAD tree

• Possible to recover all of the memory-mapped files associated with specific processes
Acquisition
Acquisition
• Converting volatile memory into non-volatile state for future analysis

Acquisition

Hardware Software
Based Based
Acquisition
• Hardware-based acquisition

• Involves suspending the computer’s processor and using direct memory

access (DMA) to obtain a copy of memory

• Do not rely on OS and software

• More reliable

• Expensive
Acquisition
• Software-based acquisition

• Need trusted software

• Some tools available in OS (eg: memdump or dd on Unix systems)

• Need OS

• Execution can overwrite some data

Memory Dump Formats
• RAW memory dump

• Widely used

• Does not contain any headers, metadata, or magic values for file type
identification

• Typically includes padding for any memory ranges that were intentionally
skipped (i.e., device memory) or that could not be read by the acquisition tool
Memory Dump Formats
• Windows crash dump

• When Windows OS crashes (Blue Screen of Death or BSOD) it dumps all the
memory information into a file on disk

• The default location of the dump file is %SystemRoot%memory.dmp

or C:Windowsmemory.dmp if C: is the system drive

• Designed for debugging purposes

Memory Dump Formats
• Windows crash dump

• There are four types;

• Complete memory dump – records all the contents of system memory when your
computer stops unexpectedly

• Kernel memory dump - records only the kernel memory

• Small memory dump - records the smallest set of useful information that may help
identify why your computer stopped unexpectedly
Memory Dump Formats
Memory Dump Formats
• Windows hibernation file

• File name is “hiberfil.sys”

• Contains a compressed copy of memory that the system dumps to disk during
the hibernation process

• Need to convert into normal memory dump format before analysis

Memory Dump Formats
• Windows hibernation file
Memory Dump Formats
• Expert Witness Format (EWF)

• EnCase proprietary

• Need to familiar with

• WEFAddressSpace
• Mounting with EnCase
• Mounting with FTK
Memory Dump Formats
• HPAK Format

• Developed by HBGary

• It allows a target system’s physical memory and page file(s) to embed in the
same output file

• Proprietary format
Memory Dump Formats
• Virtual machine memory

• Depend on the virtual machine you use

• Process dump

• Small in size

• Memory related to process

Analysis
Current Analysis Techniques
• String search
• Looks for specific stings/key words
Current Analysis Techniques
• File signature search

• Specific patterns of values that are unique to the particular type of file in
question

• Content in between header and its corresponding footer is belongs to that

particular file

• Helps to carve files from memory

Current Analysis Techniques
• File signature search Header FFD8

Footer FFD9
Current Analysis Techniques
• Recovering memory-mapped files

• Can be recovered from walking VAD tree and pulling the objects of interest
Challenges in Memory Forensics
• Volatility

• Address space randomization

• OS changes (internal structure, memory utilization and management

differences in multiple OS versions)

• Cloud and VM infrastructure

• Dependencies in file carving

Current Tools
• Volatility

• Redline

• Rekall

• Windows SCOPE
Sample Analysis
# vol.py —f APT.img -profile=WinXPSP3x86 pstree
• iexplore.exe (PID 796) was spawned from svchost.exe (pid 884)

• Iexplore.exe should be launched from explorer.exe

# vol.py —f APT.img -profile=WinXPSP3x86 connscan
• PID 796 (iexplore.exe) is connecting to a remote system on port 89

• Usually http traffic is directed on port 80 or 443 only

# vol.py —f APT.img -profile=WinXPSP3x86 dlllist —p 796
• The dlllist output for PID 796 (iexplore.exe) you will notice that there
is a rogue named dll which is hard to see

• Irykmmww.d1l is named odd because the dll is spelled with a 1 (one)

in the second letter where an l (lower case L) should be seen

• So it looks as though PID 796 is malware, but it is clear that it isn't

started normally
# vol.py —f APT.img -profile=WinXPSP3x86 svcscan
• When we run the svcscan (Service Scan) plugin for volatility, we
notice a driver running on the system called irykmmww which is the
same named rogue dll spotted earlier

• To figure out what this driver is doing, we should check driver

hooking in apihooks and ssdt
# vol.py —f APT.img -profile=WinXPSP3x86 ssdt | grep -v ntoskrnl | grep -v win32k
• System Service Descriptor Table (SSDT) is an internal dispatch
table within Microsoft Windows.

• Hooking SSDT calls is often used as a technique in both

Windows rootkits and antivirus software.

• Finally we can tell the driver irykmmww.sys is a rootkit loaded in the

system
Course Work
• Briefly describe Hooking SSDT calls

Refer following URLs:

https://resources.infosecinstitute.com/hooking-system-service-dispatc
h-table-ssdt/
https://www.adlice.com/kernelmode-rootkits-part-1-ssdt-hooks/
https://archive.org/details/RootkitsDay1Part6
Study Materials
• Volatility Foundation
URL: http://www.volatilityfoundation.org/

• Forensic Focus
URL: http://www.forensicfocus.com/

• eForensics Magazine
URL: https://eforensicsmag.com/
