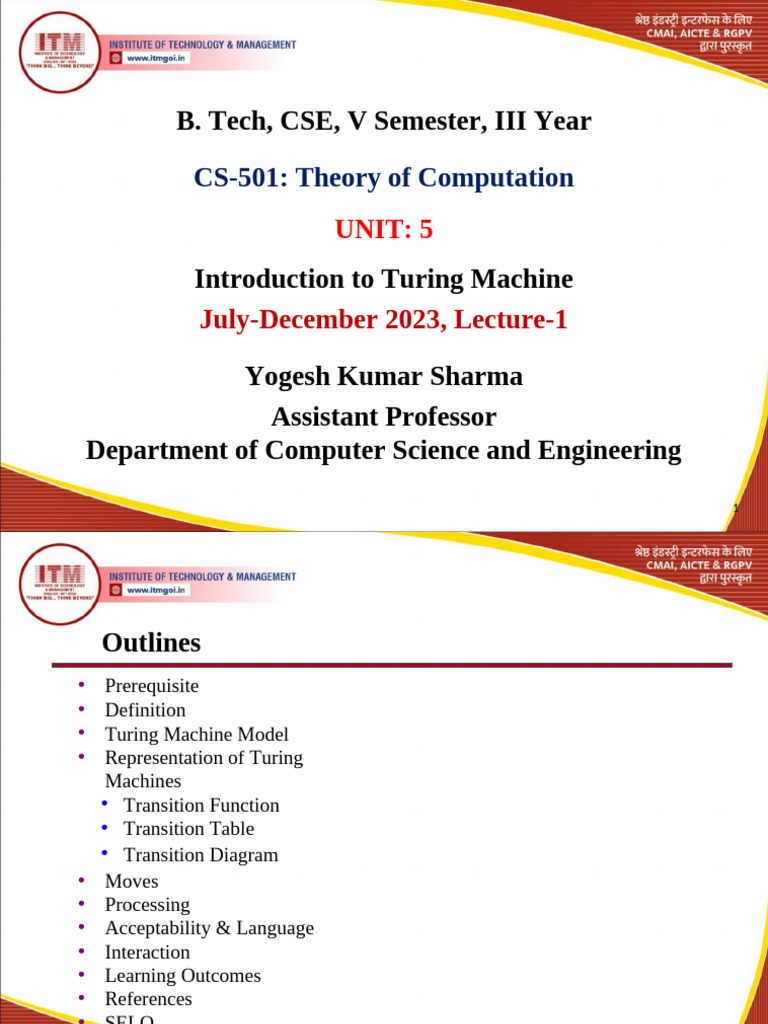

B.
Tech, CSE, V Semester, III Year
CS-501: Theory of Computation
UNIT: 5
Introduction to Turing Machine
July-December 2023, Lecture-1
Yogesh Kumar Sharma
Assistant Professor
Department of Computer Science and Engineering
1
Outlines
• Prerequisite
• Definition
• Turing Machine Model
• Representation of Turing
Machines
• Transition Function
• Transition Table
• Transition Diagram
• Moves
• Processing
• Acceptability & Language
• Interaction
• Learning Outcomes
• References
• SELO
CS-501 2
Prerequisite of topic
Students should have knowledge about the basics of modeling concept and
various finite state machine models.
CS-501 3
Problem Objective
The objective of this lecture is to give the knowledge about the conversion of
context free grammar to push down automata for checking the acceptability of
strings using PDA.
CS-501 4
Turing Machine: Definition
• A Turing machine M is a 7-tuple, namely (Q, Σ, , δ, q0,, F),
where
• Q is the finite, non-empty set of states
• Σ is the finite, non-empty set of inputs/input alphabet
• is the finite non-empty set of tape symbols
• δ is the transition function, δ: Qx→QxxD, where D = {L, R}
denotes the direction of movement of read/write head.
• q0 is the unique initial state, q0 Q
• is the blank symbol, ϵ ,
• F is the set of final state(s), F Q
<SELO: 6, 8, 9, 12> <Reference: R2>
CS-501 5
Turing Machine: Basic Model
Infinite Tape
… a b a … …
Read/Write Head
Finite
Control
<SELO: 6, 8, 9, 12> <Reference: R2>
CS-501 6
Turing Machine: Representation
•Transition Function
•Transition Table
•Transition Diagram
<SELO: 6, 8, 9, 12> <Reference: R2>
CS-501 7
Transition Function
•δ(qi, a) = (qj, 0, R)
•δ(qi, ε) = (qj, 1, R)
•δ(qi, ) = (qj, 0, L)
<SELO: 6, 8, 9, 12> <Reference: R2>
CS-501 8
Interaction-1
CS-501 9
Transition Table
State/Input a b
q0 0Rq1 1Rq2 0Lq3
q1
q2
q3
<SELO: 6, 8, 9, 12> <Reference: R2>
CS-501 10
Transition Diagram
qi a/0, R qj
b/1, R /, L
qk
qm
<SELO: 6, 8, 9, 12> <Reference: R2>
CS-501 11
Moves by Instantaneous Description
•An instantaneous description of a Turing machine M is a
string , where is the present state of M, the entire
input string is split into , the first symbol of is the
current symbol a under the read/write head and the has
all the subsequent symbols of the input string, and the
string is the substring of the input string formed by all
the symbols to the left of a.
<SELO: 6, 8, 9, 12> <Reference: R2>
CS-501 12
Interaction-2
CS-501 13
Instantaneous Description: Example
… a a b a b a …
Read/Write Head
State q1
•then instantaneous description =
aq1ababa
• = a, = q1 and = ababa
<SELO: 6, 8, 9, 12> <Reference: R2>
CS-501 14
Processing through Transition Table
State/Input a b
q0 0Rq1 1Rq2
q1 0Rq2
q2 1Rq3 0Lq3
q3
• Let w = aa
• then instantaneous
description:
• q0aa├ 0q1a├ 00q2├ 0q300
CS-501
• <SELO:
String w12>= aa is accepted
6, 8, 9, <Reference: R2>
15
Processing in Transition Diagram
b/1, R q2
q0 a/0, R q1 a/0, R
/, L b/1, R
b/1, R
/, L q4
q5
q3 b/1, R
•Let w = abaab
• then instantaneous description:
• q0abaab├ 0q1baab├ 01q2aab├ 010q2ab├ 0100q2b├
CS-501 01001q4├ 0100q51 String w = abaab is accepted
16
<SELO: 6, 8, 9, 12> <Reference: R2>
Acceptability & Language
•A string x is accepted by a Turing machine M = (Q, Σ,
, δ, q0, , F) if δ(q0, x) = q for some q ϵ F.
•The set of all strings accepted by a Turing machine M =
(Q, Σ, , δ, q0, , F) is called the language of the Turing
machine M and is represented by L(M).
<SELO: 6, 8, 9, 12> <Reference: R2>
CS-501 17
Interaction-3
CS-501 18
Assignment
1. Construct PDA for the given CFG.
S → aAA
S → aS | bS | a
2. Construct PDA for the given CFG.
S → aA | ε
A → aAb | ab
CS-501 19
Learning Outcomes
•Turing machine definition and basic model, representation,
moves, processing, instantaneous description, acceptability and
language of Turing machine
CS-501 20
SELO
6. Ability to observe and developing sense making, logical skills for abstract
concepts.
8. Ability to understand subject related concepts clearly along with
contemporary issues.
9. Application of concepts of topic & it’s technological application.
12. Computational thinking ability.
CS-501 21
References
1. Hopcroft, Ullman, “Introduction to Automata Theory, Languages and
Computation”, 2nd Edition, Pearson Education.
2. K. L. P. Mishra and [Link], “Theory of Computer Science:
Automata, Languages and Computation”, 3rd Edition PHI.
3. J. C. Martin, “Introduction to Languages and Theory of Computation”, 2 nd
Edition, TMH.
4. C. Papadimitrou and C. L. Lewis, “Elements of the Theory of Computation”,
PHI.
5. Cohen,“Introduction to Computer Theory”, Wiley India.
6. Michael Sipser, “Theory of Computation”, 2nd Edition, Cengage Learning.
CS-501 22
