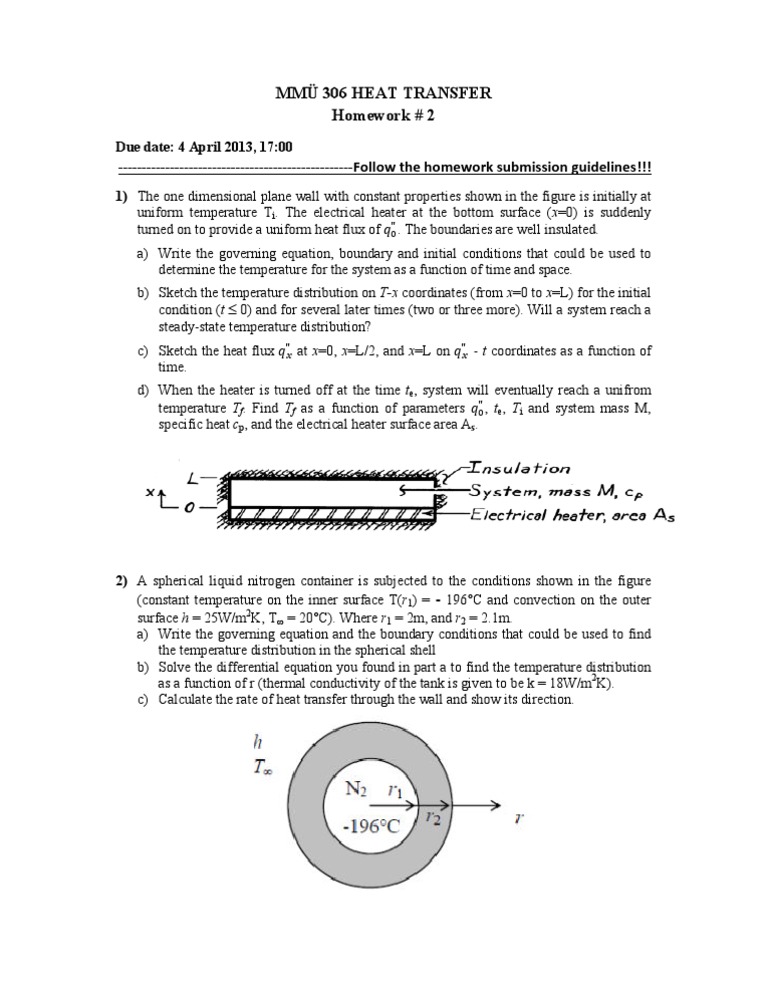

MM 306 HEAT TRANSFER Homework # 2

Due date: 4 April 2013, 17:00

--------------------------------------------------Follow the homework submission guidelines!!!

1) The one dimensional plane wall with constant properties shown in the figure is initially at uniform temperature Ti. The electrical heater at the bottom surface (x=0) is suddenly turned on to provide a uniform heat flux of J" . The boundaries are well insulated. a) Write the governing equation, boundary and initial conditions that could be used to determine the temperature for the system as a function of time and space. b) Sketch the temperature distribution on T-x coordinates (from x=0 to x=L) for the initial condition (t 0) and for several later times (two or three more). Will a system reach a steady-state temperature distribution? c) Sketch the heat flux J at x=0, x=L/2, and x=L on J - t coordinates as a function of time. d) When the heater is turned off at the time te, system will eventually reach a unifrom , te, Ti and system mass M, temperature Tf. Find Tf as a function of parameters J" specific heat cp, and the electrical heater surface area As.

2) A spherical liquid nitrogen container is subjected to the conditions shown in the figure (constant temperature on the inner surface T(r1) = - 196C and convection on the outer surface h = 25W/m2K, T = 20C). Where r1 = 2m, and r2 = 2.1m. a) Write the governing equation and the boundary conditions that could be used to find the temperature distribution in the spherical shell b) Solve the differential equation you found in part a to find the temperature distribution as a function of r (thermal conductivity of the tank is given to be k = 18W/m2K). c) Calculate the rate of heat transfer through the wall and show its direction.
