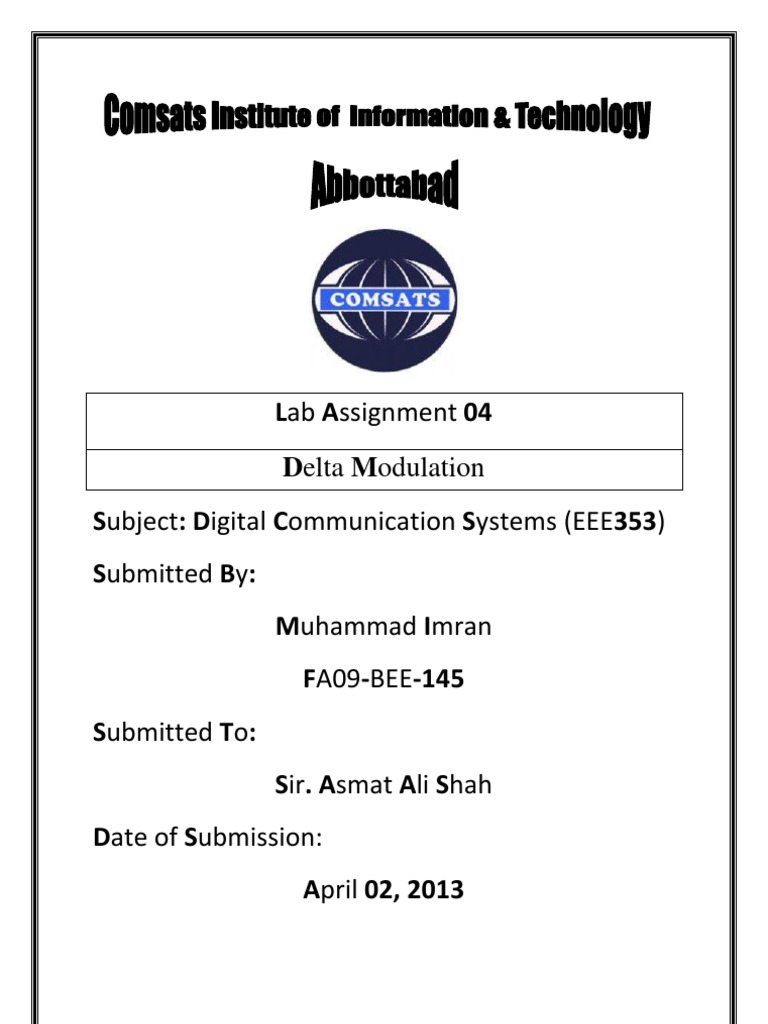

Lab Assignment 04

Delta Modulation
Subject: Digital Communication Systems (EEE353)
Submitted By:
Muhammad Imran
FA09-BEE-145
Submitted To:
Sir. Asmat Ali Shah
Date of Submission:
April 02, 2013

LAB REPORT
MATLAB Code:
clear all
close all
clc
b=0;
fc=0.05;
n=[0:0.3:20];
delta=0.01;
x_n=sin(2*pi*fc*n);
for i=1:length(n)
t=(x_n(i)-b);
y=sign(t);
if y==1
y_n(i+1)=x_n(i)+delta;
b=y_n(i+1);
else
y_n(i+1)=x_n(i)-delta;
b=y_n(i+1);
end
end
ffttx=fft(x_n);
ffttx_a=abs(ffttx);
ffty=fft(y_n);
ffty_a=abs(ffty);
figure(1)
plot(fftshift(ffttx_a),'g')
hold on
plot(fftshift(ffty_a),'b')
title('Spectra')
xlabel('-----------f--------->')
ylabel('-----------X(f)/Y(f)------>')
legend('Original Signal','Modulated Signal')
figure(2)
plot(n,x_n,'g')
hold on
n1=[0 n];
stairs(n1,y_n,'b')
title('Signals')
xlabel('-----------t/n--------->')
ylabel('-----------x(t)/y[n]------>')
legend('Original Signal','Modulated Signal')
legend('Original Signal','Modulated Signal')

Results:
Spectra
35
Original Signal
Modulated Signal

30

-----------X(f)/Y(f)------>

25

20

15

10

10

20

30
40
-----------f--------->

50

60

70

Signals
1.5
Original Signal
Modulated Signal

-----------x(t)/y[n]------>

0.5

-0.5

-1

-1.5

8
10
12
-----------t/n--------->

14

16

18

20
