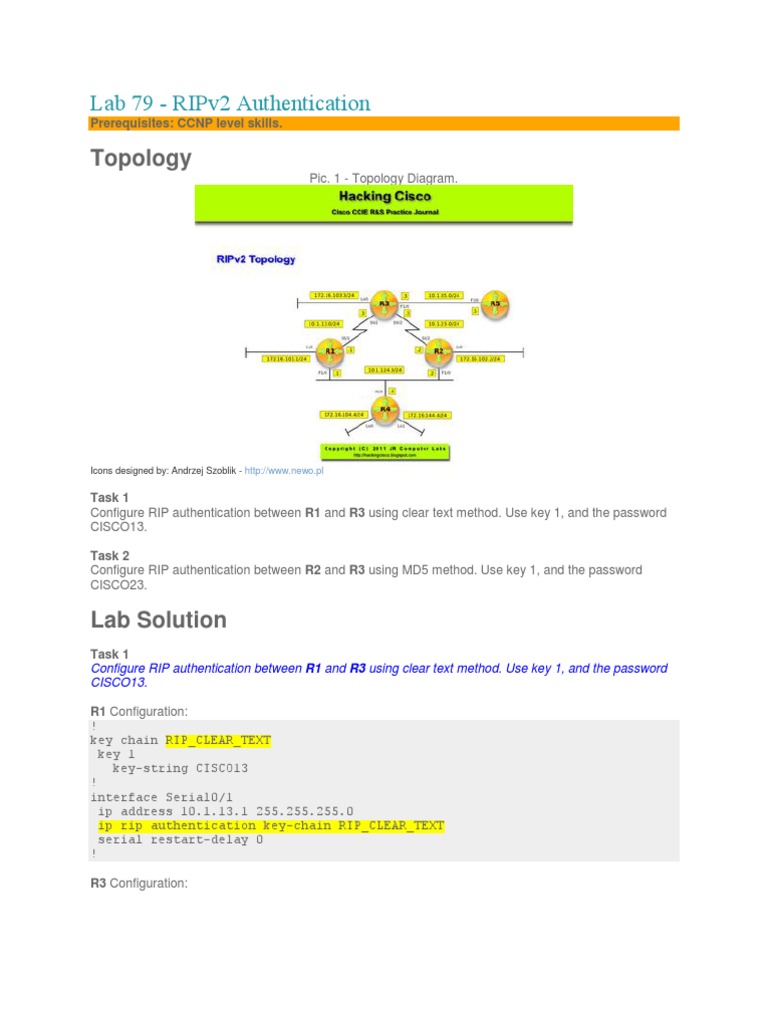

Lab 79 - RIPv2 Authentication

Prerequisites: CCNP level skills.

Topology
Pic. 1 - Topology Diagram.

Icons designed by: Andrzej Szoblik - http://www.newo.pl

Task 1 Configure RIP authentication between R1 and R3 using clear text method. Use key 1, and the password CISCO13. Task 2 Configure RIP authentication between R2 and R3 using MD5 method. Use key 1, and the password CISCO23.

Lab Solution
Task 1 Configure RIP authentication between R1 and R3 using clear text method. Use key 1, and the password CISCO13. R1 Configuration: ! key chain RIP_CLEAR_TEXT key 1 key-string CISCO13 ! interface Serial0/1 ip address 10.1.13.1 255.255.255.0 ip rip authentication key-chain RIP_CLEAR_TEXT serial restart-delay 0 ! R3 Configuration:

! key chain RIP_CLEAR_TEXT key 1 key-string CISCO13 ! interface Serial0/1 ip address 10.1.13.3 255.255.255.0 ip rip authentication key-chain RIP_CLEAR_TEXT serial restart-delay 0 ! Verification: Pic. 2 - RIP Debug on R3.

Pic. 3 - RIP Details on R3.

Task 2 Configure RIP authentication between R2 and R3 using MD5 method. Use key 1, and the password CISCO23. R2 Configuration: ! key chain RIP_MD5 key 1 key-string CISCO23 ! interface Serial0/2 ip address 10.1.23.2 255.255.255.0 ip rip authentication mode md5 ip rip authentication key-chain RIP_MD5 ! R3 Configuration: ! key chain RIP_MD5 key 1 key-string CISCO23 !

interface Serial0/2 ip address 10.1.23.3 255.255.255.0 ip rip authentication mode md5 ip rip authentication key-chain RIP_MD5 serial restart-delay 0 ! Verification: Pic. 4 - RIP Update on R3.

Pic. 5 - RIP Details on R3.
