IPSEC VPN SITE-TO-SITE

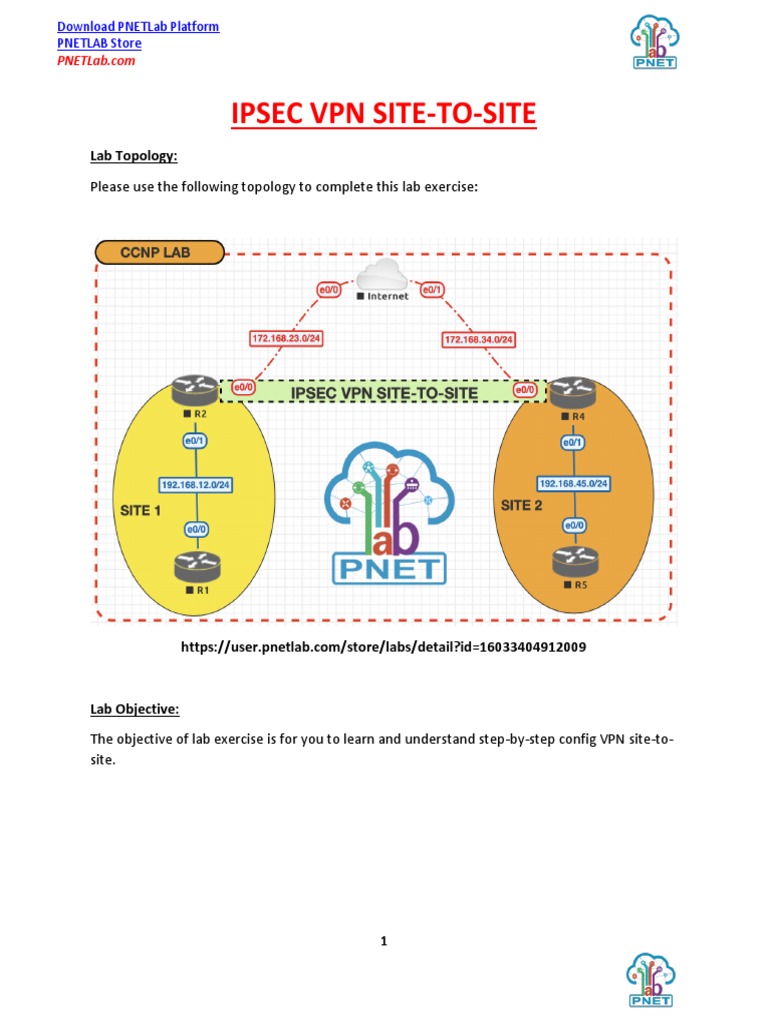

Lab Topology:
Please use the following topology to complete this lab exercise:

https://user.pnetlab.com/store/labs/detail?id=16033404912009

Lab Objective:
The objective of lab exercise is for you to learn and understand step-by-step config VPN site-to-
site.

1
Download PNETLab Platform
PNETLAB Store
PNETLab.com

Task:
1. Routing between R2, Internet, R4
2. Configure VPN IPSEC only on R2 and R4
+ Configure the ISAKMP policy required to establish IKE phase 1
+ Set key and peer
+ Configure IPSec policy to establish IKE phase 2
+ Create ACL to define which traffic should be sent though the IPSec tunnel.
+ Create crypto map to the outgoing interface of the VPN device.
+ Apply the crypto map to the outgoing interface.

Solution:
Task 1: Routing between R2, Internet, R4
- On R2:
Router ospf 100
Network 172.168.23.0 0.0.0.255 area 0
Network 192.168.12.0 0.0.0.255 area 0

- On Internet:
Router ospf 100
Network 172.168.23.0 0.0.0.255 area 0
Network 172.168.34.0 0.0.0.255 area 0

- On R4:
Router ospf 100
Network 172.168.34.0 0.0.0.255 area 0
Network 192.168.45.0 0.0.0.255 area 0

- On R1:
Ip route 0.0.0.0 0.0.0.0 192.168.12.2

- On R5:
Ip route 0.0.0.0 0.0.0.0 192.168.45.4

2
Download PNETLab Platform
PNETLAB Store
PNETLab.com

Task 2: Configure VPN IPSEC only on R2 and R4

R2 R4
crypto isakmp policy 10 crypto isakmp policy 10
hash md5 hash md5
authentication pre-share authentication pre-share
group 2 group 2
encryption 3des encryption 3des

crypto isakmp key cisco address 172.168.34.4 crypto isakmp key cisco address 172.168.23.2

crypto ipsec transform-set myset esp-3des crypto ipsec transform-set myset esp-3des
esp-md5-hmac esp-md5-hmac

access-list 100 permit ip 192.168.12.0 access-list 100 permit ip 192.168.45.0

0.0.0.255 192.168.45.0 0.0.0.255 0.0.0.255 192.168.12.0 0.0.0.255

crypto map MYMAP 10 ipsec-isakmp crypto map MYMAP 10 ipsec-isakmp

set peer 172.168.34.4 set peer 172.168.23.2
set transform-set myset set transform-set myset
match address 100 match address 100

interface e0/1 interface e0/0

crypto map MYMAP crypto map MYMAP

Verification:
R2#show crypto isakmp sa
IPv4 Crypto ISAKMP SA
dst src state conn-id status
172.168.34.4 172.168.23.2 QM_IDLE 1001 ACTIVE

R2#show crypto isakmp policy

Global IKE policy
Protection suite of priority 10
encryption algorithm:Three key triple DES
hash algorithm: Message Digest 5
authentication method:Pre-Shared Key
Diffie-Hellman group:#2 (1024 bit)
lifetime:86400 seconds, no volume limit

3
Download PNETLab Platform
PNETLAB Store
PNETLab.com

R2#show crypto isakmp key

Keyring Hostname/Address Preshared Key
default 172.168.34.4 cisco

R2#show crypto map

Crypto Map IPv4 "MYMAP" 10 ipsec-isakmp
Peer = 172.168.34.4
Extended IP access list 100
access-list 100 permit ip 192.168.12.0 0.0.0.255 192.168.45.0 0.0.0.255
Current peer: 172.168.34.4
Security association lifetime: 4608000 kilobytes/3600 seconds
Responder-Only (Y/N): N
PFS (Y/N): N
Mixed-mode : Disabled
Transform sets={ MYSET: { esp-3des esp-md5-hmac } ,
}
Interfaces using crypto map MYMAP: Ethernet0/1
Interfaces using crypto map NiStTeSt1:

R2#show crypto ipsec sa

interface: Ethernet0/1
Crypto map tag: MYMAP, local addr 172.168.23.2
protected vrf: (none)
local ident (addr/mask/prot/port): (192.168.12.0/255.255.255.0/0/0)
remote ident (addr/mask/prot/port): (192.168.45.0/255.255.255.0/0/0)
current_peer 172.168.34.4 port 500
PERMIT, flags={origin_is_acl,}
#pkts encaps: 18, #pkts encrypt: 18, #pkts digest: 18
#pkts decaps: 18, #pkts decrypt: 18, #pkts verify: 18
#pkts compressed: 0, #pkts decompressed: 0
#pkts not compressed: 0, #pkts compr. failed: 0
#pkts not decompressed: 0, #pkts decompress failed: 0
#send errors 0, #recv errors 0
local crypto endpt.: 172.168.23.2, remote crypto endpt.: 172.168.34.4
plaintext mtu 1446, path mtu 1500, ip mtu 1500, ip mtu idb Ethernet0/1
current outbound spi: 0x84584C8D(2220379277)
PFS (Y/N): N, DH group: none
inbound esp sas:
spi: 0x7A9CBDF3(2057092595)
transform: esp-3des esp-md5-hmac ,
in use settings ={Tunnel, }
4
Download PNETLab Platform
PNETLAB Store
PNETLab.com

conn id: 1, flow_id: SW:1, sibling_flags 80004040, crypto map: MYMAP

sa timing: remaining key lifetime (k/sec): (4280142/3365)
IV size: 8 bytes
replay detection support: Y
ecn bit support: Y status: off
Status: ACTIVE(ACTIVE)
outbound ah sas:
outbound pcp sas:

Wireshark: Check the results with packet capture using Wireshark over Internet area
transmission. Every packet is encoded as an ESP call and the actual source and destination
address of the packet has changed.
