5 Exploded View & Parts List

5 Exploded View and Parts List

- You can search for updated part codes through ITSELF web site.
URL : http://itself.sec.samsung.co.kr/

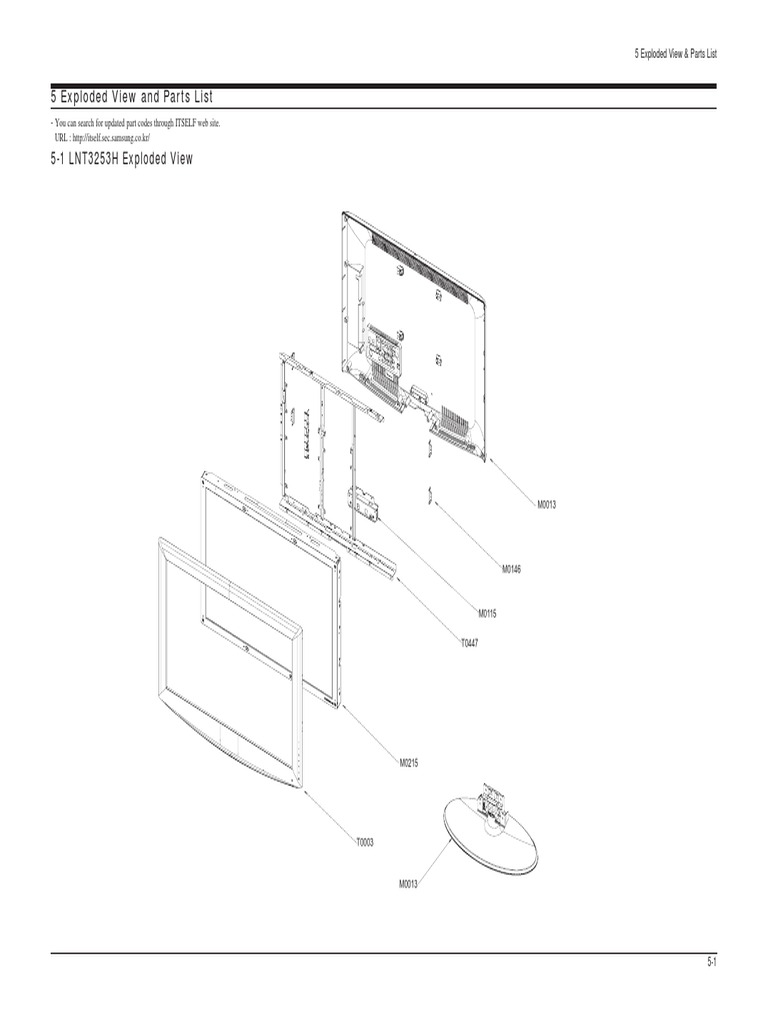

5-1 LNT3253H Exploded View

M0013

M0146

M0115
T0447

M0215

T0003
M0013

5-1

5 Exploded View & Parts List

5-2 LNT3253H Parts list

Location

Code.No

Item & Specification

Q'ty

SA/SNA

T0003

BN96-04658A

ASSY COVER P-FRONT;32R81,UO,-,PC,V0,BK27

S.A

M0215

BN07-00385A

LCD-PANEL;LTA320WT-L07,8bit,32inch,16.7M

S.A

T0447

BN96-04681E

ASSY BRACKET P-PANEL;32R81,AM,CMO,SMPS,G

S.N.A

M0115

BN61-02965A

BRACKET-STAND LINK;32 BORDEAUX PLUS,SECC

S.N.A

M0146

BN61-02419A

BRACKET-PANEL SIDE;SONOMA 32,SECC,T1.2,A

S.N.A

M0014

BN94-01183A

ASSY PCB MAIN;LNT3253HX/*

S.A

M0013

BN96-04662A

ASSY STAND P-BASE;32R81,M81,SWIVEL,-,ABS

S.A

M0013

BN96-04666A

ASSY COVER P-REAR;32R81,UO,-,PC+ABS,V0,B

S.A

5-2

Remark

5 Exploded View & Parts List

5-3 LNT4053H Exploded View

M0014

M0146

M0013

M0146
M0115
T0447

M0215

T0003

M0013

5-3

5 Exploded View & Parts List

5-4 LNT4053H Parts list

Location

Code.No

Item & Specification

Q'ty

SA/SNA

T0003

BN96-04656A

ASSY COVER P-FRONT;40R81,UO,-,PC,V0,BK27

S.A

M0215

BN07-00387A

LCD-PANEL; LTA400WT-L06,8bit,40inch,16.7

S.A

T0447

BN96-04679A

ASSY BRACKET P-PANEL;BORDEAUX PLUS40

S.N.A

M0115

BN61-02882A

BRACKET-STAND LINK;TULIP,40,SECC,T1.6,-,

S.N.A

M0146

BN61-02256B

BRACKET-PANEL SIDE;Bordeaux 40,SECC,T1.2

S.N.A

M0146

BN61-02257B

BRACKET-PANEL SIDE;Bordeaux 40,SECC,T1.2

S.N.A

M0014

BN94-01183C

ASSY PCB MAIN;LNT4053HX/*

S.A

M0013

BN96-04661A

ASSY STAND P-BASE;37,40R81,SWIVEL,-,ABS+

S.A

M0013

BN96-04664A

ASSY COVER P-REAR;40R81,UO,-,PC+ABS,V0,B

S.A

5-4

Remark
