ELKAF RAHMAWAN PRAMUDYA,M.

Kom UNIVERSITAS DIAN NUSWANTORO

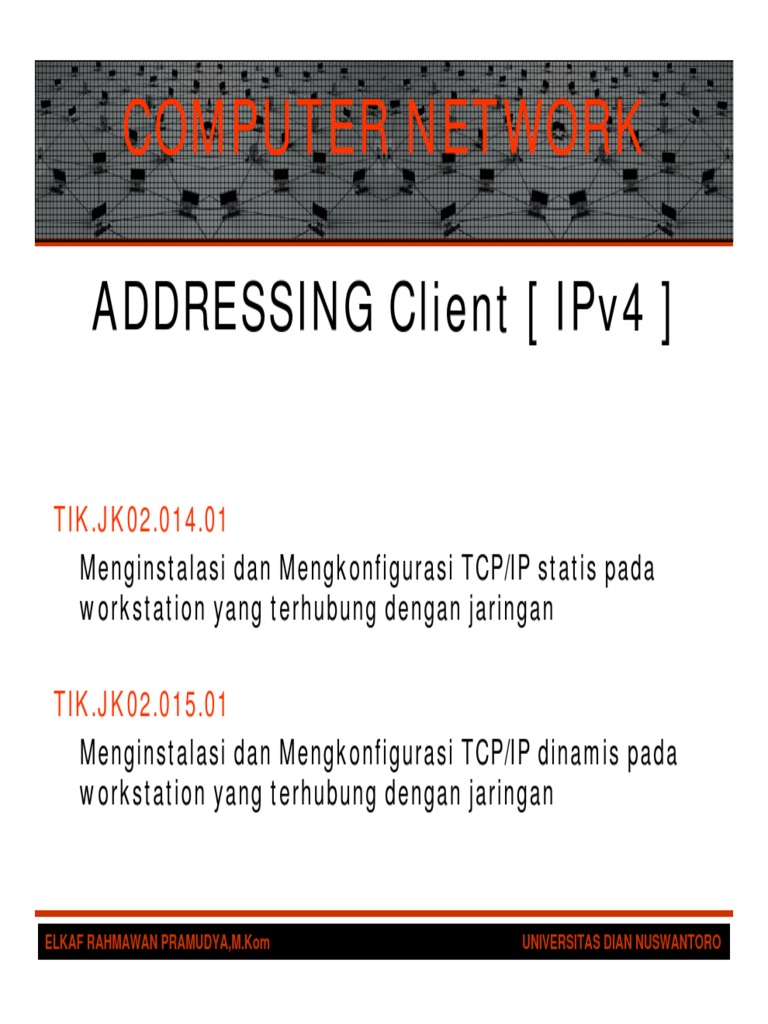

COMPUTER NETWORK
ADDRESSI NG Cl i ent [ I Pv4 ]
TI K.J K02.014.01
Mengi nst al asi dan Mengk onf i gur asi TCP/I P st at i s pada
w or k st at i on yang t er hubung dengan j ar i ngan
TI K.J K02.015.01
Mengi nst al asi dan Mengk onf i gur asi TCP/I P di nami s pada
w or k st at i on yang t er hubung dengan j ar i ngan
ELKAF RAHMAWAN PRAMUDYA,M.Kom UNIVERSITAS DIAN NUSWANTORO
COMPUTER NETWORK
I P ADDRESSI NG on a NETWORK
STATI C
Configure a PC address to connect a Network
Objective
Determine a network component on OS
Able to obtain a PC IP address to connect the network (WAN),
staitic or dynamic
Understand the role of Subnet, Gateway Address, DNS Address
Examine a network IP address configuration
Verify connectivity client on a network using the ping command.
ELKAF RAHMAWAN PRAMUDYA,M.Kom UNIVERSITAS DIAN NUSWANTORO
COMPUTER NETWORK
I P ADDRESSI NG on a NETWORK
STATI C
Identify OS
1. Click start > all program > accessories > windows explorer or
2. Click start > all program > accessories > system tools>system information
3. Click menu help > about
4. Gather any information about
ELKAF RAHMAWAN PRAMUDYA,M.Kom UNIVERSITAS DIAN NUSWANTORO
COMPUTER NETWORK
I P ADDRESSI NG on a NETWORK
STATI C
Identify Network hardware
1. Click start > Control Panel
2. Click Network Connection icon
ELKAF RAHMAWAN PRAMUDYA,M.Kom UNIVERSITAS DIAN NUSWANTORO
COMPUTER NETWORK
I P ADDRESSI NG on a NETWORK
STATI C
Identify Network hardware (windowsXP)
1. If network device doesnt appeared:
a. Double check, make sure its installed and recognize by an OS
b. Click start > control panel> system> tab hardware > device manager
c. Make sure your network hardware installed & Install / configure a driver
ELKAF RAHMAWAN PRAMUDYA,M.Kom UNIVERSITAS DIAN NUSWANTORO
COMPUTER NETWORK
I P ADDRESSI NG on a NETWORK
STATI C
Configure Client IP Address
1. Click start > Control Panel
2. Click Network Connection icon
3. Right Click NIC icon > properties
4. choose Protocol TCP/IP
ELKAF RAHMAWAN PRAMUDYA,M.Kom UNIVERSITAS DIAN NUSWANTORO
COMPUTER NETWORK
I P ADDRESSI NG on a NETWORK
STATI C
Identify Network hardware (windows7 or 8)
1. If network device doesnt appeared:
a. Double check, make sure its installed and recognize by an OS
b. Click start > control panel> hardware & sound > device manager
c. Make sure your network hardware installed & Install / configure a driver
ELKAF RAHMAWAN PRAMUDYA,M.Kom UNIVERSITAS DIAN NUSWANTORO
COMPUTER NETWORK
I P ADDRESSI NG on a NETWORK
STATI C
Identify Network hardware (windows7 or 8)
Configure Client IP Address
Start > control panel
Choose View Network Status
and Tasks under the Network
and Internet heading.
Click change adapter setting
ELKAF RAHMAWAN PRAMUDYA,M.Kom UNIVERSITAS DIAN NUSWANTORO
COMPUTER NETWORK
I P ADDRESSI NG on a NETWORK
STATI C
Configure Client IP Address (LAN)
Client A
IP : 192.168.200.1
Subnet : 255.255.255.0
Client B
IP : 192.168.200.2
Subnet : 255.255.255.0
ELKAF RAHMAWAN PRAMUDYA,M.Kom UNIVERSITAS DIAN NUSWANTORO
COMPUTER NETWORK
I P ADDRESSI NG on a NETWORK
STATI C
Configure Client IP Address (LAN)
TEST 1 [ PC Client A]
Click start > run > cmd
Ping IP Address Client B
TEST 2 [ PC Client A]
Change IP Client B
IP Address 192.168.50.2
Click start > run > cmd
Ping IP Address Client B
ELKAF RAHMAWAN PRAMUDYA,M.Kom UNIVERSITAS DIAN NUSWANTORO
Configure Client IP Address (LAN)
TEST 3 [ PC Client A]
Replace Subnet Client A
IP Address : 192.168.200.1
Subnet : 255.255.0.0
Replace Subnet Client B
IP Address : 192.168.50.2
Subnet : 255.255.0.0
Click start > run > cmd
Ping Client Bs IP Address 192.168.50.2
COMPUTER NETWORK
I P ADDRESSI NG on a NETWORK
STATI C
IP Address
Subnet
Subnetting
ELKAF RAHMAWAN PRAMUDYA,M.Kom UNIVERSITAS DIAN NUSWANTORO
COMPUTER NETWORK
I P ADDRESSI NG on a NETWORK
STATI C
Configure Client IP Address for internet (WAN)
Client A
IP : 192.168.200.1
Subnet : 255.255.255.0
Gateway : ?
DNS : ?
Client B
IP : 192.168.200.2
Subnet : 255.255.255.0
Gateway : ?
DNS : ?
ELKAF RAHMAWAN PRAMUDYA,M.Kom UNIVERSITAS DIAN NUSWANTORO
COMPUTER NETWORK
I P ADDRESSI NG on a NETWORK
STATI C
Configure Client IP Address for internet (WAN)
TEST 1 [ PC Client A]
Click start > run > cmd
Ping Client B IP Address
Ping yahoos IP address : 106.10.170.118
TEST 2 [ PC Client A]
Tambahkan Gateway IP: 192.168.200.254
Click start > run > cmd
Ping yahoos IP address : 106.10.170.118
ELKAF RAHMAWAN PRAMUDYA,M.Kom UNIVERSITAS DIAN NUSWANTORO
Configure Client IP Address for internet (WAN)
TEST 3 [ Client A PC ]
Click start > run > cmd
Ping www.yahoo.com
TEST 4 [Client A PC ]
Obtain DNS IP Address : eg: 8.8.8.8
Click start > run > cmd
Ping www.yahoo.com
Ping another web domain address
COMPUTER NETWORK
I P ADDRESSI NG on a NETWORK
STATI C
Gateway
DNS
ELKAF RAHMAWAN PRAMUDYA,M.Kom UNIVERSITAS DIAN NUSWANTORO
COMPUTER NETWORK
I P ADDRESSI NG on a NETWORK
dynami c
Configure Client
IP Address
1. Click start > Control
Panel
2. Click Network
Connection icon
3. Right Click NIC icon >
properties
4. choose TCP/IP Protocol
ELKAF RAHMAWAN PRAMUDYA,M.Kom UNIVERSITAS DIAN NUSWANTORO
COMPUTER NETWORK
I P ADDRESSI NG on a NETWORK
dynami c
Configure Client IP Address
1. Click radio button : Obtain an IP address automatically
2. Click radio button : Obtain DNS server address automatically
ELKAF RAHMAWAN PRAMUDYA,M.Kom UNIVERSITAS DIAN NUSWANTORO
Tools
Ipconfig PCs IP information
netstat Statistics for TCP/IP
nslookup DNS information
ping Verification that a specified computer can
be reached
route The PCs routing tables
tracert The route from your computer to a specified host
COMPUTER NETWORK
I P ADDRESSI NG on a NETWORK
ELKAF RAHMAWAN PRAMUDYA,M.Kom UNIVERSITAS DIAN NUSWANTORO
Thank You
Any Question ?
COMPUTER NETWORK
I P ADDRESSI NG on a NETWORK
ELKAF RAHMAWAN PRAMUDYA,M.Kom UNIVERSITAS DIAN NUSWANTORO
Resources :
1. Doug Lowe, Networking for dummies 9
nd
edition,2010, Wiley
Publishing, Inc
2. Mikrotik, www.wiki.mikrotik.com
3. www.gregsowell.com
4. Cisco CCNA Exploration,2007-2009, Cisco System, Inc
5. http://technet.microsoft.com
6. http://pcsupport.about.com/od/windows-8/
COMPUTER NETWORK
I P ADDRESSI NG on a NETWORK
