Page 1

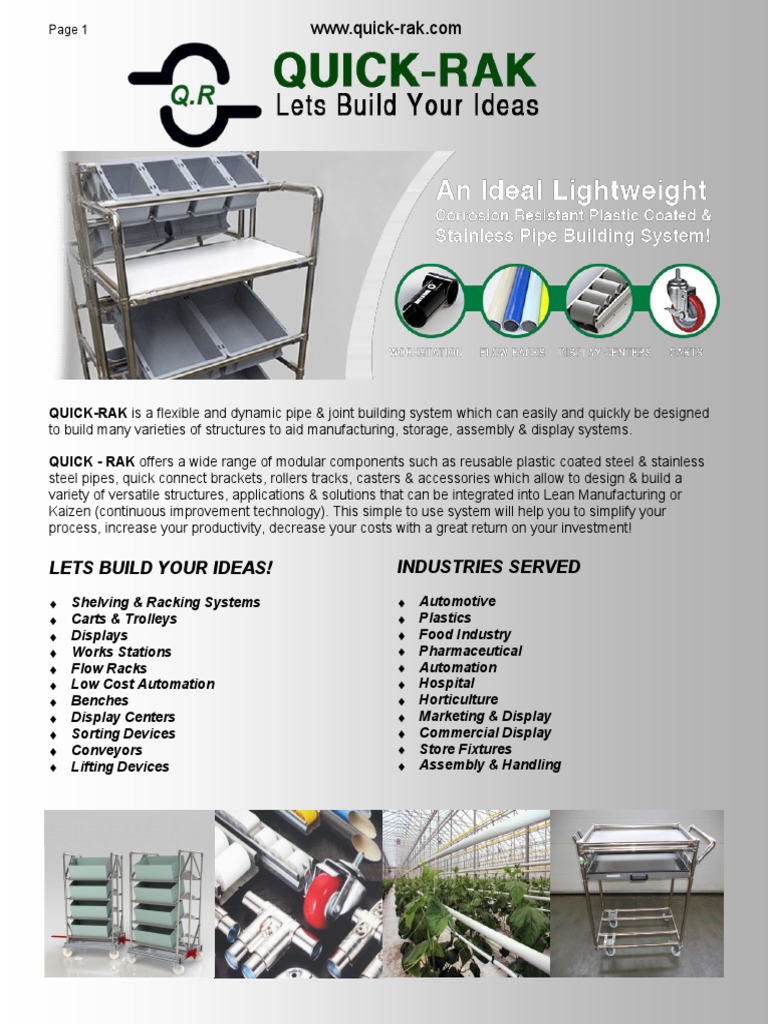

QUICK-RAK is a flexible and dynamic pipe & joint building system which can easily and quickly be designed
to build many varieties of structures to aid manufacturing, storage, assembly & display systems.

QUICK - RAK offers a wide range of modular components such as reusable plastic coated steel & stainless
steel pipes, quick connect brackets, rollers tracks, casters & accessories which allow to design & build a
variety of versatile structures, applications & solutions that can be integrated into Lean Manufacturing or
Kaizen (continuous improvement technology). This simple to use system will help you to simplify your
process, increase your productivity, decrease your costs with a great return on your investment!
LETS BUILD YOUR IDEAS!

Shelving & Racking Systems
Carts & Trolleys
Displays
Works Stations
Flow Racks
Low Cost Automation
Benches
Display Centers
Sorting Devices
Conveyors
Lifting Devices
INDUSTRIES SERVED

Automotive
Plastics
Food Industry
Pharmaceutical
Automation
Hospital
Horticulture
Marketing & Display
Commercial Display
Store Fixtures
Assembly & Handling

www.quick-rak.com
Page 2


TABLE OF CONTENTS
1. Introduction
2. Table Of Contents
3. Pipe Details & Order Code
4. Engineering Detail - Load Table
5. Engineering Detail - Pipe Cutting Dimensions
6. Pipe Connectors
7. Pipe Connectors
8. Pipe Connectors
9. Accessories
10. Accessories
11. Accessories
12. Accessories
13. Accessories
14. Roller Track
15. Roller Track
16. Roller Track
17. Roller Track
18. Roller Track
19. Casters
20. Casters
21. Applications
22. Contact Information
PAGE
Page 3

Color Chart
28mm PIPE
WALL THICKNESS 1mm 1.2mm 2mm
ABS Coated Pipe
Stainless Pipe
Plastic Coated & Stainless Pipe

BK

GY

BL

IV
Black Grey Dark Blue Ivory

WH

GR

YE

SS
White Green Yellow Stainless

All Coated & Stainless Pipe is 28mm Outside Diameter X 4M Length (4000mm standard stock length)
Engineering Details
PIPE
Coding System

(Example) CP - 10 - GR
Type Wall Thickness
10 = 1.0mm
12 = 1.2mm
20 = 2.0mm
Color
BK = Black
WH = White
GY = Grey
GR = Green
BL = Dark Blue
YE = Yellow
IV = Ivory


CP = ABS Coded Pipe
SS = Stainless Steel Pipe
Page 4

28mm PIPE
Plastic Coated & Stainless Pipe

Engineering Details
Pipe Over all Length (mm)
Permanent Deforma-
tion
Total Bending (mm) Load (Kg)
SS-2812 1000 0 16 167
SS-2812 1000 5 24 230
SS-2812 1000 10 33 275
SS-2812 1000 15 43 300
Pipe Over all Length (mm)
Permanent Deforma-
tion
Total Bending (mm) Load (Kg)
CP-2810 1000 0 15 112
CP-2810 1000 5 25 167
CP-2810 1000 10 34 185
CP-2810 1000 15 38 200
Pipe Over all Length (mm) Permanent Deformation Total Bending (mm) Load (Kg)
CP-2820 1000 0 12 155
CP-2820 1000 5 19 187
CP-2820 1000 10 26 206
CP-2820 1000 15 30 220
Max Loads Limits
PIPE
Page 5

28mm PIPE
Plastic Coated & Stainless

Engineering Details
PIPE - CUTTING DIMENSIONS

Page 6

COMPONENTS
CONNECTORS
ES-1-BK/Ni END CLAMP KIT

ES2-BK/Ni CORNER CLAMP KIT

ES-3-BK/Ni TRI CLAMP KIT

ES-6-BK/Ni CROSS CLAMP KIT

ES-4-BK/Ni UNION CLAMP KIT

ES5-BK/Ni QUADE CLAMP KIT

Page 7

COMPONENTS
CONNECTORS
ES-7-BK/Ni SINGLE PIVOT CLAMP KIT

ES-8-BK/Ni PARALLEL CLAMP KIT

ES-9-BK/Ni DOUBLE TEE KIT

ES-13-BK/Ni 45 DEG CLAMP KIT

ES-11-BK/Ni ROUNDED ELBOW KIT

ES12-BK/Ni SLIDING SINGLE TEE KIT

Page 8

COMPONENTS
CONNECTORS
ES-14-BK/Ni DOUBLE PIVOT CLAMP KIT

ES-15-BK/Ni FLAT CLAMP KIT

ES-17-BK/Ni SLIDING PARALLEL KIT

ES-6C-BK/Ni OFFSET PERPENDICULAR

ES-18-BK/Ni DOUBLE SLIDING PARALLEL

ES1C-BK/Ni OPEN SINGLE TEE KIT

Page 9

COMPONENTS
ACCESSORIES
M0625 SOCKET HEAD CAP SCREW

TN-06 T NUT

BM-A BOARD MOUNT

PC-A PIPE UNION CONNECTOR

CAP-BK END CAP

BM-F BOARD MOUNT CLAMP

Plastic End Cap (Black)
M6 T Nut M6 X 25mm Long
Page 10

COMPONENTS
ACCESSORIES
CM-100 CASTER MOUNTING STRAP

CM-200 CASTER MOUNTING STRAP

CS-A CORNER SUPPORT A

SR-2 Board Slides

CS-B CORNER SUPPORT B

CM-C BOARD CORNER STOP

Long Type Short Type
240mm Travel
Page 11

COMPONENTS
ACCESSORIES
PC-B PIPE CLAMP B

PC-C PIPE CLAMP C

SA-S
SHOCK AB/CYLINDER
MOUNT

CS-28-R
CASTER CORNER SUPPORT
R (RIGHT)

CS-B SHOCK ABSORBER

CS-28-L
CASTER CORNER SUPPORT
L (LEFT)

Page 12

COMPONENTS
ACCESSORIES
GAP-12 BUSHING SLEEVE

GAP-10A PIPE ROLLER INNER CAP

GAP-11 TAPPERED SLEEVE

AD- 32-WB Adjustable Foot

BS - 28 - XX THREADED INSERT BUSHING

AD- SM FLOOR MOUNT FLANGE

Prevents Totes & Boxes Catching
On Bracket Edges
Pipe insert for use with
leveling feet or casters

Available with : 1/2 or 5/8
Thread pitch.

BS2810 - For 1mm Wall
BS2812 - For 1.2 mm Wall
BS2820 - For 2mm Wall

Page 13

COMPONENTS
ACCESSORIES
M840 M8 HEX BOLT 40mm LONG

NN-08 M8 LOCK NUT WITH INSERT

PH-A HOOK

REH-A REAR TOW BAR HITCH

SC-2 SELF TAPPING SCREW

FH-A FRONT TOW BAR TONG

#4 X 20mm Long
Page 14

COMPONENTS
ROLLERTRACK
RT- 40 - Color 40mm ROLLER TRACK

Galvanized Steel Track With Black,
White or Yellow Polyethylene Wheels
Also Available in ESD Material
RT- 40C - Color 40mm FLANGED ROLLER TRACK

Galvanized Steel Track With Black,
White or Yellow Polyethylene Wheels
Also Available in ESD Material
RT- 40C - Color 85mm ROLLER TRACK

Galvanized Steel Track With Black,
White or Yellow Polyethylene Wheels
Also Available in ESD Material
Page 15

COMPONENTS
ROLLERTRACK
GP-A
STANDARD 40mm ROLLER
TRACK MOUNTING BRACKET

GP-B
40mm ROLLER TRACK MOUNT
WITH STOP

GP-C
40mm ROLLER TRACK
CONNECTING BRIDGE

GP-C1
40mm ROLLER TRACK BRIDGE
WITH SUPPORT

GP-D
40mm ROLLER TRACK
OFFSET STOP

GP-E
40mm ROLLER TRACK
INTERMEDIATE SUPPORT

Page 16

COMPONENTS
ROLLERTRACK
GP-HR 40mm ROLLER TRACK JOINER

GP85-A
85mm STANDARD ROLLER
TRACK MOUNT

GP85-B
85mm ROLLER TRACK MOUNT
WITH STOP

GP85-C
85mm ROLLER TRACK
CONNECTING BRIDGE

GP85-C1
85mm ROLLER TRACK BRIDGE
WITH SUPPORT

GP85-D
85mm ROLLER TRACK
OFFSET STOP

Page 17

COMPONENTS
ROLLERTRACK
GP85-E
85mm ROLLER TRACK
INTERMEDIATE SUPPORT

EWS-A ROLLER TRACK BRAKE

RTG-1
PLASTIC ROLLER TRACK SIDE
GUIDE (4m Long)

RTG-2
PLASTIC ROLLER TRACK
CENTER GUIDE (4m Long)

RTG-3
PLASTIC ROLLER TRACK
OFF-SET GUIDE (4m Long)

RTG-4
STEEL ROLLER TRACK GUIDE
SIDE OFFSET

Mounts on RT40 roller Track
Mounts with GP-A Roller Track
Brackets
Page 18

COMPONENTS
ROLLERTRACK
BT-1 SURFACE ROLLERS (SMALL)

BT-2 SURFACE ROLLERS (LARGE)

GS-RA
ROLLER CONVEYOR BRACKET
(SINGLE)

GS-RB
ROLLER CONVEYOR BRACKET
(Double)

TH50Y-A TOOL HOLDER

LA-D PLASTIC LABEL HOLDER

Page 19

COMPONENTS
CASTERS
THREADED SWIVEL
Part Number
Wheel Dia
(in)
Material
Wheel
Width
Load Cap
(Kg)
Overall
Height (A)
TT-75S 3 Polyurethane 32 150 104
TT-100S 4 Polyurethane 38 160 129
THREADED SWIVEL WITH BRAKE
Part Number
Wheel Dia
(in)
Material
Wheel
Width
Load Cap
(Kg)
Overall
Height (A)
TT-75S 3 Polyurethane 32 150 104
TT-100S 4 Polyurethane 38 160 129
PLATE TYPE SWIVEL

Part #
Wheel Dia
(in)
Material
Wheel
Width (mm)
Load Cap
(Kg)
Overall
Height
(A)
Plate Dimensions
mm

PT-100S 4 Polyurethane 32 220 136 114 x 102 80 x 76
PT-125S 5 Polyurethane 38 250 161 114 x 102 80 x 76
PT-150S 6 Polyurethane 38 360 200 159 x 114 103 x 60
(D x E) (B x C)
Page 20

COMPONENTS
CASTERS
PLATE TYPE SWIVEL

Part #
Wheel Dia
(in)
Material
Wheel
Width (mm)
Load Cap
(Kg)
Overall
Height
(A)
Plate Dimensions
mm

PT-100S 4 Polyurethane 32 220 136 114 x 102 80 x 76
PT-125S 5 Polyurethane 38 250 161 114 x 102 80 x 76
PT-150S 6 Polyurethane 38 360 200 159 x 114 103 x 60
(B x C)
PLATE TYPE SWIVEL WITH BRAKE

Part #
Wheel Dia
(in)
Material
Wheel
Width (mm)
Load Cap
(Kg)
Overall
Height
(A)
Plate Dimensions
mm

PT-100S 4 Polyurethane 32 220 136 114 x 102 80 x 76
PT-125S 5 Polyurethane 38 250 161 114 x 102 80 x 76
PT-150S 6 Polyurethane 38 360 200 159 x 114 103 x 60
(D x E)
(D x E) (B x C)
PLATE TYPE RIDGID

Part #
Wheel Dia
(in)
Material
Wheel
Width (mm)
Load Cap
(Kg)
Overall
Height
(A)
Plate Dimensions
mm

PT-100S 4 Polyurethane 32 220 136 114 x 102 80 x 76
PT-125S 5 Polyurethane 38 250 161 114 x 102 80 x 76
PT-150S 6 Polyurethane 38 360 200 159 x 114 103 x 60
Page 21

APPLICATIONS
APPLICATIONS
Page 22

Mailing Address:
1111 Davis Dr., Unit 1
Newmarket, Ontario Canada L3Y 9E5

Tel : (905) 716-5856
Fax : (905) 715-7883
Email: info@quick-rak.com

Web: www.quick-rak.com
