Contents

Step 0: Overview

Step 1: Design member forces

Capacity design for RC building


based on Eurocode8-1:2004.

Eurocode8-1:2004
NTC2008
Step 2: Details of the building
Step 3: Open model file
Step 4: Perform analysis
Step 5: Check analysis results
Step 6: Design parameters
Step 7: Perform capacity design
Step 8: Design results
Step 9: Strong-column weak-beam
checking
Step 10: Strong-column weak-beam
ratio table

Midas Information Technology Co., Ltd.

Step

00 Overview

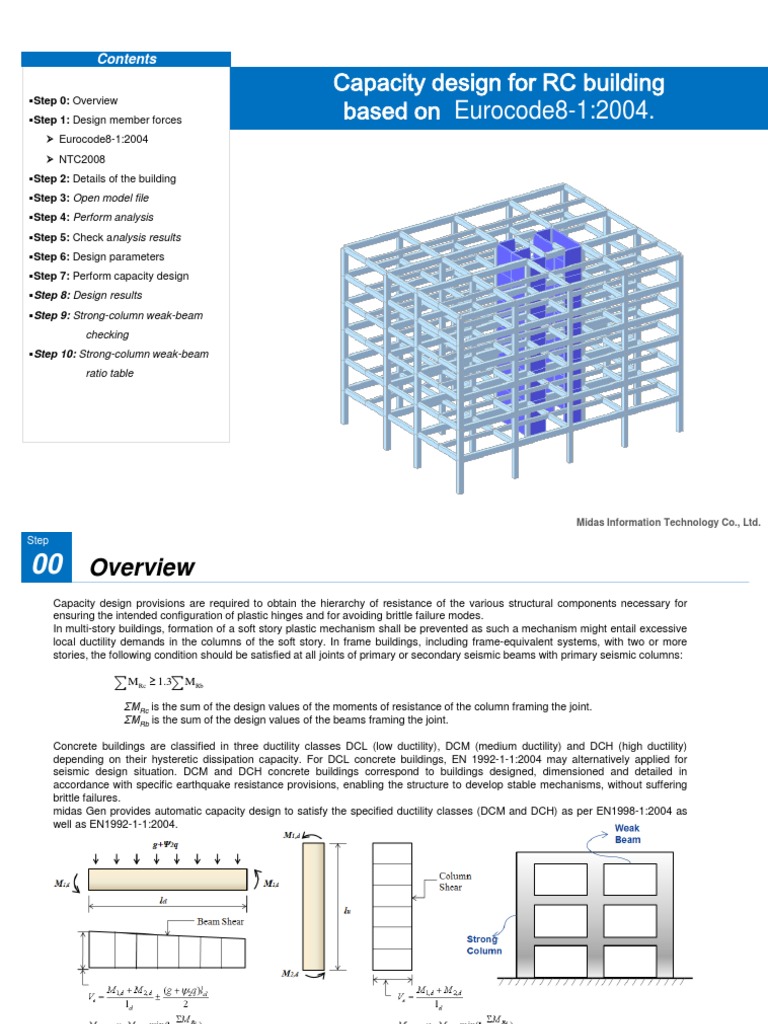

Capacity design provisions are required to obtain the hierarchy of resistance of the various structural components necessary for
ensuring the intended configuration of plastic hinges and for avoiding brittle failure modes.
In multi-story buildings, formation of a soft story plastic mechanism shall be prevented as such a mechanism might entail excessive
local ductility demands in the columns of the soft story. In frame buildings, including frame-equivalent systems, with two or more
stories, the following condition should be satisfied at all joints of primary or secondary seismic beams with primary seismic columns:

Rc

1.3 MRb

MRc is the sum of the design values of the moments of resistance of the column framing the joint.
MRb is the sum of the design values of the beams framing the joint.

Concrete buildings are classified in three ductility classes DCL (low ductility), DCM (medium ductility) and DCH (high ductility)
depending on their hysteretic dissipation capacity. For DCL concrete buildings, EN 1992-1-1:2004 may alternatively applied for
seismic design situation. DCM and DCH concrete buildings correspond to buildings designed, dimensioned and detailed in
accordance with specific earthquake resistance provisions, enabling the structure to develop stable mechanisms, without suffering
brittle failures.
midas Gen provides automatic capacity design to satisfy the specified ductility classes (DCM and DCH) as per EN1998-1:2004 as
well as EN1992-1-1:2004.

Midas Information Technology Co., Ltd.

Step

01

[Eurocode8-1:2004] Design member forces (Design moments)

Where,
MRb: Beam moment resistance
Mce : column member force due to seismic load case

Midas Information Technology Co., Ltd.

Step

01

[Eurocode8-1:2004] Design member forces (Design shear forces)

Capacity design values of shear forces on beams

Where, MRb: Beam moment resistance


MRc: Column moment resistance (calculated
using same axial force ratio in PM inter
action curve)
Mce: Bending moment of column due to
seismic load case

Capacity design shear force in columns

Midas Information Technology Co., Ltd.

Step

01

[Eurocode8-1:2004] Design member forces (Wall design forces)

Wall systems

Dual systems

a l h cr max lw , h w / 6

Fig. 5.3: Design envelope for bending moments in slender walls

Fig. 5.4: Design envelope of the shear forces in the walls of a dual system

Midas Information Technology Co., Ltd.

Step

01

[NTC2008] Design member forces (Design moments)

Where,
MRb: Beam moment resistance
Mce : column member force due to seismic load case

Midas Information Technology Co., Ltd.

Step

01

[NTC2008] Design member forces (Design shear forces)

Capacity design values of shear forces on beams

Where,

MRb: Beam moment resistance


MRc: Column moment resistance
(calculated using same axial force ratio in PM interaction curve)
Mce: Bending moment of column due to seismic load case
Rd: Factor accounting for overstrength

Capacity design shear force in columns

Midas Information Technology Co., Ltd.

Step

01

[NTC2008] Design member forces (Wall design forces)


For all types of walls,
dynamic component of the
wall axial force may be
taken as being 50% of the
axial force in the wall due to
the gravity loads present in
the seismic design situation.
This force shall be taken
to have a plus or a minus
sign, whichever is most
unfavorable.

Wall systems

Dual systems

a l h cr max lw , h w / 6

Fig. 5.3: Design envelope for bending moments in slender walls

Fig. 5.4: Design envelope of the shear forces in the walls of a dual system

Midas Information Technology Co., Ltd.

Step

02 Details of the building


9000 mm

9000 mm

9000 mm

10,200 mm

9000 mm

4000 mm 4000 mm 4000 mm


4000 nm

4F

4000 nm

Typical Floor Plan

Roof

6F

5F

3F

2F

5000 mm

10,200 mm

7,200 mm

Sectional Elevation

1F

Midas Information Technology Co., Ltd.

Step

02 Details of the building


Applied Code

Column section dimension


Designation

EN 1998-I:2004

C1

Materials

C1A

Beam : Concrete Grade C30/37


Column: Concrete Grade C35/45
Wall: Concrete Grade C35/45

C2

C3

Girder section dimensions


Designation

Section Number

G1

411

Section Dimension
(mm)
800 x 600

G2
G3

412
413

800 x 600
900 x 600

G4
WG1
WG2
B1
B2

414
421
422
431
432

900 x 600
700 x 500
700 x 500
700 x 500
700 x 500

C4

Story

Section Number

Column Dimension
(mm)

4~6F
2~3F
1F
4~6F
2~3F
1F
4~6F
2~3F
1F
4~6F
2~3F
1F
4~6F
2~3F
1F

103
102
101
113
112
111
203
202
201
303
302
301
403
402
401

600 x 600
800 x 800
1,000 x 800
600 x 500
600 x 500
600 x 500
600 x 600
800 x 600
800 x 600
700 x 600
800 x 600
800 x 600
700 x 600
800 x 600
800 x 600

Wall thickness
Designation

Thickness Number

Thickness Dimension
(mm)

T_20

200

200

Midas Information Technology Co., Ltd.

Step

02 Details of the building


Applied Load

Load

Details
Floor Load

2~6F : 4.0 kN/m2


Roof : 5.2 kN/m2

Self Weight

Weight Density: 23.54kN/m3

Live Load

Floor Load
(Office)

2~6F : 2.5 kN//m2


Roof : 2.0 kN/m2

Wind Load

X-dir./ Y-dir.

Eurocode-1(2005)
Terrain Category : II

X-dir./ Y-dir.

Eurocode-1(2005)
Spectrum Parameters: TYPE 1
Ground Type : B
Importance Factor : 1.0
Behavior Factor(q) : 1.5

Dead Load

Seismic Load

Midas Information Technology Co., Ltd.

Step

03 Open model file


Procedure
Opening the Pre-generated
Model File
This tutorial is intended to
illustrate
capacity
design
procedure as per EN1998-I:2004.
Therefore, the geometry creation,
boundary assignment and load
application procedure will be
skipped.

For the aforementioned, refer to


Seismic Design for RC Building
tutorial.
In this tutorial, slab is not included
in the model and considered as a
rigid diaphragm.

1 File > Open Project


3

Select Capacity Design.mgb.

Click [Open] button.

Midas Information Technology Co., Ltd.

Step

04

Perform analysis
Procedure

1 Click

to perform Analysis.
1

Midas Information Technology Co., Ltd.

Step

05

5-1. Check analysis results (Reactions)


2

Procedure
1 Result> Result Table >
Reactions
2 Select desired load cases and
load combinations.
3 Click [OK].

Summations of reactions are


provided in a spreadsheet format
table.

Midas Information Technology Co., Ltd.

Step

05

5-2. Check analysis results (Displacements)


Procedure

1 Result > Deformations >


Displacement Contour.
2 Load Case /Combination :
ST:WX

3 Component : DXYZ
4 Type of Display : Check on
Contour, Deform and Legend.

5 Click [Apply] button.


4

Midas Information Technology Co., Ltd.

Step

05

5-3. Check analysis results (Moment diagram)


Procedure

Result > Forces > Beam


Diagrams

Load Case /Combination :


ST:DL

Component : My

Display Options: 5 Point , Solid


Fill

Type of Display : Check on


Contour, Deform and Legend.

Click [Apply] button.

2
3

Midas Information Technology Co., Ltd.

Step

05

5-4. Check analysis results (Base shear force)


Procedure

1 Result > Result Table>Story >


Story Shear (response
Spectrum Analysis)

2 Check on RX(RS) , RY(RS)


3 Click [OK]

Base shear by Response Spectrum Load case

Midas Information Technology Co., Ltd.

Step

05

5-5. Check analysis results (Vibration Mode Shape)


Procedure

1 Result > Result Table >


Vibration Mode Shape
2

2 Check on Node 1.
3 Click [OK]

Period

Mass Participation Ratio

[Vibration Mode Shape: Mode1]


Midas Information Technology Co., Ltd.

Step

06

6-1. Design parameters (Definition of frame & Member assignment)


Procedure
2

1 Design > General > General


Design Parameter > Definition
of Frame
2 Select X and Y-Direction of
Frame as Braced/Non-sway

3 Select Design Type as 3-D


4 Check on Auto Calculate
Effective Length Factors

5 Click OK

6 Design > General Design


Parameter > Member
Assignment

7 Confirm Member Assignment


8 Click Close
7

According to the procedure,


design parameters can be
inputted. midas Gen provides
auto calculation of the effective
length factor. When one member
is divided into several elements,
separate elements can be
designed as one member using
Member Assignment function.
8

Midas Information Technology Co., Ltd.

Step

06

6-2. Design parameters (Concrete design code)


Procedure
2

Design > Design > RC Design > Design Code

Select Design Code as Eurocode2:04 and National


Annex as Italy.

5
3

Check on Apply EC08:04 Capacity Design option.

Click [] button.

Select Dual System for Structure Type.

Select Calculate by Program and enter the value of


Alpha_u/Alpha_1 as 1.1.

Default By Function : Select [EURO2004 HELASTIC].

Click [OK] button.

Check off Apply NTC2008 option.

10

Select DCM(Medium Ductility) for Ductility Class.

11

Click [OK] button.

10

2
8

1 In the Capacity Design rule of frame buildings, the factor


1.3 in the following equation can be changed by the user.
11

M Rc 1.3 M Rb
2 Rd which is the factor accounting for possible overstrength
due to steel strain hardening is also editable. Default values
are entered based on EN1998-1:2004 as follows:
Beam

Column

Wall

Joint

Rd for DMC

1.0

1.1

Rd for DCH

1.2

1.3

1.2

1.2

3 Defined structure type is used to calculate a behavior factor, q. The behavior factor can be
entered by the user as well. Also specified structure type affects the wall design results.
4 Predefined response spectrum function as per Eurocode-8(2004) or User Type function
can be selected in this dialog box to calculate the curvature ductility factor, , and wall
shear force magnification factor, . When there is no defined spectrum function, required
factors can be directly entered in Spectrum Parameters part of this dialog box.
Midas Information Technology Co., Ltd.

Step

06

6-3. Design parameters (Design criteria for rebars)


Procedure

1 Design > Design > RC Design >


Design Criteria for Rebar.

2
4

2 In Beam Design, click [Rebar]


button to select main rebar size.
3 Select P20 , P25 and P32 in the
Rebar Size dialog.

4 Select D13 in Stirrups and Side


Bar.
5 In Column Design, click [Rebar]
button to select main rebar size.

6 Select P25, P32 and P40 in the


Rebar Size dialog.
7 Select P16 in Ties/Spirals.
8 Enter y= 4 and z=4 in the

Arrangement.
9 Click [OK]
6

Midas Information Technology Co., Ltd.

Step

07 Perform capacity design


Procedure
1 Design > Design > RC Design >
RC Strong Column Weak Beam
Design > Ductile Design.

Capacity design can be performed


from following functions:
Design > Design > RC Design >
RC Strong Column Weak Beam
Design > Ductile Design
Ductile Design menu is useful
when the user performs beam and
column design for entire beam and
column members at once.

Design > Design > RC Design >


Concrete Code Design >
Beam/Column/Wall Design
When Concrete Code Design
menu is selected, capacity design
shall be performed only for
selected members. If no member
has been selected, midas Gen
shall perform capacity design for
whole beam, column or wall
members.
In order to perform capacity design
for a column member, capacity
design for adjacent beams must be
performed in advance.
Midas Information Technology Co., Ltd.

Step

08 Design results in the graphic and detail report (1)


Procedure
1 In the Column design result
dialog, select Sorted by: Member.
2 Select member no. 1.

6
9

3 Click [Graphic] button to check


the graphic report.
4 Click [Detail] button to check
the detail report.
5 Click [Draw PM Curve] to
check PM interaction curve of the
corresponding member.
6 Select Sorted by: Property.
7 Click [Select All] button.
8 Click [Update Rebar] button to
assign rebars determined from the
automatic design.

7
3

9 Click [OK] button.

PM Interaction Curve

Graphic Report

Detail Report

Midas Information Technology Co., Ltd.

Step

09 Modify beam rebar data


Procedure
1 In the Beam design result dialog,
click [Select All] button.

2 Click [Update Rebar] button.


3 Click [OK] button.
4 In the main menu, click Design >
Design > RC Design > Modify
Beam Section Data.
5 Select section no. 411.
6 Change the number of rebar to 3
for I and J-end.

7 Select section no. 413 and change


stirrup spacing of I & J-end as 150
and center as 200.
8 Select section no. 414 and change
stirrup spacing of I and J-end as
150 and center as 300.

12
1

9 Click [Add/Replace] button.


10 Click [OK] button.

11 In the main menu, click Design >

Design > RC Design > Concrete


Code Check > Beam Checking
12 Check verification results with

modified rebar data and click


[Close] button.

3
9

Midas Information Technology Co., Ltd.

Step

10 Modify column rebar data


Procedure
1 In the main menu, click Design >
Design > RC Design > Concrete
Code Design > Column Design.
2 Click [Select All] and [Update
Rebar] button.
3 Click [OK] button.
4 In the main menu, click Design >
Design > RC Design > Concrete
Design Table > Modify Column
Section Data to update rebar data
of column members.
3

5 If it is needed, Rebar data for


sections can be changed.
6 In the main menu, click Design >
Design > RC Design > Concrete
Code Check > Column
Checking to verify the section
resistance with updated rebars.
7

Check verification results with


modified rebar data and click
[Close] button.

2
2

Midas Information Technology Co., Ltd.

Step

10

Strong-column weak-beam checking


Procedure

1 Design > Design > RC Design >


RC Strong Column Weak Beam
> Strong Column Weak Beam
Ratio
2 Select All for Capacity Ratio.
3 Check on Values.
4 Click [Apply] button.

Strong column weak beam checking


function provides the flexural capacity
ratio of the reinforced concrete column
to the reinforced concrete beam.
The joints for which the ratio is less
than the acceptance limit are
displayed with the ratios. Default value
of an acceptance limit is 1.3.

2
3
4

Midas Information Technology Co., Ltd.

Step

10

Strong-column weak-beam ratio table


Procedure

Design > Design > RC Design >


RC Strong Column Weak Beam
Design > Strong Column Weak
ratio table.

Click [OK]

Confirm the Result.

>Strong column weak beam ratio table provides the sum of


design moment resistance of columns and beams and the
ratio of design moment resistance of columns to those of
beams for each node.
> Acceptance Limit for Ductile Checking is 1.3 by default
and it can be user-defined.

Midas Information Technology Co., Ltd.

You might also like
