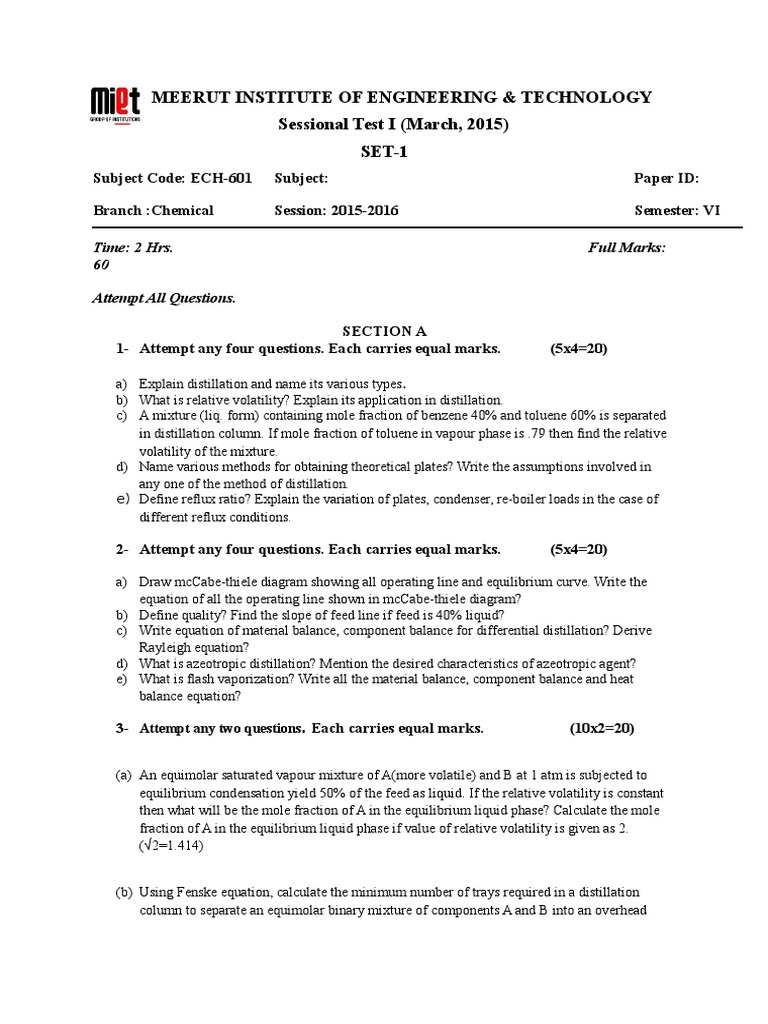

Subject:
Paper ID:
Branch :Chemical
Session: 2015-2016
Semester: VI
Time: 2 Hrs.
60
Full Marks:
(5x4=20)
(5x4=20)
a) Draw mcCabe-thiele diagram showing all operating line and equilibrium curve. Write the
equation of all the operating line shown in mcCabe-thiele diagram?
b) Define quality? Find the slope of feed line if feed is 40% liquid?
c) Write equation of material balance, component balance for differential distillation? Derive
Rayleigh equation?
d) What is azeotropic distillation? Mention the desired characteristics of azeotropic agent?
e) What is flash vaporization? Write all the material balance, component balance and heat
balance equation?
(10x2=20)
(a) An equimolar saturated vapour mixture of A(more volatile) and B at 1 atm is subjected to
equilibrium condensation yield 50% of the feed as liquid. If the relative volatility is constant
then what will be the mole fraction of A in the equilibrium liquid phase? Calculate the mole
fraction of A in the equilibrium liquid phase if value of relative volatility is given as 2.
(2=1.414)
(b) Using Fenske equation, calculate the minimum number of trays required in a distillation
column to separate an equimolar binary mixture of components A and B into an overhead
fraction containing 99 mol% A and a bottom fraction containing 98 mol% B. Assume relative
volatility as 2.
(c) A binary feed containing 25 mol% liquid and 75 mol% vapour is separated a staged
distillation column. The mole fraction of the more volatile component in the distillate product
is 0.95. The q-line intersects the operating line of the enriching section at (0.35, 0.6).
Calculate the value of reflux ratio R.
