Operacin de Sistemas
F2 Series Backhoe Loaders Monitoring System
Nmero de medio -UENR5028-01

Fecha de publicacin -01/06/2015

Fecha de actualizacin -16/09/2015

i06018866

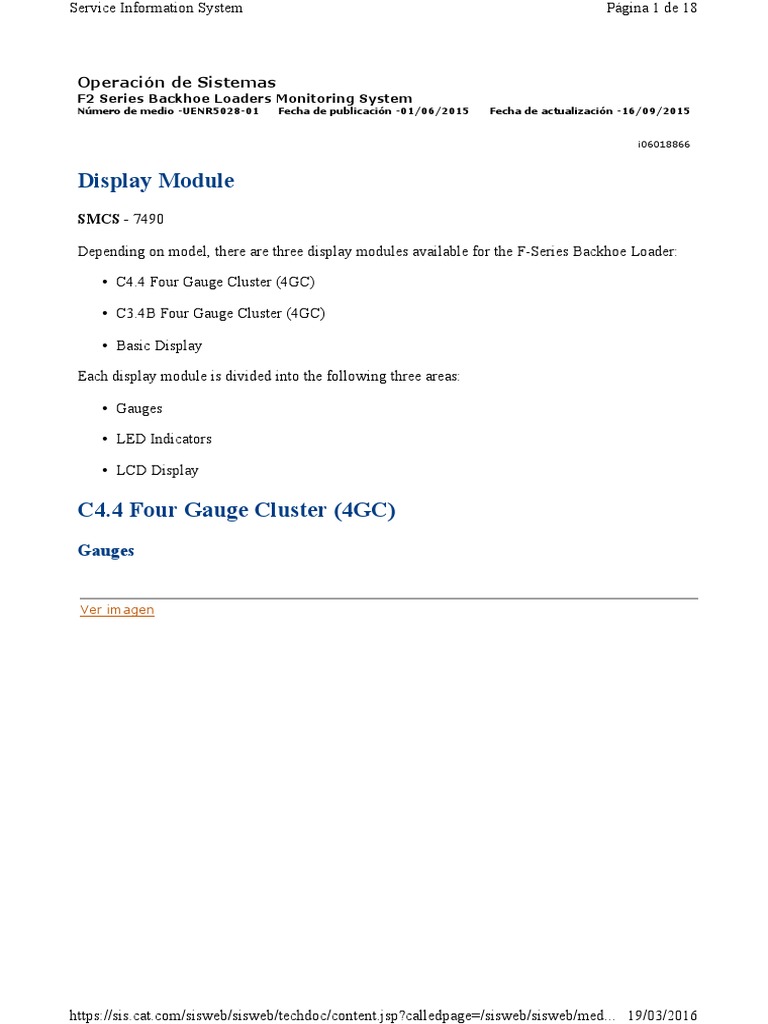

Display Module
SMCS - 7490
Depending on model, there are three display modules available for the F-Series Backhoe Loader:
C4.4 Four Gauge Cluster (4GC)
C3.4B Four Gauge Cluster (4GC)
Basic Display
Each display module is divided into the following three areas:
Gauges
LED Indicators
LCD Display

C4.4 Four Gauge Cluster (4GC)

Gauges

Ver imagen

https://sis.cat.com/sisweb/sisweb/techdoc/content.jsp?calledpage=/sisweb/sisweb/med... 19/03/2016

Service Information System

Pgina 2 de 18

Illustration 1
(1) Engine Coolant Temperature Gauge
(2) Fuel Level Gauge
(3) LCD Display
(4) Diesel Exhaust Fluid (DEF) Gauge
(5) Torque Converter Oil Temperature Gauge

Engine Coolant Temperature Gauge

(1) - The engine coolant gauge will
indicate in the red zone and the action
lamp will flash when the engine
coolant temperature reaches 113 C
(235 F). Stop the machine at a
convenient location and investigate
the cause.
Fuel Level Gauge (2) - The fuel level
gauge will indicate in the red zone
when the fuel level is 10% of the tank
capacity.
Digital Display (3) - The LCD will display available menus, parameter values, and mode
indicators.
Diesel Exhaust Fluid (DEF) Gauge
(4) - The purpose of the DEF Level
gauge is display how much DEF is
remaining in the DEF tank. The

https://sis.cat.com/sisweb/sisweb/techdoc/content.jsp?calledpage=/sisweb/sisweb/med... 19/03/2016

Service Information System

Pgina 3 de 18

Minimum Value is 0% and the

Maximum Value is 100%. The
warning line value is 19%.

Torque Converter Oil Temperature

Gauge (5) - The torque converter
temperature indicator will indicate in
the red zone when the torque converter
temperature exceeds 110 C (230 F).
Action lamp (13) will also illuminate
and the action alarm will sound. Stop
the machine at a convenient location
and investigate the cause. When there
is a fault with the torque converter
temperature sensor, the Action lamp
will flash.

LED Indicators

Ver imagen

Illustration 2
(6) Wait to Start Lamp
(7) Machine Fuel Economy Mode
(8) All Wheel Steer Lamp
(9) Water in Fuel

https://sis.cat.com/sisweb/sisweb/techdoc/content.jsp?calledpage=/sisweb/sisweb/med... 19/03/2016

Service Information System

Pgina 4 de 18

(10) Remote Throttle Active

(11) Low Fuel Level
(12) Engine Warning Lamp
(13) Action Lamp
(14) Emissions Module Malfunction
(15) Low DEF Level Indicator
(16) Automatic Engine Speed Control (AESC) Indicator
(17) Object Stability Warning Lamp
(18) Regen Inhibited
(19) Hydraulic Oil Temperature High
(20) Charging System Lamp

Wait to Start Lamp (6) - The

purpose of this feature is to indicate to
the operator that the cold start
assistance device needs to warm the
engine prior to cranking.
Machine Fuel Economy Mode (7) This indicator is illuminated when the
fuel economy mode is active.
All Wheel Steer Lamp (8) - This
indicator is illuminated when All Wheel
Steering is selected.
Water in Fuel Lamp (9) - The alert
indicator indicates water in the fuel.
The Action lamp (13) will also
illuminate. Stop the engine, drain the
water from the bowl, then restart the
engine.
Remote Throttle Active (10) - The
Remote Throttle Active lamp indicates
that the remote accelerator has been
enabled and controls the engine.
Low Fuel Level Indicator (11) - The Low Fuel Level Indicator will illuminate when the fuel
level is at or below 10% of the tank capacity.
Engine Warning Lamp (12) - The
Engine Warning indicator is used to
show the operator if a Level 1, Level
2, Level 2S, or Level 3 warning has
occurred on the Engine ECM.

https://sis.cat.com/sisweb/sisweb/techdoc/content.jsp?calledpage=/sisweb/sisweb/med... 19/03/2016

Service Information System

Pgina 5 de 18

Action Lamp (13) - The Action

Lamp is used to indicate Level 2,
Level 2S, and Level 3 warnings to the
operator.
Emissions Module Malfunction (14)
- This indicator is illuminated when
there is a Failure or Malfunction with
the Engine Emission System.
Low DEF Level Indicator (15) - The Low DEF Level Indicator illuminates when there is a low
diesel exhaust fluid level (DEF) level.
Automatic Engine Speed Control
(AESC) Indicator (16) - This
indicator illuminates to show that the
Automatic Engine Speed Control
(AESC) is ON.
Object Stability Warning Lamp
(17) - The object stability warning
indicator is used to notify the operator
of machine tipping instability while
object handling with the hoe.
Regen Inhibited (18) - Indicates that
Regen has been manually inhibited
(C3.4B Only).
Hydraulic Oil Temperature High
(19) - The hydraulic oil temperature
indicator will illuminate when the
hydraulic oil reaches 110 C (230 F).
Action lamp (13) will also illuminate.
Operation of the hydraulic functions
must be reduced in order to allow the
hydraulic fluid to cool.
Charging System Indicator (20) The Charging System Indicator will
show if there is a fault in the charging
system. If this alert indicator
illuminates, the system voltage is too
low for normal machine operation.

LCD Display

Ver imagen

https://sis.cat.com/sisweb/sisweb/techdoc/content.jsp?calledpage=/sisweb/sisweb/med... 19/03/2016

Service Information System

Pgina 6 de 18

Illustration 3
Home Screen Engine Running (Engine Speed > 500 rpm).
(21) LCD Information
(22) S16, S17, and S18 Indicators
(23) Engine RPM
(24) Scroll Bar
(25) Transmission Speed and Direction (FNR)
(26) Service Hour Meter

Ver imagen

Illustration 4
Home Screen with Machine OFF.

g03779650

Ver imagen

https://sis.cat.com/sisweb/sisweb/techdoc/content.jsp?calledpage=/sisweb/sisweb/med... 19/03/2016

Service Information System

Pgina 7 de 18

Illustration 5
g03779655
Home Screen with Key ON - Engine NOT running, NOT Locked by Security System.

Ver imagen

Illustration 6
g03779659
Home Screen with Key ON - Engine NOT running, Locked by Security System.

C3.4B Four Gauge Cluster (4GC)

Gauges

Ver imagen

https://sis.cat.com/sisweb/sisweb/techdoc/content.jsp?calledpage=/sisweb/sisweb/med... 19/03/2016

Service Information System

Pgina 8 de 18

Illustration 7
(27) Engine Coolant Temperature Gauge
(28) Fuel Level Gauge
(29) LCD Display
(30) Battery Voltage Gauge
(31) Torque Converter Oil Temperature Gauge

Engine Coolant Temperature Gauge

(27) - The engine coolant gauge will
indicate in the red zone and the action
lamp will flash when the engine
coolant temperature reaches 113 C
(235 F). Stop the machine at a
convenient location and investigate
the cause.
Fuel Level Gauge (28) - The fuel
level gauge will indicate in the red
zone when the fuel level is 19% of the
tank capacity.
Digital Display (29) - The LCD will display available menus, parameter values, and mode
indicators.
Battery Voltage Gauge (30) - The
purpose of the battery voltage gauge is
to provide a visual indication to the
operator of the approximate value of

https://sis.cat.com/sisweb/sisweb/techdoc/content.jsp?calledpage=/sisweb/sisweb/med... 19/03/2016

Service Information System

Pgina 9 de 18

the machine electrical system voltage.

The lower warning line value is 11
Vdc. The upper warning line value is
16 Vdc.
Torque Converter Oil Temperature
Gauge (31) - The torque converter
temperature indicator will indicate in
the red zone when the torque converter
temperature exceeds110 C (230 F).
Action lamp (36) will also illuminate
and the action alarm will sound. Stop
the machine at a convenient location
and investigate the cause. The torque
converter temperature indicator will
flash when there is a fault with the
torque converter temperature sensor.

LED Indicators

Ver imagen

Illustration 8
(32) Wait to Start Lamp
(33) Water in Fuel Lamp
(34) Low Fuel Level Indicator
(35) Engine Warning Lamp

https://sis.cat.com/sisweb/sisweb/techdoc/content.jsp?calledpage=/sisweb/sisweb/med... 19/03/2016

Service Information System

Pgina 10 de 18

(36) Action Lamp

(37) Low Battery Voltage Indicator
(38) Object Stability Warning Lamp
(39) Engine DPF Lamp
(40) Engine Oil Pressure Low Lamp

Wait to Start Lamp (32) - The

purpose of this feature is to indicate to
the operator that the cold start
assistance device needs to warm the
engine prior to cranking.
Water in Fuel Lamp (33) - The alert
indicator indicates water in the fuel.
The Action lamp (36) will also
illuminate. Stop the engine, drain the
water from the bowl, then restart the
engine.
Low Fuel Level Indicator (34) - The Low Fuel Level Indicator will illuminate when the fuel
level is at or below 10% of the tank capacity.
Engine Warning Lamp (35) - The
Engine Warning indicator is used to
show the operator if a Level 1, Level
2, Level 2S, or Level 3 warning has
occurred on the Engine ECM.
Action Lamp (36) - The Action
Lamp is used to indicate Level 2,
Level 2S, and Level 3 warnings to the
operator.
Low Battery Voltage Indicator (37) - The alert indicator illuminates if there is a malfunction in
the electrical charging system. If this alert indicator illuminates, the system voltage is too low for
normal machine operation.
Object Stability Warning Lamp
(38) - The object stability warning
indicator is used to notify the operator
of machine tipping instability while
object handling with the hoe.
Engine DPF Lamp (39) - A steady
illumination indicates when Diesel
Particulate Filter (DPF) active
regeneration is needed at the lowest
level of urgency and that operator
intervention is required. The flashing

https://sis.cat.com/sisweb/sisweb/techdoc/content.jsp?calledpage=/sisweb/sisweb/med... 19/03/2016

Service Information System

Pgina 11 de 18

state indicates a more severe

condition requiring regeneration.
Engine Oil Pressure Low Lamp (40)
- When the engine oil pressure is low,
the following will happen: the alert
indicator will illuminate, the action
lamp (36) will flash, and an audible
alarm will sound. If this alert indicator
illuminates, stop the machine
immediately. Stop the engine, engage
the parking brake, and investigate the
cause.

LCD Display

Ver imagen

Illustration 9
Home Screen Engine Running (Engine Speed > 500 rpm).
(21) LCD Information
(22) S16, S17, and S18 Warning Indicators
(23) Engine RPM
(24) Scroll Bar
(25) Transmission Speed and Direction (FNR)
(26) Service Hour Meter

Ver imagen

https://sis.cat.com/sisweb/sisweb/techdoc/content.jsp?calledpage=/sisweb/sisweb/med... 19/03/2016

Service Information System

Illustration 10
Home Screen with Machine OFF.

Pgina 12 de 18

g03779650

Ver imagen

Illustration 11
g03779655
Home Screen with Key ON - Engine NOT running, NOT Locked by Security System.

Ver imagen

Illustration 12

g03779659

Home Screen with Key ON - Engine NOT running, Locked by Security System.

Base Display

https://sis.cat.com/sisweb/sisweb/techdoc/content.jsp?calledpage=/sisweb/sisweb/med... 19/03/2016

Service Information System

Pgina 13 de 18

Gauges

Ver imagen

Illustration 13
(41) Engine Coolant Temperature Gauge
(42) Tachometer
(43) Fuel Level Gauge
(44) Digital Display

Engine Coolant Temperature Gauge

(41) - The engine coolant gauge will
indicate in the red zone and the action
lamp will flash when the engine
coolant temperature reaches 113 C
(235 F). Stop the machine at a
convenient location and investigate
the cause.
Tachometer (42) - The tachometer displays the engine speed in revolutions per minute (rpm). The
gauge range is 0 to 3000 rpm. The pointer enters the red zone at 2600 rpm. If necessary, reduce
the engine speed until the revolutions per minute decrease.
Fuel Level Gauge (43) - The fuel
level gauge will indicate in the red
zone when the fuel level is 10% of the
tank capacity.

https://sis.cat.com/sisweb/sisweb/techdoc/content.jsp?calledpage=/sisweb/sisweb/med... 19/03/2016

Service Information System

Pgina 14 de 18

Digital Display (44) - The LCD will display engine hours.

LED Indicators

Ver imagen

Illustration 14
(45) High Hydraulic Oil Temperature

g03773419

(46) High Transmission Oil Temperature

(47) All Wheel Steer System Warning
(48) AESC Active
(49) Engine Oil Low Pressure
(50) Charging System Warning
(51) Park Brake Indicator
(52) Object Handling Stability Warning
(53) Low Fuel
(54) Hydraulic Oil Filter Bypass
(55) Action Lamp
(56) Water in Fuel
(57) Air Filter Blocked
(58) Wait to Start
(59) Engine Coolant Temperature High

High Hydraulic Oil Temperature

(45) - The hydraulic oil temperature
indicator will illuminate when the

https://sis.cat.com/sisweb/sisweb/techdoc/content.jsp?calledpage=/sisweb/sisweb/med... 19/03/2016

Service Information System

Pgina 15 de 18

hydraulic oil reaches 110 C (230 F).

Action lamp (55) will also illuminate.
Operation of the hydraulic functions
must be reduced in order to allow the
hydraulic fluid to cool.
High Transmission Oil Temperature
(46) - When the transmission oil
temperature exceeds 96 C (204.8 F), the
Monitor will activate a level 3 error event
for High Transmission Oil Temperature.
All Wheel Steer System Lamp (47) This indicator is illuminated when All
Wheel Steering is selected.
Automatic Engine Speed Control
(AESC) Indicator (48) - This
indicator illuminates to show that the
Automatic Engine Speed Control
(AESC) is ON.
Engine Oil Pressure Low Lamp (49)
- When the engine oil pressure is low,
the following will happen: the alert
indicator will illuminate, the action
lamp (55) will flash, and an audible
alarm will sound. If this alert indicator
illuminates, stop the machine
immediately. Stop the engine, engage
the parking brake, and investigate the
cause.
Charging System Indicator (50) The alert indicator illuminates if there
is a malfunction in the electrical
charging system. If this alert indicator
illuminates, the system voltage is too
low for normal machine operation.
Parking Brake (51) - This status
indicator indicates that the parking
brake is engaged. If this indicator is
illuminated, disengage the parking
brake before attempting to move the
machine.
Object Stability Warning Lamp
(52) - The object stability warning
indicator is used to notify the operator

https://sis.cat.com/sisweb/sisweb/techdoc/content.jsp?calledpage=/sisweb/sisweb/med... 19/03/2016

Service Information System

Pgina 16 de 18

of machine tipping instability while

object handling with the hoe.

Low Fuel (53) - This indicator is

illuminated when the fuel level is low.

Hydraulic Oil Filter Bypass (54) - The

hydraulic oil filter bypass indicator will
illuminate when the hydraulic oil
temperature is above 42 C (108 F) and
hydraulic oil is bypassing the hydraulic
filter. Action lamp (55) will also
illuminate.
Action Lamp (55) - The Action
Lamp is used to indicate Level 2,
Level 2S, and Level 3 warnings to the
operator.
Water in Fuel Lamp (56) - The alert
indicator indicates water in the fuel.
Action lamp (55) will also illuminate.
Stop the engine, drain the water from
the bowl, then restart the engine.
Air Filter Blocked (57) - The alert
indicator will light when the air filter
becomes clogged. If this alert indicator
comes on, stop the machine and
investigate the cause.
Wait to Start Lamp (58) - The
purpose of this feature is to indicate to
the operator that the cold start
assistance device needs to warm the
engine prior to cranking.
Engine Coolant Temperature High
(59) - The engine coolant lamp will
illuminate when the engine coolant
temperature is too high. Stop the
machine at a convenient location and
investigate the cause.

LCD Warnings (C3.4B and C4.4 4GC Only)

Ver imagen

https://sis.cat.com/sisweb/sisweb/techdoc/content.jsp?calledpage=/sisweb/sisweb/med... 19/03/2016

Service Information System

Illustration 15
(22) S16, S17, and S18 Warning Indicators

Pgina 17 de 18

g03779814

The LCD Warnings (S16, S17, and S18) are used to display specific diagnostics and events. The
LCD Warning Symbols (shown below) will appear if the relevant Event/Diagnostic is active.

LCD Warning Symbols

Service Meter Hours

Machine Security System Indication

Battery Voltage

Hydraulic Oil Temperature

Torque Converter Temperature

Engine Coolant Temperature

Engine Idle Shutdown Indication

https://sis.cat.com/sisweb/sisweb/techdoc/content.jsp?calledpage=/sisweb/sisweb/med... 19/03/2016

Service Information System

Pgina 18 de 18

Torque Converter Temperature High

Indication

High Coolant Temperature Indication

Hydraulic Oil Filter Bypass Indication

Air Filter Restriction Indication

High Exhaust Temperature Indication

(C3.4B Only)

Engine Oil Life Indication (C3.4B

Only)

Machine Service Due Indication

Engine Oil Pressure

Copyright 1993 - 2016 Caterpillar Inc.

Todos los derechos reservados.
Red privada para licenciados del SIS.

Sat Mar 19 13:54:24 EST 2016

https://sis.cat.com/sisweb/sisweb/techdoc/content.jsp?calledpage=/sisweb/sisweb/med... 19/03/2016
