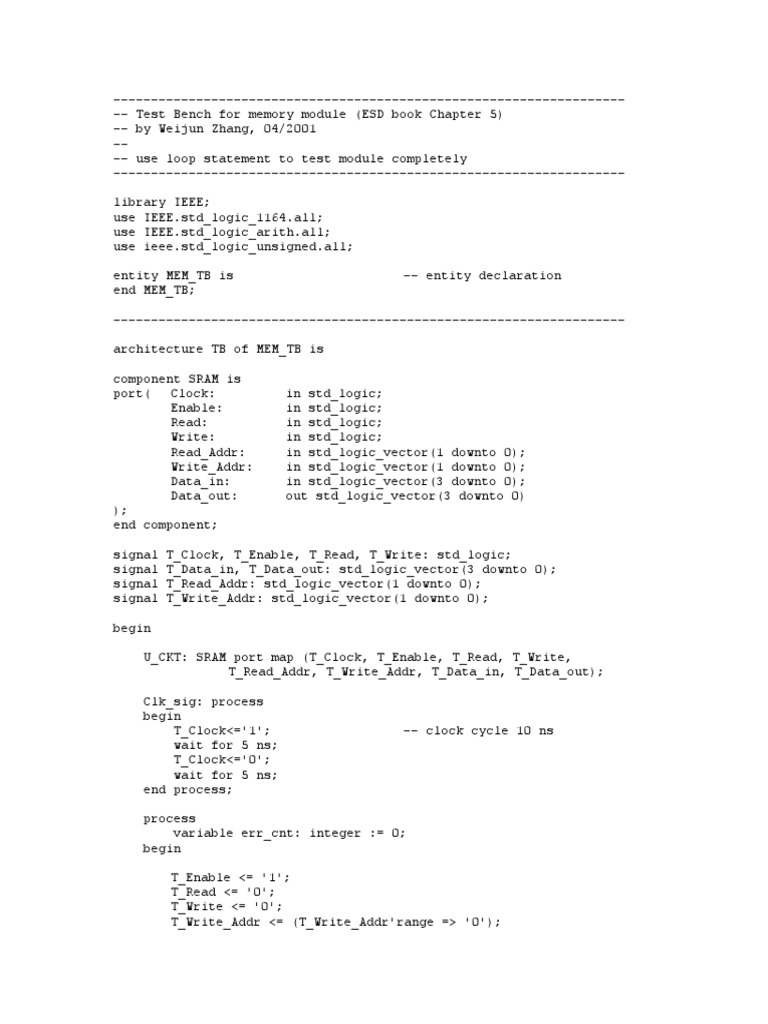

-- Test Bench for memory module (ESD book Chapter 5)

-- by Weijun Zhang, 04/2001
--
-- use loop statement to test module completely
--------------------------------------------------------------------

library IEEE;
use IEEE.std_logic_1164.all;
use IEEE.std_logic_arith.all;
use ieee.std_logic_unsigned.all;

entity MEM_TB is -- entity declaration

end MEM_TB;

--------------------------------------------------------------------

architecture TB of MEM_TB is

component SRAM is
port( Clock: in std_logic;
Enable: in std_logic;
Read: in std_logic;
Write: in std_logic;
Read_Addr: in std_logic_vector(1 downto 0);
Write_Addr: in std_logic_vector(1 downto 0);
Data_in: in std_logic_vector(3 downto 0);
Data_out: out std_logic_vector(3 downto 0)
);
end component;

signal T_Clock, T_Enable, T_Read, T_Write: std_logic;

signal T_Data_in, T_Data_out: std_logic_vector(3 downto 0);
signal T_Read_Addr: std_logic_vector(1 downto 0);
signal T_Write_Addr: std_logic_vector(1 downto 0);

begin

U_CKT: SRAM port map (T_Clock, T_Enable, T_Read, T_Write,

T_Read_Addr, T_Write_Addr, T_Data_in, T_Data_out);

Clk_sig: process
begin
T_Clock<='1'; -- clock cycle 10 ns
wait for 5 ns;
T_Clock<='0';
wait for 5 ns;
end process;

process
variable err_cnt: integer := 0;
begin

T_Enable <= '1';

T_Read <= '0';
T_Write <= '0';
T_Write_Addr <= (T_Write_Addr'range => '0');
 T_Read_Addr <= (T_Read_Addr'range => '0');
T_Data_in <= (T_Data_in'range => '0');
wait for 20 ns;

-- test write
for i in 0 to 3 loop
T_Write_Addr <= T_Write_Addr + '1';
T_Data_in <= T_Data_in + "10";
T_Write <= '1';
wait for 10 ns;
assert (T_Data_out="ZZZZ")
report "Something wrong!" severity Error;
if (T_Data_out /= "ZZZZ") then
err_cnt := err_cnt + 1;
end if;
end loop;

-- test read
for i in 0 to 2 loop
T_Read_Addr <= T_Read_Addr + '1';
T_Read <= '1';
wait for 10 ns;
assert
(conv_integer(T_Data_out)=2*conv_integer(T_Read_Addr))
report "Something wrong!" severity Error;
if (conv_integer(T_Data_out)/=2*conv_integer(T_Read_Addr))
then
err_cnt := err_cnt + 1;
end if;
end loop;

-- summary of all the tests

if (err_cnt=0) then
assert false
report "Testbench of ROM completed successfully!"
severity note;
else
assert true
report "Something wrong, try again"
severity error;
end if;

wait;

end process;

end TB;

------------------------------------------------------------------------
--
configuration CFG_TB of MEM_TB is
for TB
end for;
end CFG_TB;
------------------------------------------------------------------------
--
