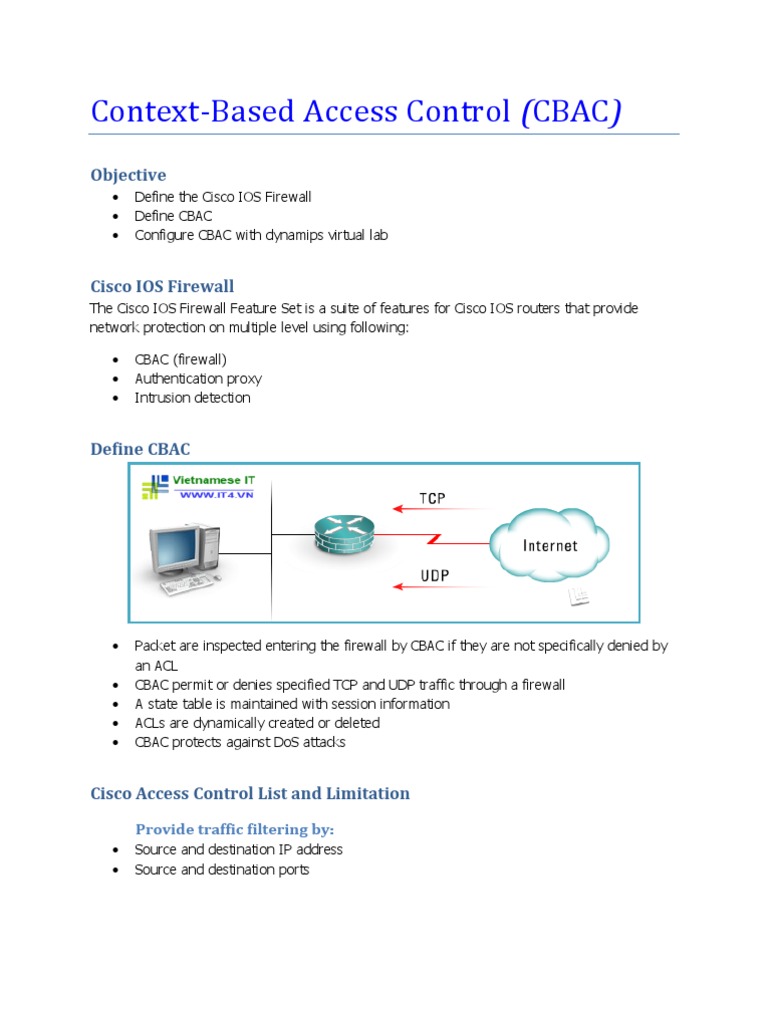

Context-Based Access Control (CBAC)

Objective
 Define the Cisco IOS Firewall
 Define CBAC
 Configure CBAC with dynamips virtual lab

Cisco IOS Firewall

The Cisco IOS Firewall Feature Set is a suite of features for Cisco IOS routers that provide
network protection on multiple level using following:

 CBAC (firewall)
 Authentication proxy
 Intrusion detection

Define CBAC

 Packet are inspected entering the firewall by CBAC if they are not specifically denied by
an ACL
 CBAC permit or denies specified TCP and UDP traffic through a firewall
 A state table is maintained with session information
 ACLs are dynamically created or deleted
 CBAC protects against DoS attacks

Cisco Access Control List and Limitation

Provide traffic filtering by:

 Source and destination IP address
 Source and destination ports
 Can be used to implement a filtering firewall
 Ports are opened permanently to allow traffic, creating a security vulnerability
 Do not work with applications that negotiate ports dynamically

How CBAC works

Example notes:
 A Client creates a telnet session with source port 2447 and destination port 23.
 Access-list permits TCP port 23 from Client to Server but block random port 2447 if the
packet coming back.
 You cannot create an access-list to permanent open these random port because of
Security so CBAC will have you to create a dynamic access-list.
CBAC – supported protocols

Context-Base Access Control (CBAC) virtual lab

Topology & Objectives

HQ WAN Branch

WAN Router
HQ Router Branch router
.2 30.1.1.x/24 .1 .1 30.2.2.x/24 .2
F0/0 F0/0 F0/1 F0/0

F0/1 .1

.3 Web Server

10.10.0.x/24

Simulate Topology
 Start-up Configuration
 BGP routing protocol between 3 routers
 IP nat static webserver (10.10.0.3) to public IP (30.1.1.3) on HQ router
 All username or password: cisco/cisco123

Configuration Task
Configure Access-List permit BGP protocol and Telnet from inside to outside. Deny
other traffic.

Download Simulated File & Document

Dynamic net file and running config: http://www.mediafire.com/?j9i2ymkjzv8w7v2

PDF version of this topic:
