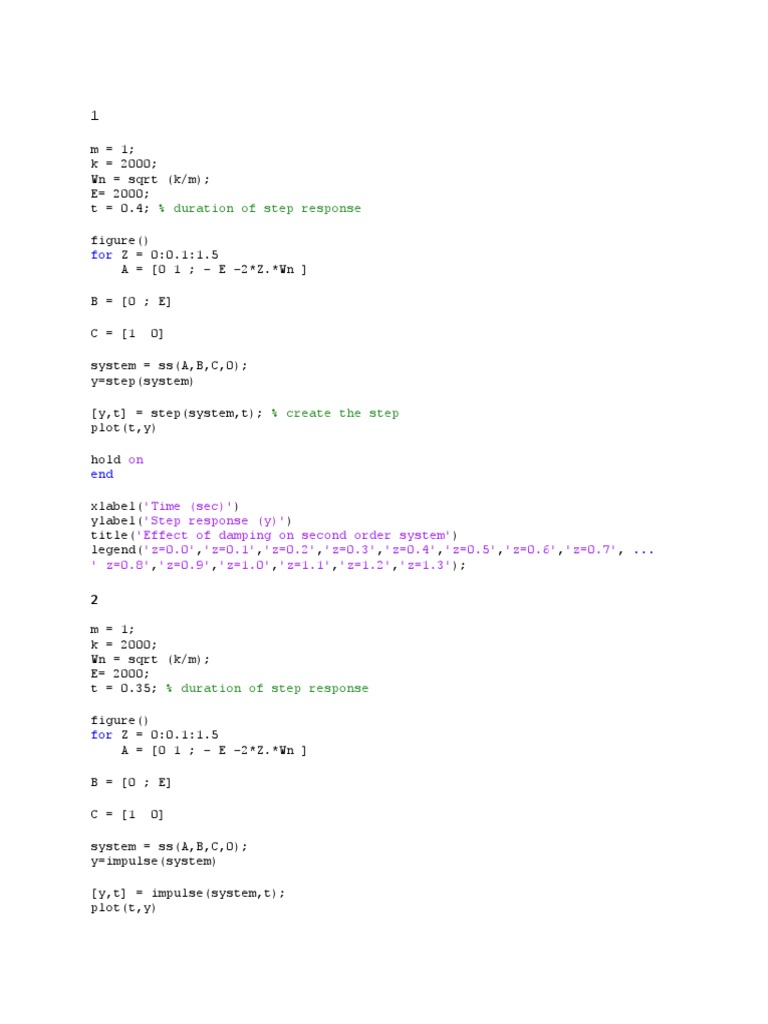

    1

    m = 1;
    k = 2000;
    Wn = sqrt (k/m);
    E= 2000;
    t = 0.4; % duration of step response

    figure()
    for Z = 0:0.1:1.5
    A = [0 1 ; - E -2*Z.*Wn ]

    B = [0 ; E]

    C = [1 0]

    system = ss(A,B,C,0);
    y=step(system)

    [y,t] = step(system,t); % create the step


    plot(t,y)

    hold on
    end

    xlabel('Time (sec)')
    ylabel('Step response (y)')
    title('Effect of damping on second order system')
    legend('z=0.0','z=0.1','z=0.2','z=0.3','z=0.4','z=0.5','z=0.6','z=0.7', ...
    ' z=0.8','z=0.9','z=1.0','z=1.1','z=1.2','z=1.3');

    m = 1;
    k = 2000;
    Wn = sqrt (k/m);
    E= 2000;
    t = 0.35; % duration of step response

    figure()
    for Z = 0:0.1:1.5
    A = [0 1 ; - E -2*Z.*Wn ]

    B = [0 ; E]

    C = [1 0]

    system = ss(A,B,C,0);
    y=impulse(system)

    [y,t] = impulse(system,t);
    plot(t,y)
    hold on
    end

    xlabel('Time (sec)')
    ylabel('Impulse response (y)')
    title('Effect of damping on second order system')
    legend('z=0.0','z=0.1','z=0.2','z=0.3','z=0.4','z=0.5','z=0.6','z=0.7', ...
    ' z=0.8','z=0.9','z=1.0','z=1.1','z=1.2','z=1.3');
