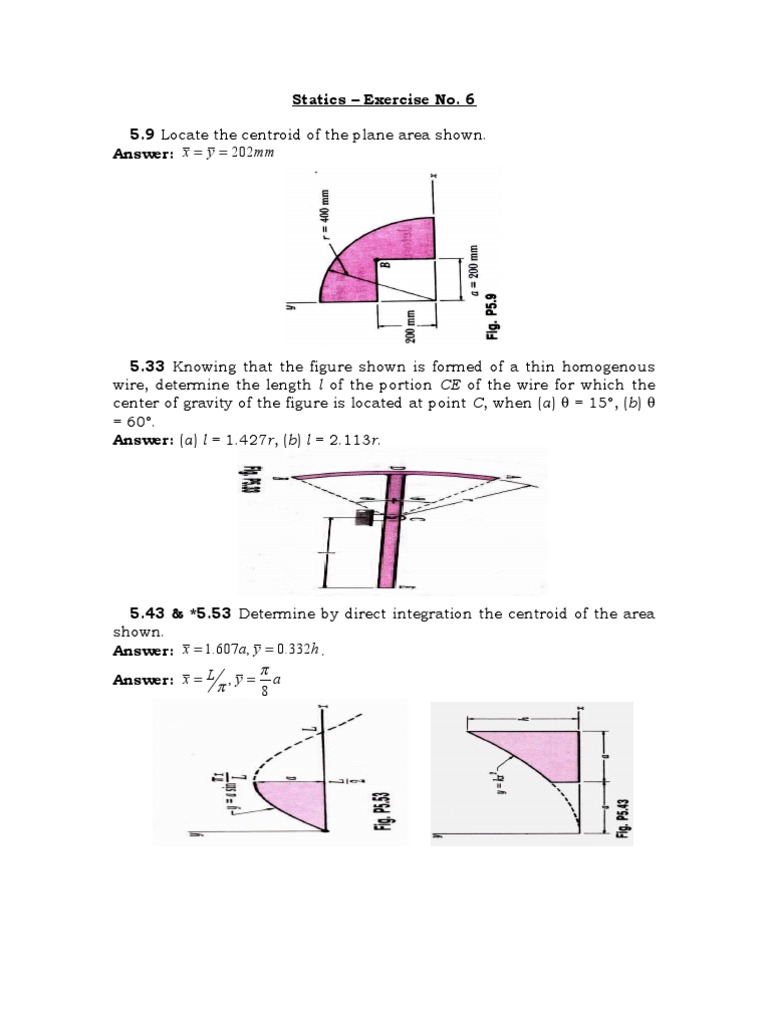

Statics – Exercise No.

5.9 Locate the centroid of the plane area shown.

Answer: x = y = 202mm

5.33 Knowing that the figure shown is formed of a thin homogenous

wire, determine the length l of the portion CE of the wire for which the
center of gravity of the figure is located at point C, when (a) θ = 15°, (b) θ
= 60°.
Answer: (a) l = 1.427r, (b) l = 2.113r.

5.43 & *5.53 Determine by direct integration the centroid of the area
shown.
Answer: x = 1.607 a, y = 0.332h .
π
Answer: x = L π , y = a
8
 5.78 Determine the reactions at the beam supports for the given
loading condition.
Answer: A = 21.45kN , B = 5.55kN .

5.93 The quick acting gate AB is 525mm wide and is held in its closed
position by a vertical cable and by a hinges located along its top edge B.
for a depth of water d = 1.8m, determine the minimum tension required
in cable AC to prevent the gate from opening.
Answer: T = 4180N.

5.118 Three brass plates are brazed to a steel pipe to form the flagpole
base shown. Knowing that the pipe has a wall thickness of 6mm and that
each plate is 5mm thick, determine the location of the center of gravity of
the base (Density: brass = 8470 kg/m3; steel = 7850 kg/m3.)
Answer: y = 85.2mm

1
All the questions are taken from Ferdinand P. Beer and E. Russell Johnston Jr. “Vector Mechanics for
Engineers, Statics” Second SI Metric Edition, McGraw-Hill Book Company.
