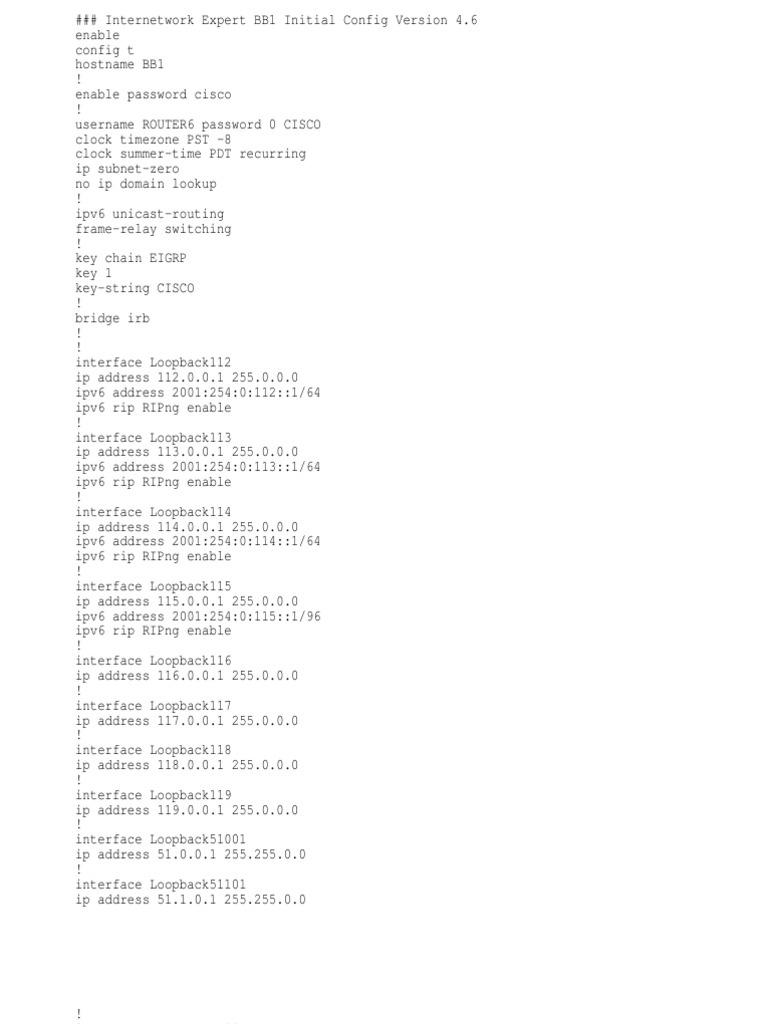

### Internetwork Expert BB1 Initial Config Version 4.6 enable config t hostname BB1 !

enable password cisco ! username ROUTER6 password 0 CISCO clock timezone PST -8 clock summer-time PDT recurring ip subnet-zero no ip domain lookup ! ipv6 unicast-routing frame-relay switching ! key chain EIGRP key 1 key-string CISCO ! bridge irb ! ! interface Loopback112 ip address 112.0.0.1 255.0.0.0 ipv6 address 2001:254:0:112::1/64 ipv6 rip RIPng enable ! interface Loopback113 ip address 113.0.0.1 255.0.0.0 ipv6 address 2001:254:0:113::1/64 ipv6 rip RIPng enable ! interface Loopback114 ip address 114.0.0.1 255.0.0.0 ipv6 address 2001:254:0:114::1/64 ipv6 rip RIPng enable ! interface Loopback115 ip address 115.0.0.1 255.0.0.0 ipv6 address 2001:254:0:115::1/96 ipv6 rip RIPng enable ! interface Loopback116 ip address 116.0.0.1 255.0.0.0 ! interface Loopback117 ip address 117.0.0.1 255.0.0.0 ! interface Loopback118 ip address 118.0.0.1 255.0.0.0 ! interface Loopback119 ip address 119.0.0.1 255.0.0.0 ! interface Loopback51001 ip address 51.0.0.1 255.255.0.0 ! interface Loopback51101 ip address 51.1.0.1 255.255.0.0

! interface Loopback51201 ip address 51.2.0.1 255.255.0.0 ! interface Loopback51301 ip address 51.3.0.1 255.255.0.0 ! interface Loopback51401 ip address 51.4.0.1 255.255.0.0 ! interface Loopback51501 ip address 51.5.0.1 255.255.0.0 ! interface Loopback51601 ip address 51.6.0.1 255.255.0.0 ! interface Loopback51701 ip address 51.7.0.1 255.255.0.0 ! interface Loopback200000 ip address 200.0.0.1 255.255.255.0 ! interface Loopback200010 ip address 200.0.1.1 255.255.255.0 ! interface Loopback200020 ip address 200.0.2.1 255.255.255.0 ! interface Loopback200030 ip address 200.0.3.1 255.255.255.0 ! interface Loopback2121801 ip address 212.18.0.1 255.255.255.0 ! interface Loopback2121811 ip address 212.18.1.1 255.255.255.0 ! interface Loopback2121821 ip address 212.18.2.1 255.255.255.0 ! interface Loopback2121831 ip address 212.18.3.1 255.255.255.0 ! interface Virtual-Template1 ip address 54.1.7.254 255.255.255.0 ppp authentication chap ! interface Virtual-Template11 ip address 54.1.8.254 255.255.255.0 ppp authentication pap ppp pap sent-username BB1 password 0 CISCO ! interface Serial0 description Connected to R1 no ip address encapsulation frame-relay clockrate 64000 frame-relay intf-type dce frame-relay route 102 interface Serial1 201 frame-relay route 103 interface Serial2 301

frame-relay route 104 interface Serial4 frame-relay route 105 interface Serial5 frame-relay route 113 interface Serial3 no shut ! interface Serial1 description Connected to R2 no ip address encapsulation frame-relay clockrate 64000 frame-relay intf-type dce frame-relay route 201 interface Serial0 frame-relay route 203 interface Serial2 frame-relay route 204 interface Serial4 frame-relay route 205 interface Serial5 frame-relay route 213 interface Serial3 no shut ! interface Serial2 description Connected to R3 S1/0 no ip address encapsulation frame-relay clockrate 64000 frame-relay intf-type dce frame-relay route 301 interface Serial0 frame-relay route 302 interface Serial1 frame-relay route 304 interface Serial4 frame-relay route 305 interface Serial5 no shut ! interface Serial3 description Connected to R3 S1/1 no ip address encapsulation frame-relay clockrate 64000 frame-relay intf-type dce frame-relay route 311 interface Serial0 frame-relay route 312 interface Serial1 frame-relay route 314 interface Serial4 frame-relay route 315 interface Serial5 no shut ! interface Serial4 description Connected to R4 no ip address encapsulation frame-relay clockrate 64000 frame-relay intf-type dce frame-relay route 401 interface Serial0 frame-relay route 402 interface Serial1 frame-relay route 403 interface Serial2 frame-relay route 405 interface Serial5 frame-relay route 413 interface Serial3 no shut ! interface Serial5 description Connected to R5 no ip address encapsulation frame-relay clockrate 64000

401 501 311

102 302 402 502 312

103 203 403 503

113 213 413 513

104 204 304 504 314

frame-relay intf-type dce frame-relay route 501 interface Serial0 105 frame-relay route 502 interface Serial1 205 frame-relay route 503 interface Serial2 305 frame-relay route 504 interface Serial4 405 frame-relay route 513 interface Serial3 315 no shut ! interface Serial6 description Connected to R6 no ip address encapsulation frame-relay clockrate 64000 frame-relay intf-type dce no shut ! interface Serial6.51 point-to-point description PVC 51 to R6 ip address 54.1.3.254 255.255.255.0 frame-relay interface-dlci 51 ! interface Serial6.100 point-to-point description PVC 100 to R6 ip address 54.1.2.254 255.255.255.0 ipv6 address 2001:54:1:2::254/64 ipv6 address FE80::254 link-local frame-relay interface-dlci 100 ! interface Serial6.101 point-to-point description PVC 101 to R6 ip address 54.1.1.254 255.255.255.0 ip authentication mode eigrp 10 md5 ip authentication key-chain eigrp 10 EIGRP ipv6 address 2001:54:254:1::254/64 ipv6 address FE80::254 link-local ipv6 rip RIPng enable frame-relay interface-dlci 101 ! interface Serial6.201 point-to-point description PPP over PVC 201 to R6 frame-relay interface-dlci 201 ppp Virtual-Template1 ! interface Serial6.301 point-to-point description PPP over PVC 301 to R6 frame-relay interface-dlci 301 ppp Virtual-Template11 ! interface Serial6.401 point-to-point description Bridging over PVC 401 to R6 frame-relay interface-dlci 401 bridge-group 1 ! interface Serial7 no ip address shutdown ! interface Serial8 no ip address shutdown ! interface Serial9

description Connected to BB3 ip address 172.16.4.1 255.255.255.0 clockrate 64000 no shut ! interface BVI1 ip address 54.1.10.254 255.255.255.0 ! router eigrp 10 network 54.0.0.0 network 200.0.0.0 0.0.3.255 distribute-list EIGRP out distribute-list prefix DENY_DEFAULT in no auto-summary no eigrp log-neighbor-changes no eigrp log-neighbor-warnings ! router rip version 2 network 54.0.0.0 network 212.18.0.0 network 212.18.1.0 network 212.18.2.0 network 212.18.3.0 distribute-list RIP out no auto-summary ! router bgp 54 no synchronization bgp log-neighbor-changes neighbor RACKS peer-group neighbor RACKS remote-as 100 neighbor 54.1.1.6 peer-group RACKS neighbor 54.1.2.6 peer-group RACKS neighbor 54.1.3.6 peer-group RACKS neighbor 54.1.4.6 peer-group RACKS neighbor 54.1.5.6 peer-group RACKS neighbor 54.1.6.6 peer-group RACKS neighbor 54.1.7.6 peer-group RACKS neighbor 54.1.8.6 peer-group RACKS neighbor 54.1.10.6 peer-group RACKS neighbor 54.1.10.100 peer-group RACKS neighbor 172.16.4.3 remote-as 54 no auto-summary ! address-family ipv4 neighbor RACKS activate neighbor RACKS send-community neighbor RACKS route-map BGP_IN in neighbor RACKS route-map BGP_OUT out neighbor 54.1.1.6 peer-group RACKS neighbor 54.1.2.6 peer-group RACKS neighbor 54.1.3.6 peer-group RACKS neighbor 54.1.4.6 peer-group RACKS neighbor 54.1.5.6 peer-group RACKS neighbor 54.1.6.6 peer-group RACKS neighbor 54.1.7.6 peer-group RACKS neighbor 54.1.8.6 peer-group RACKS neighbor 54.1.10.6 peer-group RACKS neighbor 54.1.10.100 peer-group RACKS

neighbor 172.16.4.3 activate neighbor 172.16.4.3 next-hop-self neighbor 172.16.4.3 send-community no auto-summary no synchronization network 112.0.0.0 network 113.0.0.0 network 114.0.0.0 route-map SET_COMMUNITY_54 network 115.0.0.0 route-map SET_COMMUNITY_54 network 116.0.0.0 network 117.0.0.0 network 118.0.0.0 network 119.0.0.0 exit-address-family ! no ip http server ip classless ip route 204.12.0.0 255.255.0.0 172.16.4.3 ! ip as-path access-list 1 permit ^$ ! ! ip prefix-list BGP_PREPEND_1 seq 5 permit 112.0.0.0/8 ip prefix-list BGP_PREPEND_1 seq 10 permit 113.0.0.0/8 ! ip prefix-list DEFAULT seq 5 permit 0.0.0.0/0 ! ip prefix-list DENY_DEFAULT seq 5 deny 0.0.0.0/0 ip prefix-list DENY_DEFAULT seq 10 permit 0.0.0.0/0 le 32 ! ip access-list standard EIGRP permit 200.0.0.0 0.0.3.255 ip access-list standard RIP permit 212.18.0.0 0.0.3.0 ! ipv6 route 2001:204::/32 2001:172:16:4::3 ipv6 router rip RIPng distribute-list prefix-list RIPng out ! ! ! ipv6 prefix-list RIPng seq 5 permit 2001:254:0:112::/64 ipv6 prefix-list RIPng seq 10 permit 2001:254:0:113::/64 ipv6 prefix-list RIPng seq 15 permit 2001:254:0:114::/64 ipv6 prefix-list RIPng seq 20 permit 2001:254:0:115::/96 route-map BGP_IN deny 10 match ip address prefix-list DEFAULT ! route-map BGP_IN permit 10000 ! route-map SET_COMMUNITY_54 permit 10 set community 54 ! route-map BGP_OUT permit 10 match ip address prefix-list BGP_PREPEND_1 set as-path prepend 50 60 ! route-map BGP_OUT permit 10000 match as-path 1 !

bridge 1 protocol ieee bridge 1 route ip privilege exec level 0 privilege exec level 0 privilege exec level 0 privilege exec level 1 privilege exec level 1 privilege exec level 1 privilege exec level 0 privilege exec level 0 privilege exec level 0 privilege exec level 0 privilege exec level 0 privilege exec level 0 privilege exec level 0 privilege exec level 0 ! alias exec en exit alias exec ena exit alias exec enab exit alias exec enabl exit ! line con 0 exec-timeout 5 0 privilege level 1 no login line aux 0 transport input all line vty 0 4 exec-timeout 5 0 privilege level 0 no login ! ntp authentication-key ntp trusted-key 1 ntp master 4 ! banner exec ^

telnet traceroute ping terminal length terminal enable show ip bgp neighbors show ip bgp summary show ip bgp show ip route show ip protocols show ip interface brief show ip show

1 md5 CISCO

+------------------------------------------------------------------------------+ | | | Welcome to BB1! The following commands are available for use at privilege 0 | | | | ping | | telnet | | traceroute | | show ip route | | show ip bgp | | show ip bgp neighbors | | show ip bgp summary

| | show ip protocols | | show ip interface brief | | | | The reference configuration for this device is available at: | | http://www.internetworkexpert.com/downloads/bb1.txt | | | +------------------------------------------------------------------------------+ ^ config-register 0x2102 end wr
