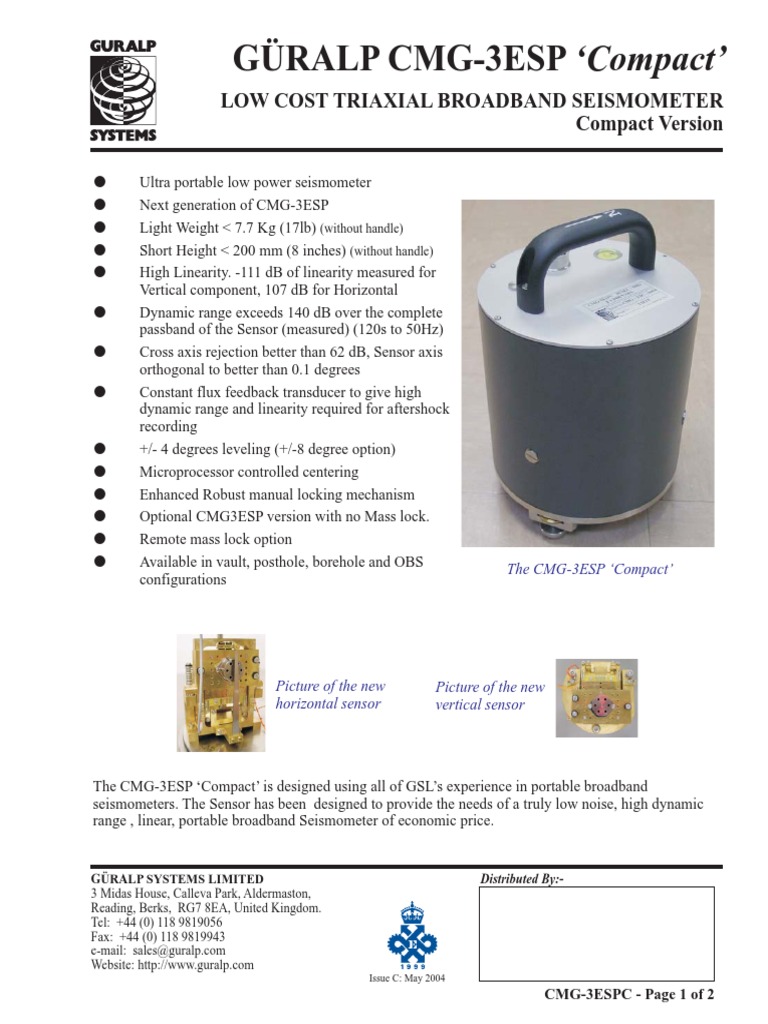

GRALP CMG-3ESP Compact

LOW COST TRIAXIAL BROADBAND SEISMOMETER Compact Version

! ! ! ! ! ! ! ! ! ! ! ! ! !

Ultra portable low power seismometer Next generation of CMG-3ESP Light Weight < 7.7 Kg (17lb) (without handle) Short Height < 200 mm (8 inches) (without handle) High Linearity. -111 dB of linearity measured for Vertical component, 107 dB for Horizontal Dynamic range exceeds 140 dB over the complete passband of the Sensor (measured) (120s to 50Hz) Cross axis rejection better than 62 dB, Sensor axis orthogonal to better than 0.1 degrees Constant flux feedback transducer to give high dynamic range and linearity required for aftershock recording +/- 4 degrees leveling (+/-8 degree option) Microprocessor controlled centering Enhanced Robust manual locking mechanism Optional CMG3ESP version with no Mass lock. Remote mass lock option Available in vault, posthole, borehole and OBS configurations

The CMG-3ESP Compact

Picture of the new horizontal sensor

Picture of the new vertical sensor

The CMG-3ESP Compact is designed using all of GSLs experience in portable broadband seismometers. The Sensor has been designed to provide the needs of a truly low noise, high dynamic range , linear, portable broadband Seismometer of economic price.

GRALP SYSTEMS LIMITED 3 Midas House, Calleva Park, Aldermaston, Reading, Berks, RG7 8EA, United Kingdom. Tel: +44 (0) 118 9819056 Fax: +44 (0) 118 9819943 e-mail: sales@guralp.com Website: http://www.guralp.com
Issue C: May 2004

Distributed By:-

CMG-3ESPC - Page 1 of 2

CMG-3ESP COMPACT SPECIFICATIONS

The CMG-3ESPC seismometer is a compact version of the CMG-3ESP. It is used for traditional short period monitoring applications up to 50Hz (the lowest spurious resonance is above 140Hz) and for projects where flat intermediate period response to 60 seconds is needed. Optional responses can be provided, including 120s, 100s, 90s, 60s, 30s and 1 second. The CMG-3ESPC height has been reduced to 8 inches from lid to foot. The sealed, three-component housing is suited for surface vault, sub-surface vault, and post hole installation. A downhole lock and lock installer are available. All external metal parts are stainless steel. A waterproof breakout box and handheld control unit are available. A 24-bit digitizer module with up to 8 gigabytes of RAM, model CMG-DM24, can be added on top of the CMG-3ESPC.

The self noise performance of the CMG-3ESP Compact has been improved now giving customers an extremely compact portable weak motion sensor for the price and size of a medium motion sensor. High frequency noise crossing NLNM @18Hz (verified on CMG-3 testing at Sandia Laboratories) Long period noise below USGS NLNM to 30s.

The above picture shows an OBS version of the CMG-3ESPD compact. The unit is made from grade 5 titanium and has +/- 10 degrees leveling. Included is a3 channel 24-bit ADC and real-time clock module, data is outputted through an RS-232 port.

CMG-3ESPC Page 2 of 3

CMG-3ESP COMPACT SPECIFICATIONS (Analogue output version)

Outputs and Response Full scale outputs:

Standard response: Optional response: Clip level and self noise:

Controls Mass recentering: Mass lock: Remote mass lock: External calibration input: Physical Lowest spurious resonance: Temperature change before recentering required: Mass recentering range: Operating temperature range: Pressure jacket material: Base plate and top cap: Power/signal connector:

20 V dc differential velocity (2x1000 V/m/s for 30 sec sensor) 10 Vdc mass position output (1000 V/m/s2 for 30 sec sensor) Flat velocity 0.033 to 50 Hz Flat velocity 0.016 / 0.01 / 0.0083 to 50 Hz See figure on page 2 Controlled remotely External access through ports in jacket Available as an option The cal input can be connected to each axis separately 140Hz, vertical; >140Hz, horiz. 10 deg C 8 deg. from horizontal -20 to +65 deg C (options for extended low temperature available) Hard anodized aluminum Hard anodized aluminum Milspec connector on top cap, KPT02E-16-26P Stainless, 1500 psi connector available On top cap On top cap 168 mm (6.61in.) 200mm (8 in.) 17 lb (7.7 kg) 10-36 Vdc +12 Vdc with internal dc-dc converter 50 mA 39 mA @ 12 Vdc +25 mA

Pressure relief valve: Carrying handle: Case diameter: Case height without handle: Weight:
Power Standard power supply: Optional power supply: Current at + 12 Vdc: For optional 4.5V output: Additional calibration current:

Options, Accessories, & Reference Data Refer to separate document for Handheld Control Unit and Passcal Universal Breakout Box. Refer to separate documents for digitizer and storage module information. Downhole Accessories Refer to separate brochure, Guralp Broadband Downhole Systems.

CMG-3ESPC Page 3 of 3
