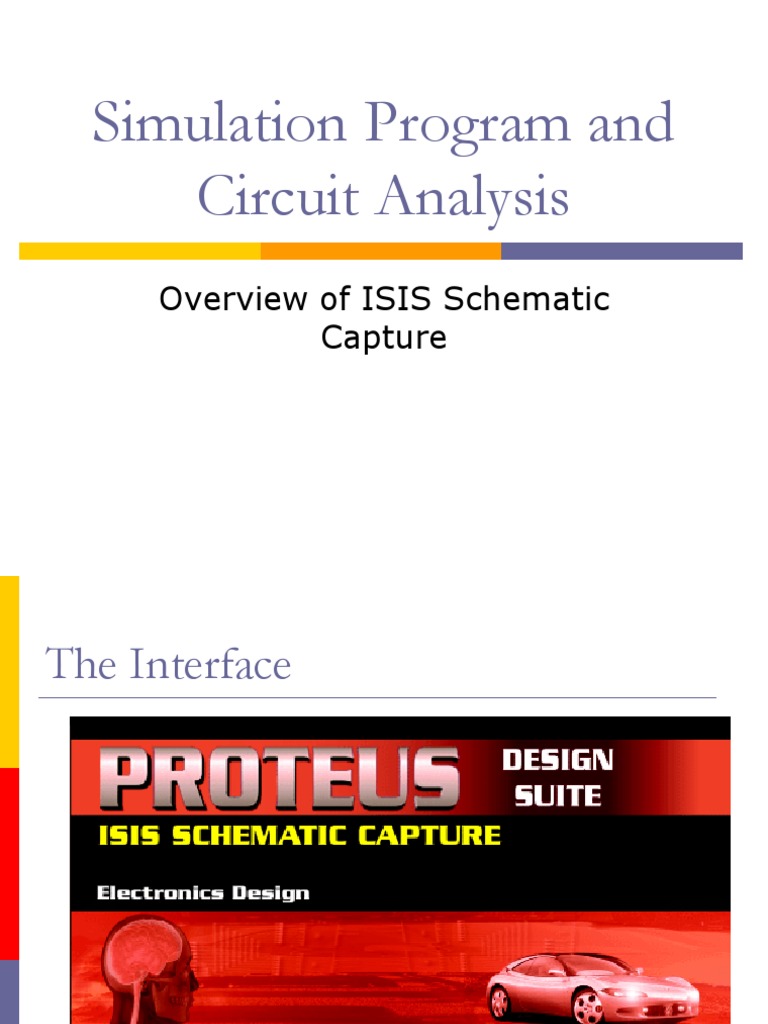

Simulation Program and

Circuit Analysis
Overview of ISIS Schematic
Capture

The Interface

TEKNIK ELEKTRO ISTTS (C)2009

1. MENU BAR

3. COMMAND TOOLBAR
8. OVERVIEW
WINDOW

10. SIMULATION BAR

2. STATUS
TEKNIK ELEKTRO ISTTS (C)2009

7. COORDINATE

11.SIMULATION LOG MESSAGES

6. EDITING WINDOW

5. ORIENTATION TOOLBAR

4. MODE SELECTOR TOOLBAR

9. OBJECT
SELECTOR
WINDOW

1. Menu Bar

TEKNIK ELEKTRO ISTTS (C)2009

2. Status

TEKNIK ELEKTRO ISTTS (C)2009

3. Command Toolbar

TEKNIK ELEKTRO ISTTS (C)2009

4. Mode Selector Toolbar

TEKNIK ELEKTRO ISTTS (C)2009

5. Orientation Toolbar

TEKNIK ELEKTRO ISTTS (C)2009

6. Editing Window
Center position

Sheet border

grid

TEKNIK ELEKTRO ISTTS (C)2009

7. Coordinate

Unit: th = thou = 10nm

2100.00 th at the right of zero position (+)
1300.00 th below the zero position (-)

TEKNIK ELEKTRO ISTTS (C)2009

10

8. Overview Window

Click move click

to view different area
in editing window
represent with green
box

TEKNIK ELEKTRO ISTTS (C)2009

To show
the whole
editing
window and
to navigate
the area to
show
To preview
of an object
selected

11

9. Object Selector Window

Previewed selected object

object

TEKNIK ELEKTRO ISTTS (C)2009

12

Simulation Program and

Circuit Analysis
Navigating of ISIS Schematic
Capture

Opening a Design

Choose
tutorial
and get
a design
file
ISISTUT

TEKNIK ELEKTRO ISTTS (C)2009

14

TEKNIK ELEKTRO ISTTS (C)2009

15

<ESC>

Remember <ESC> key to cancel an

operation

TEKNIK ELEKTRO ISTTS (C)2009

16

Redraw Command

TEKNIK ELEKTRO ISTTS (C)2009

17

Toggle Display Grid

In view menu
Snap to grid position:
Snap 10 th
<ctrl> <F1>
Snap 50 th
<F2>
Snap 0.1 in
<F3>
Snap 0.5 in
<F4>

TEKNIK ELEKTRO ISTTS (C)2009

18

Toggle False Origin

Move the center point to

specific point temporarily
After left click mouse the
specific point in editing
window The coordinate will
change to pink color
To reset to default position,
left click mouse again the
button

TEKNIK ELEKTRO ISTTS (C)2009

19

Panning/Center Display at cursor <F5>

TEKNIK ELEKTRO ISTTS (C)2009

20

Zoom In <F6>

TEKNIK ELEKTRO ISTTS (C)2009

21

Zoom Out <F7>

TEKNIK ELEKTRO ISTTS (C)2009

22

Zoom All <F8>

TEKNIK ELEKTRO ISTTS (C)2009

23

Zoom Area

left click mouse and drag the area to zoom

TEKNIK ELEKTRO ISTTS (C)2009

24

Navigating to specific drawing area

via overview window

TEKNIK ELEKTRO ISTTS (C)2009

25

Zoom using Mouse Scroll Button

Point mouse,
and turn scroll
button up/down
You can do it in
editing window
or overview
window
TEKNIK ELEKTRO ISTTS (C)2009

26

Simulation Program and

Circuit Analysis
Creating New Schematic Design

Cursor

TEKNIK ELEKTRO ISTTS (C)2009

28

New Design

TEKNIK ELEKTRO ISTTS (C)2009

29

New Design using Template

TEKNIK ELEKTRO ISTTS (C)2009

30

Selecting Object
Component mode overview window
will change from viewing editing
window to object view
Pick device
Library Manager

Other object

TEKNIK ELEKTRO ISTTS (C)2009

31

Another Way to select object

Point and Right click mouse

The
same
way
to
select
object

TEKNIK ELEKTRO ISTTS (C)2009

32

Picking Electronic Device

Type device name
Search
device
category

TEKNIK ELEKTRO ISTTS (C)2009

33

Picking Resistor
1

package
TEKNIK ELEKTRO ISTTS (C)2009

34

Picking Resistor
Left click mouse to
preview in overview
window
Left click mouse in editing window, the
cursor will change to
and then left click mouse again to place
the device
Press button to rotate

TEKNIK ELEKTRO ISTTS (C)2009

35

Point new
position, left
click mouse
again to
place the
same device

TEKNIK ELEKTRO ISTTS (C)2009

36

Selecting Device

Point device until cursor change to

hand and device rounded with red
dashed box

TEKNIK ELEKTRO ISTTS (C)2009

37

Change Label and Value

Select the device

Double left click mouse
Change the value of
resistor
Press OK

TEKNIK ELEKTRO ISTTS (C)2009

38

Reorienting placed device

To move component:
left click mouse and
drag to new position
To Delete: <Delete>
or right click mouse and
choose delete object
To rotate:
right click mouse an
choose rotate

TEKNIK ELEKTRO ISTTS (C)2009

39

TEKNIK ELEKTRO ISTTS (C)2009

40

Picking Battery

TEKNIK ELEKTRO ISTTS (C)2009

41

Drawing Wire

Toggle wire
auto router

Point mouse to device terminal until the indicator

change to green pen. Left click mouse and move
to the other terminal and left click again

TEKNIK ELEKTRO ISTTS (C)2009

42

TEKNIK ELEKTRO ISTTS (C)2009

43

Editing Wire
Choose
selection
mode

Or point the wire,

Right click mouse
and choose the
action

Point wire until cursor change to

arrow, left click mouse and drag
to new position

TEKNIK ELEKTRO ISTTS (C)2009

<delete> key not

work in wire

44

Labeling Wire / NetName

Enter the string label
choose label mode,
point the wire and
left click mouse

Or point the wire, right

click mouse and choose
place wire label

TEKNIK ELEKTRO ISTTS (C)2009

45

Adding Ground

TEKNIK ELEKTRO ISTTS (C)2009

46

TEKNIK ELEKTRO ISTTS (C)2009

47

Saving Design

2R
TEKNIK ELEKTRO ISTTS (C)2009

48

Simulation Program and

Circuit Analysis
PROTEUS VSM Basic

Proteus VSM

VSM = Visual System Modelling

The heart is PROSPICE based on SPICE3F5

Simulate Analog and Digital System

TEKNIK ELEKTRO ISTTS (C)2009

50

Animation Panel

Stop = <Shift> <Break>

Step

Pause

Play

Note:
Space Bar Play button for Graph Analysis

TEKNIK ELEKTRO ISTTS (C)2009

51

Basic Devices
VSOURCE

CSOURCE

RESISTOR

TEKNIK ELEKTRO ISTTS (C)2009

INDUCTOR

CAPACITOR

52

Component
Name

PROTEUS
Device
Name

Symbol

Component
Name

PROTEUS
Device
Name

Resistor

RESISTOR

Sinusoid
Voltage Source

VSINE

Inductor

INDUCTOR

Sinusoid
Current Source

ISINE

Capacitor

CAPACITOR

Pulse Voltage
Source

VPULSE

DC Voltage
Source

VSOURCE

Pulse Current
Source

IPULSE

DC Current
Source

CSOURCE

Piecewise
linear Voltage
Source

VPWLIN

Voltage
Controlled
Voltage Source

VCVS

Piecewise
Linear Current
Source

IPWLIN

Current
Controlled
Voltage Source

CCVS

Exponential
Voltage Source

VEXP

Voltage
Controlled
Current Source

VCCS

Exponential
Current Source

IEXP

Current
Controlled
Current Source

CCCS

Digital Clock

CLOCK

TEKNIK ELEKTRO ISTTS (C)2009

Symbol

53

Component
Name

PROTEUS
Device
Name

Symbol

Component
Name

PROTEUS
Device
Name

Diode

DIODE

Not Gate

NOT

Transistor
NPN

NPN

And Gate

AND

Transistor
PNP

PNP

Or Gate

OR

JFET n type

NJFET

Nand Gate

NAND

JFET p type

PJFET

Nor Gate

NOR

MOSFET n
type

NMOSFET

Exor Gate

EXOR

MOSFET p
type

PMOSFET

D Flip Flop

DTFF

MESFET n
type

NMESFET

JK Flip Flop

JKFF

MESFET p
type

PMESFET

TEKNIK ELEKTRO ISTTS (C)2009

Symbol

54

Basic Model Library

TEKNIK ELEKTRO ISTTS (C)2009

55

TEKNIK ELEKTRO ISTTS (C)2009

56

TEKNIK ELEKTRO ISTTS (C)2009

57

Animation Options

Frames Per Second (default=20): Graphical

display rate
Time Step per frame (default=50m): Time
allocated to each frame (for real time
operation should be set to the reciprocal of
the frame rate)
Single Time Step (default=50m): control
time of single step animation
Max Spice Time Step (default=25m):
Maximum time step used by SPICE
If Simulation run to slow or to fast try to
adjust these parameters

TEKNIK ELEKTRO ISTTS (C)2009

58

Analog / Digital Simulation

By default Digital Simulation can run up to

several MHz and analog Simulation only
run 10-20kHz

Running Digital circuit in analog domain

will consume the CPU resource (Need
some trick!)

TEKNIK ELEKTRO ISTTS (C)2009

59

If there is any Error in data display

TEKNIK ELEKTRO ISTTS (C)2009

60

How we Study?

Simple analysis using Virtual Instrument

Advance circuit Analysis

TEKNIK ELEKTRO ISTTS (C)2009

61

Simulation Program and

Circuit Analysis
Creating New Schematic Design

Percobaan 1 ( Pengukuran
Tegangan dan Arus)
SWITCH
SAKLAR ON/OFF

AMPEREMETER

LAMPU
12 V/ 24
WATT

Tegangan
Baterry
12 Volt

TEKNIK ELEKTRO ISTTS (C)2009

VOLT
METER

63

Percobaan 1 ( Pengukuran
Tegangan dan Arus)
1.

2.

Pertama Klik Pada PICK DEVICES

Isi nama nama komponen mulai
1.
2.
3.

3.

Klik pada VIRTUAL INSTRUMENT MODE

dan diambil Tool Pengukuran seperti :
1.
2.

4.

Battery
Lamp
Switch

DC Voltmeter
DC Ammeter

Klik Pada TERMINAL MODES :

1.

Ground

TEKNIK ELEKTRO ISTTS (C)2009

64

Percobaan 1 ( Pengukuran
Tegangan dan Arus)
Kemudian Klik
Pada Sistem pada
Set Animation
Option
Muncul Animated
Option, dicentang
Show Wire Voltage
by Colours dan
Show Wire Current
With Arrows

TEKNIK ELEKTRO ISTTS (C)2009

65

Percobaan 1 ( Pengukuran
Tegangan dan Arus)
+0.50
Amps

L1

B1

12V

12V

TEKNIK ELEKTRO ISTTS (C)2009

+11.9
Volts

66

Percobaan 1 ( Pengukuran
Tegangan dan Arus)
Apabila diinginkan
background hitam,
bisa menggunakan
Klik Tamplate dan
bawa ke Load Styles
Design
Open Samples dan
di klik di Interactive
Simulation dan klik
animated circuits
Pilih AC1

+0.50
Amps

B1
12V

TEKNIK ELEKTRO ISTTS (C)2009

L1
12V

+11.9
Volts

67

Percobaan 1 ( Pengukuran
Tegangan dan Arus)

Dengan Perhitungan :

V
I
R
12
I
0.5 Ampere
24

TEKNIK ELEKTRO ISTTS (C)2009

68

Percobaan 2 (pengukuran voltage

divider)
Resistor 1
100 Ohm

Tegangan
Baterry
12 Volt

VOLT
METER 1

Resistor 2
100 Ohm

VOLT
METER 2

Resistor 3
300 Ohm

VOLT
METER 3

TEKNIK ELEKTRO ISTTS (C)2009

69

Percobaan 2 (pengukuran voltage

divider)

Pertama PICK DEVICES yaitu

Klik pada VIRTUAL INSTRUMENT MODE

dan diambil Tool Pengukuran seperti :

res.ieee Untuk Resistor

Battery Untuk Sumber Daya DC

DC Voltmeter
DC Ammeter

Klik Pada TERMINAL MODES :

Ground

TEKNIK ELEKTRO ISTTS (C)2009

70

Percobaan 2 (pengukuran voltage

divider)
R1
100

+3.00
Volts

B1
12V

R2
100
+3.00
Volts

TEKNIK ELEKTRO ISTTS (C)2009

R3

+6.00

200

Volts

71

Percobaan 2 (pengukuran voltage

divider)
R1
VR1
VSumber
R1 R 2 R3
VR1

100
12 3Volt
100 100 200

100
VR 2
12 3Volt
100 100 200
200
VR3
12 6Volt
100 100 200
TEKNIK ELEKTRO ISTTS (C)2009

72

Percobaan 3 (Hukum Kirchoff)

A

R1

R2

+1.00

+1.00

Amps

Amps

I3
I1

I2

R3

B1

B2

10V

10V

r1=1 ohm
i1

i2
r2= 1Ohm
+2.00

Amps

I3
I1

I2
F

TEKNIK ELEKTRO ISTTS (C)2009

73

Percobaan 3 (Hukum Kirchoff)

Pertama PICK DEVICES yaitu

Klik pada VIRTUAL INSTRUMENT MODE

dan diambil Tool Pengukuran seperti :

DC Ammeter

Klik Pada TERMINAL MODES :

res.ieee Untuk Resistor

Battery Untuk Sumber Daya DC

Ground

Untuk Battery di klik 2 x dan diisi

INTERNAL RESISTANCE = 1
TEKNIK ELEKTRO ISTTS (C)2009

74

Percobaan 3 (Hukum Kirchoff)

IR 0
Imasuk = Ikeluar
I1 + I2 = I3 atau I1 = I3 I2 atau I2 =
I3 I1 (Persamaan -1)
loop C-A-B-D-C:

1 + ( r1 + R1) + I3.R3 = 0
10 + 6 I1 + 2 I3 = 0 (persamaan -2)

loop F-E-A-B-F:

2 + I2 (r2 + R2) + I3 . R3 = 0
10 + 6 I2 + 2 . I3 = 0 .(persamaan 3)
TEKNIK ELEKTRO ISTTS (C)2009

75

Percobaan 3 (Hukum Kirchoff)

I1 = 1 Ampere dan I2 = I3 I1 = 2 1 =
1 Ampere.
Jadi arus listrik pada cabang rangkaian BD-C-A yaitu I1 = 1 A.
Arus listrik pada cabang rangkaian B-F-EA yaitu I2 = 1A.
Arus listrik pada cabang rangkaian A-B
yaitu I3 = 2 A.

TEKNIK ELEKTRO ISTTS (C)2009

76

Percobaan 4 (Penggunaan AC)

TEKNIK ELEKTRO ISTTS (C)2009

77

Percobaan 4 (Penggunaan AC)

Pertama PICK DEVICES yaitu

res.ieee Untuk Resistor
Vsine Untuk Sumber Daya AC
Cap Untuk Capacitor
Inductor Untuk Inductor
Klik pada VIRTUAL INSTRUMENT MODE dan diambil Tool
Pengukuran seperti :

AC Voltmeter

AC Ammeter

Oscilloscope
Klik Pada TERMINAL MODES :

Ground
Klik Pada TERMINAL MODES :

Ground
TEKNIK ELEKTRO ISTTS (C)2009

78

Percobaan 4 (Penggunaan AC)

jpsugiono@stts.edu (C)2007

Percobaan 4 (Penggunaan AC)

jpsugiono@stts.edu (C)2007

Percobaan 4 (Penggunaan AC)

3
jpsugiono@stts.edu (C)2007

Percobaan 4 (Penggunaan AC)

C1
+1.11
AC Amps

V1
VSINE
VA=40
FREQ=160

50uF

R1

L1

30

60mH

+29.9
AC Volts

TEKNIK ELEKTRO ISTTS (C)2009

82

Percobaan 4 (Penggunaan AC)

TEKNIK ELEKTRO ISTTS (C)2009

83

Oscilloscope

TEKNIK ELEKTRO ISTTS (C)2009

84

Counter Timer

TEKNIK ELEKTRO ISTTS (C)2009

85

Signal Generator

jpsugiono@stts.edu (C)2007

Example

jpsugiono@stts.edu (C)2007

Simulation Result

jpsugiono@stts.edu (C)2007

Simulation Program and

Circuit Analysis
Proteus VSM
Sweep Analysis

DC Sweep

DC independent Source value is swept

jpsugiono@stts.edu (C)2007

Example

jpsugiono@stts.edu (C)2007

DC Sweep
Pertama diambil dari generator mode dan
dipilih yang DC
Kemudian pada DC Generator
Properties yang dimana sebelum
nya dicawang Hide Properties
diganti dengan Manual Edits dan
sebelumnya properties {VALUE=0}
menjadi VALUE=V

TEKNIK ELEKTRO ISTTS (C)2009

92

DC Sweep

TEKNIK ELEKTRO ISTTS (C)2009

93

DC Sweep
Setelah itu klik Current Probe Mode
untuk pengecekan,
Kemudian dipasang diode ke arah ground
Kemudian pada graph mode dipilih DC
Sweep

TEKNIK ELEKTRO ISTTS (C)2009

94

DC Sweep

TEKNIK ELEKTRO ISTTS (C)2009

95

DC Sweep

D1(A)
VALUE=V

I1

D1
1N4001

TEKNIK ELEKTRO ISTTS (C)2009

96

Tampilan DC Sweep

TEKNIK ELEKTRO ISTTS (C)2009

97

AC Sweep(Frequency Sweep)

TEKNIK ELEKTRO ISTTS (C)2009

98

AC Sweep(Frequency Sweep)

TEKNIK ELEKTRO ISTTS (C)2009

99

Digital Circuit

TEKNIK ELEKTRO ISTTS (C)2009

100

Digital Circuit ( Counter)

TEKNIK ELEKTRO ISTTS (C)2009

101

Digital Circuit ( Counter)

TEKNIK ELEKTRO ISTTS (C)2009

102

Digital Circuit ( Traffic Light)

CLOCK

U1
D

CLK
Q
1Hz

DTFF

U3

U2
D

AND
Q

CLK
Q
DTFF

TEKNIK ELEKTRO ISTTS (C)2009

103

Microcontroler Circuit
VCC

C1
U1

30pF

X1

XTAL1

CRYSTAL

C2

XTAL2

30pF
1
VCC

C3
10uF

6
7
8
9
11

RST
P3.2/INT0
P3.3/INT1
P3.4/T0
P3.5/T1
P3.7

P1.0
P1.1
P1.2
P1.3
P1.4
P1.5
P1.6
P1.7

P3.0/RXD
P3.1/TXD

12
13
14
15
16
17
18
19

2
3

AT89C2051

R1
100

TEKNIK ELEKTRO ISTTS (C)2009

104

Microcontroler Circuit
Dengan di klik 2 x pada IC AT 89C2051 Maka dengan Program File
Dapat mengambil Hex dari Program yang telah dibuat

TEKNIK ELEKTRO ISTTS (C)2009

105

Microcontroler Circuit

Maka setelah di compile maka keluar HEX

TEKNIK ELEKTRO ISTTS (C)2009

106

TEKNIK ELEKTRO ISTTS (C)2009

107
