  • Exercise 1: Earthquake Epicenter Practice
  • Exercise 2: Earthquake Epicenter Practice

I want to believe in this feeling. We might never get anyones attention.

We might never
have an audience cheering for us, but well keep trying. Well do everything we can to get
this feeling out there. This feeling in our hearts that brought us here. Someday well
definitely fill every seat in this auditorium
- Honoka Kousaka, Love Live School Idol Project
CH 6: EARTHQUAKES
Practice with Triangulation: Locating an earthquake epicenter
In the 6.2 Notes, you learned that seismologists determine the distance to the earthquake epicenter
using the difference between S and P wave arrival times. To locate the epicenter of the earthquake,
seismologists use the distance data from 3 different seismographs, and then draw circles that distance
away from the station. Where they intersect, thats the epicenter!! (or close to it)

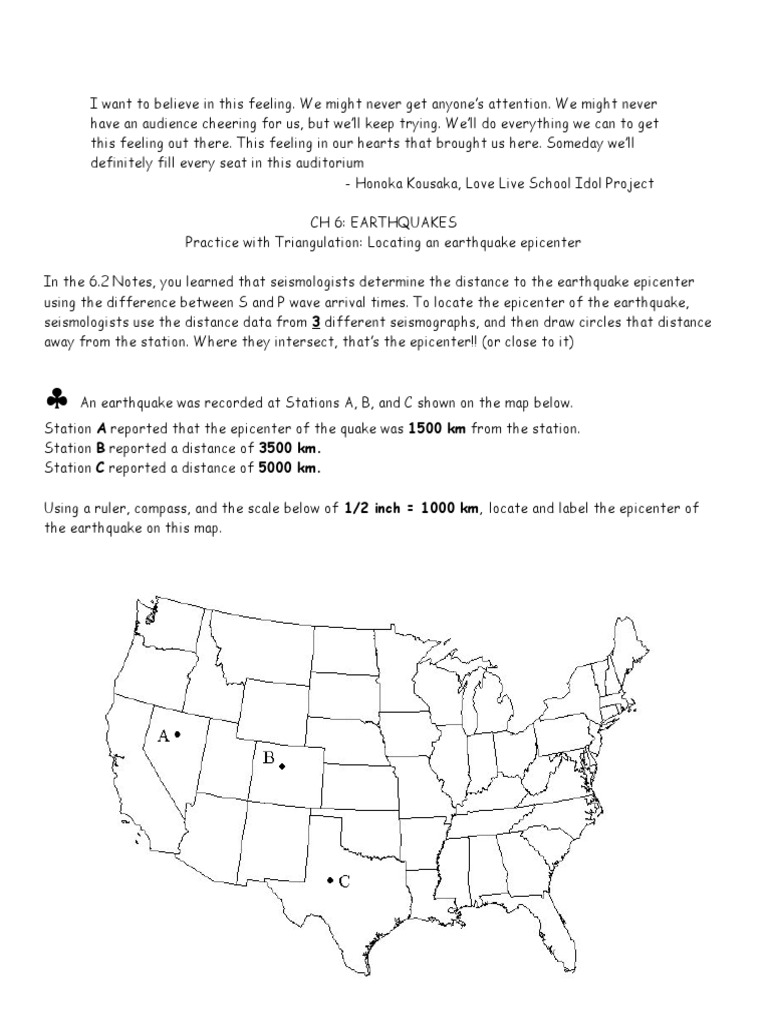

An earthquake was recorded at Stations A, B, and C shown on the map below.

Station A reported that the epicenter of the quake was 1500 km from the station.
Station B reported a distance of 3500 km.
Station C reported a distance of 5000 km.
Using a ruler, compass, and the scale below of 1/2 inch = 1000 km, locate and label the epicenter of
the earthquake on this map.

1/2 inch = 1000 km

An earthquake was recorded at Stations A, B, and C shown on the map below.

Station A reported that the epicenter of the quake was 2500 km from the station.
Station B reported a distance of 5000 km.
Station C reported a distance of 6750 km.
Using a ruler, compass, and the scale below of 1/2 inch = 1000 km, locate and label the epicenter of
the earthquake on this map.

1/2 inch = 1000 km

CH 6: EARTHQUAKES
Practice with Triangulation: Locating an earthquake epicenter
In the 6.2 Notes, you learned that seismologists determine the distance to the earthquake epicenter
using the difference between S and P wave arrival times. To locate the epicenter of the earthquake,
seismologists use the distance data from 3 different seismographs, and then draw circles that distance
away from the station. Where they intersect, thats the epicenter!! (or close to it)

An earthquake was recorded at Stations A, B, and C shown on the map below.

Station A reported that the epicenter of the quake was 2000 km from the station.
Station B reported a distance of 2000 km.
Station C reported a distance of 4500 km.
Using a ruler, compass, and the scale below of 1/2 inch = 1000 km, locate and label the epicenter of
the earthquake on this map.

1/2 inch = 1000 km

An earthquake was recorded at Stations A, B, and C shown on the map below.

Station A reported that the epicenter of the quake was 5500 km from the station.
Station B reported a distance of 4000 km.
Station C reported a distance of 1000 km.
Using a ruler, compass, and the scale below of 1/2 inch = 1000 km, locate and label the epicenter of
the earthquake on this map.

1/2 inch = 1000 km
