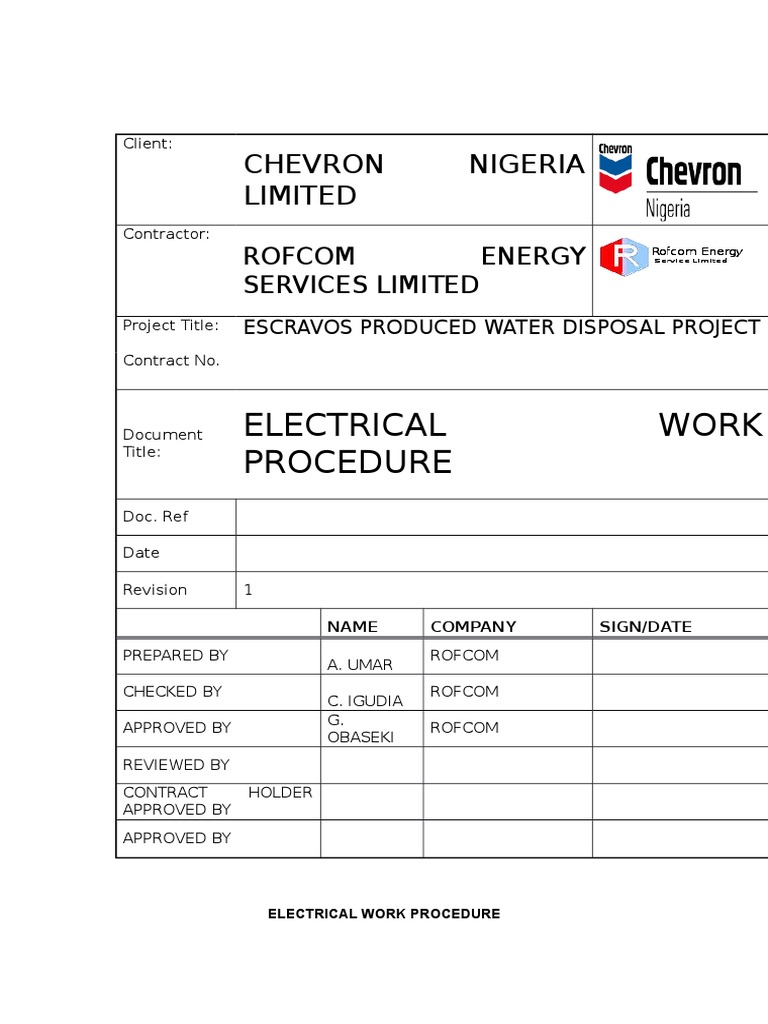

Client:

CHEVRON NIGERIA
LIMITED
Contractor:
ROFCOM ENERGY
SERVICES LIMITED
Project Title: ESCRAVOS PRODUCED WATER DISPOSAL PROJECT
Contract No.

Document ELECTRICAL WORK

Title:
PROCEDURE
Doc. Ref

Date

Revision 1

NAME COMPANY SIGN/DATE

PREPARED BY ROFCOM
A. UMAR
CHECKED BY ROFCOM
C. IGUDIA
G.
APPROVED BY ROFCOM
OBASEKI
REVIEWED BY
CONTRACT HOLDER
APPROVED BY
APPROVED BY

ELECTRICAL WORK PROCEDURE

 TABLE OF CONTENTS

1.0 PURPOSE

2.0 SCOPE

3.0 REFERENCE

4.0 DEFINITIONS

5.0 RESPONSIBILITIES

6.0 PROCEDURE

7.0 ELECTRICAL EQUIPMENT INSTALLATIONS

8.0 ATTACHMENTS: TEST

1.0 PURPOSE
The purpose of this document is to ensure safe, high quality and consistent
installation of the electrical system at the Escravos Produced Water Disposal
facility.

2.0 SCOPE

This Electrical work procedure covers all onshore electrical construction

activities, Installation, inspection and testing of electrical system on Main
deck, Cellar deck, Jacket and Bridge of the Escravos Produced Water
Disposal facility. The overviews of work are as follows:

Unboxing and Sorting of Lighting Accessories

Cable drum testing
Fabrication and Installation of Cable Tray Supports
Fabrication and Installation of Cable Tray
Earth Bonding
Junction Box Installation
Bridge Conduit Installation and Wiring
Fabrication and Installation of Stanchion / Pendant Light support
Installation of Plant Lighting Systems
Transformers Installation and Termination
Electric Motors Installation and Termination
MV, LV Power and Control Cable Pulling
Cable Glanding and Termination
Cable Tagging and Core Identification
Testing (Meggering and Continuity)
Mechanical Completion Checks

3.0 REFERENCE
All construction work, installation and testing shall be carried out in
accordance with good engineering practice and shall satisfy all statutory
requirements of the National and/or local authorities in which the installations
will be located.

The following Standards and requirements shall form an integral part of the
electrical construction work, Installation, inspection and testing in the
 Escravos Produced Water Disposal facility:

PWD-D017-ELE-DTL- Electrical Installation Details

NET-000-90005 (Power & Control) Offshore

API RP 14F Recommended Practice for Design and

Installation of Electrical System for Offshore
Production Platforms
ASTM A123 Specification for Zinc (Hot- Galvanized) Coating
on Product Fabricated from Rolled, Pressed,
and Forged Steel Shaped Plates, Bars, and
Strip
ASTM A386 Specification for Zinc-Coating (Hot-Dip) on
Assembled Steel Products
IEEE 45 Recommended Practice for Electric Installation
on Shipboard
NPFA National Electrical Code 70
NPFA Lightning Protection Code 78

4.0 DEFINITION
NONE
5.0 RESPONSIBILITIES
Electrical Team Lead
Shall ensure proper implementation of this procedure. He shall
coordinate the activities of the Electrical Engineer who leads the
Electrical team.

Electrical Engineer
 The Electrical Engineer Shall be responsible for the following;
Verifying all activities relevant to installation and testing of field
mounted Equipment and Lighting accessories.
Verifying the availability of the materials required for installation.
Preparation and submission of as-built drawings and resolving
all technical problems that may arise during installation activities.
He is also responsible for coordinating with the QA / QC
Engineer for resolving technical queries.

Electrical Supervisor
Shall lead the Electrical activities at construction stage; carry out all
inspection required; issue the relevant report or checklist and
coordinate with the QA / QC Inspector and the Electrical Engineer.

Quality Control Inspector

Shall monitor the proper implementation of the project procedures and
specifications. Shall also be responsible for conducting of tests on
cables and instruments during delivery and before installation;
responsible for all final inspection activities; rectify all punch list items
and sign off all finished works.

Electrical Technician is responsible for:

Installing all Electrical equipment and lighting.
Coordinating with the Electrical Supervisor and QA/QC Engineer and
Electrical Engineer in electrical installation and in resolving technical

6.0 PROCEDURE
6.1 Receiving and Inspection of Electrical Equipment / Material
Upon receipt of electrical materials the QC Inspector and warehouse
personnel shall inspect visually the materials and equipment for
possible defects, physical damages or missing part.

The conformance of the electrical equipment to specifications,

hazardous area classification and mechanical certification shall be
verified.
 The provision in the following documents shall form the basis for all
the inspection required.
Quality Assurance/Quality Control
Inspection and Test Plan
Manufacturers data and technical manuals

Electrical equipment shall be visually inspected for possible damage

and defects during handling and shipment.
However, for MV / LV Switchgear panels in the MCC, high voltage test
on the panel should have been carried out as part of the
manufacturers scope in accordance with the relevant CNLs or
international Standards; all relevant documents duly signed.

6.2 Pre-Installation Test and Inspection

Tests shall be carried out on cables and wires at delivery and before
installation and the QC inspector shall perform these test.

6.2.1 Test on Cables

The order of test shall be
Insulation Resistance Test for
Low Voltage Power Cable (LV)
Low Voltage Control Cable (LV)
Medium Voltage Cable (MV)
Continuity Test for
Low Voltage Power Cable (LV)
Low Voltage Control Cable (LV)
Medium Voltage Test for Medium Voltage Cable (HV)
Test equipment to be used are as follows
Megger Tester 1000V or 5000V
Fluke Multi-tester
Hi-Pot Tester
6.3 Electrical Equipment Storage and Preservation
Material storage shall comply with the material Control Procedure
provided for this project.
6.3.1 The Electrical equipment shall be stored where appropriate in
accordance with vendor advice.
On receiving the motors, it shall be stored in a dry and clean shelter
position, which is free from vibration and rapid change in temperature.
 The motor shall be covered completely with tarpaulins to prevent
ingress of dust or moisture until such a time installation is complete.
Where the motor is fitted with anti-condensation heater. With the client
approval, a suitable power supply shall be made available; the heater
shall be switched on throughout the storage period, particularly where
the storage period is likely to be prolonged. Warning notice shall be
attached to this effect.

6.4 Calibration
All test equipment shall be calibrated in accordance with Calibration
Control Procedure and shall be traceable to the applicable standards.

7.0 ELECTRICAL EQUIPMENT INSTALLATION

7.1 Cable tray Supports Fabrication and Installation

Structural welders shall carry out fabrication of cable tray support.
These Cable tray supports shall be installed on horizontal base
plate unless otherwise field adjustments are required.
The cable tray supports shall be fastened with bolts and nuts and
angular iron for bracing wherever possible for reinforcement.
Cable tray support shall provide strength and safe working
capacity (SWL) sufficient to meet the load requirement of the
cables to be laid on top cable trays.
The cable tray support material shall agree with the EPWD project
specification.
Special consideration will be given to center-supported systems
considering eccentric loading.

7.2 Paint Touch-up for Cable Tray Support

Paint touch-up for cable tray support shall be done with zinc-rich
galvanizing materials that meet the required specification.
Cable trays that have a Hot-dip galvanized coating shall be re-
touched after fabrication i.e. after cutting and drilling since the
coating gets damaged over time.
Other protective coatings that are cut or damaged must be
touched up with compatible coatings.
7.3 Cable Trays Installation

Cable tray shall be installed in conformance with NEC A318 and

standards set forth in NEMA VE-1 and VE-2 as well that provided
by the project (PWD-D017-ELE-DTL- NET-000-90005 Electrical
Installation Details (Power & Control) Offshore
Consideration shall be given to loads associated with future cable
additions or any other loads to the cable tray system or cable tray
support system.
Cable tray cut section shall be treated to remove sharp edges,
which could cause damage to cables and cause injury to
personnel.
Insulation separators and insulated fitting materials shall be used
to prevent contact corrosion due to the use of SS-316 in
combination with steel supports.
Cable tray hardware (nuts, bolts and washers..) to be used during
the installation shall be of 316 stainless steel materials.
Where cable trays are linked together, splice plate
connectors/hinges shall be used to bolt them and cable tray shall
be grounded according to EPWD Grounding specification.
The linking points shall be bonded together using a dedicated
bond wires, and bonding wires shall have a good surface contacts.
Competent and qualified persons familiar with standards electrical
construction practices, electrical equipment shall perform the work.

7.4 Cable Pulling.

Prior to cable installation, cable path shall be examined to ensure
that all areas are free of hazards that may cause damage during
cable installation.
All cables shall be pulled from the top of the drum and in the
direction indicated on the drum according to vendors
recommendation.
Sufficient cables rollers and side roller (when required) shall be
used when pulling cable in position. This will reduce the effort
required and ensure the cable outer sheath is not damaged.
The minimum bending radius of the cable shall be maintained to
prevent damage to the cable
After pulling of cables, temporary identification tags shall be
attached. Permanent tags shall be attached at the end of
 termination activities.
Correct power and control cable size and type shall be pulled.
After pulling, the cable end shall be sealed to prevent moisture
ingress

7.5 Cable Glanding

Proper sizes of cable gland suitable for the cable shall be used to
match the appropriate cable.
Any unused cable entry hole shall be plugged.
While glanding power cables, it shall be ensured that the loads of
the cables are not coming on the glands.
Close attention shall be paid to the cable glanding and sealing
arrangements on all electrical equipment.

7.6 Cable Termination

Termination (wiring connection) shall be done as per specification,
wiring drawings and/or manufacturers instruction.
Core shall be terminated with pin crimps or cable lugs. These shall
be installed with crimping / compression tools and shall be
tightened to manufacturers recommended torques.
Each lug shall correctly match the cross-sectional area of the
conductor and shall be crimped on with the correct compression
tools and dies.
Power cables and control cables shall be anchored to the cable
tray by using cable ties (tie wraps).
Sufficient length of cable for connection shall be coiled near the
equipment side.
Certified HV/MV jointer shall perform all MV cable termination and
joints where required.

7.7 Cable Tagging and Core Identification

Each cable shall be correctly tagged as per project specification
and standards for suitable identification.
Identification numbers for power and control cables shall read from
terminals outwards
Identification shall be in the form of captive o ring ferrule of
appropriate diameter engraved or indelibly printed with the cable
number, the core number and the terminal number.
Wire maker shall be provided for cable wires/cores for power
cables and control cables.
 7.8 Grounding System
All metallic enclosures of equipment, cable trays, cable tray structural
supports, vessels, skids, structural steel supports etc. as found in
bridge, main deck, cellar deck and jacket shall be grounded by
connection to the common Earth Grid. The Earthing System / Pattern
shall be in accordance with the approved drawings. All Earthing cables
shall be PVC covered.

7.9 Electric Motor

Electric motors shall be erected or installed in full accordance with the
manufacturer instructions and project specification with regards to
foundation, alignment, shimming etc. Before electrical hook-up of the
electric motor, the Electrical Equipment Field Inspection report form
shall be filled, signed and duly approved by all relevant parties. The
terminations shall be in correct Phase-Sequence arrangement and
marked L1, L2 & L3 at each end.
The metal casing of the electric motors shall be earthed using the
specified wire size according to project spec.

8.0 ATTACHMENTS

Basic Inspection (Electrical Equipment)

Cable Installation Check Procedure
Cable Tray/Ladder Inspection
Electrical Installation Checklist
Lighting Circuit Insulation Resistance Test
Lighting Installation Check Procedure
Electrical

R R o fco m E n er gy
S er v ice L im ited
CHECKLIST
BASICINSPECTION
(ELECTRICALEQUIPMENT)
! !
Unique ID Item/TagNo.
Project Name: Sub-SystemNo
Sub-SystemDescription Date Printed
DrawingReference
Compare nameplate information with equipment record REMARKS
Establish aand record the following:

1. Equipment/Circuit identification
2. Areaclassification
3. Type of Exprotection/gasgroup/temperature class
4. Degree of enclosure protection
5. Electrical protection setting/rating
6. Actual maximumload/ammeter reading

Check the followingitems and report anydeviation/defects under remarks:

1. Labelingcorrect
2. No unauthorized modifications
3. Enclosure and glasses satisfactory
4. Seals and gasketssatisfactory
5. Boltsand glands complete and tight
6. No undue accumulation of dust and dirt
7. No leakage of oil/compound
8. No damage to above-ground part of connected cables
9. Adequate protection of equipment and cables against corrosion, the
weather, vibration and other adverse factors
10. Motor fansand couplingsnot rubbingon cowls/guards
11. Earthingin good condition
12. Oil levelsin sight glasses correct
13. Silicagel in breathers satisfactory
14. Pressurization systemcorrect & tested
Suitable for areaclassified YES NO Equipment accepted YES NO
Rofcom
CompletedBy RofcomQC CNLConstruction
Construction
Signature
Date
Electrical

CHECKPROCEDURE
R R ofcom E n er gy
S er v ice L im ited
ELECTRICAL
CABLEINSTALLATION
! !
Unique ID Item/TagNo.
Project Name: Sub-SystemNo
Sub-SystemDescription Date Printed
DrawingReference

Item Checkboxesfor each line numbeer to be marked with OKor NA Result

1 Cableaccordingto dataon cable schedule (size and type)
2 Labeling, numberingand core ferrulingcorrect.
3 Bendingradius, cleatingand support accordingto specification.
4 Termination correct and tight and no core damage. Spare coresearthed and tight.
5 Continuityin all cores, screen, earth and armour. Acceptable value0.2ohm.
Power, control cable220 Voltsand above, Insulation test acceptablefor phase to
earth (L1-E, L2-E, L3-E) core to core (L1-L2, L1-L3,L2-L3)
6
NOTE: Ensure anyelectroniccomponentsare disconnected fromcircuit before
performingInsulation
Interface cablesmarked test.
and sealed off in the splice end and coiled correctlyand
7 in accordance with coiling
8 After termination
Correct make surecorrectlyand
type of glandsfitted that all cuttingsand debrisare
tightened, cleared
and correct away.
IP washer
9 fitted. (where

Comments/Action (where applicable)

Rofcom
CompletedBy RofcomQC CNLConstruction
Construction
Signature
Date
Electrical

R R o fco m E n er gy
S er v ice L im ited
INSPECTIONOF
CABLETRAY/LADDER
! !
Unique ID Item/TagNo.
Project Name: Sub-SystemNo
Sub-SystemDescription Date Printed
DrawingReference

Checkthefollowingandreportanydeviations/defectsunderremarks: ThickYes/No

Cable Tray/Ladder installation isin accordance with the construction plan and section
detail drawing ____________
Cable Traysecuringbolt are well tighted ____________
Cable Tray/Ladder and accessories are of stainlesssteel or Galvanized ____________
Cable Tray/Ladder installation and fasteningare in accordance with project specification ____________
Cable Trays systemisprovided with proper grounding ____________
Ladder isproperlyfixed and that supportsare properlyspaced ____________
Cable traysare laid on solid and well-leveled Cable Traysupports ____________
Joints between Cable Tray/Ladder sectionsare firmlybolted usingthe correct fasteners ____________
Cable bendsare executed correctlyand do not exceed minimumrequirements ____________
Cable Trayis clean and no foreign debris or sharp objects are within ____________
Check Insulation between dissimilar metals ____________

Remarks:

Completed Rofcom
RofcomQC CNLConstruction
By Construction
Signature
Date
Electrical

CHECKSHEET-ELECTRICAL
R R ofcom E n er gy
S er v ice L im it ed
INSTALLATIONS
Electrical JunctionBox
!
!
Unique ID Item/TagNo.
Project Name: Sub-SystemNo
Sub-SystemDescription Date Printed
DrawingReference

Item Check boxesfor each line numbeer to be marked with OKor NA Result
Correct junction boxinstalled accordingto enclosure classification and are
1
classification, and in accordance with location drawing
2 Labeling, numberingand ferrulecorrect.
Junction boxmechanicallysound, solidlyand correctlymounted. Terminal
3 blocks are of correct type correctlymounted, mechanicallysound and
clearlymaarked. Barriersfitted where required and all connectionstight.
Earthingbondingand coloringcorrect. Instrument screens segregated
4
fromelectrical earth.
5 No top entrycables unlessauthorized. Spare entriesplugged.
6 Gland plate correctlyinstalled and drain pluginstalled where applicable
7 Sufficient access for incomingcables
8 Equipment located correctlyto allow access for maintenance.
Ex& IP ratingas per datasheet, correctlymaintained byuse of plugs,
9
glands, seals.
Check that preservation and mechanical protection is in accordance with
10
project specification and anydisturbed preservation replaced.

Comments/Action (whereapplicable)

Rofcom
CompletedBy RofcomQC CNLConstruction
Construction
Signature
Date
Electrical

R R o fco m E n er gy
S er v ice L im ited
LIGHTINGCIRCUIT
INSULATIONRESISTANCE
!
TEST !
(Fittings disconnected)
Unique ID Item/TagNo.
Project Name: Sub-SystemNo
Sub-SystemDescription Date Printed
DrawingReference
Circuit Value Date Circuit Value Date
Number M Number M

CONVENIENCEOUTLETS
Residual
Earth loop
Circuit Number IRM Current Polarity Date
impedance
device

Remarks:

Rofcom
CompletedBy RofcomQC CNLConstruction
Construction
Signature
Date
Electrical

CHECKPROCEDURE
R R ofcom E n er gy
S er v ice L im ited
ELECTRICAL
LIGHTINGINSTALLATION
! !
Unique ID Item/TagNo.
Project Name: Sub-SystemNo
Sub-SystemDescription Date Printed
DrawingReference

Item Check boxes for each line numbeer to be marked with OKor NA Result
All equipment installed accordingto drawing, specification and area
1
classification, Includingall junction boxes.
2 All tagnumbers correct, securelyattached and readable.
All equipment undamaged and correctlymounted. Light fixtures sealed and
3
clean
4 Correct type of glands fitted and tightened, IP washer fitted.(where applicable)
5 Spare holesplugged with correct rated plugand IP washer. (where applicable)
6 All nuts, bolts and washers fitted and accordingto spec
7 Internal earthingcorrect.
8 Sufficient access for incomingcables
9 Lightinginstallation installed with sufficient access for maintenance
Check core continuity and circuit polarityof each circuit and supply. Max
10 acceptable value: 0.2 Ohm
Check insulation resistance fromdist. Board for complete circuit at 500Vdc,
11
live conductor to earth neutral to earth, minimumacceptable value 2 Mohms
12 Terminations correct and tight
13 Junction boxgasket fitted to lid cover
Ensure all fixtures as per GA drawingand asbuilt where applicable.
14
Highlighte to show all checked equipment
Attach a copy of LightingCircuit Single line diagramHighlighted to show all
15
Inspected cables LightsBoxes and Switches
Comments/Action (where applicable)

Completed Rofcom
RofcomQC CNLConstruction
By Construction
Signature
Date
