The Typical Mega Foundation
Bored Pile
17
DONGAH GEOLOGICAL ENGINEERING CO.,LTD
Diaphragm Wall

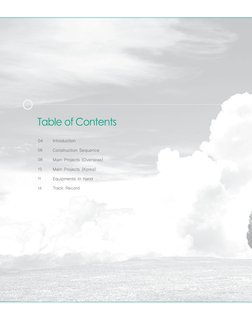

Table of Contents
04 Introduction
06 Construction Sequence
08 Main Projects (Overseas)
10 Main Projects (Korea)
11 Equipments in hand
14 Track Record
The Typical Mega Foundation
Bored Pile

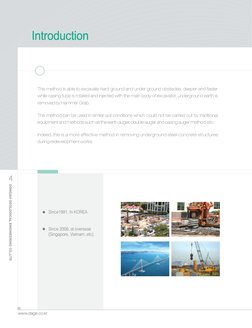

Introduction
This method is able to excavate hard ground and under ground obstacles, deeper and faster
while casing tube is rotated and injected with the main body of excavator, underground earth is
removed by Hammer Grab.
This method can be used in similar soil conditions which could not be carried out by traditional
equipment and methods such as the earth auger, double auger and casing auger method, etc.
Indeed, this is a more effective method in removing underground steel-concrete structures
during redevelopment works.
4
DONGAH GEOLOGICAL ENGINEERING CO.,LTD
Since1991, In KOREA
Since 2006, at overseas
(Singapore, Vietnam, etc)
www.dage.co.kr

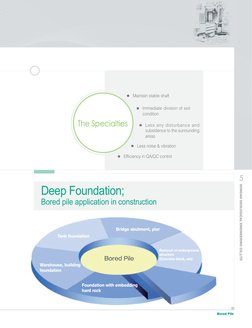

Maintain stable shaft
Immediate division of soil
condition
The Specialties Less any disturbance and
subsidence to the surrounding
areas
Less noise & vibration
Efficiency in QA/QC control
5
Deep Foundation;
DONGAH GEOLOGICAL ENGINEERING CO.,LTD
Bored pile application in construction
Bridge abutment, pier
Tank foundation
Removal of underground
structure
Bored Pile (Concrete block, etc)
Warehouse, building
foundation
Foundation with embedding
hard rock
Bored Pile

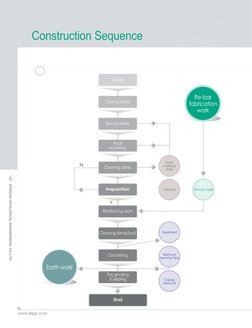

Construction Sequence
Survey
Re-bar
Casing install
fabrication
work
Boring works
Rock
socketing
Earth
N Cleaning slime material/
slime
6
DONGAH GEOLOGICAL ENGINEERING CO.,LTD
Inspection Disposal Re-bar cage
Y
Reinforcing work
Cleaning slime(2nd) Treatment
Concreting Remove
tremmie Pipe
Earth work
Toe grouting
/Capping Casing
removal
End
www.dage.co.kr

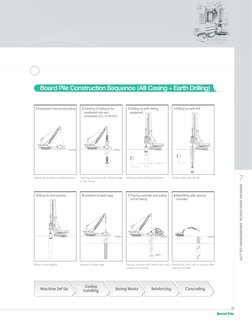

Board Pile Construction Sequence (Alll Casing + Earth Drilling)
1.Equipment moving and setting 2.Inserting of casing to the 3.Setting up earth drilling 4.Drilling by earth drill
weathered rock and equipment
excavation (G.L -0~40.0m)
( (
) )
Casing
40M
Casing
40M
Water level
Setting up oscillator in planed position Inserting of casing with hammer grab
to GL(-)40.0m
Setting up earth drilling equipment Drilling below GL(-)40.0m
7
DONGAH GEOLOGICAL ENGINEERING CO.,LTD
5.Move to next position 6.Insertion of steel cage 7.Placing concrete and pulling 8.Backlling after placing
out of casing concrete
() (
)
CON'C
Move to next position Insertion of steel cage Placing concrete with tremie pipe and Backfilling with soil or gravel after
pulling out of casing placing concrete
Casing
Machine Set Up Installing Boring Works Reinforcing Concreting
Bored Pile

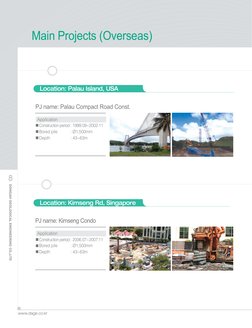

Main Projects (Overseas)
Location: Palau Island, USA
PJ name: Palau Compact Road Const.
Application
Construction period : 1999.09~2002.11
Bored pile : 1,500mm
Depth : 43~63m
8
DONGAH GEOLOGICAL ENGINEERING CO.,LTD
Location: Kimseng Rd, Singapore
PJ name: Kimseng Condo
Application
Construction period : 2006.07~2007.11
Bored pile : 1,500mm
Depth : 43~63m
www.dage.co.kr
Location: Hanoi, Vietnam
PJ name: Hanoi City Complex
Application
Construction period : 2007.10~2008.07
Bored Pile : 1,500mm, 2,000mm
Depth : 43~63m
DONGAH GEOLOGICAL ENGINEERING CO.,LTD
Location: Collyer Quay Rd, Singapore
PJ name: Redevelopment of overseas Union House & Change Alley Plaza Collyer Quay
Application
Construction period : 2007.12~2008.07
Bored pile : 1,100mm, 1,500mm
Depth : 40m
Bored Pile

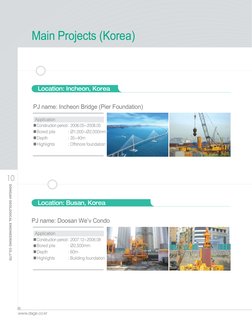

Main Projects (Korea)
Location: Incheon, Korea
PJ name: Incheon Bridge (Pier Foundation)
Application
Construction period : 2006.05~2008.05
Bored pile : 1,000~2,000mm
Depth : 35~40m
Highlights : Offshore foundation
10
DONGAH GEOLOGICAL ENGINEERING CO.,LTD
Location: Busan, Korea
PJ name: Doosan Wev Condo
Application
Construction period : 2007.12~2008.08
Bored pile : 2,500mm
Depth : 60m
Highlights : Building foundation
www.dage.co.kr
Equipments in hand
DRILLING RIG
BG28 BG36 BG40 DMB 18S SD515
11
DONGAH GEOLOGICAL ENGINEERING CO.,LTD
Crane Main Aux Kelly
Daimeter Depth Rotary
Item Crowd system weight winch winch bar Remark
(mm) (m) speed
(ton) (tf) (tf) torque
2008.
BG-28 2500MM 71 Winch type 96 35U/MIN(RPM) 25.51 8.16 276kNm 01
23/48U/ 2008.
BG-36 2500MM 71 Winch type 120 30.61 10.2 300kNm
MIN(RPM) 01
21/43U/ 1994.
BG-40 2500MM 53 Cylinder type 142.5 30.61 13.27 300kNm
MIN(RPM) 12
LOW9/ 2008.
DMB-18S 2000MM 57 Cylinder or winch 91 25.0 25.0
HIGH18 RPM 08
8.5/14.7/31.6/ 2007.
SD515 1500MM 45.5 Winch type 70 18.3 6.0 140kNm
52.9(RPM) 12
Bored Pile
Equipments in hand
Osillator
Model BM-C150 MGN2000HD BM-C200 BM-C200S BM-C300
Item
Casing Out Diameter Max. 1,500mm Max. 2,000mm Max. 2,000mm Max. 2,000mm Max. 3,000mm
Lifting Stroke 600 mm 700 mm 600 mm 600 mm 650 mm
Lifting Force 243 ton at 320bar 3940kN (402 ton) 314 ton at 320bar 581 ton at 320bar 726 ton
Clamping Force 197 ton at 320bar 2895kN (295 ton) 257 ton at 275bar 402 ton at 320bar 509 ton
Torque 286 ton-m at 320bar 6345kNm (647 ton-m) 481 ton-m at 320bar 721 ton-m at 320bar 1014 ton
Rotation Angle 25 26 25 25 21
Retaining Force 98 ton 129 ton 145 ton 163 ton
12
Travel of casing 327 mm 436 mm 436 mm 550 mm
Operating Pressure 320 bar 320 bar 320 bar 320 bar 320 bar
DONGAH GEOLOGICAL ENGINEERING CO.,LTD
6,815(L) 2,780(W) 8,225(L) 3,540(W) 7,775(L) 3,310(W) 8,995(L) 3,780(W) 10,455(L) 4,700(W)
Size
2,210(H) 2,280(H) 2,230(H) 2,525(H) 2,655(H)
Whole weight 26 ton 32 ton 31 ton 42 ton 57 ton
www.dage.co.kr
RCD Machine
ItemModel Model BM-R1820/NW300
BM-C150 MGN2000HD BM-C200
Base frame Max.drill bit out diameter : 2,000mm
Power swivel (model) PS22 / 113.88 /18
(2 Hyd. motors) Rexross A6VM 250HD2 Max.350bar
(2 Planetary gearing) 2 Planetary gearing (G22)
(Lower speed) 0~5.9 rpm / 0~18.4 Ton.m
(High speed) 0~28.69 rpm / 0~3.8 Ton.m
Mast tilt 26 deg.
Thrust cylinders Max. 3.5m stroke
(Thrust) 88tons at 320bar
(Pull-up) 129tons at 320bar
Working platform tilt Max. 20deg.(option)
Retaining device NW 300 drill pipe
Drill pipe rack tilt Max. 41.5deg.
Jib crane Max. 1ton swivel boom 13
wire rope diameter 6mmlength 25m
DONGAH GEOLOGICAL ENGINEERING CO.,LTD
Water inlet 10K - NW200*2lines
Weight Approx. 25 tons(incl. casing clamp)
ItemModel Model BM-R3030/NW300
BM-C150 MGN2000HD BM-C200
Base frame Max.drill bit out diameter :3,000mm
Power swivel (model) 2 Planetary Gearing (G25)
(2 Hyd. motors) Rexross A6VM 250HD2 Max.350bar
(2 Planetary gearing) 2 Planetary Gearing (G25)
(Lower speed) 0~10.0 rpm / 0~30.0 Ton.m
(High speed) 0~27.2 rpm / 0~11.0 Ton.m
Mast tilt 32deg.
Thrust cylinders Max. 3.5m stroke
(Thrust) 122tons at 320bar
(Pull-up) 201tons at 320bar
Working platform tilt Max. 12.5deg.(option)
Retaining device NW 300 drill pipe
Drill pipe rack tilt Max. 37.6deg.
Jib crane Max. 1ton swivel boom
wire rope diameter 6mmlength 25m
Water inlet 10K - NW200*2lines
Weight Approx. 38 tons
Bored Pile
Track Record
Overseas
No project name Country Client Contract Description of work Remark
period
New Consturction of Hanoi City 2007.10
1 Vietnam Coralis Vietam Co Piling works Completed
Complex of 65 Stories Tower 2008.08
Redevelopment of overseas
union and change alley aerial
Clifford 2007.12
2 Singapore Developments P/L Piling works Completed
plaza at collyer quay 2008.07
Palau compact road USA 1999.09
3 USA coe Bored pile Completed
14 / Pilling work (Palau) 2002.11
DONGAH GEOLOGICAL ENGINEERING CO.,LTD
www.dage.co.kr
15
DONGAH GEOLOGICAL ENGINEERING CO.,LTD
Bored Pile
HEAD OFFICE
1033-2 Guseo 2-dong, Geumjeong-gu, Busan, Korea
TEL. 82-51-580-5500 FAX. 82-51-580-5678
SEOUL LIAISON OFFICE
16th Floor, Seongwon Bldg, 141 Samseong-dong, Gangnam-gu, Seoul
TEL. 82-2-553-3527 FAX. 82-2-555-1763
SINGAPORE BRANCH OFFICE
192 Waterloo Street #04-07 Skyline Building Singapore 18766
TEL. 65-6745-6530 FAX. 65-6745-3059
