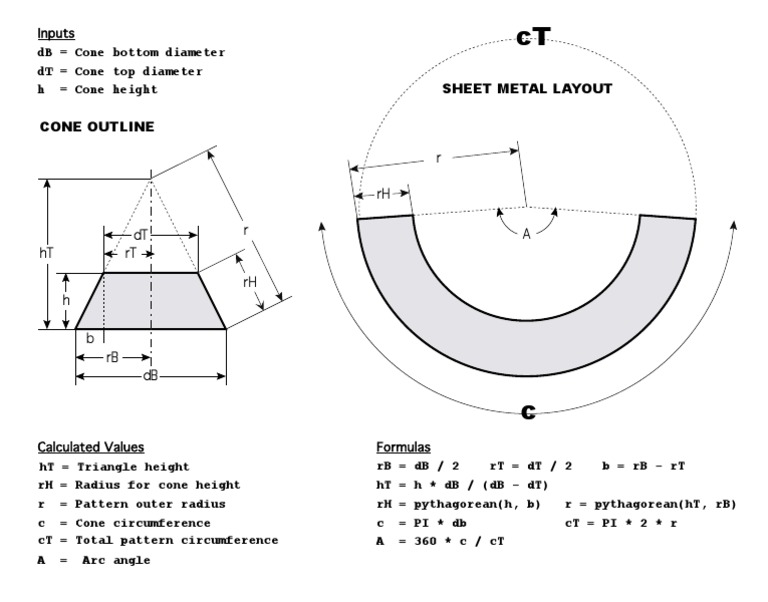

Inputs

dB = Cone bottom diameter


cT
dT = Cone top diameter
h = Cone height SHEET METAL LAYOUT

CONE OUTLINE

rH

dT r A
hT rT

rH
h

b
rB
dB

c
Calculated Values Formulas
hT = Triangle height rB = dB / 2 rT = dT / 2 b = rB - rT
rH = Radius for cone height hT = h * dB / (dB - dT)
r = Pattern outer radius rH = pythagorean(h, b) r = pythagorean(hT, rB)
c = Cone circumference c = PI * db cT = PI * 2 * r
cT = Total pattern circumference A = 360 * c / cT
A = Arc angle
