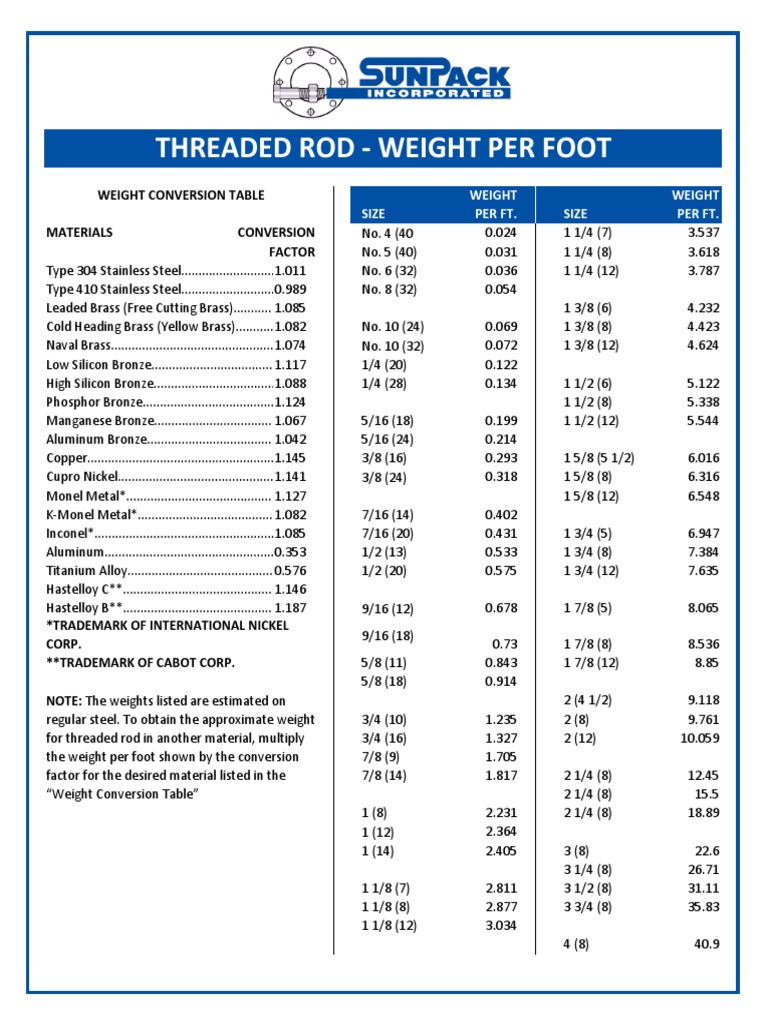

THREADED ROD - WEIGHT PER FOOT

WEIGHT CONVERSION TABLE WEIGHT WEIGHT


SIZE PER FT. SIZE PER FT.
MATERIALS CONVERSION No. 4 (40 0.024 1 1/4 (7) 3.537
FACTOR No. 5 (40) 0.031 1 1/4 (8) 3.618
Type 304 Stainless Steel...........................1.011 No. 6 (32) 0.036 1 1/4 (12) 3.787
Type 410 Stainless Steel...........................0.989 No. 8 (32) 0.054
Leaded Brass (Free Cutting Brass)........... 1.085 1 3/8 (6) 4.232
Cold Heading Brass (Yellow Brass)........... 1.082 No. 10 (24) 0.069 1 3/8 (8) 4.423
Naval Brass............................................... 1.074 No. 10 (32) 0.072 1 3/8 (12) 4.624
Low Silicon Bronze................................... 1.117 1/4 (20) 0.122
High Silicon Bronze...................................1.088 1/4 (28) 0.134 1 1/2 (6) 5.122
Phosphor Bronze...................................... 1.124 1 1/2 (8) 5.338
Manganese Bronze.................................. 1.067 5/16 (18) 0.199 1 1/2 (12) 5.544
Aluminum Bronze.................................... 1.042 5/16 (24) 0.214
Copper...................................................... 1.145 3/8 (16) 0.293 1 5/8 (5 1/2) 6.016
Cupro Nickel............................................. 1.141 3/8 (24) 0.318 1 5/8 (8) 6.316
Monel Metal*.......................................... 1.127 1 5/8 (12) 6.548
K-Monel Metal*....................................... 1.082 7/16 (14) 0.402
Inconel*....................................................1.085 7/16 (20) 0.431 1 3/4 (5) 6.947
Aluminum................................................. 0.353 1/2 (13) 0.533 1 3/4 (8) 7.384
Titanium Alloy.......................................... 0.576 1/2 (20) 0.575 1 3/4 (12) 7.635
Hastelloy C**........................................... 1.146
Hastelloy B**........................................... 1.187 9/16 (12) 0.678 1 7/8 (5) 8.065
*TRADEMARK OF INTERNATIONAL NICKEL
9/16 (18)
CORP. 0.73 1 7/8 (8) 8.536
**TRADEMARK OF CABOT CORP. 5/8 (11) 0.843 1 7/8 (12) 8.85
5/8 (18) 0.914
NOTE: The weights listed are estimated on 2 (4 1/2) 9.118
regular steel. To obtain the approximate weight 3/4 (10) 1.235 2 (8) 9.761
for threaded rod in another material, multiply 3/4 (16) 1.327 2 (12) 10.059
the weight per foot shown by the conversion 7/8 (9) 1.705
factor for the desired material listed in the 7/8 (14) 1.817 2 1/4 (8) 12.45
Weight Conversion Table 2 1/4 (8) 15.5
1 (8) 2.231 2 1/4 (8) 18.89
1 (12) 2.364
1 (14) 2.405 3 (8) 22.6
3 1/4 (8) 26.71
1 1/8 (7) 2.811 3 1/2 (8) 31.11
1 1/8 (8) 2.877 3 3/4 (8) 35.83
1 1/8 (12) 3.034
4 (8) 40.9
