    3.

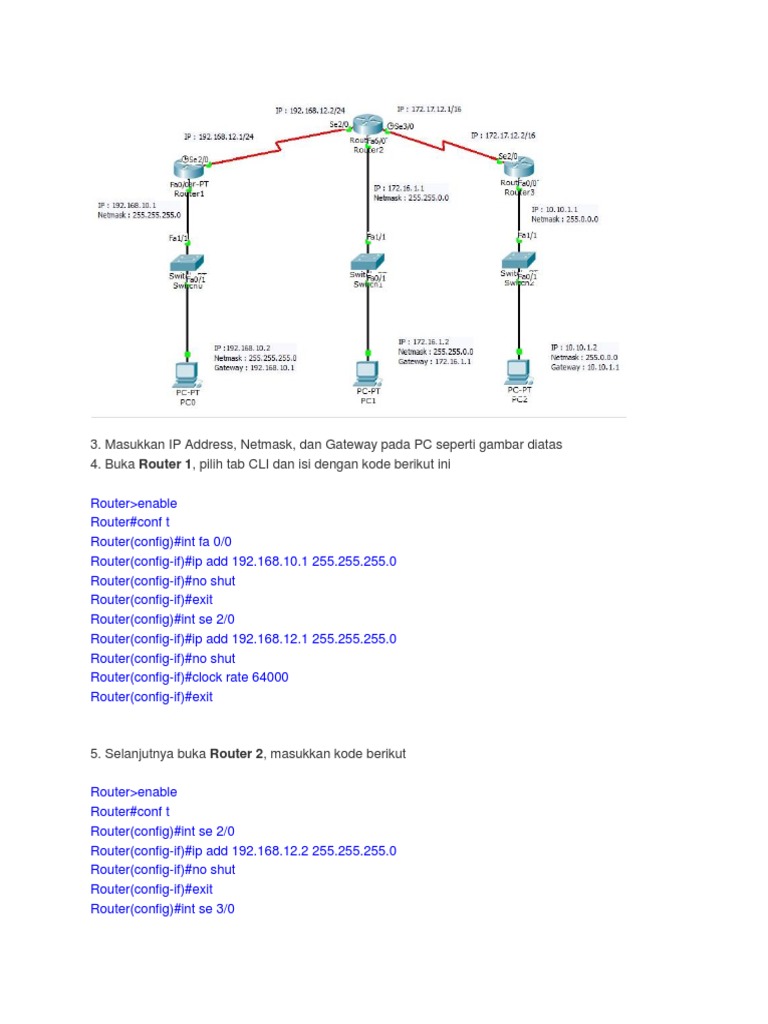

    Masukkan IP Address, Netmask, dan Gateway pada PC seperti gambar diatas


    4. Buka Router 1, pilih tab CLI dan isi dengan kode berikut ini

    Router>enable
    Router#conf t
    Router(config)#int fa 0/0
    Router(config-if)#ip add 192.168.10.1 255.255.255.0
    Router(config-if)#no shut
    Router(config-if)#exit
    Router(config)#int se 2/0
    Router(config-if)#ip add 192.168.12.1 255.255.255.0
    Router(config-if)#no shut
    Router(config-if)#clock rate 64000
    Router(config-if)#exit

    5. Selanjutnya buka Router 2, masukkan kode berikut

    Router>enable
    Router#conf t
    Router(config)#int se 2/0
    Router(config-if)#ip add 192.168.12.2 255.255.255.0
    Router(config-if)#no shut
    Router(config-if)#exit
    Router(config)#int se 3/0
    Router(config-if)#ip add 172.17.12.1 255.255.0.0
    Router(config-if)#no shut
    Router(config-if)#exit

    Router(config)#int fa 6/0
    Router(config-if)#ip add 172.16.1.1 255.255.0.0
    Router(config-if)#no shut
    Router(config-if)#exit

    6. Buka Router 3, masukkan kode berikut

    Router>enable
    Router#conf t
    Router(config)#int fa 0/0
    Router(config-if)#ip add 10.10.1.1 255.0.0.0
    Router(config-if)#no shut
    Router(config-if)#exit
    Router(config)#int se 2/0
    Router(config-if)#ip add 172.17.12.2 255.255.0.0
    Router(config-if)#no shut
    Router(config-if)#clock rate 64000
    Router(config-if)#exit

    IP router sudah, IP PC sudah selanjutnya kita routing

    7. Buka Kembali Router 1 dan masukkan kode routing berikut

    Router(config)#ip route 192.168.12.0 255.255.255.0 192.168.12.2


    Router(config)#ip route 172.16.1.0 255.255.255.0 192.168.12.2
    Router(config)#ip route 172.17.12.0 255.255.255.0 192.168.12.2
    Router(config)#ip route 10.10.1.0 255.255.255.0 192.168.12.2

    8. Buka Router 2, masukkan kode

    Router(config)#ip route 192.168.12.0 255.255.255.0 192.168.12.1


    Router(config)#ip route 192.168.10.0 255.255.255.0 192.168.12.1
    Router(config)#ip route 172.17.12.0 255.255.255.0 172.17.12.2
    Router(config)#ip route 10.10.1.0 255.255.255.0 172.17.12.2

    9. Yang terakhir buka Router 3, masukkan kode

    Router(config)#ip route 172.17.12.0 255.255.255.0 172.17.12.1


    Router(config)#ip route 172.16.1.0 255.255.255.0 172.17.12.1
    Router(config)#ip route 192.168.12.0 255.255.255.0 172.17.12.1
    Router(config)#ip route 192.168.10.0 255.255.255.0 172.17.12.1

    Silahkan ping antar PC, setelah itu kirim paket dan hasilnya akan seperti gambar dibawah ini
