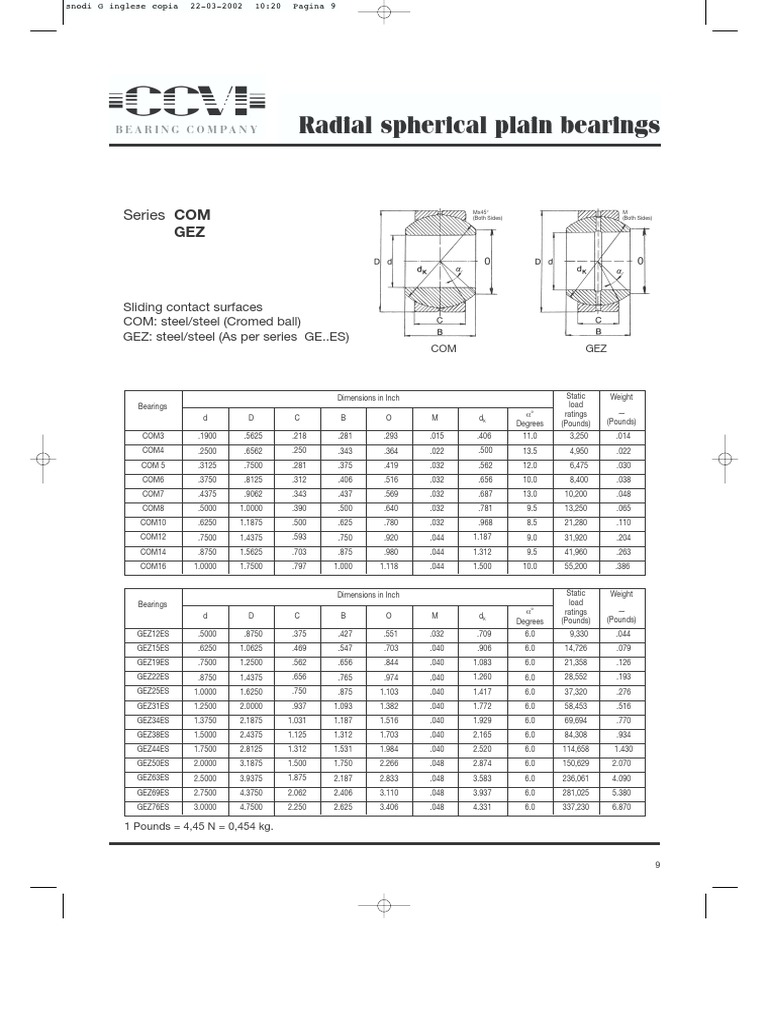

BEARING C O M PA N Y Radial spherical plain bearings

Series COM Mx45°

(Both Sides)
M
(Both Sides)

GEZ

Sliding contact surfaces

COM: steel/steel (Cromed ball)
GEZ: steel/steel (As per series GE..ES)
COM GEZ

Dimensions in Inch Static Weight

∼
Bearings load
d D C B O M α° ratings
dk (Pounds)
Degrees (Pounds)
COM3 0.1900 0.5625 0.218 0.281 V.293 V.015 V.406 11.0 3,250 V.014
COM4 0.2500 0.6562 0.250 0.343 0.364 0.022 0.500 13.5 4,950 0.022
COM 5 0.3125 0.7500 0.281 0.375 0.419 0.032 0 .562 12.0 6,475 0.030
COM6 0.3750 0.8125 0.312 0.406 0.516 0.032 0 .656 10.0 8,400 0.038
COM7 0.4375 0.9062 0.343 0.437 0.569 0.032 0 .687 13.0 10,200 0.048
COM8 0.5000 1.0000 0.390 0.500 0.640 0.032 0 .781 9.5 13,250 0.065
COM10 0.6250 1.1875 0.500 0.625 0.780 0.032 1 .968 8.5 21,280 0.110
COM12 0.7500 1.4375 0.593 0.750 0.920 0.044 1.187 9.0 31,920 0.204
COM14 0.8750 1.5625 0.703 0.875 0.980 0.044 1.312 9.5 41,960 0.263
COM16 1.0000 1.7500 0.797 01.0000 01.1180 0.044 01.5005 10.0 55,200 .386

Dimensions in Inch Static Weight

∼
Bearings load
d D C B O M α° ratings
dk
Degrees (Pounds) (Pounds)
GEZ12ES 0.5000 0.8750 0.375 0.427 V.551 V.032 V.709 6.0 9,330 V.044
GEZ15ES 0.6250 1.0625 0.469 0.547 0.703 0.040 0.906 6.0 14,726 0.079
GEZ19ES 0.7500 1.2500 0.562 0.656 0.844 0.040 1.083 6.0 21,358 0.126
GEZ22ES 0.8750 1.4375 0.656 0.765 0.974 0.040 1.260 6.0 28,552 0.193
GEZ25ES 1.0000 1.6250 0.750 0.875 1.103 0.040 1.417 6.0 37,320 0.276
GEZ31ES 1.2500 2.0000 0.937 1.093 1.382 0.040 1.772 6.0 58,453 0.516
GEZ34ES 1.3750 2.1875 1.031 1.187 1.516 0.040 1.929 6.0 69,694 0.770
GEZ38ES 1.5000 2.4375 1.125 1.312 1.703 0.040 2.165 6.0 84,308 0.934
GEZ44ES 1.7500 2.8125 1.312 1.531 1.984 0.040 2.520 6.0 114,658 01.430
GEZ50ES 2.0000 3.1875 1.500 1.750 2.266 0.048 2.874 6.0 150,629 2.070
GEZ63ES 2.5000 3.9375 1.875 2.187 2.833 0.048 3.583 6.0 236,061 4.090
GEZ69ES 2.7500 4.3750 2.062 2.406 3.110 0.048 3.937 6.0 281,025 5.380
GEZ76ES 3.0000 4.7500 2.250 2.625 3.406 0.048 4.331 6.0 337,230 6.870

1 Pounds = 4,45 N = 0,454 kg.
