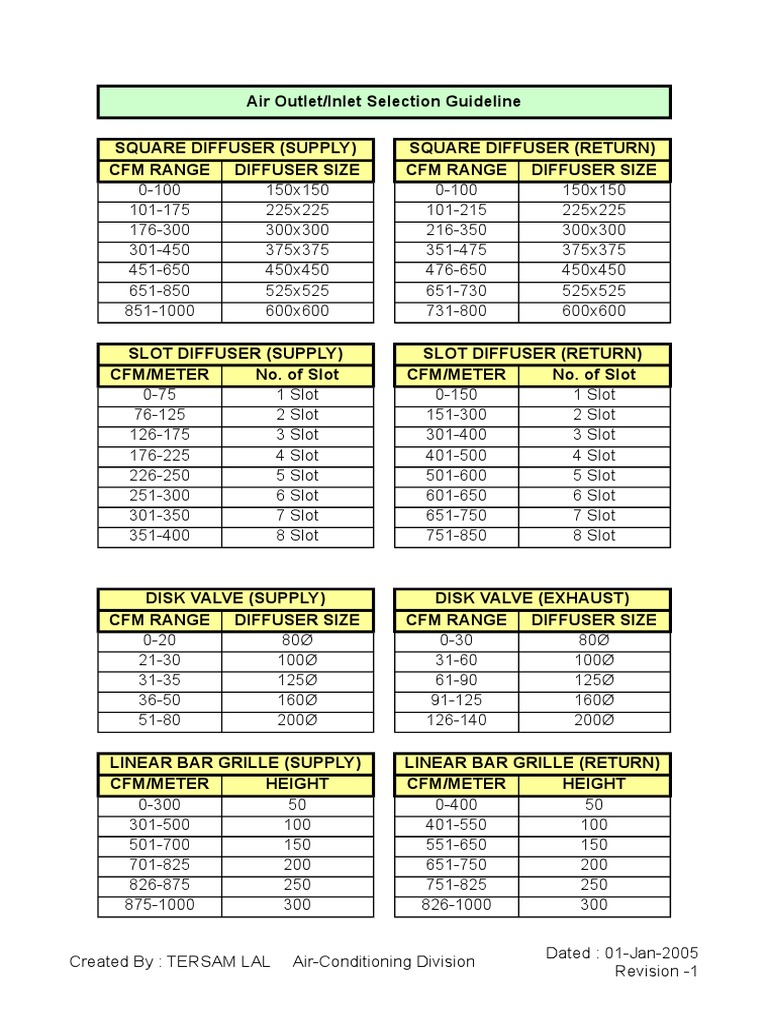

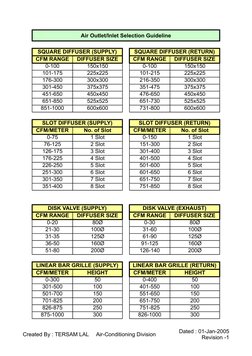

Air Outlet/Inlet Selection Guideline

SQUARE DIFFUSER (SUPPLY) SQUARE DIFFUSER (RETURN)


CFM RANGE DIFFUSER SIZE CFM RANGE DIFFUSER SIZE
0-100 150x150 0-100 150x150
101-175 225x225 101-215 225x225
176-300 300x300 216-350 300x300
301-450 375x375 351-475 375x375
451-650 450x450 476-650 450x450
651-850 525x525 651-730 525x525
851-1000 600x600 731-800 600x600

SLOT DIFFUSER (SUPPLY) SLOT DIFFUSER (RETURN)


CFM/METER No. of Slot CFM/METER No. of Slot
0-75 1 Slot 0-150 1 Slot
76-125 2 Slot 151-300 2 Slot
126-175 3 Slot 301-400 3 Slot
176-225 4 Slot 401-500 4 Slot
226-250 5 Slot 501-600 5 Slot
251-300 6 Slot 601-650 6 Slot
301-350 7 Slot 651-750 7 Slot
351-400 8 Slot 751-850 8 Slot

DISK VALVE (SUPPLY) DISK VALVE (EXHAUST)


CFM RANGE DIFFUSER SIZE CFM RANGE DIFFUSER SIZE
0-20 80Ø 0-30 80Ø
21-30 100Ø 31-60 100Ø
31-35 125Ø 61-90 125Ø
36-50 160Ø 91-125 160Ø
51-80 200Ø 126-140 200Ø

LINEAR BAR GRILLE (SUPPLY) LINEAR BAR GRILLE (RETURN)


CFM/METER HEIGHT CFM/METER HEIGHT
0-300 50 0-400 50
301-500 100 401-550 100
501-700 150 551-650 150
701-825 200 651-750 200
826-875 250 751-825 250
875-1000 300 826-1000 300

Dated : 01-Jan-2005
Created By : TERSAM LAL Air-Conditioning Division
Revision -1
