Project : Feature

Structure : Designed REF


Codes : BS 5950, BS 8110 Checked Date
Reference Calculation Output

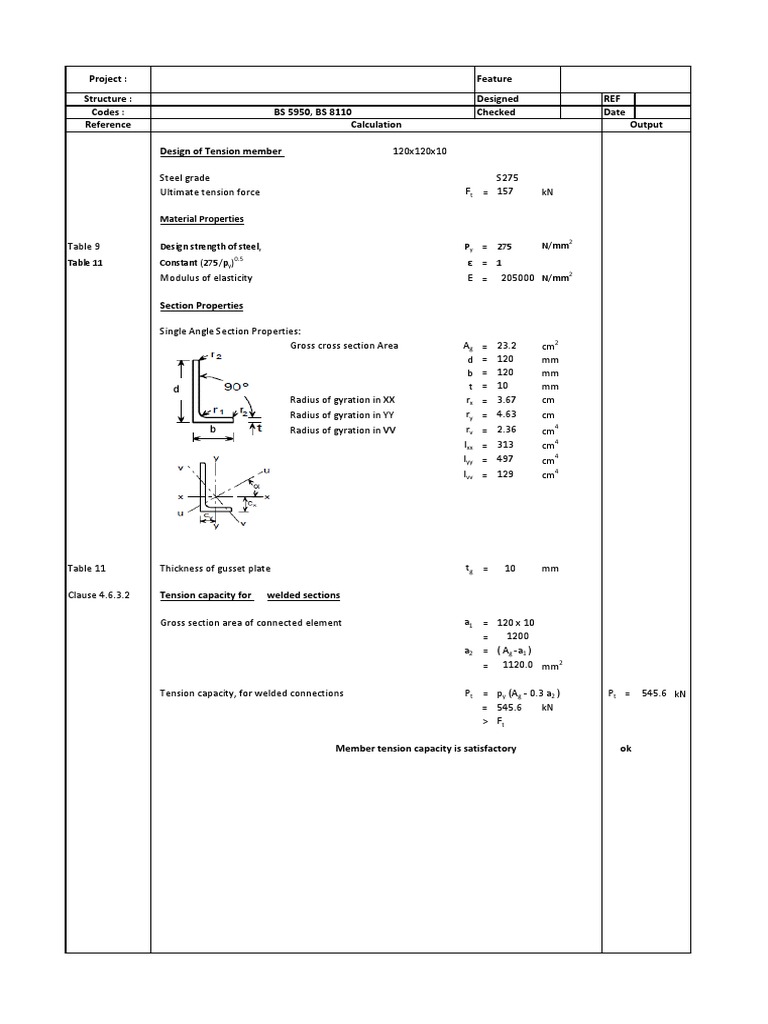

Design of Tension member 120x120x10

Steel grade S275


Ultimate tension force Ft = 157 kN

Material Properties

Table 9 Design strength of steel, Py = 275 N/mm2


0.5
Table 11 Constant (275/py) ε = 1
Modulus of elasticity E = 205000 N/mm2

Section Properties

Single Angle Section Properties:


Gross cross section Area Ag = 23.2 cm2
d = 120 mm
b = 120 mm
d t = 10 mm
Radius of gyration in XX rx = 3.67 cm
Radius of gyration in YY ry = 4.63 cm
b Radius of gyration in VV rv = 2.36 cm4
Ixx = 313 cm4
Iyy = 497 cm4
Ivv = 129 cm4

Table 11 Thickness of gusset plate tg = 10 mm

Clause [Link] Tension capacity for welded sections welded sections


bolted sections
Gross section area of connected element a1 = 120 x 10
= 1200
a2 = ( Ag -a1 )
= 1120.0 mm2

Tension capacity, for welded connections Pt = py (Ag - 0.3 a2 ) Pt = 545.6 kN


= 545.6 kN
> Ft

Member tension capacity is satisfactory ok
