    INSTITUTO DE CAPACITACIÓN EN

    MANUFACTURA Y AUTOMATIZACIÓN
    www.plc-puebla.com.mx icma@plc-puebla.com.mx
    (222) 6-911-718 o 6-011-079

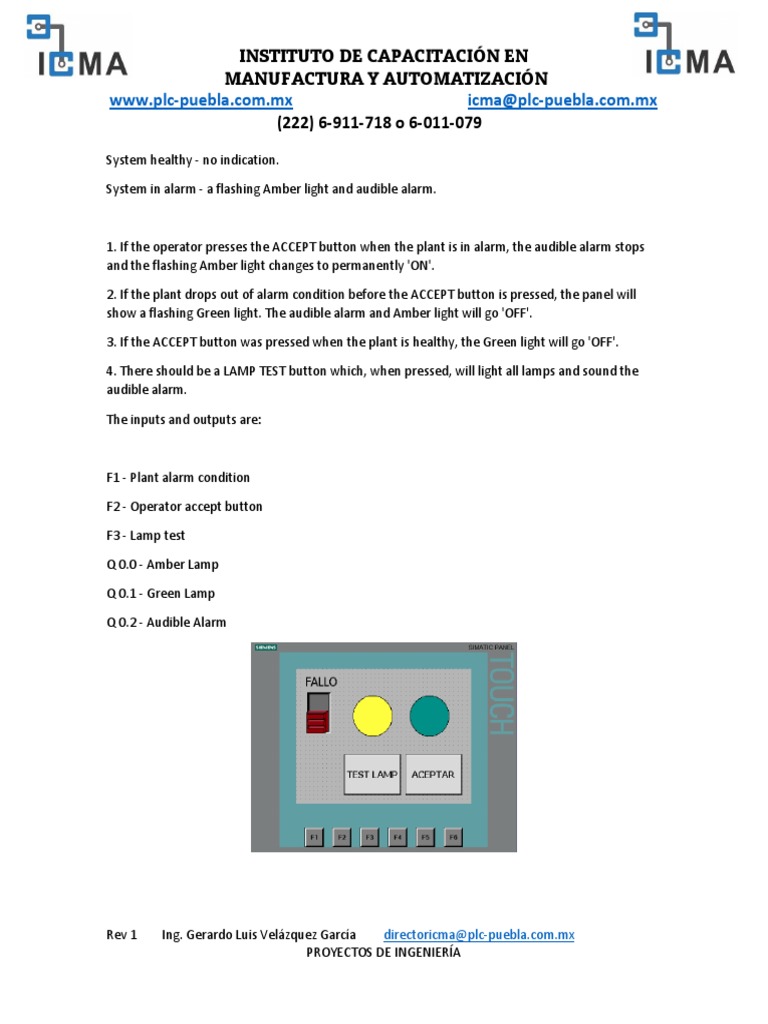

    System healthy - no indication.

    System in alarm - a flashing Amber light and audible alarm.

    1. If the operator presses the ACCEPT button when the plant is in alarm, the audible alarm stops
    and the flashing Amber light changes to permanently 'ON'.

    2. If the plant drops out of alarm condition before the ACCEPT button is pressed, the panel will
    show a flashing Green light. The audible alarm and Amber light will go 'OFF'.

    3. If the ACCEPT button was pressed when the plant is healthy, the Green light will go 'OFF'.

    4. There should be a LAMP TEST button which, when pressed, will light all lamps and sound the
    audible alarm.

    The inputs and outputs are:

    F1 - Plant alarm condition

    F2 - Operator accept button

    F3 - Lamp test

    Q 0.0 - Amber Lamp

    Q 0.1 - Green Lamp

    Q 0.2 - Audible Alarm

    Rev 1 Ing. Gerardo Luis Velázquez García directoricma@plc-puebla.com.mx


    PROYECTOS DE INGENIERÍA
