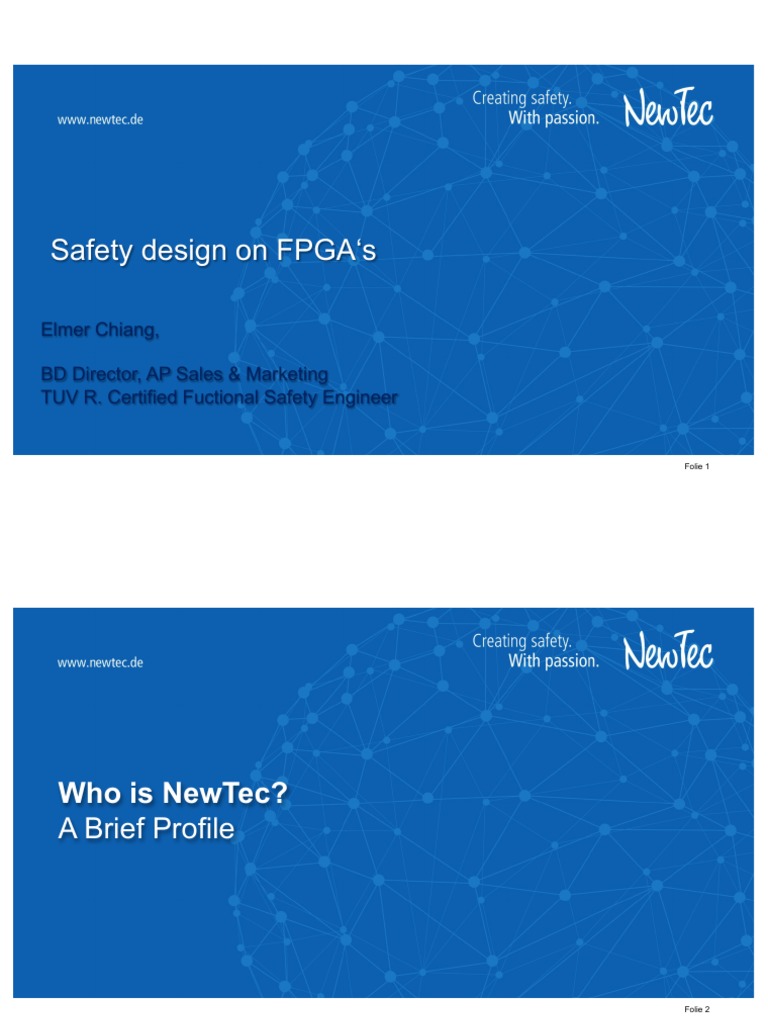

Safety design on FPGA‘s
Elmer Chiang,
BD Director, AP Sales & Marketing
TUV R. Certified Fuctional Safety Engineer
Folie 1
Who is NewTec?
A Brief Profile
Folie 2
Vision & Mission
We make the world safer!
Folie 3
Story of Initiation
NewTec GmbH Complete System Global and
Engineering office Provider NewTec cross-sectoral experts
is founded continues to expand for Functional Safety
and Embedded Security
1986 1995 2007 2017
F900_0717 Folie 4
Toward a successful future
In the near future, interconnected and automated systems will dictate the
market. Their reliability will be the basis for the success of your business.
Folie 5
How does NewTec work?
Customer Benefits
Folie 6
NewTec Service Portfolio
Strengthening your market position by availing of the
innovation and technology impulses from NewTec
Services Faster product launch and reduced development costs
thanks to the wide range of expertise that NewTec offers
Training & Risk minimization thanks to maximum transparency,
Consultation integration in your processes and successful project
management
High level of safety and security expertise with respect
to development processes and global safety standards
Products
Ensuring competitiveness by reliably protecting your
sensitive data
Folie 7
NTSafetySolutions
Safe Products – fast and efficient:
Risk management, ensure safety,
managing SIL
Services
Training &
Consultation
Products
F900_0717 Folie 8
NTSafetySolutions
Training & Consultation
• Varied range of seminars
for functional safety in Expert services to do Managed Services
practice with all aspects of product in Product Lifecycle
• Safety workshops for development
individual customers
• Safety management assessment • Safety system development
• Safety risk assessment • Safety engineering
Products, e.g. • Safety requirement analysis • Safety software development
• Licensing strategy • Safety hardware development
• SafeFlex – Reference platform • Safety planning • Integration, verification &
for safety development • Safety concept validation
• NTSafeDrive – Safety module for • Concept examination • Documentation & traceability
drives • Functional safety management
• NTSafePLC – Safe PLC basis-platform
for industry applications
F900_0717 Folie 9
NTSecuritySolutions
Embedded Security:
Protection against sabotage attacks and
external manipulation
Services
Training &
Consultation
Products
F900_0717 Folie 10
NTSecuritySolutions
Training & Consultation Expert services to do with Managed services
all aspects of product in product lifecycle
• Varied range of seminars development
relating to embedded
security • Security risk assessment • Continuous examination of weak
• Security workshops for • Security requirement points due to new threats
individual customers analysis • Continuous examination of
• Security concepts conformity with current safety
• Penetration tests standards
Products, e.g.
• Security robustness tests • Continuous maintenance of the
• Statistical code analysis safety requirement wanted
• NTSecureCloudSolution
• Incident management
• NTSecurePOS
• Obsolescence management for
safety-relevant system parts
F900_0717 Folie 11
NewTec Product and System Development
Complete Lifecycle of the
Product Engineering
• Requirements
• Design
• System development
• Software development
• Hardware development
• Mechanics
• Testing
F900_0717 Folie 12
Why Smart Watchdog/Challenge
• Processor Suppliers deliver Systems with Lockstep Processor and
System Basis Chip
• Intel PSG to provide SIL3/SIL4 ready systems with Max 10 System Basis
Chip
F900_0717 Folie 13
Example of Motor Control System
Control algorithm Low level motor control
implemented on NIOS II implemented in FPGA
Softcore processor logic
Industrial Ethernet Encoder Interface
communication
Implemented on NIOS II
Softcore processor Drive Control PWM Power Stage
IE Stack
Industrial
Ethernet
MAC
Motor Encoder
F900_0717 Folie 14
Example of Motor Control System with Safety
Safety encoder considered
Safety critical software black channel communication
Safety Processing Emergency Shut Off
Safety processing Communicaton
Safety
Encoder
Encoder Interface
Drive Control PWM STO Power Stage
IE Stack
Industrial
Ethernet
MAC
Industrial Ethernet considerd
as black channel communication Motor Encoder
F900_0717 Folie 15
Different ways to implement safety
• 1 standard MCU is used for drive controls
• 2 “safe” MCU’s are used for safe communication and safe stop functionality
F900_0717 Folie 16
Different ways to implement safety
• Safety designs require diagnostics to be run periodically to ensure safety
function is functioning correctly. For a processor this generally requires
Software Test Libraries (STL’s)
• STL’s used to test processor functionality in addition to rest of
system
F900_0717 Folie 17
Different ways to implement safety
• Disadvantages of STL’s
• Running STL’s consume essential processing MIPS
• STL’s are often destructive and require system context to be Saved
before running Restored after running
• Alternative to provide hardware realtime diagnostics via Lockstep
processor implementation or two channel solution
F900_0717 Folie 18
Different ways to implement safety
• Provide hardware realtime diagnostics via Lockstep processor
implementation
• Provide hardware realtime diagnostics via Smart Watchdog (Two channel)
Redundancy
F900_0717 Folie 19
What is a lockstep processor….
HFT 1
• It is not 1oo2 system
• It is a processor with hardware diagnostics
• Diagnostics provided by 2nd slave processor and comparator
F900_0717 Folie 20
What is a lockstep processor….
SFF (Safe Failure Hardware Fault Tolerance
Fraction)
0 1 2
<60% Not Allowed SIL1 SIL2
60% - <90% SIL1 SIL2 SIL3
90% - <99% SIL2 SIL3 SIL4
≥99% SIL3 SIL4 SIL4
• STL may achieve 70% DC
• Limits safety capability to SIL1/2
• Lockstep capable of achieving >99%
• Enables SIL3/4 capability
F900_0717 Folie 21
Safe Processor Architecture
NIOS II NIOS II
Comparator
CRC
Program RAM Data RAM Timers Mailbox
Calculator
IP Safety Protocol
F900_0717 Folie 22
Different ways to implement safety
Safe processor & peripherals is safety critical
• Implement using LockStep processor
• >99% DC
• Reduces need for STL -> more performance for safety application
• ECC for program/data RAM
• 90% DC
F900_0717 Folie 23
Different ways to implement safety
• STL (limited) for
• Timers
• Interrupts
• Bus infrastructure
• CRC Calculation
• Accelerate CRC calculations for Safe IE
• Clock Checker
• Check clock network/PLL
F900_0717 Folie 24
Smart Watchdog vs Lockstep
• LockStep processor >99% DC
• For all other components a DC >99% must be proven
• Single Chip needs additional “system basis chip”
• To detect common cause failures of single chip
• Monitoring and test of power monitoring
• Clock Watchdog
F900_0717 Folie 25
Smart Watchdog Concept
Smart Watchdog as Monitor
• Pre-configured NIOS II processor to supervise program flow and correct
data
• Power Supply
• Design guideline for discrete design of power monitor
• IP Core to test power supply monitor
• Window Watchdog
• Enhanced safety block associated with fail-safe output
• SPI Interface
• Flexible Safe I/O
F900_0717 Folie 26
Challenge
• SIL3 with least possible effort on customer side
• „safetify“ existing systems
• Pre-Integrate Diagnostics
F900_0717 Folie 27
Smart Watchdog Concept
Input Processing Output
monitoring
Processing
F900_0717 Folie 28
Solution Smart Watchdog Concept
F900_0717 Folie 29
Smart Watchdog Concept
• Intel FPGA as Customer-Application-FPGA
• MAX10 FPGA as Smart-Watchdog
• Power Supply Design including Power Supply Monitoring
F900_0717 Folie 30
Smart Watchdog Concept
• Integrated IP-Cores for
• Safe RAM
• Safe ROM
• Safe Clock
• Diagnostic Communication
• IP-Cores on demand for
• Safe Digital Inputs
• Safe Digital Outputs
• Safe Ethernet Communication
F900_0717 Folie 31
Smart Watchdog Concept
• Integrate Safety in existing Systems
• Pre-configured Diagnostics with IP-Cores
• Simple Safety-Application in Smart Watchdog FPGA
• Less effort in Engineering
• Very short Time-to-Market
• Safe I/O, communication, memory just by using the concept
• Safety-Manual
F900_0717 Folie 32
Demonstration
STO
Realisation of Safe Torque Off according to
DIN EN 61800-5-2 with SafeFlex
F900_0717 Folie 33
Safety Concept
HW System Architecture
Sensor Logic Actuator
Introduction
• SAFEFLEX: Hardware Architecture
Demonstration System Architecture
SafeFlex+ Diagnostic Measures
Power Supply
Power Supply
Monitor
Cyclone 5 SoC SOM
DSI 1 DS0 1
DSI 2 DS0 2
DSI 3 DS0 3
DSI 4 watchdog DS0 4
DSI 5
TS0 1
DSI 6
TS0 2
MAX10 SOM
RAM for
Blackchannel
Ethernet Ethernet
F900_0717 Folie 37
NTSafeDrive
The NTSafeDrive is an add-on Safety Module. It is enabling existing
drives to be used in environments where Functional Safety is required. It
supports encoder and encoderless operation.
The Safety Module is based on a two FPGAs 1oo2 architecture. It is
certifiable up to SIL3/SILCL3 according to IEC61508/IEC62061 and, PLe,
Cat 4. according to ISO 13849.
F900_0717 Folie 38
NTSafeDrive
NTSafeDrive
Power Supply with Power
Monitor
Safe Input Safe Output
Safe Input Safe Output
Safe Input Control Main Safe Output
Safe Input Safe Output
Safe Input Safe Output
Control Child
EMIF
SPI PWM FB
Encoder Interface
Customer Servo Drive
Control STO Power Stage
Motor Encoder
F900_0717 Folie 39
Typical applications
• Servomotors
• Inverters
F900_0717 Folie 40
Safe drive functions IEC61800-5-2/ IEC60204-1:
Advanced stop functions:
• Safe Torque Off (STO)
• Safe Stop1 (SS1)
• Safe Operating Stop (SOS)
• Safe Stop2 (SS2)
Advanced position functions:
• Safe Direction (SDI)
• Safely-limited Increment (SLI)
• Safely-Limited Position (SLP)
F900_0717 Folie 41
Safe drive functions IEC61800-5-2/ IEC60204-1:
Brake Functions
• Safe Brake Control
• Safe Brake Test
• Safe Monitored Temperature
F900_0717 Folie 42
Supported Encoder Interfaces
• EnDat
• Hiperface DSL
• SinCos
• SSI
• BISS
• BISS Safety
F900_0717 Folie 43
Safety Protocol
• FSoE
• ProfiSafe
• CipSafety
• Safety for TSN ??
• OpenSafety
F900_0717 Folie 44
Customer benefits
With the use of the NTSafeDrive Module you can focus on your core
competence, functional
safety is achieved by using the module and the support of NewTec.
