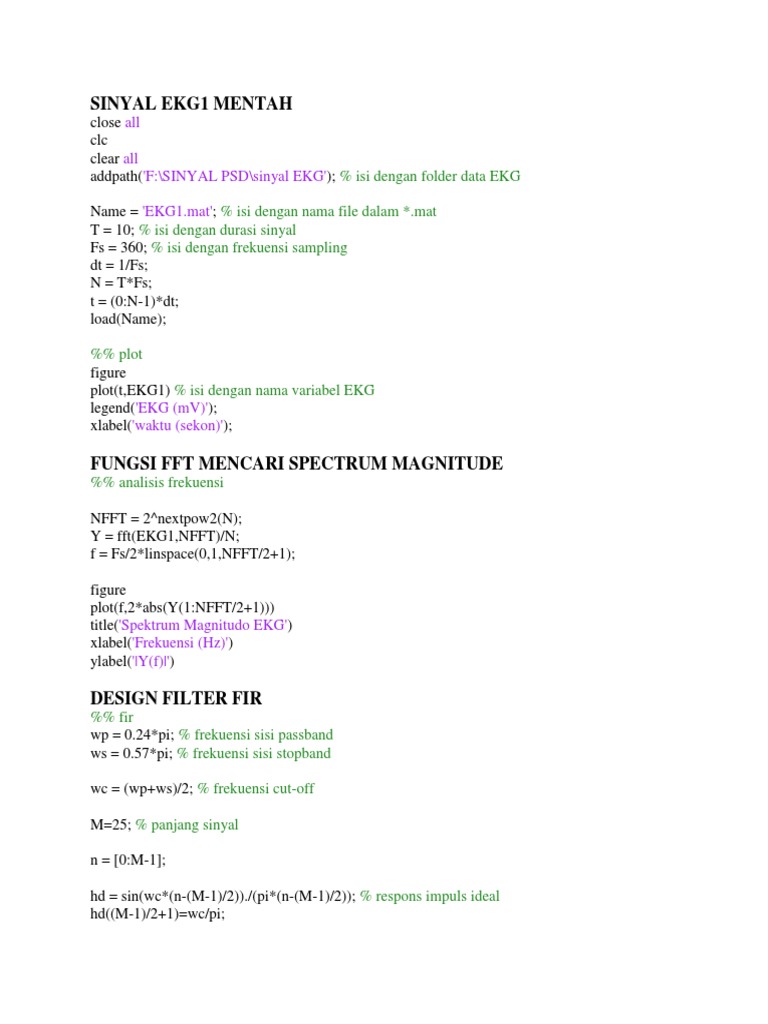

SINYAL EKG1 MENTAH

close all
clc
clear all
addpath('F:\SINYAL PSD\sinyal EKG'); % isi dengan folder data EKG

Name = 'EKG1.mat'; % isi dengan nama file dalam *.mat

T = 10; % isi dengan durasi sinyal
Fs = 360; % isi dengan frekuensi sampling
dt = 1/Fs;
N = T*Fs;
t = (0:N-1)*dt;
load(Name);

%% plot
figure
plot(t,EKG1) % isi dengan nama variabel EKG
legend('EKG (mV)');
xlabel('waktu (sekon)');

FUNGSI FFT MENCARI SPECTRUM MAGNITUDE

%% analisis frekuensi

NFFT = 2^nextpow2(N);
Y = fft(EKG1,NFFT)/N;
f = Fs/2*linspace(0,1,NFFT/2+1);

figure
plot(f,2*abs(Y(1:NFFT/2+1)))
title('Spektrum Magnitudo EKG')
xlabel('Frekuensi (Hz)')
ylabel('|Y(f)|')

DESIGN FILTER FIR

%% fir
wp = 0.24*pi; % frekuensi sisi passband
ws = 0.57*pi; % frekuensi sisi stopband

wc = (wp+ws)/2; % frekuensi cut-off

M=25; % panjang sinyal

n = [0:M-1];

hd = sin(wc*(n-(M-1)/2))./(pi*(n-(M-1)/2)); % respons impuls ideal

hd((M-1)/2+1)=wc/pi;
figure % plot respons impuls ideal
stem(n,hd)
title('Design Filter FIR')
ylabel('|Y(f)|')

DESIGN FILTER FIR DENGAN METODE WINDOW HAMMING

%%
w = 0.54-0.46*cos(2*pi*n/(M-1)); %window Hamming

h = w.*hd; % respons impuls filter

figure % plotting
stem(n,hd)
hold on
stem(n,h)
xlabel('n')
legend('h_{d}','h')
title('Design Filter FIR dengan Metode Window Hamming')
ylabel('|Y(f)|')

RESPONS FREKUENSI FIR FILTER

%% meningkatkan resolusi frekuensi
h1 = [h zeros(1,10e3-41)]; % menambah sampel menjadi 1000
h2 = [hd zeros(1,10e3-41)];

%% analisis frekuensi

NFFT = 2^nextpow2(length(h1)); % Next power of 2 from length of y

Y = fft(h1,NFFT);
Y2 = fft(h2,NFFT);
w1 = linspace(0,1,NFFT/2+1);

% group delay
hr = h.*[0:M-1];
h1r = [hr zeros(1,10e3-41)];
hdr = hd.*[0:M-1];
h2r = [hdr zeros(1,10e3-41)];

Yr = fft(h1r,NFFT);
Y2r= fft(h2r,NFFT);

tg = real(Yr(1:NFFT/2+1)./Y(1:NFFT/2+1));
tg2 = real(Y2r(1:NFFT/2+1)./Y2(1:NFFT/2+1));

% Plot respons frekuensi

figure
subplot(3,1,1)
plot(w1,20*log10(abs(Y(1:NFFT/2+1))))
hold on
plot(w1,20*log10(abs(Y2(1:NFFT/2+1))))
title('Respons Frekuensi FIR Filter')
ylabel('20log|H(\omega)| [dB]')
legend('Hamming Window','Rectangular Window')
subplot(3,1,2)
plot(w1,(angle(Y(1:NFFT/2+1))))
hold on
plot(w1,(angle(Y2(1:NFFT/2+1))))
ylim([-pi pi])
% title('Respons Frekuensi FIR Filter')
% xlabel('\omega_{norm}')
ylabel('\angleH(\omega) [rad]')
subplot(3,1,3)
plot(w1,tg)
hold on
plot(w1,tg2,'--')
% title('Respons Frekuensi FIR Filter')
xlabel('\omega_{norm}')
ylabel('\tau_{g}(\omega) [sampel]')
ylim([10 30])

FUNGSI KONVOLOSI DI COMMENT WINDOW (KETIKNYA)

a=h;
b=EKG1;
c=length(a);
d=length(b);
A=[a,zeros(1,d)];
B=[b,zeros(1,c)];
for i=1:c+d-1
E(i)=0;
for g=1:c;
if(i-g+1>0)
E(i)=E(i)+A(g)*B(i-g+1);
else
end
end
end
E
stem(E);
ylabel('E[d]');
xlabel('----->d');
%% Plot
T = 10 ; % isi dengan durasi sinyal
Fs = 360 ; % isi dengan frekuensi sampling
dt = 1/Fs;
N = T*Fs;
t = (0:N-1)*dt;
figure
plot(t,E(1:3600)) % isi dengan nama variabel EKG
legend('EKG (mV)');
xlabel('waktu (sekon)');
